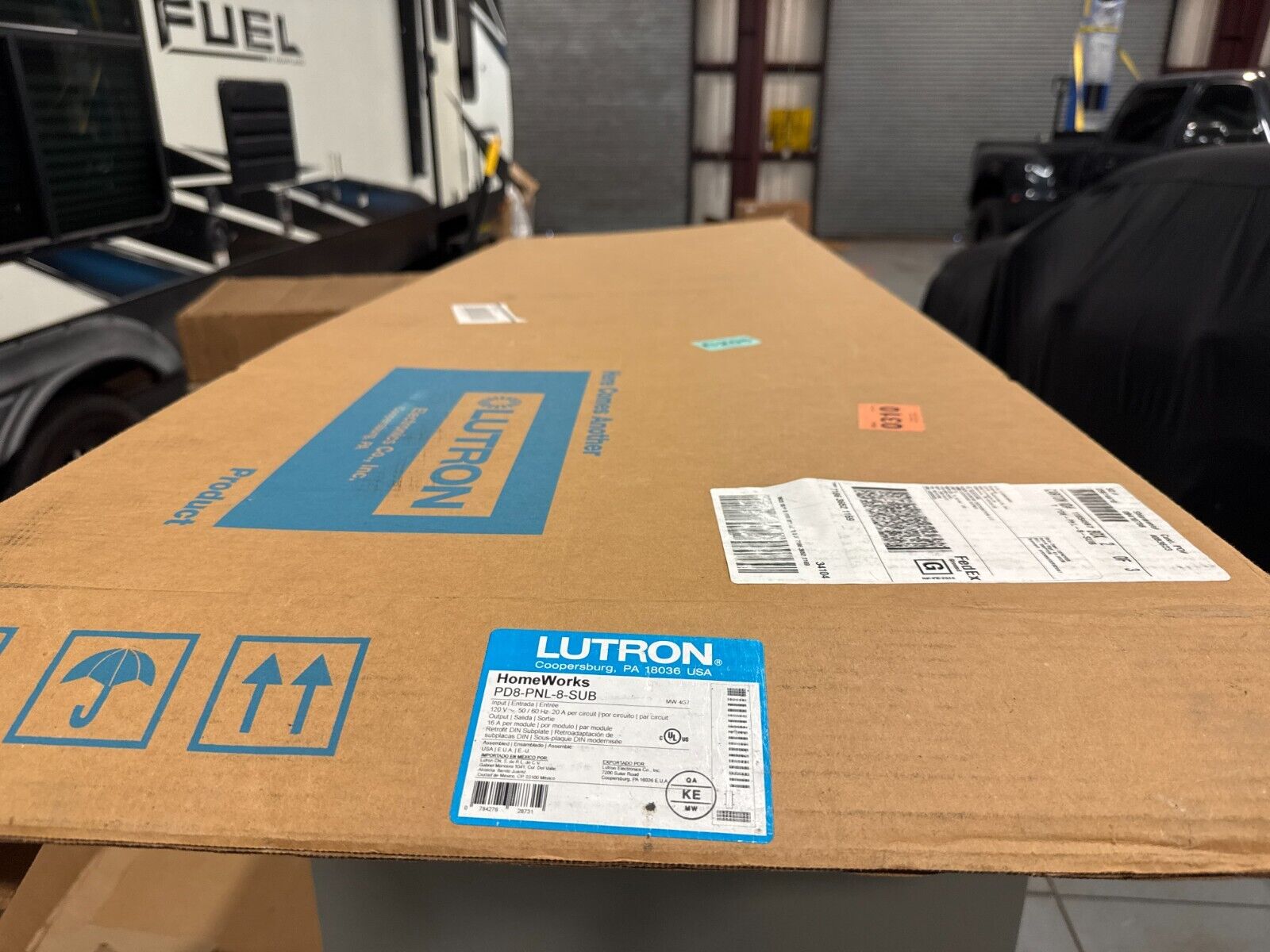

Lutron PD8-PNL-8-SUB DIN Rail Retrofit Subplate for Remote Power Panels
Lutron PD8-PNL-8-SUB DIN Rail Retrofit Subplate for Remote Power Panels
Regular price
$799.00 USD
Regular price
Sale price
$799.00 USD

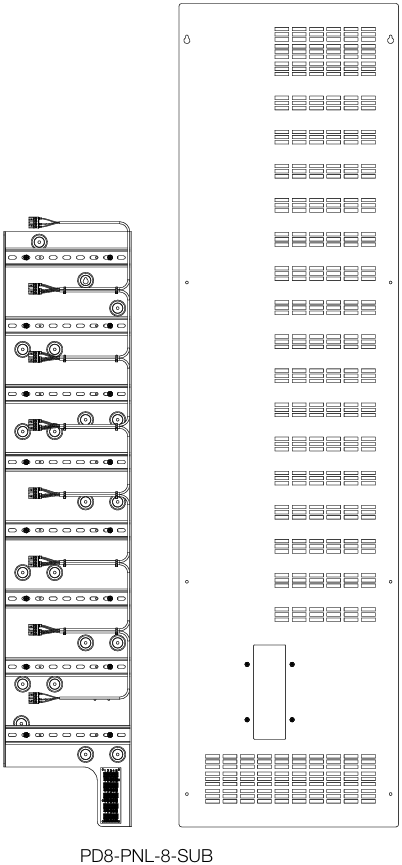

The DIN rail retrofit subplate is designed to accept Lutron DIN power modules (DPMs) and mount into an existing remote power panel. The compatible DPMs can be used to control multiple load types to fit the size, lighting plan, and design of a project. Features • The retrofit subplate comes with a DIN mounting plate for up to 8 DPMs, a panel cover, a QS wire landing board (QS-WLB) and a QS link wiring harness for easy installation. • Subplates come ready to install DPMs (sold separately). • Subplate can house these DPMs: – LQSE-2ECO-D – LQSE-4M-120-D – LQSE-4S8-120-D – LQSE-4A5-120-D – LQSE-4T5-120-D – LQSE-4T20-120-D Note: DPM line voltage wire harnesses (ex. PDW-x-DV) are not compatible with the DIN rail retrofit subplate. • Can be used with the following remote power panels:* – HWI-PNL-8 – HWAP-8D-15-120L3 – HWBP-8D-15-120L3 – HWAP-8D-20-120L3 – HWBP-8D-20-120L3 – HWAP-8D-15-120L4 – HWBP-8D-15-120L4 – HWAP-8D-20-120L4 – HWBP-8D-20-120L4 • Extensively tested to ensure optimal thermal performance with maximum load in 32 °F to 104 °F (0 °C to 40 °C) ambient environment. • Allows for the existing terminal blocks and field wiring to remain intact to reduce installation time. • Rated for 120 V~ applications.
Specifications Model Number PD8-PNL-8-SUB Power 120 V~ 50 / 60 Hz Capacity* Eight DPMs and one Wire Landing Board (WLB) Regulatory Approvals cULus, NOM Environment Ambient operating temperature : 32 °F to 104 °F (0 °C to 40 °C), 0% to 90% humidity, non-condensing. Indoor use only. Cooling Passive cooling Line-Voltage Connections Use copper wire only. Wires will land on DIN terminal blocks. Ground Bar Terminals Additional Ground terminal blocks included to provide ground connection for DPMs. Dimensions Subplate: 9.1875 in x 43 in x 1.125 in (233 mm x 1092 mm x 29 mm) Cover: 15.875 in x 59.5 in x 0.06 in (403 mm x 1511 mm x 1.5 mm) Mounting Install and wire in accordance with all local and national codes. Must be mounted in a Lutron remote power panel, see the next page for details. NOTICE: This equipment is air-cooled. Allow at least 12 in (305 mm) of air space at the top, bottom, and front of the cover or as required by local codes (whichever is greater). Construction Subplate: 16-gauge galvanized sheet metal (unpainted). Cover: Coated metal cover with ventilation holes. Cover is attached using phillips-head screws (not included). Warranty www.lutron.com/TechnicalDocumentLibrary/Warranty.pdf
