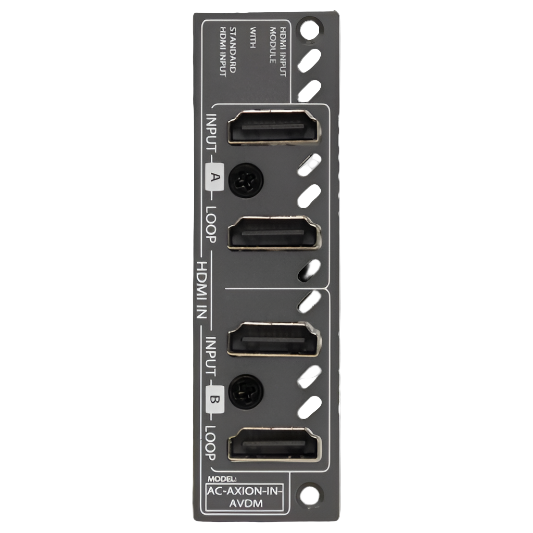

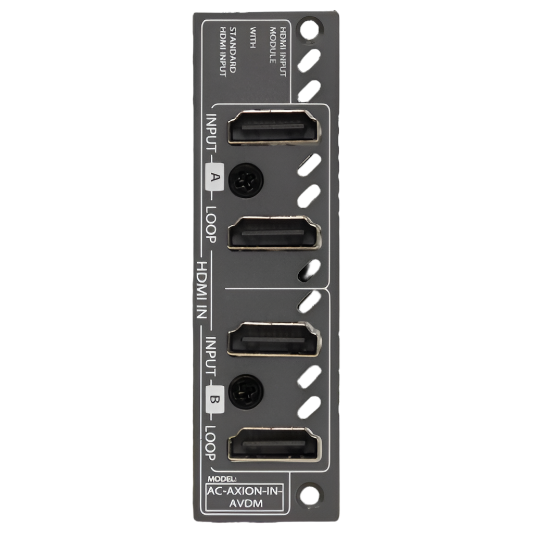

AXION AC-AXION-IN-AVDM Dual HDMI Input Card with Downmixing

Dual 18Gbps HDMI input ports with dual mirrored HDMI loop-out ports. Downmix standard Dolby Audio & DTS-HD formats up to 7.1 for output as stereo (LPCM 2.0) from the dual mirrored HDMI loop-outs or via audio extraction from the 5-pin analog balanced outputs or the TOSLINK digital outputs (mirrored and always downmixed to 2-channel audio). Dolby Atmos and DTS:X may be extracted and downmixed as 7.1, minus object-oriented metadata, or passed-through untouched via HDMI loop-outs.

• Input A: (1) HDMI + 1 Mirrored HDMI
• Input B: (1) HDMI + 1 Mirrored HDMI
• HDMI 2.0a/b Output
• Uncompressed HDMI Bitstream Audio (Dolby Atmos, DTS-X)
• Perfect AVR Bypass deliver 18Gbps to Display and uncompressed audio to AVR
• Downmix Audio formats up to 7.1-Channel to 2-Channel Stereo
• Full 12 Bit HDR Support
