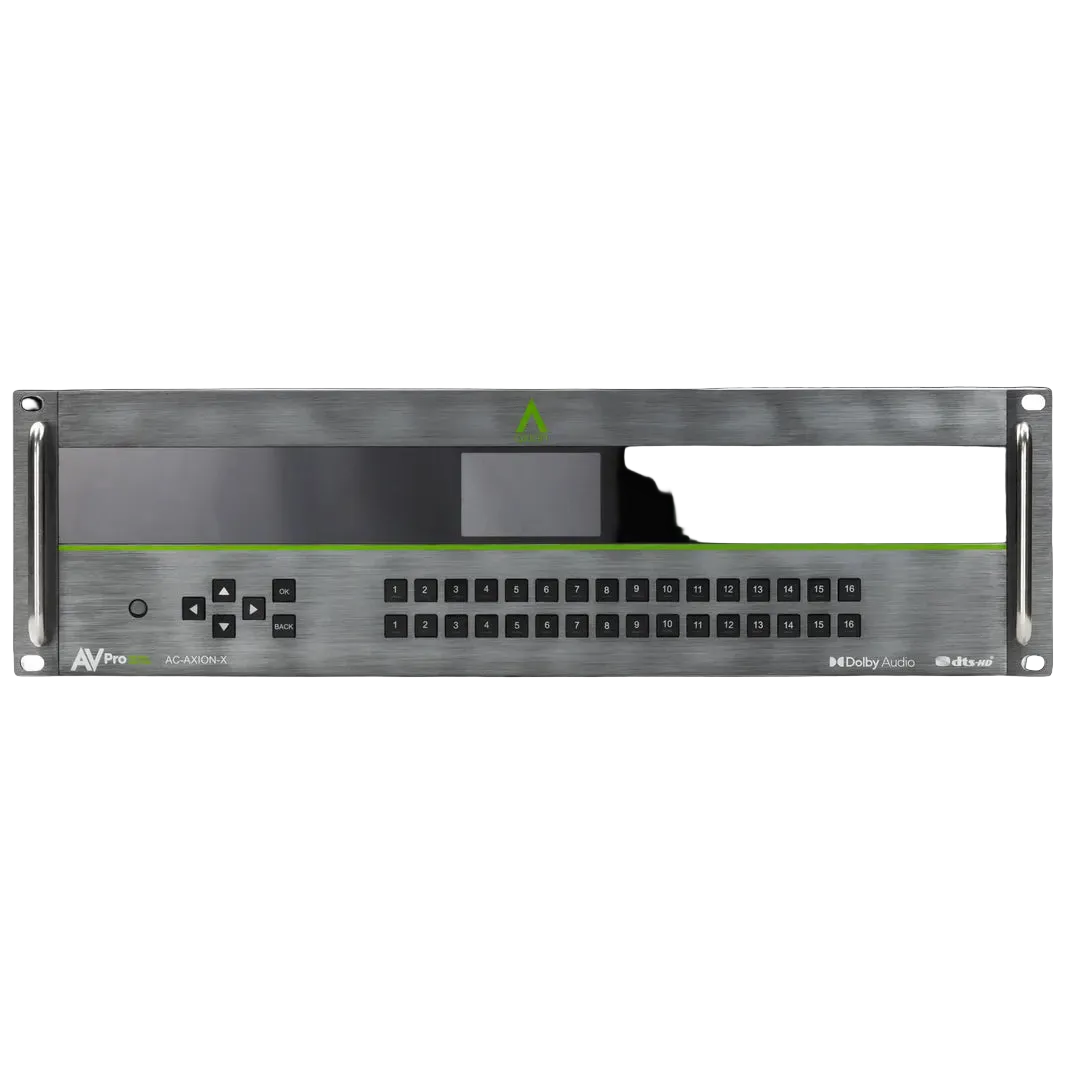

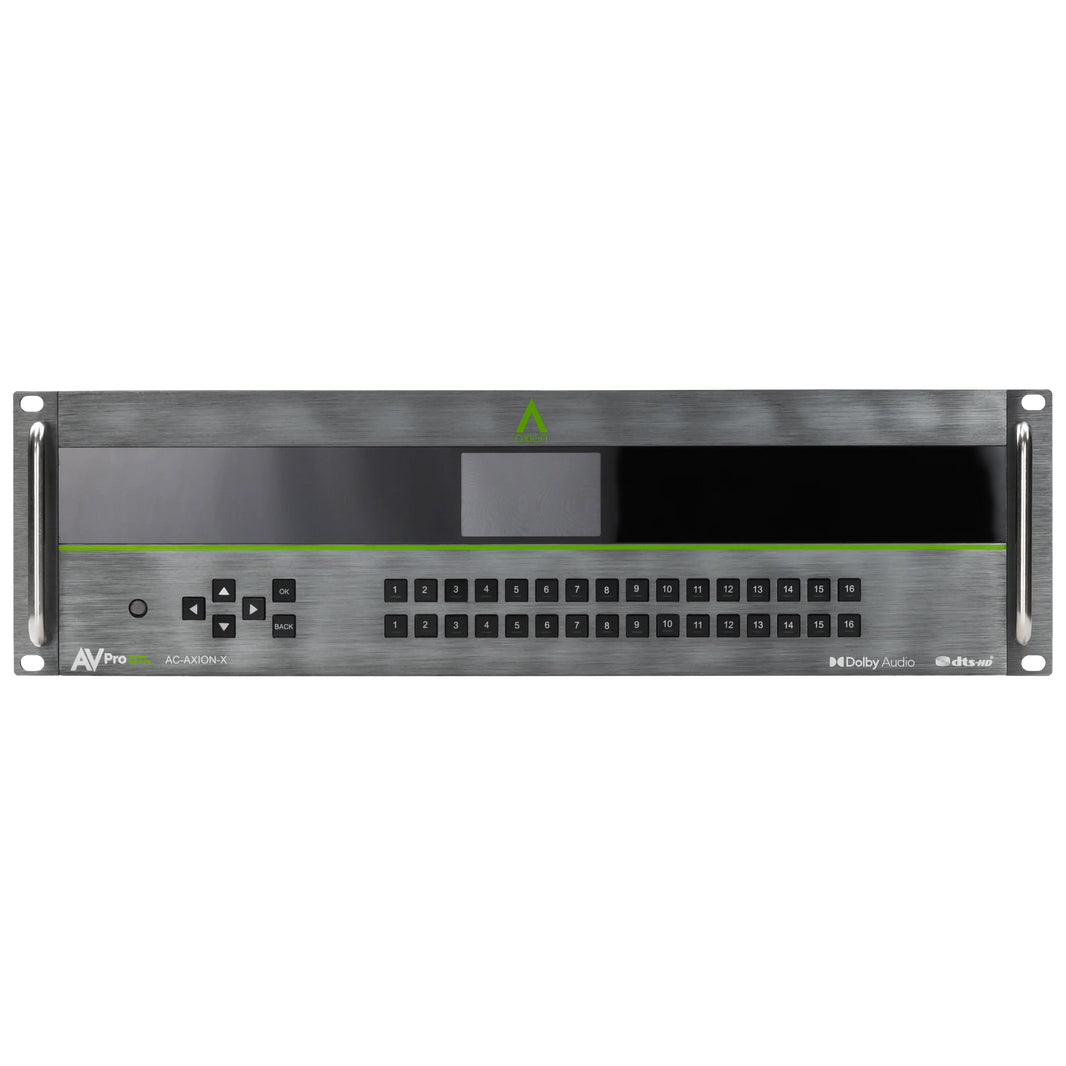

AXION X Matrix Chassis
AXION X Matrix Chassis
Couldn't load pickup availability
AXION X defines AVPro Edge’s expression for the current state-of-the-art in 4K matrix switchers. Featuring a chassis-based modular card architecture and custom-configurable for as many as 16 inputs by 16 outputs, AXION X is a world-class device deserving of your full attention.
Design and engineering was focused at fully addressing the needs expressed by custom integrators for a complete, synergistic, diversified product solution that would effectively manage any 4K video signal containing static or dynamic metadata, a companion high bitrate audio codec providing an immersive soundtrack, plus assorted system control signals.
AXION X is outfitted with a sophisticated suite of flexible features enabling integrators to autonomously craft input and output signal routing for audio, video, or control to meet any system requirement and to overcome unexpected on-site obstacles head-on.
| Audio: | |
| Audio Formats Supported HDMI | PCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos |
| Audio Formats Supported Extracted (Toslink) | PCM 2 Ch, LPCM 6 Ch, LPCM 7 Ch, Dolby Digital, Dolby Digital Plus |
| Audio Formats Supported Extracted (2CH Port) | PCM 2 CH |
| Audio Extraction Location | Bind to Input, Bind to Output or Matrix (Independent) |
| Audio Delay (Per Output, Extracted) | Up to 630MS |
| Distance: | |
| HDBaseT Out (4K60 4:4:4 & HDR) w/ AC-EX70-444-RNE | 70 Meters / 230 Feet (Cat 6a) |
| HDBaseT Out (1080P) w/ AC-EX70-444-RNE | 100 Meters / 330 Feet (Cat 6a) |
| HDBaseT Out (4K60 4:2:0 Max) w/ AC-EX70-UHD-R | 40 Meters / 131 Feet (Cat 6a) |
| HDBaseT Out (1080P) w/ AC-EX70-UHD-R | 70 Meters / 230 Feet (Cat 6a) |
| HDMI In/Out (4K60 4:4:4) | Up to 50 Feet (using Bullet Train HDMI) |
| HDMI In/Out (w/ AOC Cable) (4K60 4:4:4) | Up to 130 Feet (using Bullet Train AOC) |
| Other: | |
| Bandwidth HDMI | 18 Gbps Uncompressed |
| Bandwidth HDBaseT | 18 Gbps (Uses ICT above 10.2 Gbps signals) |
| HDCP | HDCP 2.3 and Earlier |
| PoH for Receivers (No need to power receivers) | Yes, all outputs |
| Control: | |
| Ports | LAN, RS232, IR, Micro USB |
| Drivers | C4, RTI, ELAN, Crestron, URC (for more - see Drivers Page) |
| LAN Web OS | YES |
| Ports: | |
| HDMI | Type A |
| HDBaseT | RJ45 w/ PoH for HDbaseT Receivers |
| LAN | RJ45 w/ Web Interface/Control |
| Audio (Extracted Digital) | Toslink |
| Audio (Extracted Analog) | 5 pin terminal block (balanced) |
| IR Rx | 3.5mm Stereo (3 Conductor) |
| RS232 | 3 pin terminal block |
| Environmental: | |
| Operating Temperature | 23 to 125°F (-5 to 51°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Humidity Range | 5-90% RH (No Condensation) |
| Power: | |
| Power Consumption (Total) | 56 Watts Max |
| Power Supply - Matrix | Input: AC 100-240V ~ 50/60Hz Output: DC 48V 2A |
| Dimensions: | |
| Dimensions (Unit Only Height/Depth/Width) | mm: 134.87 X 406.4 X 441.45 inch: 5.31 X 16 X 17.38 |
| Dimensions (Packaged Height/Depth/Width) | mm: 241.3 X 571.5 X 597 inch: 9.5 X 22.5 X 23.5 |
| Rack Units | 3U |
| Weight Unit (Empty Chassis) | 26.6 lbs (12.07 KG) |
| Weight Packaged (Empty Chassis) | 33 LBS (14.97 kg) |
