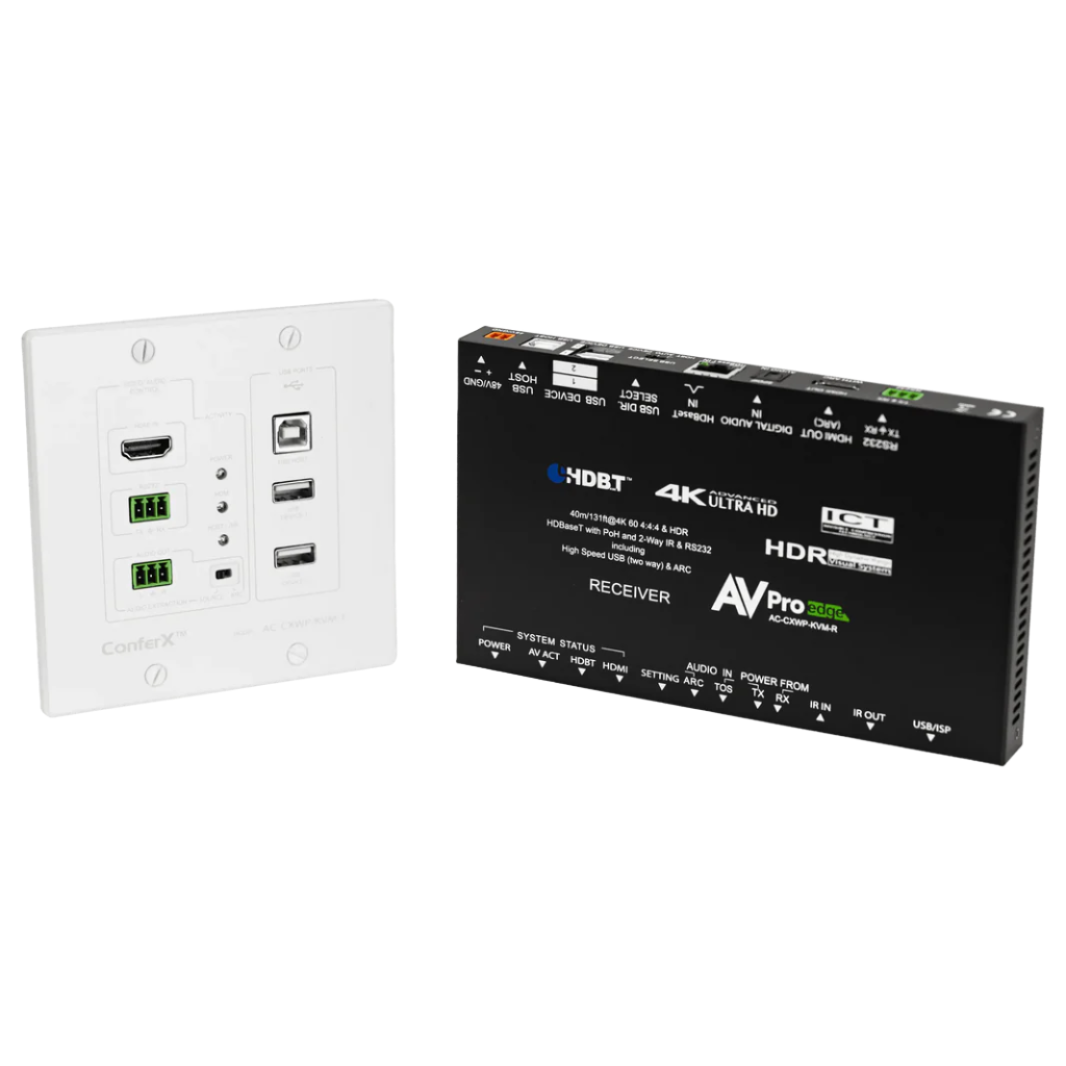

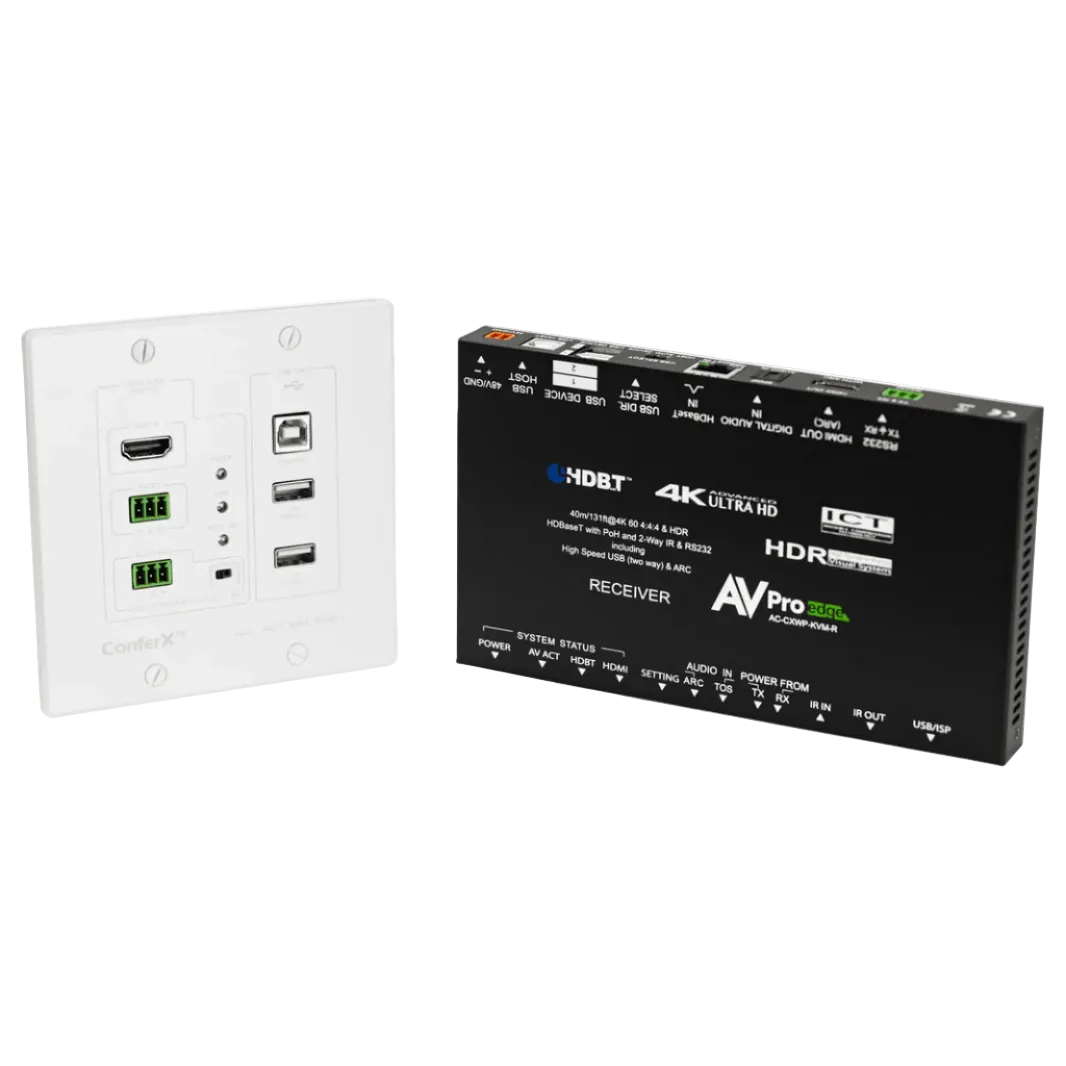

ConferX HDMI/Bi-Directional USB Wall Plate Kit
ConferX HDMI/Bi-Directional USB Wall Plate Kit
Couldn't load pickup availability
Invisible Compression Technology - ICT is a revolution in HDMI extension technology. It allows AVPro Edge Products to deliver high bandwidth 4K signals over category cable. Typically when this is done, the video is left with compression artifacts and banding. Using AVPro Edge’s proprietary ICT solution allows us to deliver a stable picture without degradation.
USB 2.0 and KVM Integration - The AC-CXWP-KVM-KIT supports the extension of USB signals, which may be switched and routed over the HDBaseT link along with the other AV signals and can be managed separately via a control system. USB 2.0 host and device ports are provided on both the TX and RX units, allowing you to connect a USB mouse, keyboard, microphone, or any other USB device to be connected at one unit and routed to a computer or other host at another unit.
Down Scaling - The AC-CXWP-KVM-KIT has a scaling circuit built into the transmitter. The scaler can scale 4K to 1080P. Essential when working with projectors or displays that are only 1080p.
Total EDID Management - The AC-CXWP-KVM-KIT has robust EDID control. EDID management allows you to manage the input device and request specific video resolutions and/or audio codecs. The following EDID options are available:
- EDID Bypass
- 1080P 2CH Audio
- 1080P 8CH Audio
- 4K60 4:2:0 2CH Audio
- 4K60 4:2:0 8CH Audio
- 4K60 4:4:4 HDR 2CH Audio
- 4K60 4:4:4 HDR 8CH Audio
- USER EDID – EDID Copy
The EDID Copy Function allows you to copy and save from any display or projector you want to.
Audio Return Channel (ARC) - The Audio Return Channel in HDMI 1.4 and 2.0 enables a TV, via a single HDMI cable or Toslink, to send audio data “upstream” to an A/V receiver or surround audio controller. Our extender will continue the upstream audio to the transmitter. There it can be connected via HDMI ARC.
On-Board Troubleshooting - This unit allows you to generate a 1080P or 4k test pattern to identify external problems (source, repeater, displays, etc.). You can now be sure that your wiring is correct and get to the bottom of issues quickly should they arise without worrying if the source or sink is working correctly. Additionally, you can generate a test pattern from the Tx or the Rx to verify total system infrastructure integrity.
AC-CXWP-KVM-KIT HDMI Wall Plate Extender Kit with KVM Control
| Video: | |
| Video Resolutions | Up to 4K 60Hz 4:4:4 |
| Vesa Resolutions | Up to DCI 4K (4096x2160) |
| HDR Formats/Resolutions | 420, 422, 444 (10 and 12 Deep Color) |
| HDR10, HDR10+, Dolby Vision (24/30 Frames), HLG | |
| Color Space | YUV (Component), RGB (CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500) |
| Chroma Sub-Sampling | 4:4:4, 4:2:2, 4:2:0 Supported |
| Deep Color | Up to 16 bit (1080), Up to 12 bit (4K) |
| Downscaling | 4K (and HDR) down to 1080p |
| Audio: | |
| Audio Formats Supported HDMI | PCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos |
| Audio Formats Supported Extracted (Toslink) | PCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio |
| ARC | You can select to extract audio from ARC, or from the HDMI Source |
| USB (selectable host): | |
| Version | USB 2.0 |
| TX & RX | USB host = USB type B (x1) |
| TX & RX | USB Device = USB type A (x2) |
| Distance: | |
| HDBaseT (CAT) Distance (4K) | 40 Meters / 131 Feet (Cat 6a) |
| HDBaseT (CAT) Distance (Full HD) | 70 Meters / 230 Feet (Cat 6a) |
| HDMI Lead In/Out (4K60 4:4:4) | Up to 50 Feet (using Bullet Train HDMI) |
| HDMI Lead In/Out (w/ AOC Cable) (4K60 4:4:4) | Up to 130 Feet (using Bullet Train AOC) |
| Other: | |
| Bandwidth | 18 Gbps (Uses ICT above 10.2 Gbps signals) |
| HDCP | HDCP 2.2 and earlier |
| Ports: | |
| HDMI (TX & RX) | Type A |
| HDBaseT | RJ45 w/ PoH for HDBaseT |
| Extracted Audio (TX ONLY, RX is an Audio Input) | 3 Pin Terminal Block |
| RS232 (TX & RX) | 3 Pin Terminal Block |
| Power (TX & RX) | 2 Pin Terminal Block |
| Environmental: | |
| Operating Temperature | 23 to 125°F (-5 to 51°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Humidity Range | 5-90% RH (no condensation) |
| Power: | |
| Power Consumption (total) | 12 watts max |
| Power Supply | Input: AC 100-240V ~ 50/60Hz |
| Output: DC 48V 0.5A | |
| Dimensions: | |
| Dimensions (TX wall plate, Height/Depth/Width) | mm: 114.26 x 35.75 x 115.86 |
| inch: 4.5 x 1.41 x 4.56 | |
| Dimensions (HDBaseT RX, Height/Depth/Width) | mm: 21.8 x 113.68 x 196.85 |
| inch: 0.86 x 4.48 x 7.75 | |
| Dimensions (Kit Packaged, Height/Depth/Width) | mm: 76.2 x 184.15 x 312.67 |
| inch: 3 x 7.25 x 12.31 | |
| Weight (TX Unit) | 1 LBS (0.45 KG) |
| Weight (RX Unit) | 1.2 Lbs (0.54 KG) |
| Weight (Kit Packaged) | 3.2 lbs (1.45 kg) |
