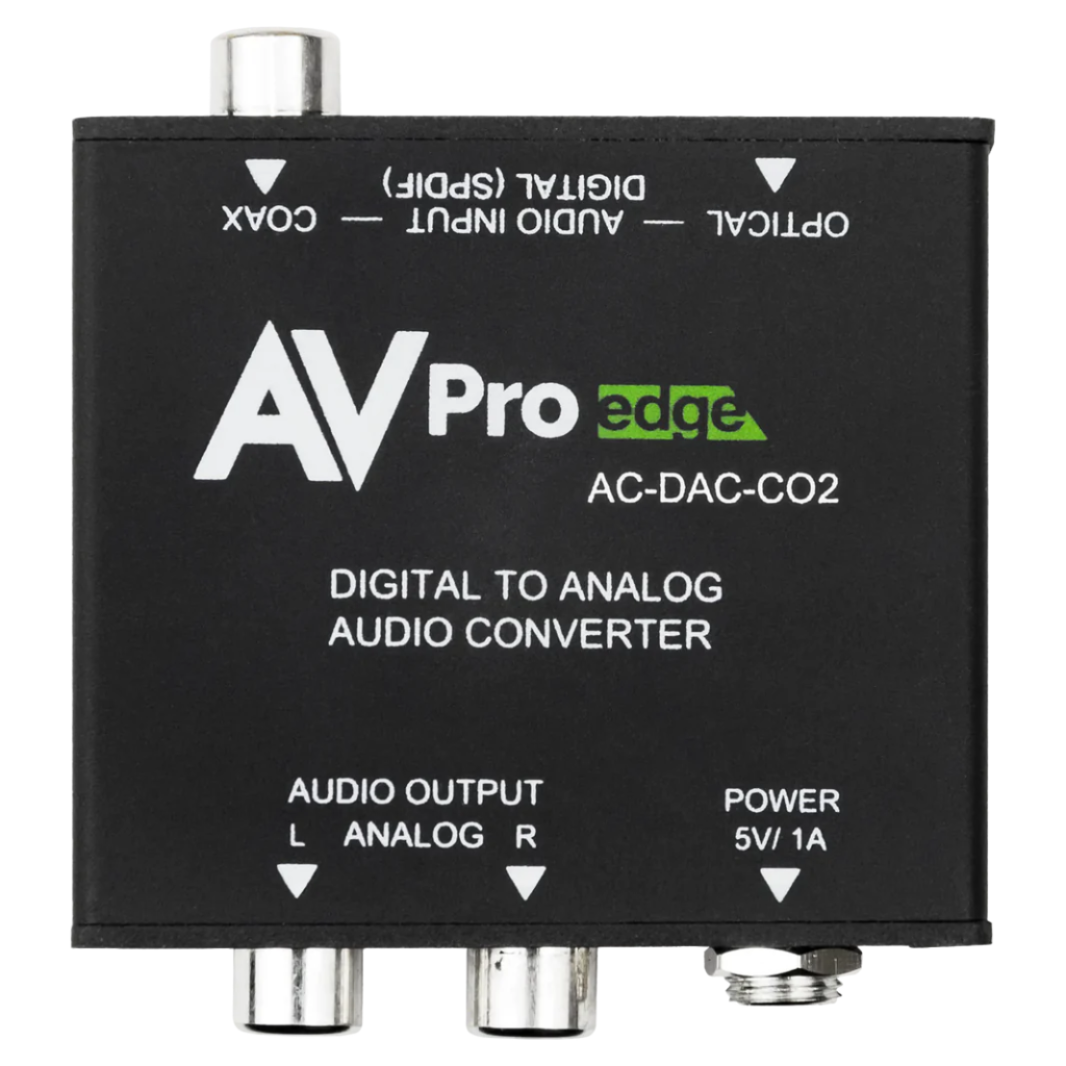

AVPro Edge AC-DAC-CO2 Digital to Analog Audio Converter
AVPro Edge AC-DAC-CO2 Digital to Analog Audio Converter
Regular price
$149.00 USD
Regular price
Sale price
$149.00 USD
Unit price
/
per
Couldn't load pickup availability
Description
AVPro Edge's Digital to Analog Audio Converter is an easy-to-use product that converts Coaxial or Optical audio signals into analog Stereo (L/R) audio. It can be easily switched between either Coaxial or Optical inputs. Its compact, elegant design and simple LED input status make it easier for users to connect up and use instantly.
| Input Ports |
1×TOSLINK (S/PDIF Audio) 1×RCA (S/PDIF Audio) |
| Output Ports | 2×RCA (Stereo Audio) |
| Input Audio Format | LPCM 2.0 |
| Output Audio Format | Analog 2.0 |
| Input Sampling Rates | 32kHz, 44.1kHz, 48k Hz, 88.2kHz, 96kHz, 176.4kHz &192kHz |
| Output Level | 2Vrms |
| Output Impedance | 600Ω |
| ESD Protection |
Human Body Model: ±12kV (Air Discharge) ±8kV (Contact Discharge) |
| Weight | 30g |
| Chassis Material | Plastic |
| Operating Temperature | 0˚C - 40˚C/32˚F - 104˚F |
| Storage Temperature | −20˚C - 60˚C/−4˚F - 140˚F |
| Relative Humidity | 20 - 90% RH (Non-condensing) |
| Power Supply | 5V/1A DC (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 0.74W |
| Chassis Material | Metal |
| Dimensions (unit only Length/Width/Height) |
MM: 64 x 58.3 x 22.2 INCH: 2.52 x 2.3 x 0.87 |
