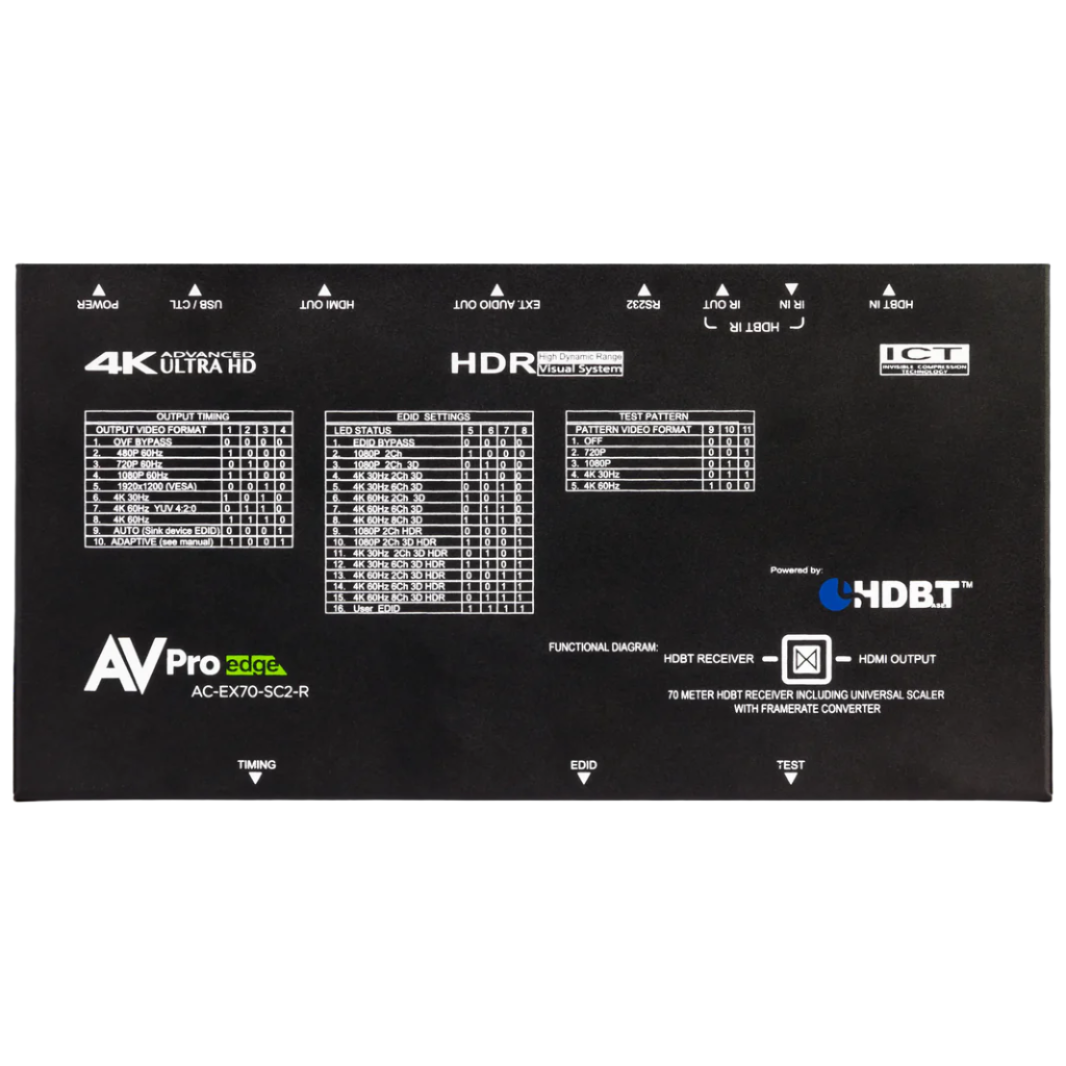

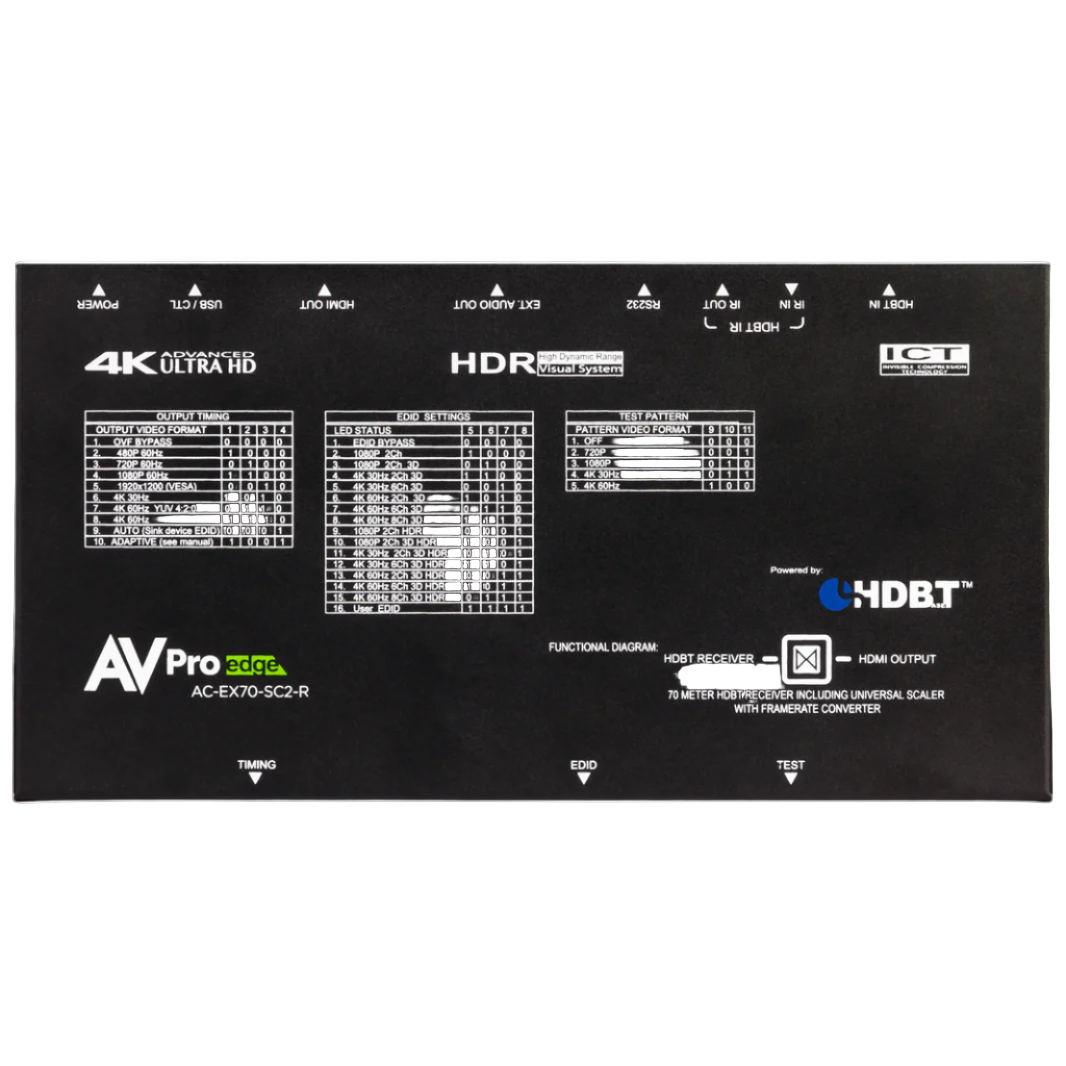

AVPro Edge AC-EX70-SC2-R 70M 18Gbps HDBaseT Receiver and Scaler

Full HDR Support: With many HDR EDID's to choose from, HDR can now be activated on capable displays no matter what the infrastructure requires. This allows flexibility in system design and will enable you to maximize budgets by providing HDR content where you want it.

Fixed Output Up/Down Scaling: This is possibly one of the most critical features in a hybrid system. Most AVR's, matrix switchers, and other peripherals cannot scale. This HDBaseT receiver allows you to set the resolution no matter what the signals deliver. Output 4K, even if the signal is sending 720p.

Interlaced to Progressive Scaling: This advanced technology will help installers overcome problematic 1080i sources by converting interlaced signals to progressive signals. For example, you can convert a 1080i signal to 1080P, 4K 30Hz, 4K 60Hz 4:2:0, or 4K 60Hz 4:4:4 at the user's will. Perfect for working with set-top boxes or satellite receivers.

Adaptive Scaling Mode: This EXCLUSIVE AVPro Edge technology was designed specifically to overcome problems with legacy sources, like set-top boxes outputting 720P or 1080i. Sink devices can exhibit stability issues when these legacy formats are implemented into modern, high-bandwidth distribution systems. The Adaptive Scaling Mode will convert all signals less than 1080P to 1080P and bypass 4K and HDR signals through untouched. This will allow you to install legacy sources in modern systems comfortably.

The Most Advanced EDID Management: This is the only receiver that will provide 16 pre-loaded EDID settings from legacy technology (480) to full 4K and HDR Options. The AC-EX70-SC2-R also has custom user EDID slots for future use, total customization, and EDID bypass for using the sink EDID.

L/R Audio De-Embedding: The AC-EX70-SC2-R has an audio output that allows audio to be stripped anywhere in a system and re-routed to where it's needed most. (PCM only, this does not downmix.) AC-EX70-SC2-R units can be combined to strip multiple streams from multiple outputs or sources.

On-Board Troubleshooting: This receiver/scaler allows you to generate a 720P, 1080P, or 4K test pattern to identify external problems (source, repeater, displays, etc.) Now, you can be sure that your wiring is correct and get to the bottom of issues quickly without having to worry if the source or sink is working correctly
