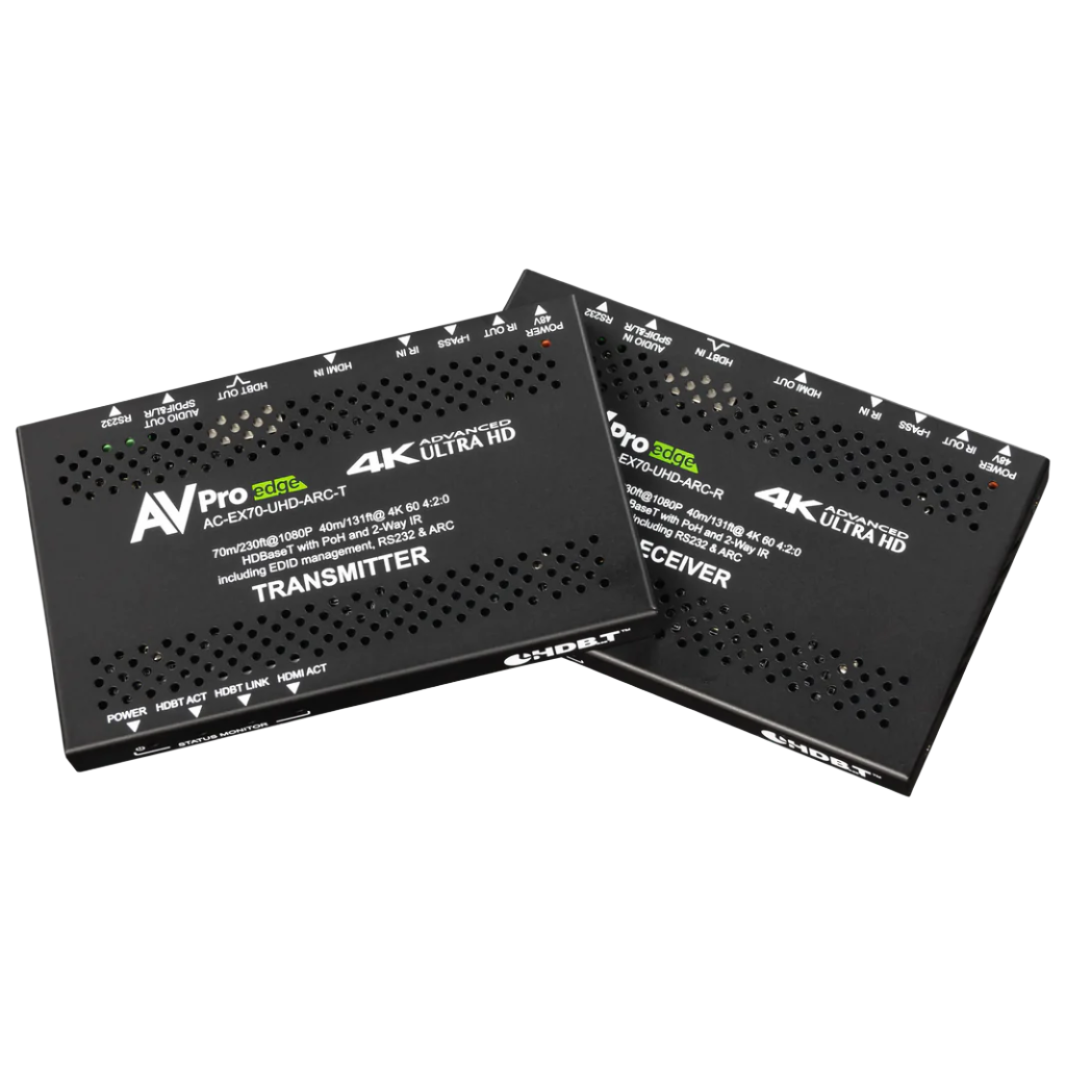

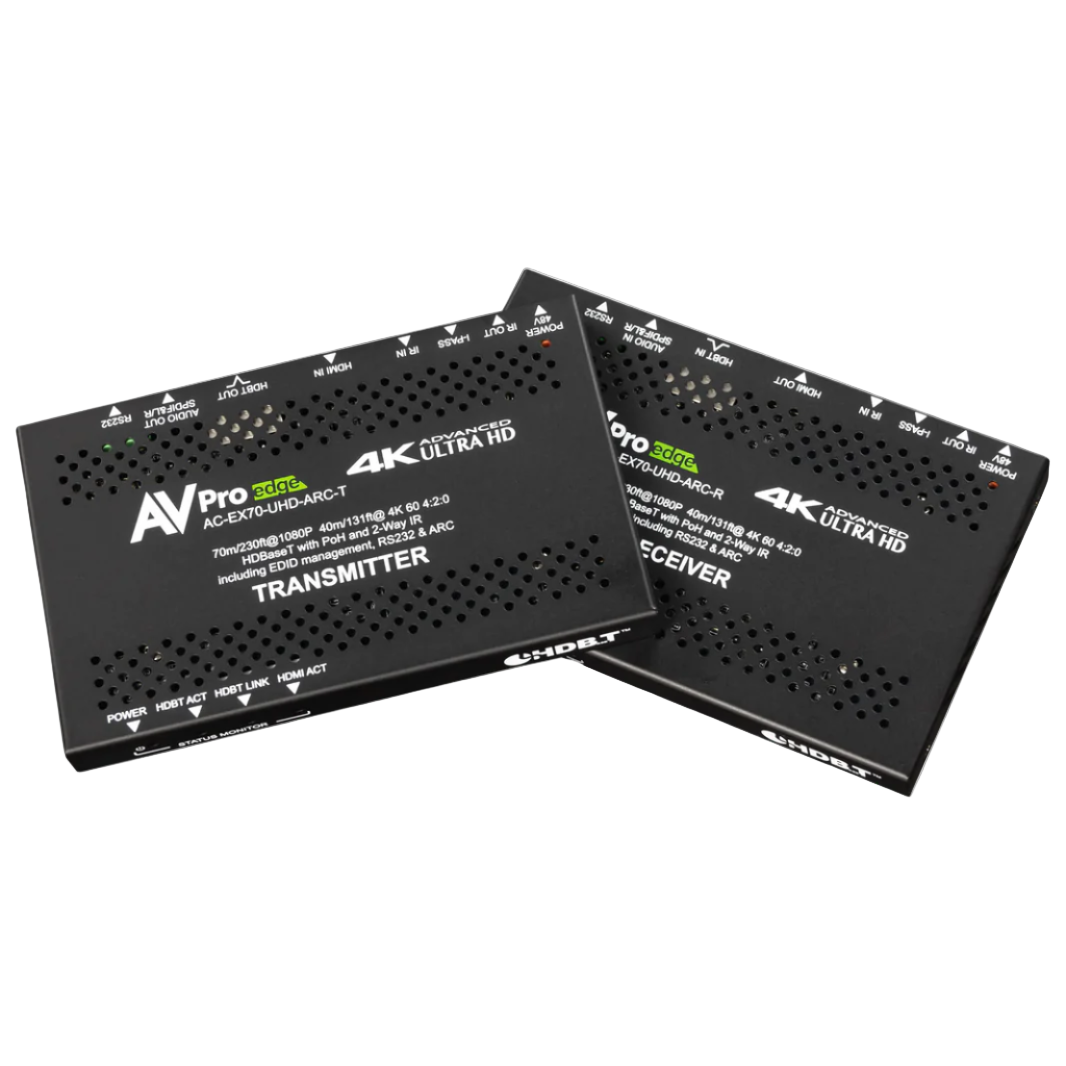

AVPro Edge AC-EX70-UHD-ARC 70M 10Gbps HDBaseT Extender Kit with ARC

Extend 4K HDMI: The manufactured HDMI cable length is unchangeable and unreliable after about 25FT. Additionally, HDMI connectors can only be terminated in a specialized factory environment due to their high frequencies and density. This does not allow installers or users to remake or make cables on a DIY basis. CAT-6A cables are widely available and can be reworked easily by the installer or end-user.

Audio Return Channel: ARC allows you to deliver local audio from internal smart tv apps like Netflix, Hulu, or Disney+ back to your headend. You can then distribute this audio through amplifiers for enhanced audio experiences. Audio return channel is not available through the tos out or L/R out ports on the transmitter, only through the HDMI port.

Distance: By using AC-EX70-UHD-ARC, the transmission distance for HD 1080P is up to 70 meters (230’), and UHD 4K resolution reaches an impressive 40 meters (115’).

Control: IR & RS-232 are bi-directional and can control the sources from the sinks or vice versa.

Bi-Directional Power: The PoH (Power over HDBaseT) function is intended to power Rx from the Tx or Tx from the Rx. The advantage of a lightweight (160 gram) super-slim extender is it can be mounted anywhere where space is premium.

Field Updates: Should a firmware update be necessary, it can be accomplished in the field

Total EDID Management: The AC-EX70-UHD-ARC has robust EDID control. EDID management allows you to manage the input device and request specific video resolutions and/or audio codecs. The following EDID options are available:

• EDID Bypass
• 1080P 2CH Audio
• 1080P 8CH Audio
• 4K60 4:2:0 2CH Audio
• 4K60 4:2:0 8CH Audio
• 4K60 4:4:4 HDR 2CH Audio
• 4K60 4:4:4 HDR 8CH Audio
• USER EDID – EDID Copy

The EDID Copy Function allows you to copy and save from any display or projector you want to.

I-Pass: Plug your Control System emitter ports directly into the IR port on the transmitter (via mono 3.5mm cable) for clean and reliable IR pass-through. Our unique VPC (Voltage Protection Circuit) allows you to do this without wear and tear on the sensitive electronics inside.
