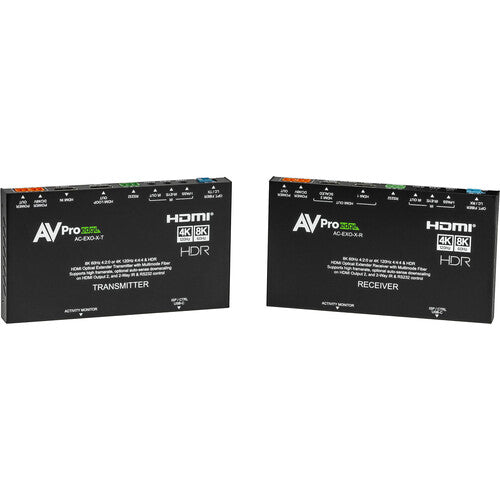

AVPro Edge AC-EXO-X-KIT 40Gbps 8K Fiber Optic Extender Kit

Multi-mode OM2/3/4 Compatible: The AC-EXO-KIT may be used with all classifications of multi-mode fiber. Total distance varies per classification. Using a 40Gbps, 8K/60Hz 4:2:0 signal, the following distances have been confirmed: OM2 / 40 meters, OM3 / 200 meters, OM4 / 300 meters.

Long Distance Transmission: HDMI signals may be extended up to 300 meters using OM4 multi-mode fiber, safely delivering content with zero loss of fidelity in the most challenging installations.

HDMI 2.1 Features: Auto Low Latency, Variable Refresh Rate, HDR10 and Dynamic HDR formats including Dolby Vision, HDR10+ and HLG, Quick Frame Transport and Source Based Tone Mapping. 8K/60 4:2:0, High Frame Rate 4K/120fps capable.

Near-Zero Latency: Latency is less than 8 microseconds, measurable but visually imperceptible.

Dual HDMI Output: The AC-EXO-KIT receiver features two HDMI outputs, with HDMI 1 full-bandwidth passthrough and HDMI 2 an always scaled output. Scaling can be selected to be 8K to 4K, 8K to 1080p, and 4K to 1080p.

Comprehensive EDID Management: Today’s leading-edge NextGen systems must now contend with mixed resolutions of 8K, 4K and in application-specific circumstances legacy HD displays, with the potential for EDID conflicts ever-present. The AC-EXO-KIT is equipped with a robust EDID management system that enables juggling video resolutions and audio codec combinations for EDIDs that provide a congenial match for reliable system operation.

An EDID Copy function allows for acute copying and saving of known, working EDIDs, for stable kit operation and HDCP repeatability.

Onboard Troubleshooting: Leave your Fox & Hound test kit behind in the shop? The AC-EXO-KIT has you covered. Where required, the transmitter can generate a 1080p or 4K test pattern to aid with fiber verification, connected device configuration settings, or source viability.

Control Options: Configurable, bidirectional management for IR & RS-232 signals provides a carefully nuanced added plus to the AC-EXO-KIT, consolidating wiring to a solitary pull and mitigating the use of supplemental devices for a clean, efficient installation. Simplified control requirements can take advantage of the AC-EXO-KIT’s I-PASS, forwarding commands directly from a control system IR-out port into the TX unit I-PASS input, proceeding to the receiving end and routing directly from the RX unit’s IR-out into the display’s IR input jack (if equipped) or through an attached supplied IR emitter. ESD (electrostatic discharge) protection adds a welcomed layer of defense for all connected products.
