Description
The AC-MXNET-CBOX-HA is the centralized management device for every MXnet AV over IP system. The CBOX-HA interfaces between MXnet encoders/decoders and 3rd-party control systems. It also hosts the powerful Mentor web interface for auto-discovery, configuration, routing and maintenance of endpoints. The CBOX-HA provides a single point of management making it incredibly simple to deploy hundreds of endpoints in a matter of minutes.
The Mentor web interface provides an intuitive ‘point-and-click’ experience. Easily give endpoints custom names, adjust IP addresses, route AV, setup video walls and multiview layouts or test API commands via the built in CLI. Mentor is a simple yet powerful management interface built for today’s modern AV systems.

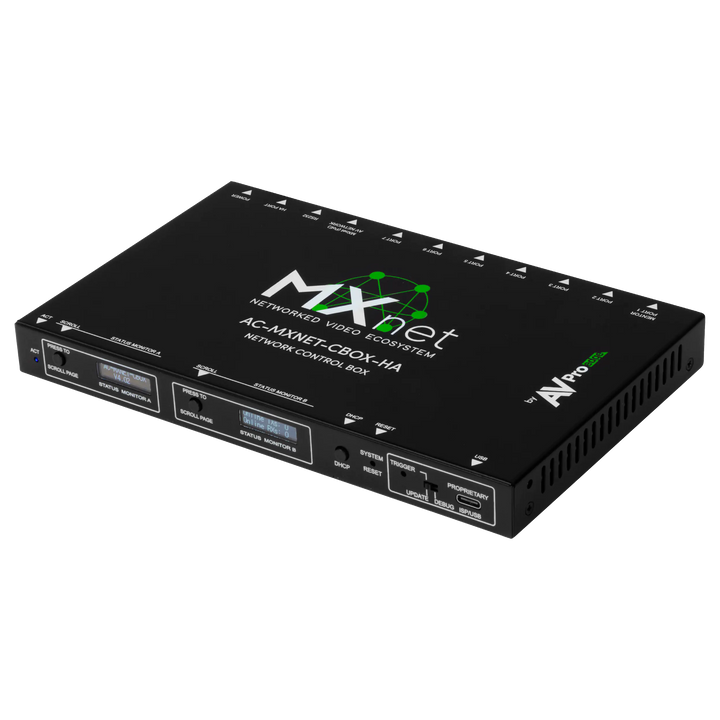

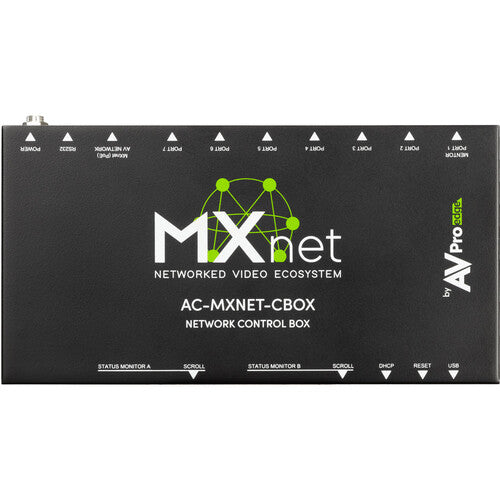

The front panel of the CBOX-HA includes two display screens for quick access to key information including IP & MAC addresses, installed firmware version and the amount of discovered encoders and decoders.
Drivers are available for most major control system manufacturers. These drivers make integration a breeze and provide control over all aspects of MXnet endpoints.
Available on the Drivers tab: Crestron, Extron, Q-SYS, Control4, Savant, RTI, ELAN, URC, and AMX.
| Ports: | |
| Ethernet | (8) × female RJ-45, one with PoE |
| SFP | 0 |
| HDMI | N/A |
| Audio | N/A |
| IR | N/A |
| RS232 | (1) × 5 Pin Terminal Block for MXnet System Control (1) x female RJ-45 RS-232 port (HA) |
| USB | (1) × USB Type C for MXnet service |
| Distance: | |
| Ethernet | 100 Meters/ 330 Feet over CAT5e and above |
| SFP and Fiber | N/A |
| Environmental: | |
| Operating Temperature | 23 to 125°F (-5 to 51°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity | 5-90% RH (No Condensation) |
| Power: | |
| Max Power Consumption | 4.5W |
| PoE (Power over Ethernet) | IEEE 802.3af (15.4W) |
| Power Supply Unit |
Input: AC 120-240V-50/60Hz 0.8A Output: DC 12V 2A |
| Dimensions: | |
| Mounting | Supported rack mounts:
|
| Dimensions (Unit Only Width/Depth/Height) | mm: 200 X 104 x 20 inch: 7.87 X 4.09 X 0.79 |
| Dimensions (Packaged Width/Depth/Height) | mm: 310 X 180 x 54 inch: 12.2 X 7.09 X 2.13 |
| Weight (Unit) | 1.31 LBS/0.596 KG |
