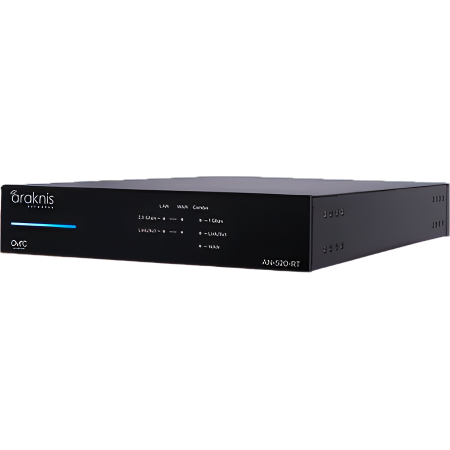

Araknis Networks 520-Series Dual-WAN Multi-Gigabit VPN Router

Araknis Networks 520-Series Dual-WAN Multi-Gigabit VPN Router

Araknis Networks® 520-series router with OvrC Pro is our most powerful router and has been designed for your most demanding network jobs. This router features a multi-Gigabit LAN and WAN interface with increased processing power for high bandwidth installs. With a dual WAN connection for load-balancing and link failover, the Araknis 520 series router is the choice for high-performance applications. Its embedded firewall keeps your client’s network secure and supports numerous VPN technologies, including site-to-site connections. Every Araknis router is coupled with OvrC Pro, so you can remotely monitor and manage the entire network.

Interfaces: WAN RJ-45: 1 x 2.5G BASE-T Ethernet
                   LAN RJ-45: 1 x 2.5G BASE-T Ethernet
                   LAN/WAN Combo - 1x 1G BASE-T (RJ45/SFP)

Throughput: Maximum Throughput: 4400 Mbps
                       IPSec:
                       Maximum Throughput: 2550 Mbps
                       Tunnels: 50
                       PPTP Throughput:
                       Maximum Throughput: 300 Mbps
                       Tunnels: 20
                       OpenVPN Throughput:
                       Maximum Throughput: 650 Mbps
                       Tunnels: 20

WAN Ports: Wan Features:
                     Single WAN
                     Dual WAN Link Failover
                     Dual WAN Load Balancing
                     Multi-Dwelling Units (MDU)
                     Network Service Detection (NSD)
                     VLANs: 802.1Q
                     MSS Clamping
                     Auto MTU
                     DHCP Options
                     Metered Connection Features
                     Route Binding

Security Features: Stateful Firewall
                               Stateful Packet Inspection
                               DoS Prevention
                               SYN Flood
                               Port Forwarding
                               Port Triggering
                               UPnP
                               MAC/IP Based Access Management
                               MAC/IP Filtering
                               IPSec/PPTP Passthrough

VPN Features: Gateway to Gateway IPSec
                         PPTP Server
                         OpenVPN

Dimensions: 8.27" x 1.73" x 12.48"

Weight: 3.75 lb
