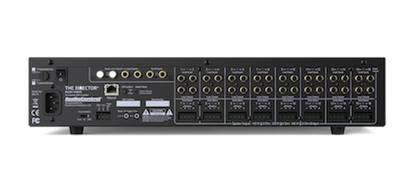

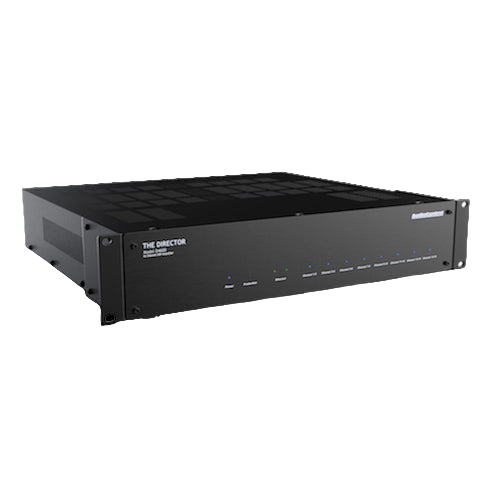

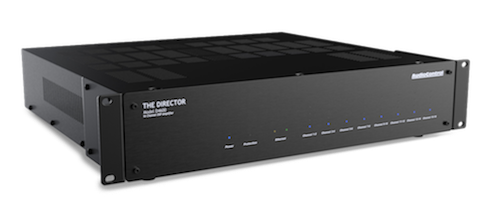

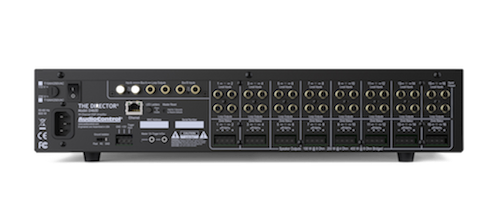

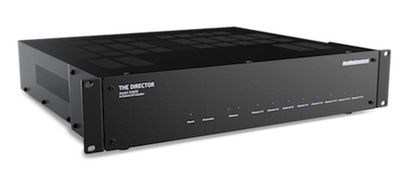

AUDIOCONTROL 16 CHANNEL HIGH-POWER NETWORK DSP AMPLIFIER

Inputs

 - 8 Stereo Local Inputs, 2 Stereo Bus Inputs

 - Input Sensitivity: 1 Vrms for full output, level at maximum

 - Input Gain: 30 dB

Outputs

 - Amplifier Channels: 16

 - Power Output (8Ω): 100W per channel

 - Power Output (4Ω): 200W per channel

 - Power Output (8Ω Bridged Mono): 400W

 - Minimum Speaker Load: 4Ω

 - Preamp Audio Outputs: 8 Stereo Local Loop Outputs, 1 Stereo Bus Loop Output

Performance

 - Signal to Noise: >95 dB, A-wtd, ref full output

 - Crosstalk: > 80 dB @ 1 kHz

 - Damping Factor: >300

Control

 - Remote Power Trigger: +12 VDC or Dry Contact Closure

 - Network Connection/Protocol: 10BaseT Ethernet TCP/IP

 - Communication Protocol: HTTP or Telnet

Dimensions

 - Dimensions: 17” W x 15.5” D x 3.5” H (2U)

 - Weight: 19.2 lbs (8.7 kg)
