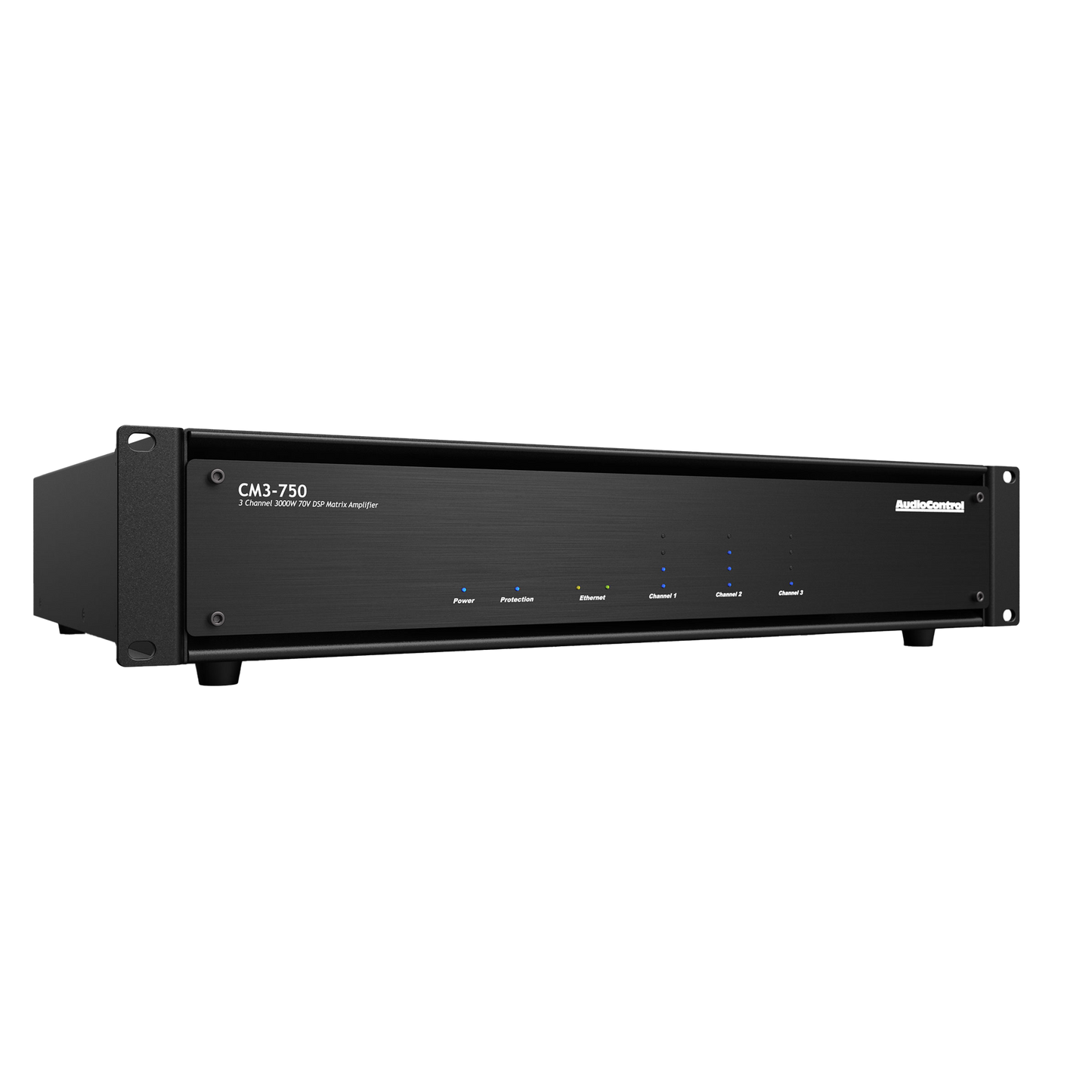

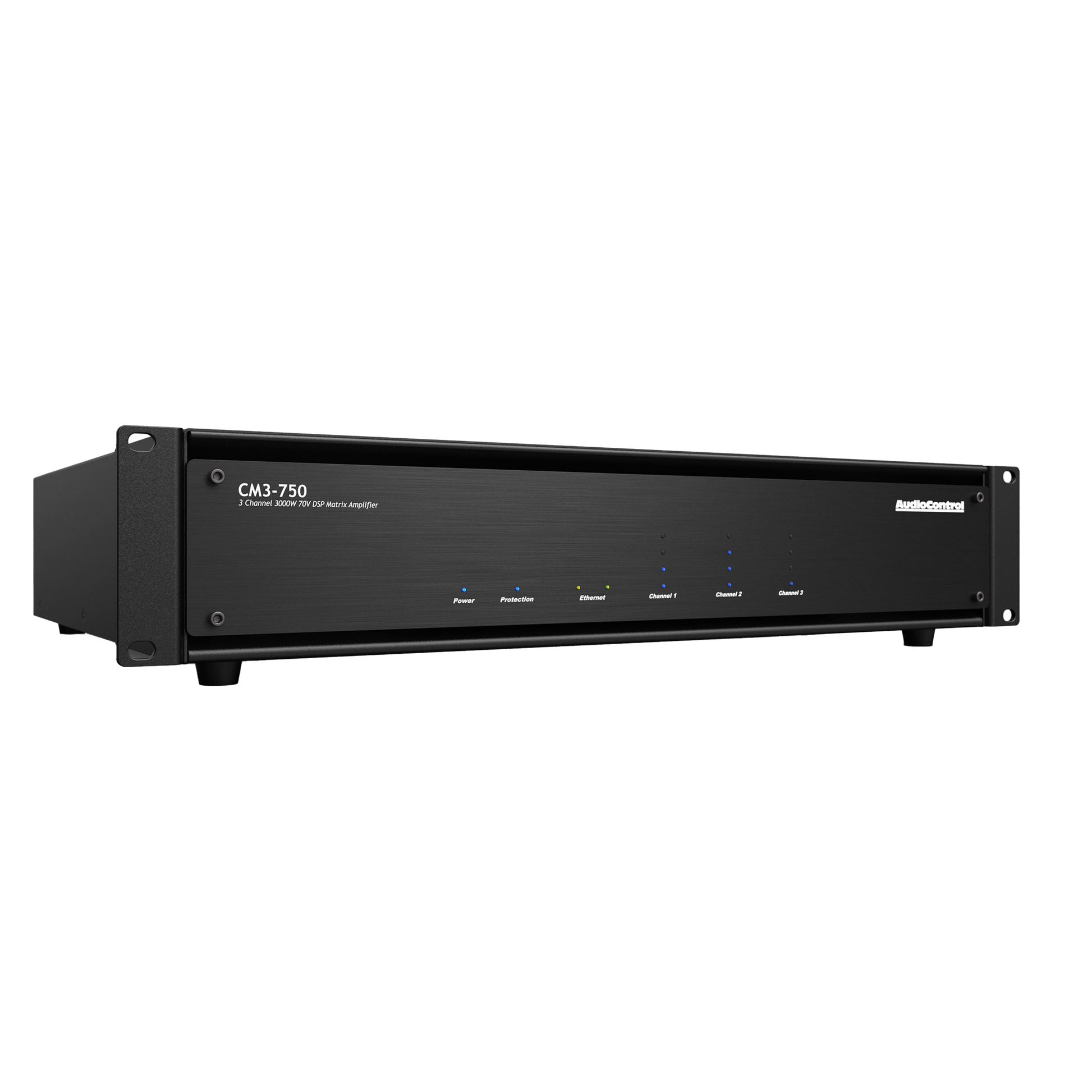

AUDIOCONTROL - 3 CHANNEL HIGH POWER DUAL MODE 70V DSP AMPLIFIER

Inputs

 - 8 Balanced Inputs, 8 Unbalanced RCA Inputs, 2 Digital Combo Coax/Toslink Inputs

 - Input Sensitivity: 1 Vrms for full output, level at maximum

 - Input Gain: 30 dB

Outputs

 - Amplifier Channels: 3

 - Power Output (70 V / 100 V): 750W per channel

 - Power Output (70 V / 100 V Bridged): 1500W

 - Power Output (8Ω / 4Ω): 625W per channel

 - Power Output (8Ω Bridged): 1250W

 - Minimum Speaker Load: 2Ω

 - Preamp Audio Outputs: 4 Balanced, 4 Unbalanced RCA, 4 Digital Coax Loop Outputs

Control

 - Remote Power Trigger: +12 VDC or Dry Contact Closure

 - Network Connection/Protocol: 10BaseT Ethernet TCP/IP

 - Communication Protocol: HTTP or Telnet

Dimensions

 - Dimensions: 17” W x 15.5” D x 3.5” H (2U)

 - Weight: 18.5 lbs (8.4 kg)
