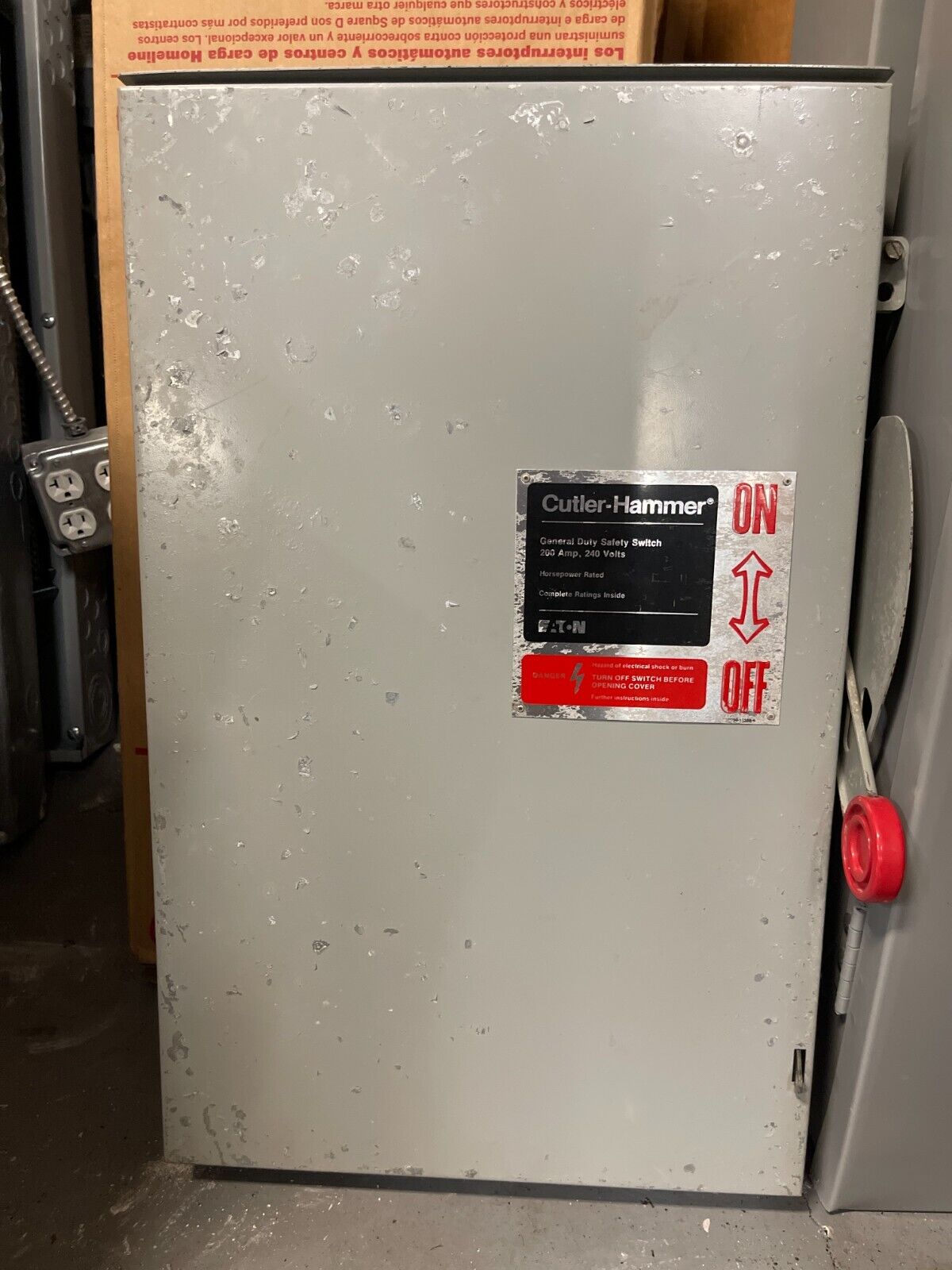

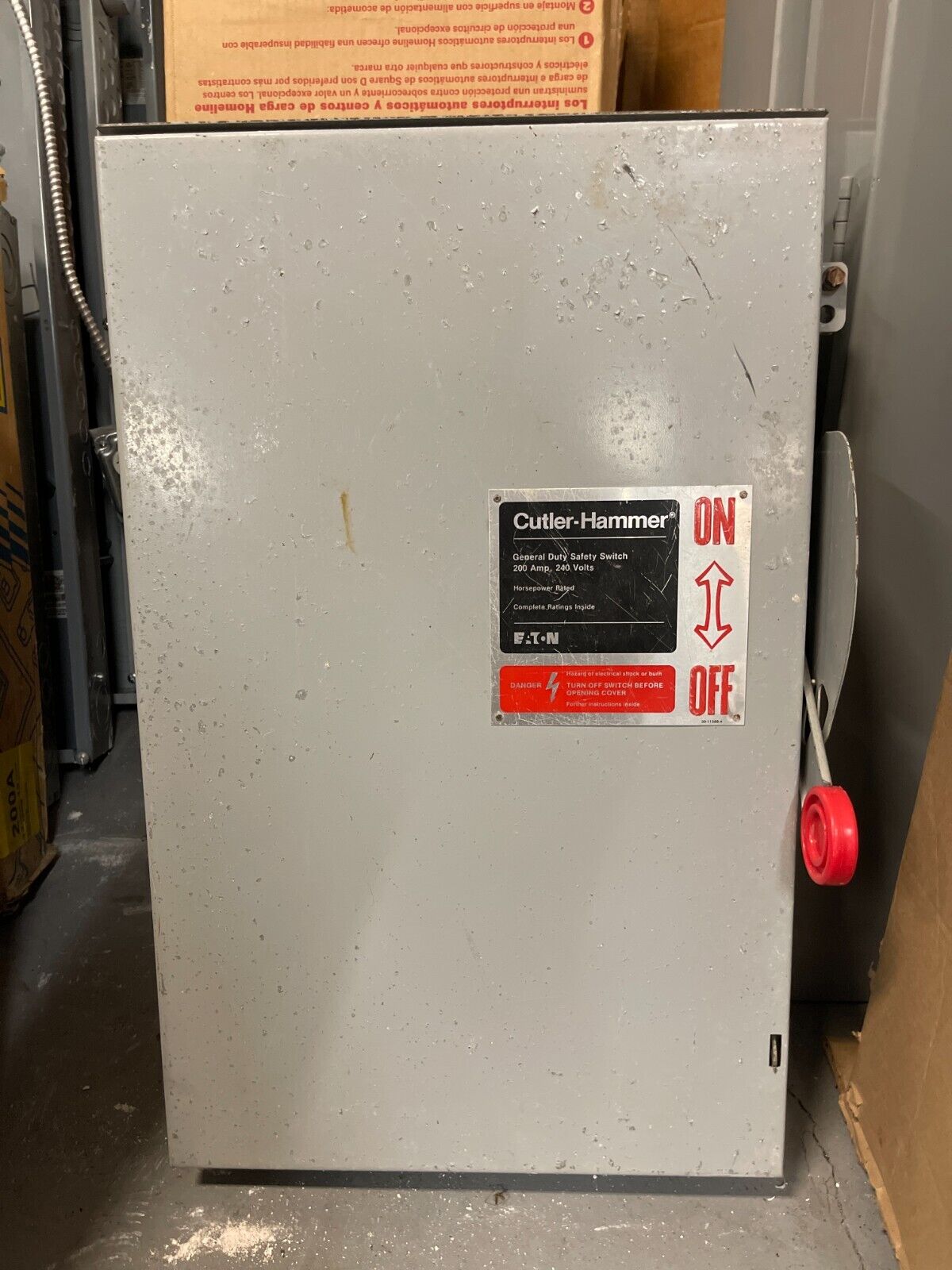

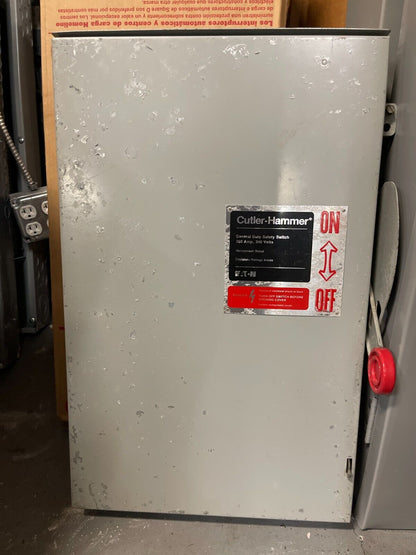

Cutler-Hammer DHG224NRK Safety Switch 200A NEMA3R 2-Pole 3-Wire 240V
Cutler-Hammer DHG224NRK Safety Switch 200A NEMA3R 2-Pole 3-Wire 240V
Regular price
$400.00 USD
Regular price
Sale price
$400.00 USD
General specifications
Product Name
Eaton general duty cartridge fuse safety switch
Catalog Number
DG224NRK
UPC
782113213507
Product Length/Depth
11.25 in
Product Height
25.5 in
Product Width
16 in
Product Weight
55 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Maximum hp ratings apply only when dual element fuses are used. 3-Phase hp rating shown is a grounded B phase rating, UL listed.
Physical Attributes
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse configuration
Fusible with neutral
Number Of Poles
Two-pole
Number of wires
3
Type
General duty, cartridge fused
Performance Ratings
Amperage Rating
200A
Fuse class provision
Class H fuses
Voltage rating
240V
