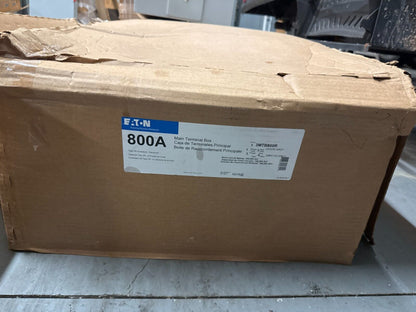

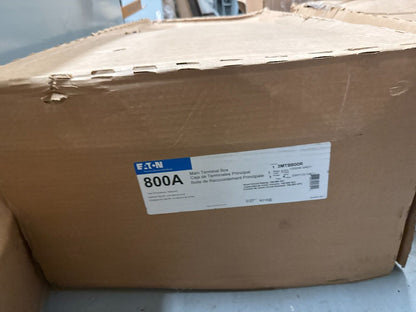

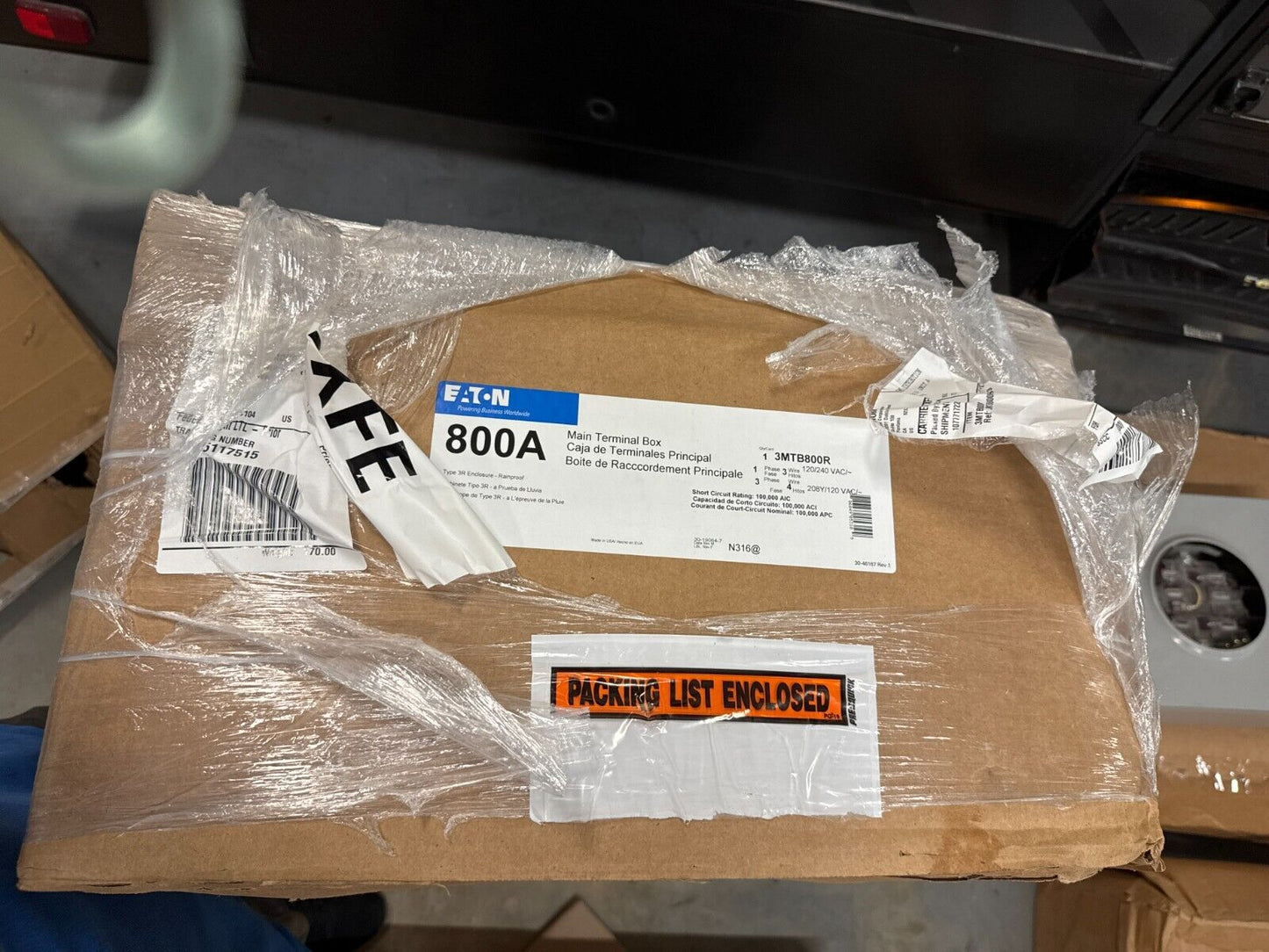

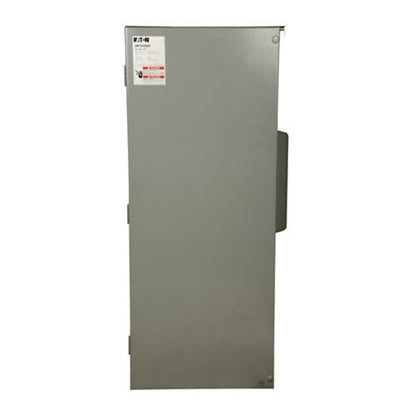

Eaton 3MTB800R Main Terminal Box 800A NEMA 3R 4-Wire 3-Ph 120/208V 250-500kcmil
Eaton 3MTB800R Main Terminal Box 800A NEMA 3R 4-Wire 3-Ph 120/208V 250-500kcmil
Regular price
$5,000.00 USD
Regular price
Sale price
$5,000.00 USD
Unit price
/
per
Couldn't load pickup availability
General specifications
Product Name
Eaton main terminal box
Catalog Number
3MTB800R
UPC
786849053109
Product Length/Depth
11.19 in
Product Height
47.7 in
Product Width
20.17 in
Product Weight
85 lb
Certifications
UL Listed
Catalog Notes
For 800A units, to obtain (4) 1/0-300 kcmil or (2) 1/0-750 kcmil cables per phase- order catalog number 3MTB800BLK, one Lug Kit per main terminal box ordered (neutral and ground included in kit). For 800A and 1200A units, order 3MTB1200CLK.
Product specifications
Amperage Rating
800A
Bus material
Aluminum
Feed type
Top/bottom
Phase
Three-phase
Voltage rating
120/208 V
Wire size
(2) 250-500 kcmil
Utility approvals
MI : Consumers Energy
NC : Dominion
VA : Dominion
MI : DTE Energy (Detroit Edison)
MT : NorthWestern Energy
NE : NorthWestern Energy
SD : NorthWestern Energy
WY : NorthWestern Energy
MD : Baltimore Gas and Electric
DC : PEPCO
MD : PEPCO
NC : Dominion
VA : Dominion
MI : DTE Energy (Detroit Edison)
MT : NorthWestern Energy
NE : NorthWestern Energy
SD : NorthWestern Energy
WY : NorthWestern Energy
MD : Baltimore Gas and Electric
DC : PEPCO
MD : PEPCO
Enclosure
NEMA 3R
Number of wires
4
