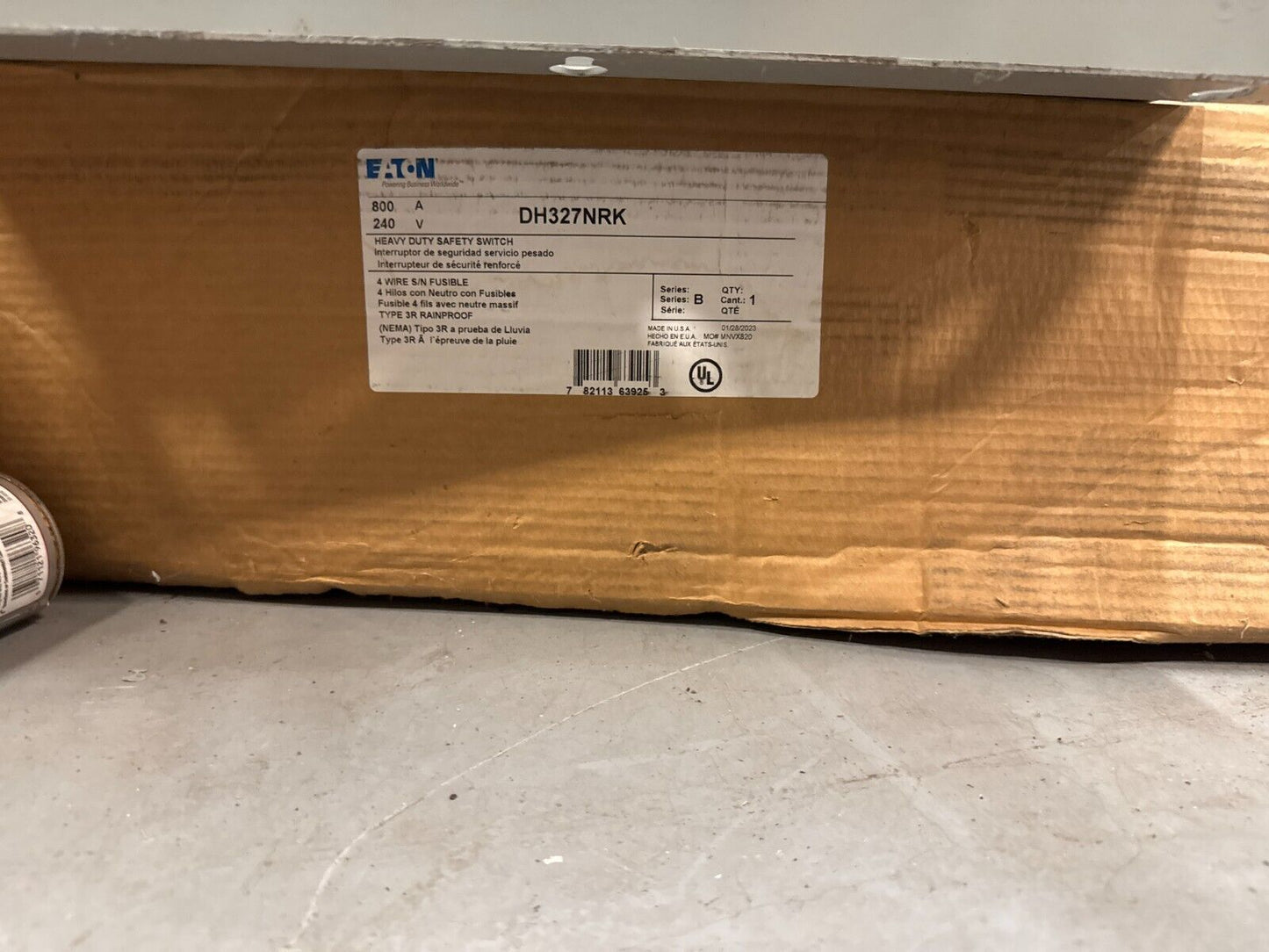

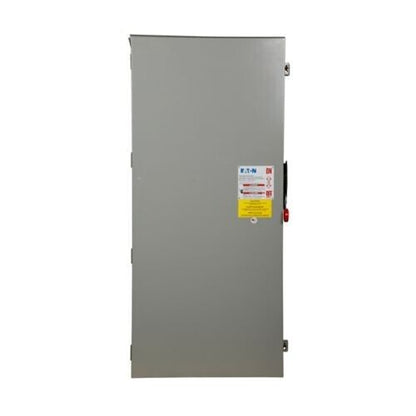

Eaton DH327NRK Heavy-Du Safety Switch 800A NEMA 3r 3-Pole 4-Wire 240V Max 100 HP
Eaton DH327NRK Heavy-Du Safety Switch 800A NEMA 3r 3-Pole 4-Wire 240V Max 100 HP
Regular price
$14,000.00 USD
Regular price
Sale price
$14,000.00 USD
Unit price
/
per
Couldn't load pickup availability
General specifications
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH327NRK
UPC
782113639253
Product Length/Depth
57.5 in
Product Height
12.38 in
Product Width
27.5 in
Product Weight
177 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Physical Attributes
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class L
Fuse configuration
Fusible with neutral
Number Of Poles
Three-pole
Number of wires
4
Type
Heavy duty fusible safety switch
Performance Ratings
Amperage Rating
800A
HP rating - max
100 hp (3PH @Std)
NEMA rating
NEMA 3R
Voltage rating
240V
Miscellaneous
Product Category
Heavy Duty, Fusible with neutral
