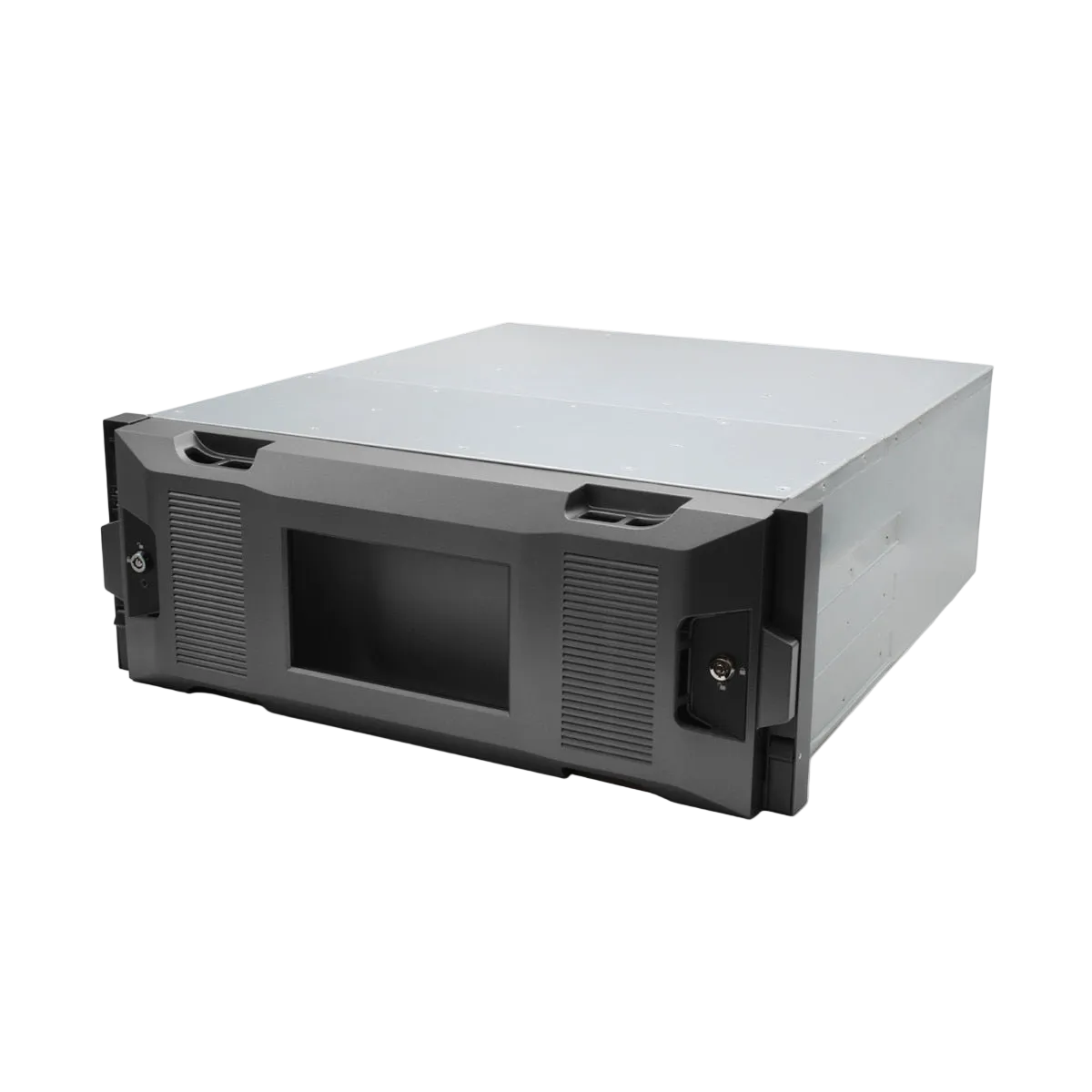

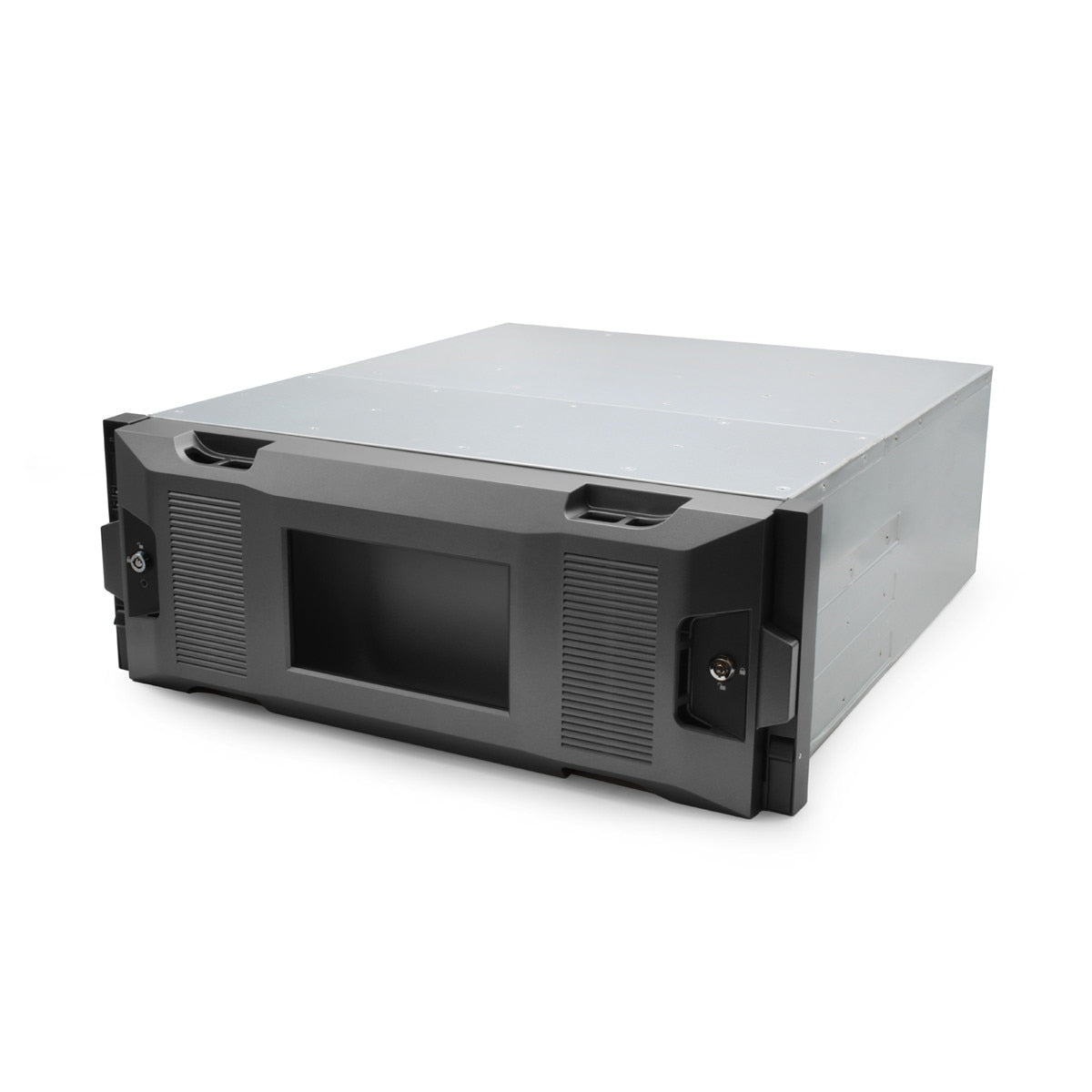

IC Realtime NVR-8256DR-V2 256 Channel 4U 4K NVR Network Video Recorder
IC Realtime NVR-8256DR-V2 256 Channel 4U 4K NVR Network Video Recorder
Couldn't load pickup availability
Enterprise Level Power
IC Realtime's biggest and most powerful NVR yet, the NVR-8256DR-V2 boasts 256 channel capacity, AI support by camera and an incredible 768 Mbps of bandwidth! This rack-mounted 4U unit is purpose-built for large-scale industrial projects. It supports IP cameras up to 24MP and includes its own built-in NVRSS Pro software for monitoring and playback. It works with IC Realtime’s existing mobile app, IC View+, for iOS and Android, for a seamless user experience.
Rack-Mountable Server Powerhouse
This powerhouse also packs a huge, 24 port, front hot-swappable hard drive bay supporting up to 16TB per Hard Drive for a maximum of 384TB total HDD space and built-in redundancy with RAID 0/1/5/6/10/50/60 support and dual power supplies. The NVR can also utilize IC Realtime’s AI-enabled cameras with IVS, Perimeter protection, Face Detection and Recognition, and even ANPR (license plate recognition) cameras. This recorder is also ONVIF compliant, making it suitable for third-party cameras.
IC Realtime exists to help our dealers succeed & grow. Our products are sold strictly B2B, and our product lines & programs were designed to help you win. Registered dealers have their own factory rep and complete access to everything IC Realtime online via their own Dealer Portal or in our new ICR Companion app. See IC Realtime's full B2B product line - including the NVR-8256DR-V2 - at https://www.icrealtime.com/
Specifications
| System | |
| Main Processor: | Industrial Embedded Processor |
| Operating System: | Embedded LINUX |
| Display | |
| Display Interface: | 3 HDMI, 1 VGA, 1 LCD Built-in Front Panel Screen (VGA mirrors HDMI1 and Front Panel) |
| Display Resolution: | up to 4K |
| Fisheye Dewarp: | Supported |
| Display Split: | Customized display. Max. 36-channel local live view. Max.16-channels with NVRSS-Pro App live view |
| HDMI Decoding: | 2-channel 24MP/3-channel 16MP/6- channel12MP (20fps)/7-channel12MP (15fps)/6- channel8MP (30fps)/12-channel8MP (15fps)/7- channel6MP(30fps)/9-channel5MP(30fps)/11- channel5MP (25fps)/12-channel4MP (30fps)/18- channel4MP (20fps)/19-channel3MP (25fps)/12- channel1080P (60fps)/24-channel1080P (30fps)/36- channel720P (30fps) |
| Display Out Max Decode: | Customized display. Max. 36-channel local live view. Max.16-channel NVRSS-Pro App live view |
| Intelligence | |
| IVS: | Tripwire, intrusion, abandoned object, missing object, fast-moving, parking detection, crowd gathering, loitering, parking, fence-crossing, and people counting (256 channels, AI by camera) + Fisheye Dewarp |
| Advanced Intelligent Functions: | IVS/ Perimeter Protection (Up to 256 channels, AI by camera) Face Detection/ Recognition (128 channels, AI By camera) ANPR+ Database (64 channels, AI By camera) Video Metadata (Up to 64 channels, AI by camera) |
| Video | |
| Supported Camera Types: | IP |
| IP Camera Input: | 24MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/CIF/QCIF |
| Playback: | Max. 16-channel playback |
| Search Mode: | Search video detection/manual record/IO alarm/ intelligent event/all record file |
| Playback Function: | 1. Play/pause/stop/fast forward/fast backward/reverse play/frame by frame play. 2. Full-screen, backup (clip/file), snapshot, digital zoom, audio on/off |
| Backup Mode: | HDD, peripheral USB storage device |
| Audio | |
| Compression: | G.711A/G.711U/PCM/G726 |
| Two-way Talk: | Supported |
| Recording | |
| Record Compression: | Smart H.265+/Smart H.264+/H.265/H.264 |
| Record Resolution: | 24MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/CIF/QCIF |
| Incoming Bandwith: | RAID Incoming bandwidth: 768Mbps Recording bandwidth: 768Mbps Outgoing bandwidth: 768Mbps Single HDD Incoming bandwidth: 768Mbps Recording bandwidth: 512Mbps Outgoing bandwidth: 768Mbps |
| Throughput: | 768Mbps |
| Storage | |
| Internal HDD: | 24 slots, SATA3.0/SAS. Max.16TB/HDD |
| HDD Mode: | Single, iSCSi, RAID 0/1/5/6/10/50/60 |
| Network | |
| Ethernet: | 4 RJ-45 10/100/1000Mbps self-adaptive Ethernet ports |
| Protocol: | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP;DHCP; DNS; DDNS; P2P; iSCSI; UPnP; SNMP; IPv6 |
| Web Viewer: | Chrome, Firefox, IE, Safari |
| Management Software: | NVRSS- Pro (Built-in), Web GUi |
| Smart Phone: | Android, iOS (IC VIew+) |
| Interface | |
| RS232: | 1 port, for debug or transparent COM data |
| RS485: | 1 Port, for PTZ Control |
| USB: | 4 (2 USB2.0 ports at the front panel and 2 USB3.0 ports a the rear panel) |
| Electrical | |
| Power Supply: | AC100-127V/AC 200-240V 50/60Hz, Redundant |
| Power Consumption: | 120W (without HDD, idling) 408W (all HDDs connected) |
| Environmental | |
| Operating Conditions: | +32 °F to +113 °F (0 °C to +45 °C)/10%RH–90% RH |
| Construction | |
| Installation: | Rack-mountable |
| Dimensions: | Chassis: 17.56 " ×21.39 " × 6.89 " (446 mm × 543.4 mm × 175 mm) Max. size: (With Hanger and feet mat) 19.00 " × 21.39 " × 6.89 " (482.6 mm × 543.4 mm × 175mm) |
