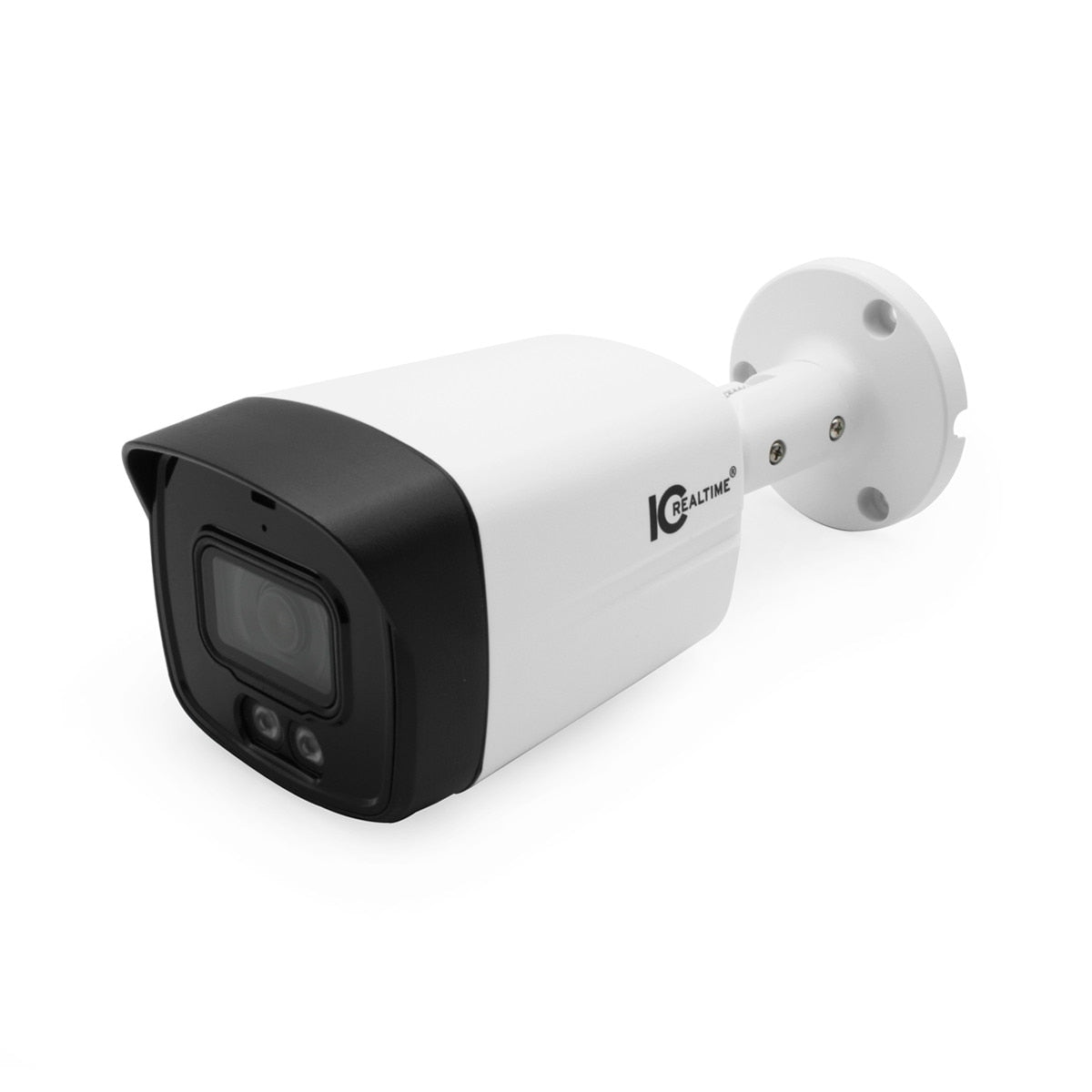

IC Realtime HDEG-B50F-IR-M1 5MP Starlight HD-AVS Bullet Camera

IC Realtime HDEG-B50F-IR-M1 5MP Starlight HD-AVS Bullet Camera

Regular price $218.00 USD
Regular price Sale price $218.00 USD
Sale Sold out
Our new HDEG-B50F-IR-M1 5MP HD over COAX IR bullet camera is yet another example of how IC Realtime brings an amazingly advanced camera to our dealer/integrator clients at a cost-conscious price point. Our Edge series 5MP HD over COAX camera brings incredible video performance and format flexibility in budget for every coax camera system installation, with the ability to upgrade the head end recorder to an IC Realtime HDVR MX series HDAVS recorders (requires 5/21 AVR firmware) and stream native 16:9 format video.

5MP STARLIGHT and AUDIO
Some security cameras become a professional's "go-to" option because they experience first-hand their combination of easy installation, adaptable features, and great performance a great camera delivers on every job. Our new HDEG-B50F-IR-M1 is destined to be one of those cameras for installers wise enough to use them because it packs our newest 5MP Starlight video chipset with 0.001 lux color (10x darker than a moonless night) behind a 2.8mm fixed lens that affords a 132°H × 111°V FOV, supplemented in total darkness with 130+ feet if SmartIR night vision.

EVERYTHING YOU NEED
Beyond the excellent video features, this coax bullet camera uses the HDAVS's "one wire" system to stream camera area broadcast-quality audio from its built-in mic over the same coax. Even in IC Realtime's most affordable camera series, the HDEG-B50F-IR-M1iR bullet camera still incorporates our legendary image and stream management systems to deliver the legendary video quality our customers have come to expect.  IC Realtime has distilled this camera's features into a tight package of flexibility, dependability and performance that's unequaled in the industry at this price point.

FUTURE READY and COST-EFFECTIVE
Bullet cameras are still one of the most popular camera formats because they combine ease of installation and aiming of a compact base and adjustable mounting stem with a bullet camera's visible deterrent effect. HDEG-B50F brings all that and complete coax video format flexibility with a switch set right on the camera pigtail that can be set for CVI/TVI, AHD or even standard 960H analog (CVBS) video format output. Once the attached coax recorder is upgraded to an advanced IC Realtime HDVR, just flick a few switches and power cycle, and you are full HD or even 16:9 widescreen. This is the kind of professional-level flexibility IC Realtime has always been known for. On top of all that, the new HDEG-B50F is among IC Realtime's most affordable HDAVS coax IR bullet cameras.

COMMERCIAL GRADE DEPENDABILITY
Most existing coax-based video systems use bullet cameras both inside and outside at installation sites. They are the ideal camera format for new installations in small commercial and residential systems, given their mounting flexibility.  HDEG-B50F-IR-M1 is powered by under 6W of 12VDC, and its ±30% voltage tolerance makes it ideal for older camera power systems and long cable runs. The camera's case and mount is cast metal, and the camera is IP67 weather-rated for long-term reliability.

The new HDEG-B50F-IR-M1 from IC Realtime provides an adaptable, durable, professional-grade coax IR bullet with exceptional features and reliability and one of the industry's most extended warranties. If you need an excellent coax system bullet camera for your next installation, HDEG-B50F-IR-M1 should be top of the list.

Note:For compatibility purposes, this camera may come default on 4MP/ 2MP resolution. When equipped with an appropriate HDVR, you can set the camera to the maximum resolution via the OSD interface.

Specifications

Camera
Image Sensor: 1/2.7 Starlight CMOS
Effective Pixels: 2880 (H) × 1620 (V) 5MP
Scanning System: Progressive
Minimum Illumination: 0.001 Lux/F1.6, 30IRE,
0Lux IR on
S/N Ratio: More than 65dB
Illumination Distance: 40 m (131.2 ft)
Illumination On/Off Control: Auto / Manual
Illumination LEDs: 2
IR Wavelength: 850 nm
Camera Illumination Type: IR
Lens
Lens Type: Fixed lens / Fixed iris
Mount Type: M12
Focal Length: 2.8mm
Max. Aperture: F1.6
Angle of View: 132° × 111°
Focus Control: N/A
Close Focus Distance: 0.9 m (3.0 ft)
DORI - Detect: 208.7 ft
DORI - Observe: 83.3 ft
DORI - Recognize: 41.7 ft
DORI - Identify: 21 ft
PTZ
OSD Menu: Multi-language
Video
Resolution: 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 ×1080); 960H (960 × 576/960 × 480)
Frame Rate: (AVS) PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps
NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps

(AHD) PAL: 4M@25 fps;
NTSC: 4M@30 fps

(TVI) PAL: 4M@25 fps;
NTSC: 4M@30 fps
Day/Night: Auto (ICR) / Manual
Backlight Compensation: BLC/HLC/WDR/HLC-Pro
White Balance: Auto / Manual
Gain Control: Auto / Manual
Noise Reduction: 2D / 3D
Smart IR: Auto / Manual
WDR: 120dB
Network
Smart Phone: Android, iOS
Interface
Video Interface: 1-channel BNC high definition video output / AVS/ TVI/ AHD/ CVBS Support (DIP switch)
Audio I/O: Built-in Mic
Electrical
Power Supply: 12V DC +/- 30%
Power Consumption: Max 5.9W (12V DC, IR on)
Environmental
Operating Conditions: –40°C to +60°C (–40°F to +140°F); < 95% (non-condensation)
Ingress Protection: IP67
Construction
Casing: Metal body, Plastic sunshade
Dimensions: 179.9mm x 70mm x 70mm (7.08in x 2.76in x 2.76in)
Gross Weight: 0.56 kg (1.23 lb)
Mounting Pan/Tilt/Rotation: Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
