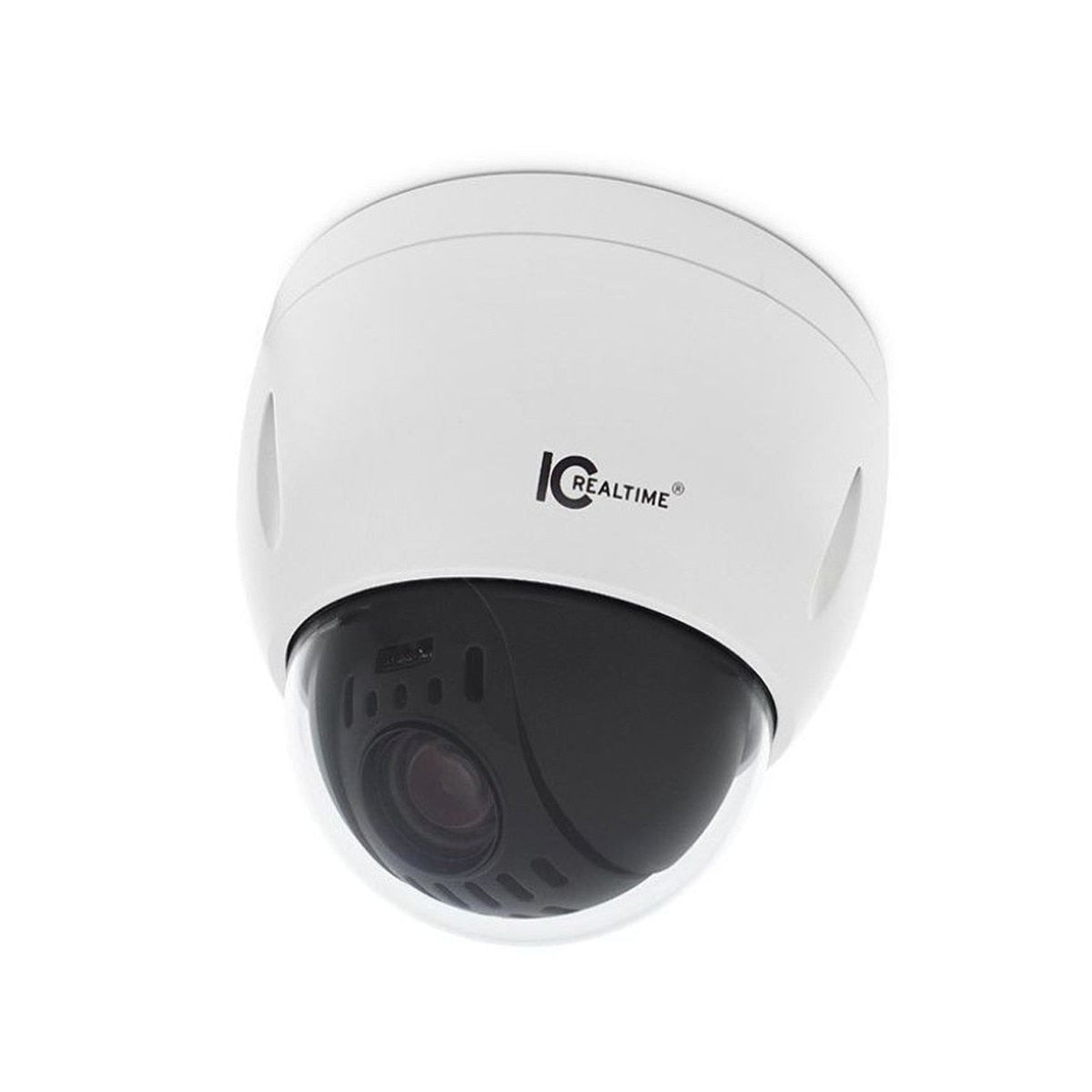

IC Realtime ICIP-P2012T 2MP 12x Starlight PTZ Network Camera
IC Realtime ICIP-P2012T 2MP 12x Starlight PTZ Network Camera
Regular price
$1,380.00 USD
Regular price
Sale price
$1,380.00 USD
Unit price
/
per
Welcome to a new era of PTZ cameras. IC Realtime's latest lineup of ICIP-P2012X series cameras are ushering in 2 much requested features - POE+ (802.3at), and 'Faster than Realtime' recording (60FPS @ 720P)! Say goodbye to pulling a separate power cable, and say hello to ultra-high speed recording rates! The ICIP-P2012T is a 2 Megapixel camera with 12x optical zoom. This camera adopts the flush mount style of PTZ cameras. The PTZ itself can auto recognize standard protocols over RS-485 such as ICR-SD and Pelco-P/D, without troublesome dipswitches or configuration. It supports both H.264 video and MPEG4 audio transmission, simultaneously. This camera can function independent of an NVR. By utilizing H.264 video and MPEG4 audio compression, the highest stream quality is achieved while also maintaining excellent stream compression and bandwidth. The ICIP-P2012T enclosure itself has a strong impact rating, which can guarantee proper operation even under a heavy strike. The ICIP-P2012T supports two-way and bidirectional talk. It can be used in either analog or IP environments.
Specifications
Camera | |
Image Sensor: | 1/2.8 STARVIS CMOS |
Effective Pixels: | 1920(H) x 1080(V) 2 Megapixels |
RAM/Rom: | 1024M / 128M |
Scanning System: | Progressive |
Minimum Illumination: | Color: 0.005Lux@F1.6 B/W: 0.0005Lux@F1.6 0Lux@F1.6 (IR on) |
S/N Ratio: | More than 55dB |
Illumination Distance: | N/A |
Illumination On/Off Control: | N/A |
Illumination LEDs: | N/A |
Camera Illumination Type: | None, IR sensitive |
Lens | |
Focal Length: | 5.3-64mm |
Max. Aperture: | F1.6 - F4.4 |
Angle of View: | H: 58.2 - 4.8 degrees |
Optical Zoom: | 12x |
Focus Control: | Auto/Manual |
Close Focus Distance: | 100 - 1000mm (3.94 - 39.37in) |
DORI - Detect: | 883m (2897ft) |
DORI - Observe: | 353m (1158ft) |
DORI - Recognize: | 177m (581ft) |
DORI - Identify: | 88m (289ft) |
PTZ | |
Pan/Tilt Range: | Pan: 0 ~ 360 endless; / Tilt: -2 ~ 90 & auto flip 180 |
Manual Control Speed: | Pan: 0.1 ~ 300/s / Tilt: 0.1 ~ 120/s |
Preset Speed: | Pan: 300 degrees/s Tilt: 200 degrees/s |
Presets: | 300 |
PTZ Mode: | 5 Pattern / 8 Tour / Auto Pan / Auto Scan |
Speed Setup: | Human-oriented focal Length / speed adaptation |
Power up Action: | Auto restore to previous PTZ and lens status after power failure |
Idle Motion: | Activate Preset / Scan / Tour / Pattern if there is no command in the specified period |
Protocol: | ICR-SD |
Intelligence | |
IVS: | Tripwire, Intrusion (50 objects max), Abandoned or Missing Object |
Advanced Intelligent Functions: | Face Detection |
Video | |
Compression: | H.265+ / H.265 / H.264+ / H.264 |
Resolution: | 1080P (1920 x 1080) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / CIF (352 x 288 / 352 x 240) |
Frame Rate: | Main stream: 1080P / 720P(1 - 25/30fps) Sub stream1: D1 / CIF(1 - 25/30fps) Sub stream2: 720P / D1 / CIF(1 - 25/30fps) |
Bit Rate: | H.265/H.264: 448K - 8192Kbps |
Day/Night: | Auto(ICR) / Color / B/W |
Backlight Compensation: | BLC / HLC / WDR(120dB) |
White Balance: | Auto / ATW / Indoor / Outdoor / Manual |
Gain Control: | Auto / Manual |
Noise Reduction: | Ultra DNR (2D / 3D) |
Motion Detection: | Support |
Region of Interest: | Support |
Digital Zoom: | 16X |
Flip: | 180 |
Privacy Masking: | Up to 24 areas |
Audio | |
Compression: | G.711a / G.711Mu / G.726 / AAC |
Network | |
Ethernet: | RJ-45 (10/100Base-T) |
Protocol: | IPv4 / IPv6 / HTTP / HTTPS / SSL / TCP/IP / UDP / UPnP / ICMP / IGMP / SNMP / RTSP / RTP / SMTP / NTP / DHCP / DNS / PPPOE / DDNS / FTP / IP Filter / QoS / Bonjour / 802.1x |
Interoperability: | ONVIF / PSIA / CGI |
Compatibility: | ONVIF / PSIA / CGI |
Streaming Method: | Unicast / Multicast |
Max. User Access: | 20 Users |
Edge Storage: | NAS / Local PC for instant recording / Micro SD card 256GB |
Interface | |
Video Interface: | N/A |
Audio I/O: | 1/1 channel In/Out |
Alarm I/O: | 2/1 |
Memory Slot: | Micro SD Card 256GB |
Electrical | |
Power Supply: | DC 24V/2.5A(±25%), PoE+(802.3at) |
Power Consumption: | 12W |
Environmental | |
Operating Conditions: | -30C ~ 60C (-22F ~ +140F) / Less than 90% RH |
Ingress Protection: | IP66 |
Vandal Resistance: | IK10 |
Construction | |
Casing: | Metal |
Dimensions: | 6.69"x 6.1" (170mm x 155mm) |
Gross Weight: | 3.3kg (7.28lb) |
