IC Realtime

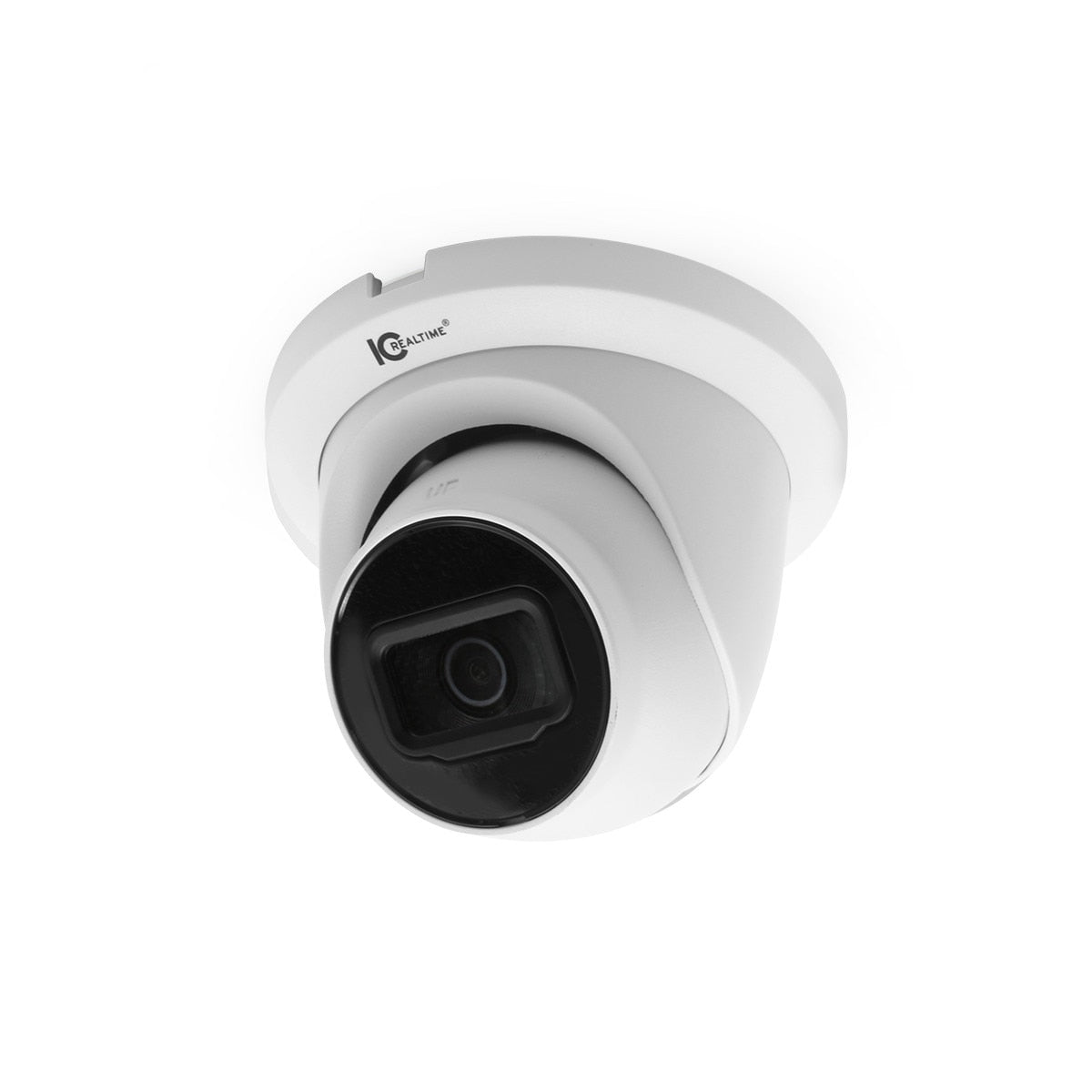

IC Realtime ICR-LRD-V2 2MP Starlight HD-AVS IR Eyeball Camera
IC Realtime ICR-LRD-V2 2MP Starlight HD-AVS IR Eyeball Camera
Regular price
$186.00 USD
Regular price
Sale price
$186.00 USD
Unit price
/
per
Couldn't load pickup availability
The ICR-LRD-V2 is the newest version of IC Realtime’s venerable 1080p AVS eyeball turret camera. The camera’s upgraded 2.8mm lens provides an incredible image, thanks to Starlight and Super Adapt, which automatically adjusts the camera image settings for the environment.
It also features up to 196 feet of IR support, and 130dB true WDR. This enables the most optimal image under the most challenging lighting conditions. The camera also includes a built-in microphone for audio as well as multi-format (AVS/ TVI/ AHD and CVBS) coax support for increased flexibility and a quick attach base for ease of installation.
Specifications
| Camera | |
| Image Sensor: | 1/2.8" CMOS |
| Effective Pixels: | 1920(H)×1080(V), 2MP |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.002 Lux/F1.6, 30 IRE, 0 Lux IR on |
| Illumination Distance: | Up to 196.9 ft (60m) |
| Illumination On/Off Control: | Auto / Manual |
| Illumination LEDs: | 2 |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Fixed lens |
| Mount Type: | M12 |
| Focal Length: | 2.8mm |
| Max. Aperture: | F1.6 |
| Angle of View: | 107°; V: 56° |
| Close Focus Distance: | 2.3 ft (0.7m) |
| DORI - Detect: | 144ft |
| DORI - Observe: | 57ft |
| DORI - Recognize: | 28ft |
| DORI - Identify: | 14ft |
| PTZ | |
| OSD Menu: | Multi-language |
| Video | |
| Resolution: | 1080p(1920 × 1080); 960H (960 × 576 / 960 × 480) |
| Frame Rate: | AVS NTSC: 1080p@30 fps; PAL: 1080p@25 fps AHD NTSC: 1080p@30 fps; PAL: 1080p@25 fps TVI NTSC: 1080p@30 fps; PAL: 1080p@25 fps CVBS NTSC: 960 × 480H; PAL: 960 × 576H; |
| Day/Night: | Auto switch by ICR |
| White Balance: | Auto; Area WB |
| Gain Control: | Auto; manual |
| Noise Reduction: | 3D NR |
| WDR: | 130dB |
| Interface | |
| Video Interface: | 1-channel BNC AVS/ TVI/ AHD and CVBS video output (DIP switch) |
| RS485: | N/A |
| Audio I/O: | 1ch in & Built-in Mic |
| Alarm I/O: | N/A |
| Electrical | |
| Power Supply: | 12V DC ±30% |
| Power Consumption: | Max 5.1 W (12V DC, IR on) |
| Environmental | |
| Operating Conditions: | -40°F ~ +140°F (-40°C ~ +60°C ) / Less than 95% RH |
| Storage Conditions: | -40°F ~ +140°F (-40°C ~ +60°C ) / Less than 95% RH |
| Ingress Protection: | IP67 |
| Construction | |
| Casing: | Aluminum |
| Dimensions: | 4.8" × 3.9"(121.9 mm × 99.1 mm) |
| Gross Weight: | 1.37 lb (0.62 kg) |
| Mounting Pan/Tilt/Rotation: | Pan: 0° ~ 360° Tilt: 0° ~ 78° Rotation: 0° ~ 360° |
