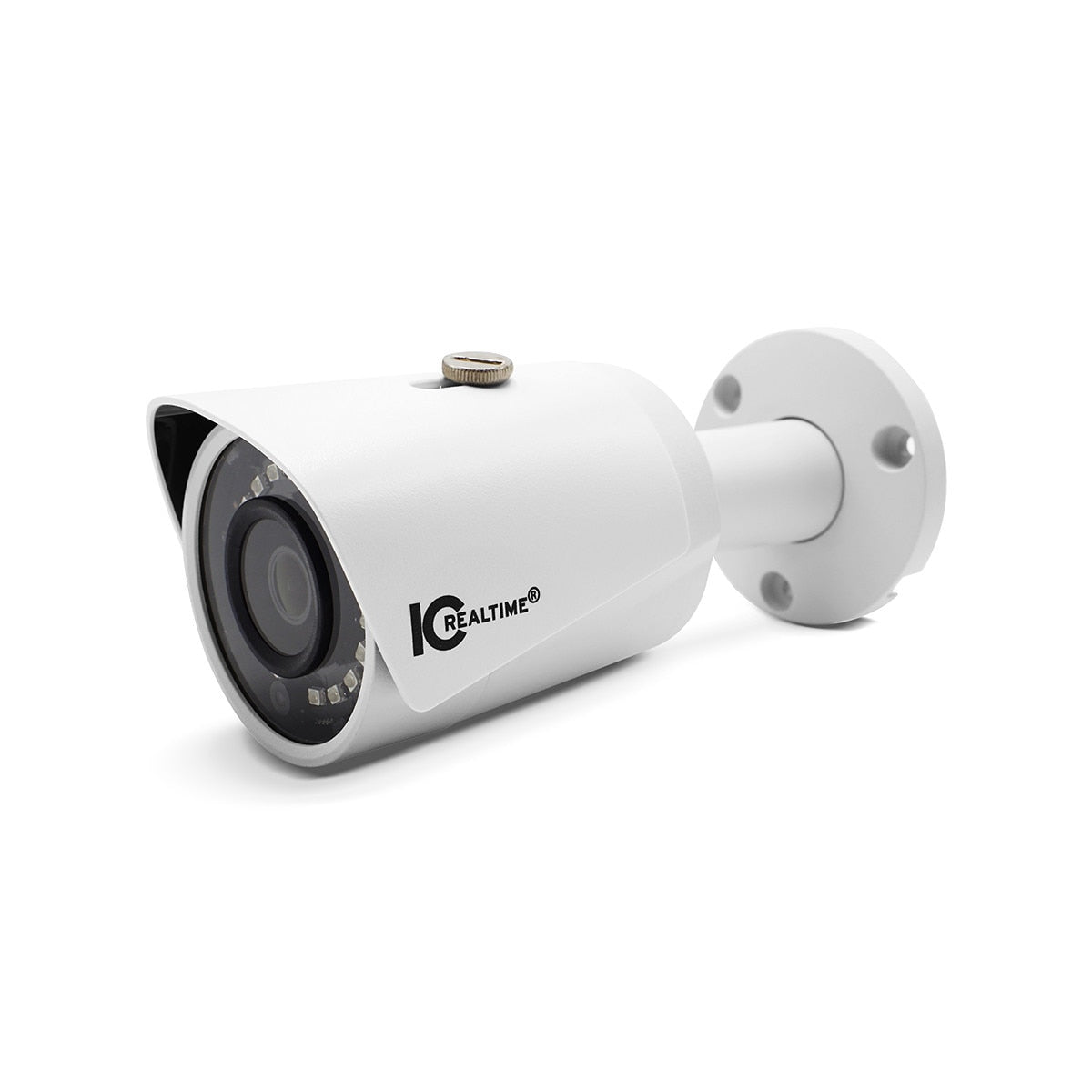

IC Realtime IPEG-B20F-IRW4 2MP Starlight Bullet Network Camera
IC Realtime IPEG-B20F-IRW4 2MP Starlight Bullet Network Camera
IC Realtime IPEG-B20F-IRW4 is the latest in our long line of ultra-dependable & cost-effective full HD IP bullet cameras. These rugged little IPEG-B20F bullets have been the “go-to” compact POE bullet camera for our pros for years for good reason. They stream full HD video 24/7 without fail and present minimal load to the network or POE power switch. They just do the job, year after year.
THE LATEST EDITION OF A CLASSIC
The new -IRW4 version continues the tradition with upgraded cybersecurity protocols, ensuring the integrity and confidentiality of your surveillance data. With secure encryption and multi-level authentication, you can rest easy knowing that your camera feed is protected from unauthorized access. The high-definition image sensor combined with its advanced lens provides sharp and vivid visuals, enabling great D.O.R.I. performance - detecting objects at over 95+ ft. and imaging sharply enough for NVR-based facial identification at over 12 ft.
STATE OF THE ART 2K VIDEO
IPEG-B20F-IRW4’s 2.8mm lens is factory fixed at the sharpest focus point over the latest edition of our 2MP/1080p (1920×1080p) 2.7” CMOS image sensor that uses SMART H.264/H.265 “lossless” compression” video encoding to stream at an ultra-low bit rate, for exceptional video clarity & detail resolution over the camera’s 102° wide Field Of View.
SMART IR NIGHTVISION & EASY SETUP
SmartIR automatically adjusts IR intensity to prevent IR “flare,” for 24/7 surveillance without image compromise. 18 IR LEDs reach out up to 95+ feet for super-sharp grayscale images in low-light conditions. Set up is a breeze, thanks to the camera’s integrated base & available screwdriver-fit junction boxes and its user-friendly “Plug & Play” auto initialization with IC Realtime POE recorders and intuitive interface. ONVIF(Profile S), CGI, and P2P industry-standard protocols make it VMS and HTML5 compatible for use with Chrome & Firefox browsers ensuring seamless integration with existing surveillance systems.
COMMERCIAL-GRADE
IPEG-B20F-IRW4’s durable construction ensures long-lasting performance for both indoor and outdoor surveillance in even the harshest weather conditions. Whether it's rain, snow, or extreme temperatures, this camera is built to IP67 weather-tight standards, making it dust-proof and certified to operate normally even after soaking in 1 m deep water for 30 minutes. Capable of being powered by both 12V DC and PoE power, the camera even has a super-wide ±30% input voltage tolerance range.
THE BEST CAMERAS = THE BEST WARRANTIES
IC Realtime stands behind the quality and reliability of the IPEG-B20F-IRW4 with the Edge Line’s 7-Year Limited Warranty and the industry’s best iCare customer support. Our team of experts is always ready to assist you, whether it's answering your queries or providing technical assistance. Even sophisticated camera installations that utilize our most advanced 4K & AI cameras will have positions that just need a dependable 1080P HD POE bullet that delivers IC Realtime’s signature clarity & image management. For residential and commercial environments, IPEG-B20F-IRW4 is that camera.
Specifications
Camera | |
Image Sensor: | 1/2.8" CMOS |
Effective Pixels: | 1920(H) x 1080(V), 2 Megapixels |
RAM/Rom: | 16MB/ 64MB |
Scanning System: | Progressive |
Minimum Illumination: | 0.01 lux@F2.0 (Color,30 IRE) 0.001 lux@F2.0 (B/W,30 IRE) 0 lux (Illuminator on) |
Illumination Distance: | Distance up to 98.43 ft (30 m) |
Illumination On/Off Control: | Auto / Manual |
Illumination LEDs: | 18 |
Camera Illumination Type: | IR |
Lens | |
Lens Type: | Fixed |
Mount Type: | M12 |
Focal Length: | 2.8mm |
Max. Aperture: | F2.0 |
Angle of View: | Horizontal: 102°; Vertical: 54 |
Close Focus Distance: | 1.6 ft (0.5 m) |
DORI - Detect: | 126ft |
DORI - Observe: | 50ft |
DORI - Recognize: | 25ft |
DORI - Identify: | 12ft |
Video | |
Compression: | H.265; H.264; H.264B; MJPEG (Sub stream only) |
Resolution: | 1080P(1920x1080)/1.3M(1280x960)/ 720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240) |
Frame Rate: | Main Stream: 1920 × 1080 (1 fps-25/30 fps) Sub Stream: 704 × 576 (1 fps-25fps) 704 × 480 (1 fps-30fps) |
Bit Rate Control: | CBR/VBR |
Day/Night: | Auto(ICR) / Color / B/W |
Backlight Compensation: | BLC / HLC / DWDR |
White Balance: | Auto/natural/street lamp/outdoor/manual/regional custom |
Gain Control: | Auto / Manual |
Noise Reduction: | 3D DNR |
Smart IR: | Supported |
Flip: | 0°/90°/180°/270° |
Mirror: | Off / On |
WDR: | DWDR |
Audio | |
Compression: | N/A |
Network | |
Ethernet: | RJ-45 (10/100Base-T) |
Protocol: | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast |
Interoperability: | ONVIF(Profile S); CGI; P2P |
Max. User Access: | 6 (Total bandwidth: 36 M) |
Edge Storage: | FTP |
Web Viewer: | IE, Chrome, Firefox, Safari |
Management Software: | SmartICRSS, DSS |
Smart Phone: | IOS, Android |
Interface | |
Audio I/O: | N/A |
Alarm I/O: | N/A |
Factory Reset: | N/A |
Memory Slot: | N/A |
Electrical | |
Power Supply: | DC12V, PoE (802.3af) |
Power Consumption: | Basic: 1.5 W (12 VDC); 2.3 W (PoE) Max. (ICR +H.265+ IR on): 4.3 W (12 VDC); 5.5 W(PoE) |
Environmental | |
Operating Conditions: | -40°F to +140°F (-40°C to +60°C)/less than ≤ 95% RH |
Ingress Protection: | IP67 |
Vandal Resistance: | N/A |
Construction | |
Casing: | Metal + plastic |
Dimensions: | 6.5" × 2.8 (164.6 mm × 71.8 mm) |
Gross Weight: | 1.1 lb (0.50 kg) |
Mounting Pan/Tilt/Rotation: | Pan: 0°–360°Tilt: 0°–90°Rotation: 0°–360° |
