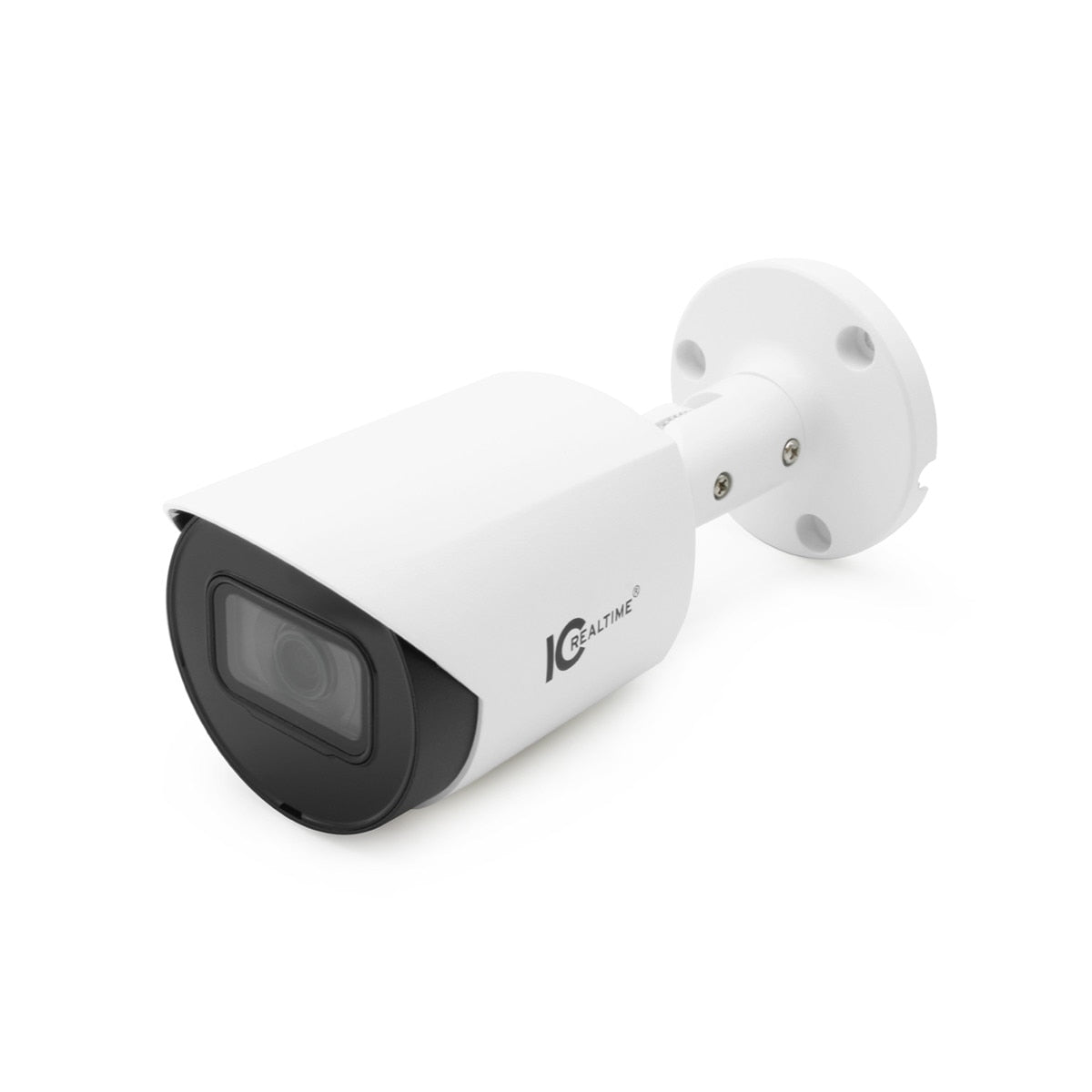

IC Realtime IPEG-B40F-IRW2 4MP Starlight Bullet Network Camera
IC Realtime IPEG-B40F-IRW2 4MP Starlight Bullet Network Camera
IC Realtime’s Edge cameras have always led the camera market in terms of value, reliability & unmatched video quality, making them ideal for both local NVR recording and use with VMS systems. Now IPEG-B40F-IRW2 - our newest Edge Series indoor/outdoor bullet - brings even more with a 4MP QHD video sensor chip and the latest in image & stream management and is made in South Korea and TAA compliant.
LONG-RANGE SMART IR
Ultra-sharp grayscale night vision below the Starlight sensor’s color threshold has always been a hallmark of IC Realtime cameras, even in complete darkness. But unmanaged camera-based IR illumination can “flare” when light-colored structures or objects are close to the camera, ruining the video. With the new B40F that problem is no more. Using our SmartIR system that works with the camera’s autoexposure processing system, IPEG-B40F-IRW2 constantly monitors & adjusts to maintain clear video feeds under any lighting conditions.
ADVANCED NETWORK PERFORMANCE
The “Realtime” in our name was based on our pioneering immediate and simultaneous image display streaming & recording capabilities, based on our near instantaneous in-camera image processing. “Real time” is still at the streaming core of what we do today, for blistering fast recording & display on remote network & mobile devices. IPEG-B40F-IRW2 uses our cutting-edge H.265 / H.264 or selectable H.264B; MJPEG video compression for HTML5 and ONVIF(Profile S/Profile G/Profile T) P2P, for IP Configure/Orchid / VMS compatibility. IPEG-B40F-IRW2’s video is extraordinarily detailed, totally compatible & will stream as fast as the network will carry it.
TAA COMPLIANT & COMMERCIAL GRADE
For many government, institutional, and private sector clients, a high-performance cost-effective, TAA-compliant camera manufactured in our South Korean factory has become the preferred choice. IPEG-B40F-IRW2 answers that call in an IP67 weather-rated, metal case POE bullet that requires less than 5W. And like all our IP/POE cameras, it is provisioned with a 2.1mm 12VDC jack on the camera pigtail to power the camera where POE isn’t available, making it perfect for coax system conversions that already have DC camera power.
IPEG-B40F-IRW2 once again demonstrates IC Realtime’s ability to supply superb commercial-grade overwatch capabilities and our commitment to long-warranty dependability at every budget level. Even the largest camera networks - local NVR or VMS-based - need simple, dependable, high-resolution bullet cameras at many sites. With an industry-beating 7-Year Limited Warranty that goes beyond bragging and puts our money where our mouth is, IC Realtime ‘s new IPEG-B40F-IRW2 is the best available IP/POE bullet camera to meet that need.
Specifications
Camera | |
Image Sensor: | 1/3” 4 Megapixel progressive CMOS |
Effective Pixels: | 2688 (H) × 1520 (V) |
RAM/Rom: | 16MB/ 64MB |
Scanning System: | Progressive |
Minimum Illumination: | 0.03 lux@F2.0 (Color, 30 IRE) 0.003 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on |
Illumination Distance: | Distance up to 98.43 ft (30 m) |
Illumination On/Off Control: | Auto / Manual |
Illumination LEDs: | 1 |
Camera Illumination Type: | IR |
Lens | |
Lens Type: | Fixed |
Mount Type: | M12 |
Focal Length: | 2.8mm |
Max. Aperture: | F2.0 |
Angle of View: | Horizontal: 90° Vertical: 50° |
Close Focus Distance: | 3.28 ft (1 m) |
DORI - Detect: | 223ft |
DORI - Observe: | 89ft |
DORI - Recognize: | 44ft |
DORI - Identify: | 22ft |
Video | |
Compression: | H.265; H.264; H.264B; MJPEG (Sub Stream) |
Streaming Capability: | 2 Streams |
Resolution: | 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/ 352× 240) |
Frame Rate: | Main Stream: 4MP 2688 × 1520 (1 fps-20 fps) 4MP 2560 × 1440 (1 fps-25/30 fps) Sub Stream: D1 704 × 576 (1 fps-25fps) D1 704 × 480 (1 fps-30fps) |
Bit Rate Control: | CBR/ VBR |
Bit Rate: | H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps |
Day/Night: | Auto(ICR) / Color / B/W |
Backlight Compensation: | BLC / HLC / DWDR |
White Balance: | Auto/ natural/ street lamp/ outdoor /manual/ regional custom |
Gain Control: | Auto / Manual |
Noise Reduction: | 3D DNR |
Motion Detection: | OFF/ON (4 areas, rectangular) |
Smart IR: | Supported |
Flip: | 0°/180° |
WDR: | DWDR |
Audio | |
Compression: | G.711a; G.711Mu; G.726; PCM |
Network | |
Ethernet: | RJ-45 (10/100Base-T) |
Protocol: | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast |
Interoperability: | ONVIF (Profile S/Profile T); CGI; P2P |
Max. User Access: | 6 (Total bandwidth: 36 M) |
Edge Storage: | FTP |
Web Viewer: | IE, Chrome, Firefox, Safari |
Management Software: | SmartICRSS, DSS |
Smart Phone: | IOS, Android |
Interface | |
Audio I/O: | Built-in Mic |
Alarm I/O: | N/A |
Factory Reset: | N/A |
Memory Slot: | N/A |
Electrical | |
Power Supply: | DC12V, PoE (802.3af) |
Power Consumption: | Power Supply DC12V, PoE (802.3af) Power Consumption Basic: 1.4 W (12 VDC); 2.2 W (PoE) Max. (ICR + H.265+IR on): 3.4 W (12 VDC); 4.4 W(PoE) |
Environmental | |
Operating Conditions: | -40°C to +60°C (-40°F to +140°F) |
Operating Humidity: | ≤ 95% |
Storage Conditions: | -40°C to +60°C (-40°F to +140°F) |
Storage Humidity: | ≤ 95% |
Ingress Protection: | IP67 |
Vandal Resistance: | NA |
Construction | |
Casing: | Metal |
Dimensions: | 6.40" × 2.76" × 2.7 (162.1 mm × 70 mm × 70 mm) |
Gross Weight: | 0.99 lb (0.45 kg) |
Mounting Pan/Tilt/Rotation: | Pan: 0°–360°Tilt: 0°–90°Rotation: 0°–360° |
