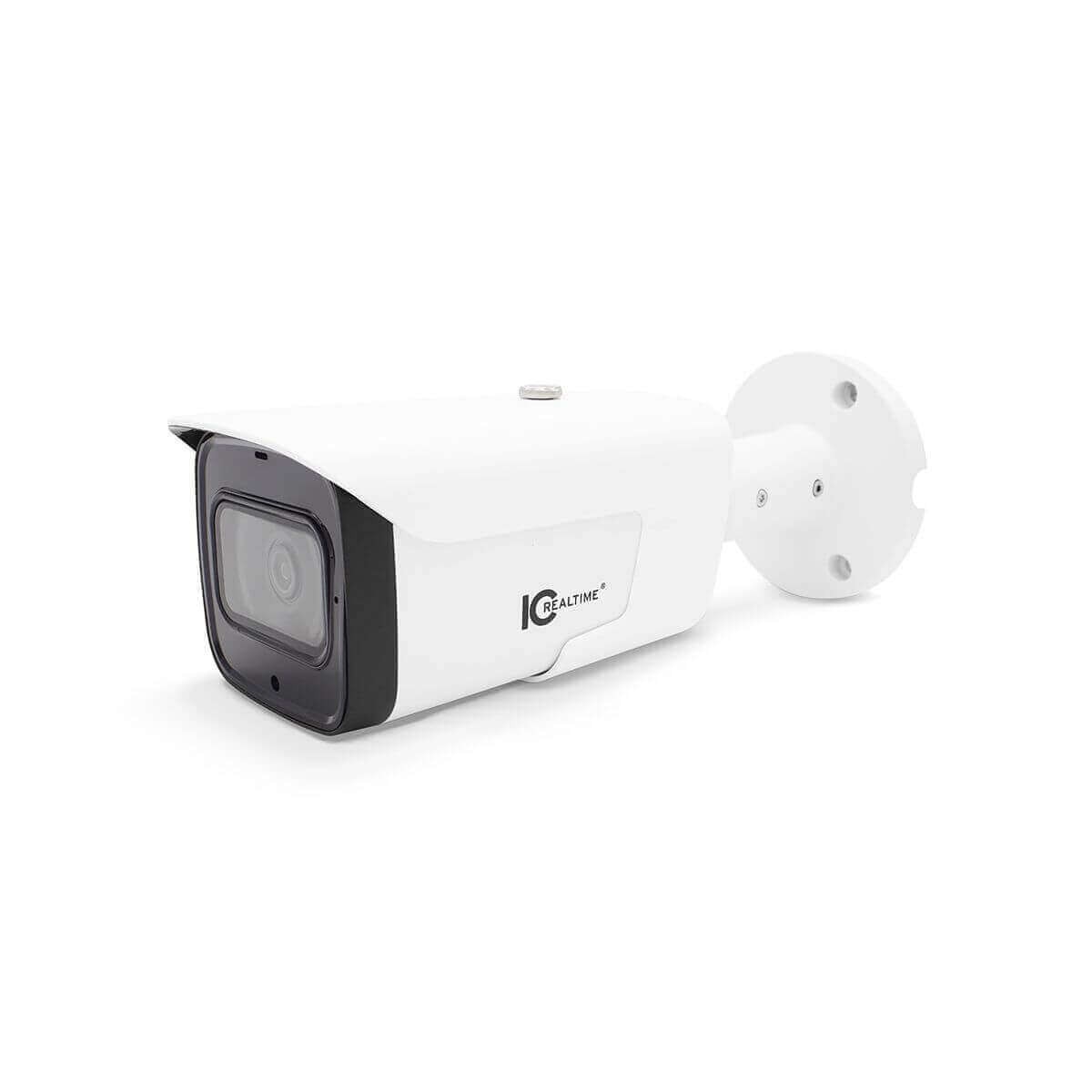

IC Realtime IPEG-B40V-IRW2 4MP IR Varifocal Bullet Network Camera

IC Realtime IPEG-B40V-IRW2 4MP IR Varifocal Bullet Network Camera

Regular price $390.00 USD
Regular price Sale price $390.00 USD
Sale Sold out
The IC Realtime Edge Line offers a wide range of commercial security cameras that outperform all other value-based offerings on the market today.

Our 4MP IP bullet camera is a weatherproof security camera with an IP67 ingress rating. This varifocal lens security camera is ideal for entrances and exits. It is equipped with a 2.8mm to 12mm focal lens, which allows users to quickly dial in an accurate field of view.

This bullet security camera is also a Micro SD security camera; it supports up to 256GB and is HTML5 capable; no plugins required.

True WDR is another impressive feature this 4mp bullet IP camera features that most brands at these price points will not offer. If you expect sharp and detail-oriented images that transition from high to low contrasts, you need 120 dB True WDR - otherwise, the images will be a washout. True WDR optimizes both the bright and dark areas of a scene while providing excellent video quality.

Supporting up to 164 feet of Smart IR, this 4mp IR bullet network camera offers the best IR illuminator for security cameras. Well suited for indoor applications, this CMOS bullet outdoor camera will also stay in color much longer due to its low light chipset. In terms of efficiency, it offers dual streams, capable of a full 30 frames per second at its rated resolution, and offers the latest space-saving H.265 compression.

Made In South Korea And Conforms To The Trade Agreements Act (TAA)

Specifications

Camera
Image Sensor: 1/3” 4 Megapixel progressive CMOS
Effective Pixels: 2688 (H) ×1520 (V)
RAM/Rom: 128MB/128MB
Scanning System: Progressive
Electronic Shutter Speed: N/A
Minimum Illumination: 0.03 Lux @ F1.7
Illumination Distance: 50 m (164.0 ft)
Illumination On/Off Control: Auto/ Manual
Illumination LEDs: 2
IR Wavelength: 850 nm
Camera Illumination Type: IR
Lens
Lens Type: Motorized
Mount Type: Board-in
Focal Length: 2.8mm~12mm
Max. Aperture: F1.7
Angle of View: Horizontal: 98°–31,°Vertical: 55°–18°
Focus Control: Fixed
Close Focus Distance: 0.8 m (2.6 ft)
DORI - Detect: 183ft-656ft
DORI - Observe: 73ft-262ft
DORI - Recognize: 36ft-131ft
DORI - Identify: 18ft-65ft
Intelligence
IVS: N/A
Advanced Intelligent Functions: N/A
Video
Compression: H.265/H.264/H.264B/MJPEG(Sub Stream)
Resolution: 4M(2560x1440)/3M(2304×1296)/1080P(1920×1080
)/1.3M(1280x960)/720P(1280×720)/VGA(640×480)/
D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate: Main Stream: 4M(1 ~ 20fps)
Sub Stream: D1(1 ~ 25/30fps)
Bit Rate Control: CBR/VBR
Bit Rate: H.264: 16K~6144K
H.265: 6K~ 6144K
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / WDR (120 dB)
White Balance: Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control: Auto/Manual
Noise Reduction: 3D DNR
Motion Detection: Off / On (4 Zone, Rectangle)
Region of Interest: Off / On (4 Zone)
Electronic Image Stabilization (EIS): N/A
Smart IR: Support
Flip: 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution)
Mirror: Off / On
Privacy Masking: Off / On (4 Area, Rectangle)
Audio
Compression: N/A
Network
Ethernet: RJ-45 (10/100Base-T)
Protocol: HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP
Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI
Streaming Method: Unicast / Multicast
Max. User Access: 20
Edge Storage: FTP; SFTP; Micro SD card (support max. 256 GB); NAS
Web Viewer: IE, Chrome, Firefox, Safari
Management Software: SmartICRSS, DSS, ICRSS Pro
Smart Phone: IOS, Android
Interface
Audio I/O: N/A
Memory Slot: Micro SD Card 256GB
Electrical
Power Supply: DC12V, PoE (802.3af)
Power Consumption: < 7.4W
Environmental
Operating Conditions: -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection: IP67
Construction
Casing: Metal
Dimensions: 244.1 mm × 90.4 mm (9.6" × 3.6")
Gross Weight: 1.10 kg (2.4 lb)
