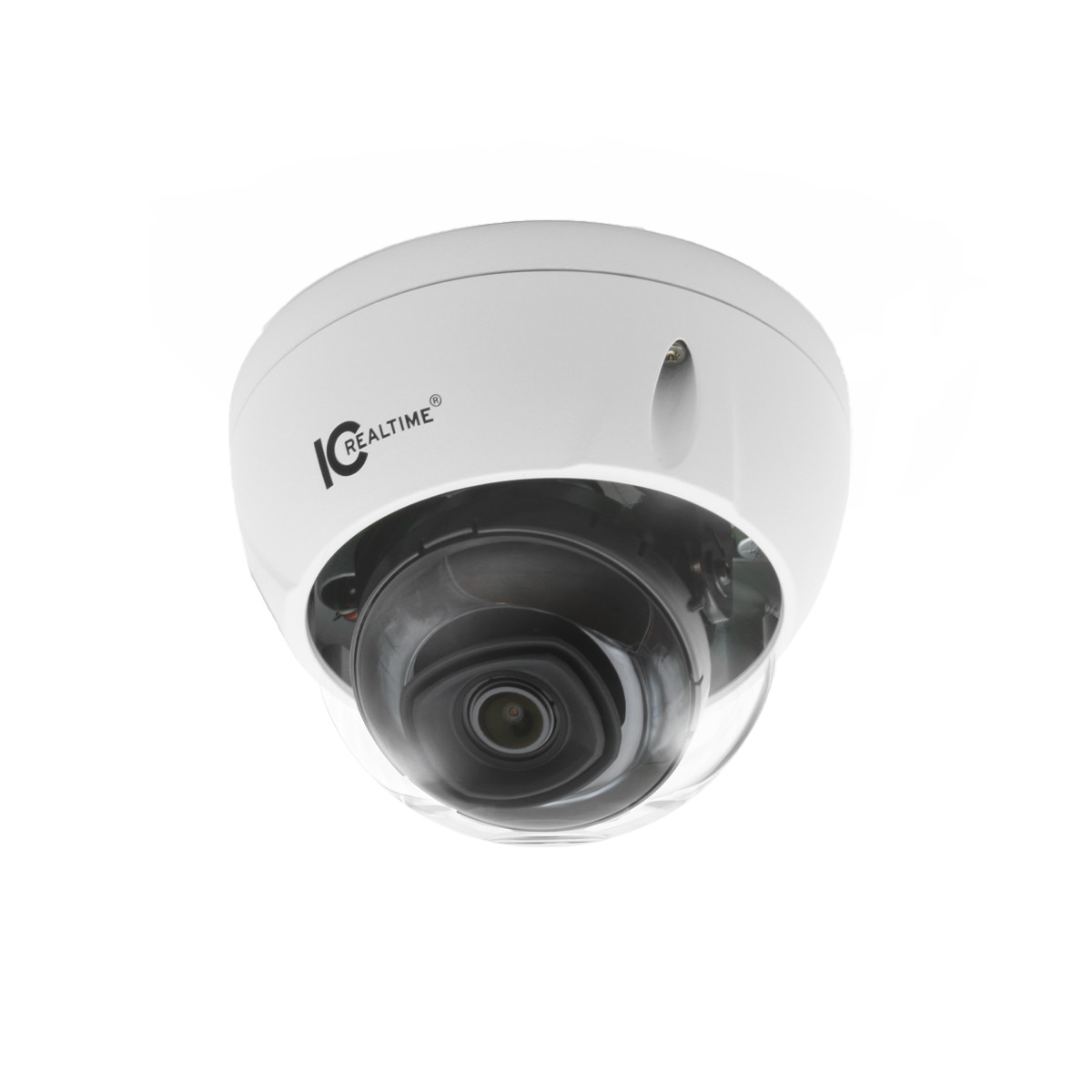

IC Realtime IPEG-D20F-IRW4 2MP Vandal Proof Dome Network Camera
IC Realtime IPEG-D20F-IRW4 2MP Vandal Proof Dome Network Camera
Some camera locations just need sharp, dependable 24/7 video coverage indoors & out. Without all the bells & whistles. And many camera installers may face large, multi-location or VMS systems where cost per unit comes into play. IC Realtime’s weatherproof, vandal-resistant IPEG-D20F-IRW4 delivers the perfect cost-effective answer for both.
LONG WARRANTY DEPENDABILITY
The IPEG-D20F series have always been our camera dealer’s vandal-resistant HD camera choice. Our latest IRW4 model is the professional version of an IR minidome. It’s so well built it comes with the Edge line’s 7-Year Limited Warranty.
COMPLETELY ADAPTABLE
At only 4.3” around x 3.2” tall, IPEG-D20F fits easily & unobtrusively into homes, small businesses, retail and industrial locations. With a variety of color-matched mounting accessories, IPEG-D20F-IRW4 can adapt to any site. There are even color-matched drop poles for easier high-ceiling locations.
IDEAL FOR VMS STREAMS
As a primary cost-effective basic POE dome camera in smaller systems, this efficient little dome hits the mark. These native 1080P Starlight cameras are perfect in homes or businesses. Their price point also makes them ideal where dozens or even hundreds of cameras are needed. For VMS systems like IP Configure’s Orchid, IPEG-D20F-IRW4 has dual streams with H.265, H.264 & H.264B video compression and MJPEG on its substream.
IDEAL DETECTION “EYES”
NVR & web-based detection systems need low bandwidth yet highly detailed video streams. IPEG-D20F-IRW4 lets camera pros use both web-based and site-based recorder detection & business intelligence. It’s cost-effectiveness frees up resources to add more hard drives for jobs that include an NVR. Or to use more sophisticated cameras at critical locations.
THE PROFESSIONAL CHOICE
IPEG-D20F uses IC Realtime’s legendary autoexposure system. With digital WDR, backlight, and highlight compensation it delivers the best video possible from bright sunlight down to 0 lux. Big box consumer-grade camera IRs reach out only about 25-30 ft at night. But the IPEG-D20F-IRW4’s SmartIR night vision reaches out almost 100ft.
A TOUGH, DEPENDABLE LITTLE POE DOME
IPEG-D20F’s base is metal - not plastic, rated IK10 for vandalism resistance. And with IP67 weather resistance, it’s weatherproof when properly installed. And because IPEG-D20F conforms to ONVIF standards, it works with most network video recorders. This interoperability makes it ideal for dead IP camera replacement.
IC Realtime’s IPEG-D20F-IRW4 beats the competition in video quality and warranty-backed dependability. If you need awesome 1080P 24/7 video on a tight budget, this amazing little IP/POE vandal dome is the video industry’s best professional answer.
Specifications
Camera | |
Image Sensor: | 1/2.8” 2 Megapixel progressive CMOS |
Effective Pixels: | 1920(H) x 1080(V), 2 Megapixels |
RAM/Rom: | 16MB/64MB |
Scanning System: | Progressive |
Minimum Illumination: | 0.01 Lux @F2.0 |
Illumination Distance: | 98.43 ft (Distance up to 30 m) |
Illumination On/Off Control: | Auto / Manual |
Illumination LEDs: | 3 |
Camera Illumination Type: | IR |
Lens | |
Lens Type: | Fixed |
Mount Type: | M12 |
Focal Length: | 2.8mm |
Max. Aperture: | F2.0 |
Angle of View: | Horizontal: 102°; Vertical: 54° |
DORI - Detect: | 123ft |
DORI - Observe: | 50ft |
DORI - Recognize: | 25ft |
DORI - Identify: | 12ft |
Video | |
Compression: | H.265; H.264; H.264B; MJPEG (Sub stream only) |
Streaming Capability: | 2 Streams |
Resolution: | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF(352 × 288/352 × 240) |
Frame Rate: | Main Stream: 1920 × 1080 (1 fps-25/30 fps) Sub Stream: 704 × 576 (1 fps-25fps) 704 × 480 (1 fps-30fps) |
Bit Rate Control: | CBR/VBR |
Bit Rate: | H.264: 32 kbps–6144 kbps H.265: 12 kbps–6400 kbps |
Day/Night: | Auto(ICR) / Color / B/W |
Backlight Compensation: | BLC / HLC / DWDR |
White Balance: | Auto/natural/street lamp/outdoor/manual/regional custom |
Gain Control: | Auto / Manual |
Noise Reduction: | 3D DNR |
WDR: | DWDR |
Network | |
Ethernet: | RJ-45 (10/100Base-T) |
Protocol: | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP;FTP; DHCP; DNS; NTP; Multicast |
Max. User Access: | 6 (Total bandwidth: 36 M) |
Edge Storage: | FTP |
Web Viewer: | IE, Chrome, Firefox, Safari |
Management Software: | SmartICRSS, DSS |
Smart Phone: | IOS, Android |
Interface | |
Audio I/O: | N/A |
Alarm I/O: | N/A |
Factory Reset: | N/A |
Memory Slot: | N/A |
Electrical | |
Power Supply: | DC12V, PoE (802.3af) |
Power Consumption: | Basic power consumption: 1.6W (12V DC); 2.2W (PoE) Max. power consumption (ICR + H.265 + IR intensity): 4.4W (12V DC); 5.1W (PoE) |
Environmental | |
Operating Conditions: | -40°F to +140°F (-40°C to +60°C)/less than ≤ 95% RH |
Ingress Protection: | IP67 |
Vandal Resistance: | IK10 |
Construction | |
Casing: | Metal |
Dimensions: | 3.2" × Φ4.3" (81 mm × Φ109.9 mm) |
Gross Weight: | 1.1 lb (0.50 kg) |
Mounting Pan/Tilt/Rotation: | Pan: 0°–355°Tilt: 0°–65°Rotation: 0°–355° |
