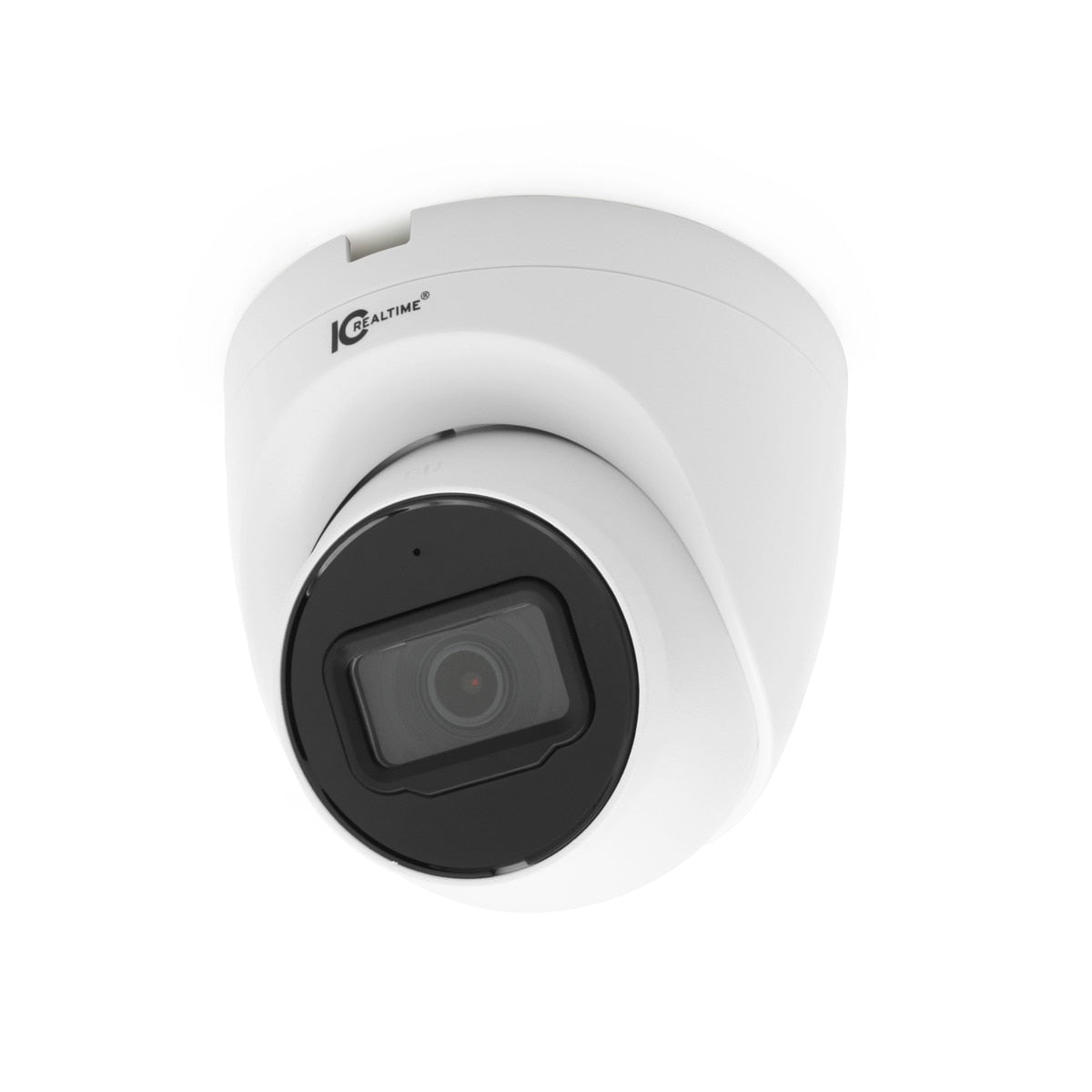

IC Realtime IPEG-E40F-IRW2 4MP Eyeball Network Camera
IC Realtime IPEG-E40F-IRW2 4MP Eyeball Network Camera
IC Realtime's Edge Series IP/POE eyeball dome cameras have long been among our best sellers. Camera installers love them for their cost-effectiveness, easy installation & exceptional reliability. With the latest IRW2 version, these cost-effective 4MP QHD eyeball dome cameras have become an even better choice. IPEG-E40F-IRW2’s standout improvement is our newest generation of cybersecurity, improved stream management, and the latest edition of our 4MP QHD CMOS video chipset, enabling these cameras to maintain color visibility down to 0.03 Lux. Incoming light is sharply focused on this sensitive sensor using the camera’s 2.8mm/90° FOV lens, and in complete darkness, the SmartIR night vision feature offers over 98 feet of sharp grayscale imaging, ensuring uninterrupted 24/7 coverage. The camera's high 4MP/QHD 2688 × 1520 pixel density guarantees unmatched performance, delivering superior streams for both NVR and VMS systems, regardless of the selected output resolution.
THE ART OF OPTIMIZED STREAM MANAGEMENT
IPEG-E40F-IRW2 camera caters to dealers' needs by offering various output modes for diverse applications. When paired with IC Realtime NVRs, these cameras can leverage our Smart H.265+ encoding technology. This cutting-edge encoding technology includes "scene adaptive encoding" and a "multi-frame reference structure," enhancing efficiency and intelligent noise reduction. By utilizing Smart H.265+, installers can save up to 70% of stream bandwidth and reduce HD storage loads compared to standard H.265 encoding.
VANDAL-RESISTANT & WEATHERPROOF
At IC Realtime, we prioritize weatherproofing our cameras to ensure their long-lasting dependability, and the IPEG-E40F-IRW2 exemplifies this commitment. Its design and production involve rigorous testing, including extended dust and water immersion tests, earning it an IP67 rating. It operates reliably in temperatures ranging from -40°F to +140°F, making it suitable for various environments, from medical and food storage freezers to outdoor settings with direct sunlight.
INSTALLER-FRIENDLY
To simplify installations, we provide convenient mounting accessories. The MNT-ADAPT-SM is a screw-driver fit “top cap” adapter that makes the camera ceiling drop-pole compatible. For weatherproof outdoor mounting, the MNT-JUNCTION BOX 4 or the "porchlight" style MNT-IPMINIDOME-WALL-2 are available.
IC Realtime's IPEG-E40F-IRW2 eyeball dome camera provides budget-friendly, dependable, and long-warranty 24/7 coverage to camera installations from residential to multi-site VMS systems. Its weatherproof features make it ideal for outdoor locations as well as indoor settings such as schools, retail spaces, and commercial sites. Put simply, IPEG-E40F-IRW2 brings the latest generation of 4MP QHD clear video & audio surveillance within reach for every job.
Specifications
Camera | |
Image Sensor: | 1/3" 4 Megapixel progressive CMOS |
Effective Pixels: | 2560 (H) × 1440 (V) |
RAM/Rom: | 16MB/ 64MB |
Scanning System: | Progressive |
Minimum Illumination: | 0.03 lux@F2.0 (Color,30 IRE) 0.003 lux@F2.0 (B/W,30 IRE) 0 lux (Illuminator on) |
Illumination Distance: | 98.43 ft (30 m) |
Illumination On/Off Control: | Auto / Manual |
Illumination LEDs: | 1 |
Camera Illumination Type: | IR |
Lens | |
Lens Type: | Fixed-focal |
Mount Type: | M12 |
Focal Length: | 2.8 mm |
Max. Aperture: | F2.0 |
Angle of View: | H: 90°; V: 50° |
Optical Zoom: | N/A |
Close Focus Distance: | 3.28 ft (1 m) |
DORI - Detect: | 223ft |
DORI - Observe: | 89ft |
DORI - Recognize: | 44ft |
DORI - Identify: | 22ft |
Intelligence | |
IVS: | N/A |
Advanced Intelligent Functions: | N/A |
Video | |
Compression: | H.265; H.264; H.264B; MJPEG (Only supported by the sub stream) |
Resolution: | 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 ×1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352× 240) |
Frame Rate: | Main stream: 2560 × 1440@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) |
Bit Rate: | H.264: 32 kbps–4096 kbps H.265: 12 kbps–4096 kbps |
Day/Night: | Auto(ICR) / Color / B/W |
Backlight Compensation: | BLC / HLC / DWDR |
Noise Reduction: | 3D DNR |
Flip: | 0°/180° (0° by default) |
Mirror: | Supported |
WDR: | DWDR |
Audio | |
Compression: | G.711a; G.711Mu; G.726; PCM |
Network | |
Ethernet: | RJ-45 (10/100Base-T) |
Protocol: | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast |
Max. User Access: | 6 (Total bandwidth: 24 M) |
Edge Storage: | FTP |
Web Viewer: | IE, Chrome, Firefox, Safari |
Management Software: | SmartICRSS, DSS |
Smart Phone: | IOS, Android |
Interface | |
Audio I/O: | Built-in Mic |
Alarm I/O: | N/A |
Memory Slot: | N/A |
Electrical | |
Power Supply: | 12 VDC/PoE (802.3af) |
Power Consumption: | Basic: 1.6 W (12 VDC); 2.4 W (PoE) Max. (ICR + H.265+IR intensity): 3.6 W (12 VDC); 4.7 W (PoE) |
Environmental | |
Operating Conditions: | -40°F to +140°F (-40°C to +60°C)/less than ≤ 95% RH |
Ingress Protection: | IP67 |
Construction | |
Casing: | Metal |
Dimensions: | 3.37" × Φ3.70" (85.6 mm × Φ94.0 mm) |
Gross Weight: | 0.95 lb (0.43 kg) |
Mounting Pan/Tilt/Rotation: | Pan: 0°–355° Tilt: 0°–78° Rotation: 0°–355° |
