IC Realtime

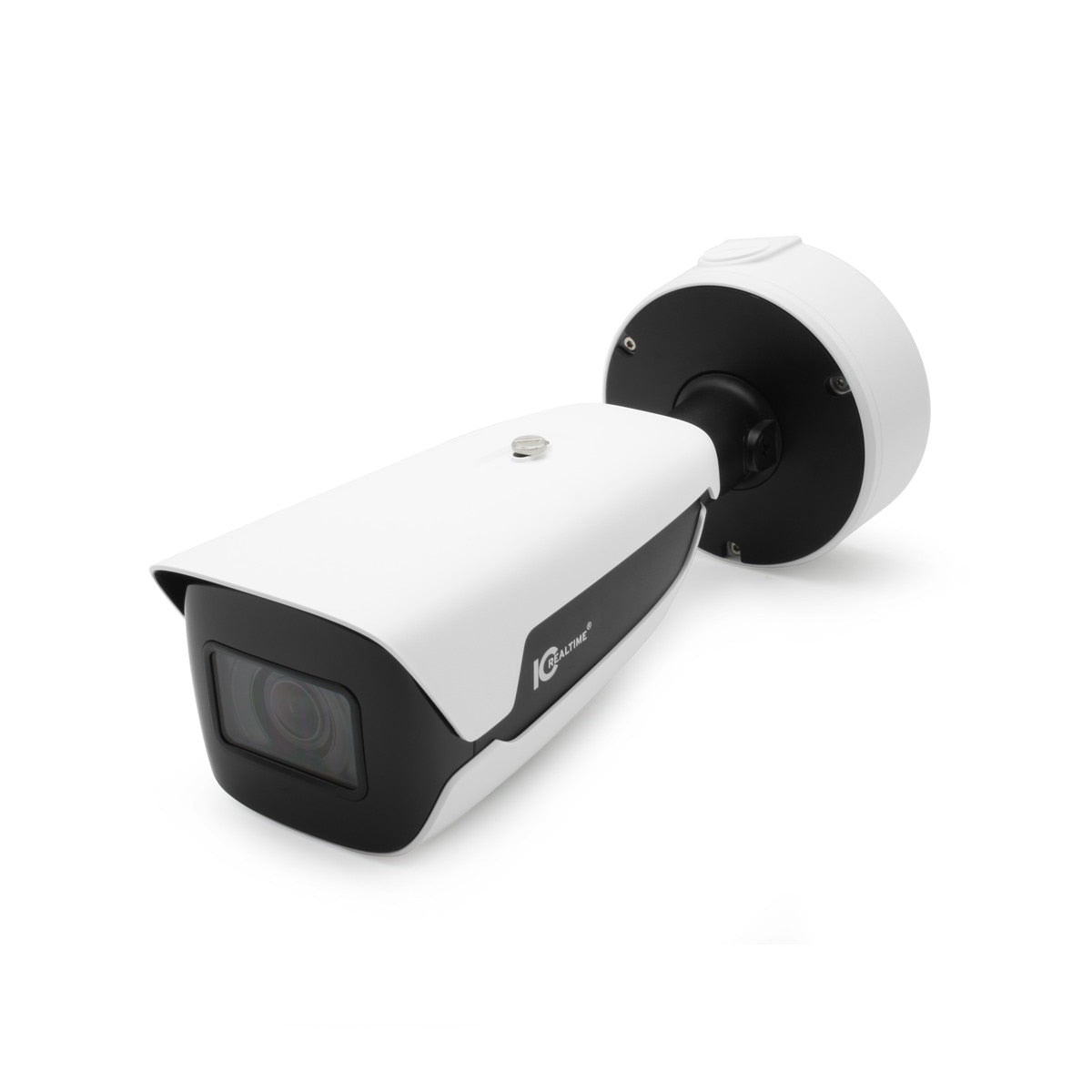

IC Realtime IPEL-B12V-IRW3 12MP IR AI Bullet Network Camera (White)

IC Realtime IPEL-B12V-IRW3 12MP IR AI Bullet Network Camera (White)

Regular price $2,050.00 USD
Regular price Sale price $2,050.00 USD
Sale Sold out

A few years ago, when 4MP was the real-world practical limit for security cameras, our engineers went bigger - all the way up to 12MP with our IPEL-B12V-IRW1. Now, our 3rd generation of one of the world’s highest-resolution security cameras has arrived. Just like the previous models, the 3rd generation IPEL-B12V-IRW3 is a 4K UHD ultra-high resolution, 12MP IP bullet camera with the frankly extreme 4000×3000 pixel count, power zoom lens, and built-in FlexSmartAi detection, metadata, image & stream management capabilities that make it the most advanced IP bullet camera we have ever produced.

12 MILLION PIXELS IS JUST THE START
Beyond the 12MP video resolution enabled by this video sensor’s massive field of pixels, the B12V has also gained the best low-light Starlight color performance possible. Most STARVIS™ and Starlight low-light cameras stay color down to a respectable 0.005 to 0.001 lux - the equivalent of a moonless night. With 12 million light-gathering pixels, the IPEL-B12V has the pixel density to stream in color down to ambient light levels of 0.0009 lux - as close to complete darkness as possible. After that - for areas like closed buildings, under trees, or canopies at night - the camera lights up its 197 feet of SmartIR for unbelievably detailed grayscale imaging. And the IPEL-B12V’s customizable output resolution has a broader range than any camera we make, from the full 12MP in steps down thru 8MP (4K) to whatever level is required for recorder or VMS compatibility, and of course, it’s HTML5 and ONVIF (Profile S/Profile G/Profile T); CGI compatible.  When added to the camera’s autofocusing 2.7 - 12mm power zoom lens, There’s no higher resolution or a more flexible way to overwatch an area 24/7 than IPEL-B12V-IRW3.

ARTIFICIAL INTELLIGENCE ON STEROIDS
IC Realtime has been using our FlexSmartAi cameras & recorders for years that use AI “behind the scenes” to eliminate false alerts, clarify video & stream it faster. In fact, our industry-famous H.265+ lossless video compression depends on AI and was among the first in the video security business. But our new IPEL-B12V has taken Artificial Intelligence forward into a whole new world of recognition & analytical capability. At 12MP the depth & detail of each frame and the field of “datapoints” they enable is ideal for facial recognition. There are far too many capabilities to list here, but here’s a sample: parking space management, metadata-based flow statistics for people, motor vehicles and non-motor vehicles, face detection & recognition with snapshots & snapshot optimization, LPR/ANPR that recognizes plate numbers at speeds of up to 37 MPH (60km/h) that supports a 10,000 entry blocklist and allowlist database... you get the idea. And the IPEL-B12V-IRW3’s frame-by-frame metadata stream records along with the video stream on our newest Object Search AI NVRs for simple “select & search” cross-camera AI queries that locate every instance of the search object on every metadata camera channel on the NVR. This capability once demanded off-site cloud-based servers. Now it’s built in.

THE ULTIMATE IN CAMERA CYBERSECURITY
Even the world’s most extraordinary security cameras, like the IPEL-B12V-IRW3, are still - at their core - security devices meant to inform & protect their owner. That’s why the B12V is equipped with the latest cybersecurity right out of the box that can be updated with every firmware update. Like the camera’s AI capabilities, they are “wide & deep” but include video, firmware & configuration encryption, Digest, WSSE, security logs, and IP/MAC filtering. We could go on, but it’s all on the spec sheet to examine for yourself & talk to your rep and our team about. Suffice it to say - this is one of the world’s most secure IP cameras.

BUILT TO BE OUR CAMERA INTGRATOR’S BEST BULLET EVER
The technical excellence of the IPEL-B12V-IRW3 is evident, but since it’s from IC Realtime, it also has the practical & easy install features our dealer-centric standards call for. The B12V is 24 VAC/PoE+ (802.3at)/ePoE power capable. Co-located on the camera pigtail with the camera's RJ-45 (10/100/1000 Base-T) network jack are audio in & out, three alarm in/2 alarm out ports, local power connectors, and a ladder-climb saving analog video port with a detachable BNC pigtail as an installation/tester port. Mounting options like screwdriver-fit weatherproof & color-matched junction boxes, wall, ceiling, and pole mounts are all available. The B12V has a built-in 256 MB mSD card slot for local video storage and a 12VDC output port for external power needs.

IC Realtime has a core commitment to support our integration partners in every way possible, from bid through installation, from our 10-Year Limited Warranty to our lifetime support. As our camera integrator pros know, seeing is believing, so arrange a demo unit to bench test or schedule a no-obligation, live online demonstration. Call your IC Realtime distributor, reach out to your IC Realtime factory rep toll-free at (866) 997-9009, or become a registered IC Realtime dealer to access IPEL-B12V-IRW2 and everything IC Realtime via your Dealer Portal or ICR Companion app.



Specifications

Camera
Image Sensor: 1/1.7”12 Megapixel progressive CMOS
Effective Pixels: 4000 (H) × 3000 (V)
RAM/Rom: 4GB/8GB
Scanning System: Progressive
Minimum Illumination: 0.0009 lux@F1.6 (Color, 30 IRE)
0.0005 lux@F1.6 (B/W,30 IRE)
0 lux (Illuminator on)
S/N Ratio: >56 dB
Illumination Distance: 196.9 ft (60m)
Illumination On/Off Control: Auto / Manual
Illumination LEDs: 4
Camera Illumination Type: IR
Lens
Lens Type: Motorized vari-focal
Mount Type: φ14
Focal Length: 2.7 mm-12 mm
Max. Aperture: F1.6
Angle of View: H: 106°–45°; V: 77°–34°;
Close Focus Distance: 5.91 ft (1.8 m)
DORI - Detect: 287ft -612ft
DORI - Observe: 114ft- 244ft
DORI - Recognize: 57ft- 122ft
DORI - Identify: 28ft- 61ft
Intelligence
IVS: Tripwire; Intrusion, Abandoned object; missing object, loitering detection; people gathering; parking detection
Advanced Intelligent Functions: People Counting, Face Detection, Face Recognition, Perimeter Protection, Video Metadata, Parking Space Management, People Counting, ANPR
Video
Compression: H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Streaming Capability: 5 streams
Resolution: 12M (4000 × 3000); 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728); 5M (2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536); 3M (2304 × 1296); 2M (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480)
Frame Rate: Main stream: 4000 × 3000 @1-25/30 fps
Sub stream: 1920 × 1080@(1–25/30 fps)
Third stream: 1920 × 1080 @1-25/30 fps
Fourth stream: 1920 × 1080 @1-25/30 fps
Fifth stream: 704 × 576@(1–25 fps)/
704 × 480@(1–30 fps)
Bit Rate Control: CBR/VBR
Bit Rate: H.264: 32 kbps–16384 kbps
H.265: 32 kbps–12288 kbps
Backlight Compensation: BLC / HLC / DWDR
White Balance: Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control: Auto / Manual
Noise Reduction: 3D DNR
Motion Detection: Off / On (4 Zone, Rectangle)
Smart IR: Supported
Flip: 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Privacy Masking: FCC Part 15, Subpart B
WDR: DWDR
Audio
Compression: G.711a, G.711Mu, G.726, AAC, G.723
Network
Ethernet: RJ-45 (10/100Base-T)
Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI
Streaming Method: CBR/VBR
Max. User Access: 20 (Total bandwidth: 340 M)
Edge Storage: FTP; SFTP; Micro SD card (support max. 512 GB); NAS
Web Viewer: IE, Chrome, Firefox, Safari
Management Software: SmartICRSS, DSS
Smart Phone: IOS, Android
Interface
Audio I/O: 1 channel input/ output (RCA port)
Alarm I/O: Input: 3 channels in: 5mA 3V–5V DC
Output: 2 channels out: 1,000mA 30V DC/500mA 50V DC
Factory Reset: Supported
Memory Slot: FTP; SFTP; Micro SD card (support max. 512 GB); NAS
Electrical
Power Supply: 12 VDC/24 VAC/PoE+ (802.3at)/ePoE
Power Consumption: Basic: 7.3 W (12 VDC); 10.2 W (24 VAC); 10.6 W (PoE)
Max. (ICR switch + IR intensity): 18.2 W (12 VDC); 24.2 W (24 VAC); 24.3 W (PoE) Heating: 3 W (12 VDC); 4.6 W (24 VAC); 5.47 W (PoE)
Environmental
Ingress Protection: IP67
Vandal Resistance: IK10
Construction
Casing: Metal + plastic
Dimensions: 13.61" × 5.28" × 5.32"
(345.6 mm × 134.2 mm × 135.1 mm) (L × W × H)
Gross Weight: 6.02 lb (2.73 kg)
Mounting Pan/Tilt/Rotation: Pan: 0-355,°Tilt: 0-90°, Rotation: 0-360°
