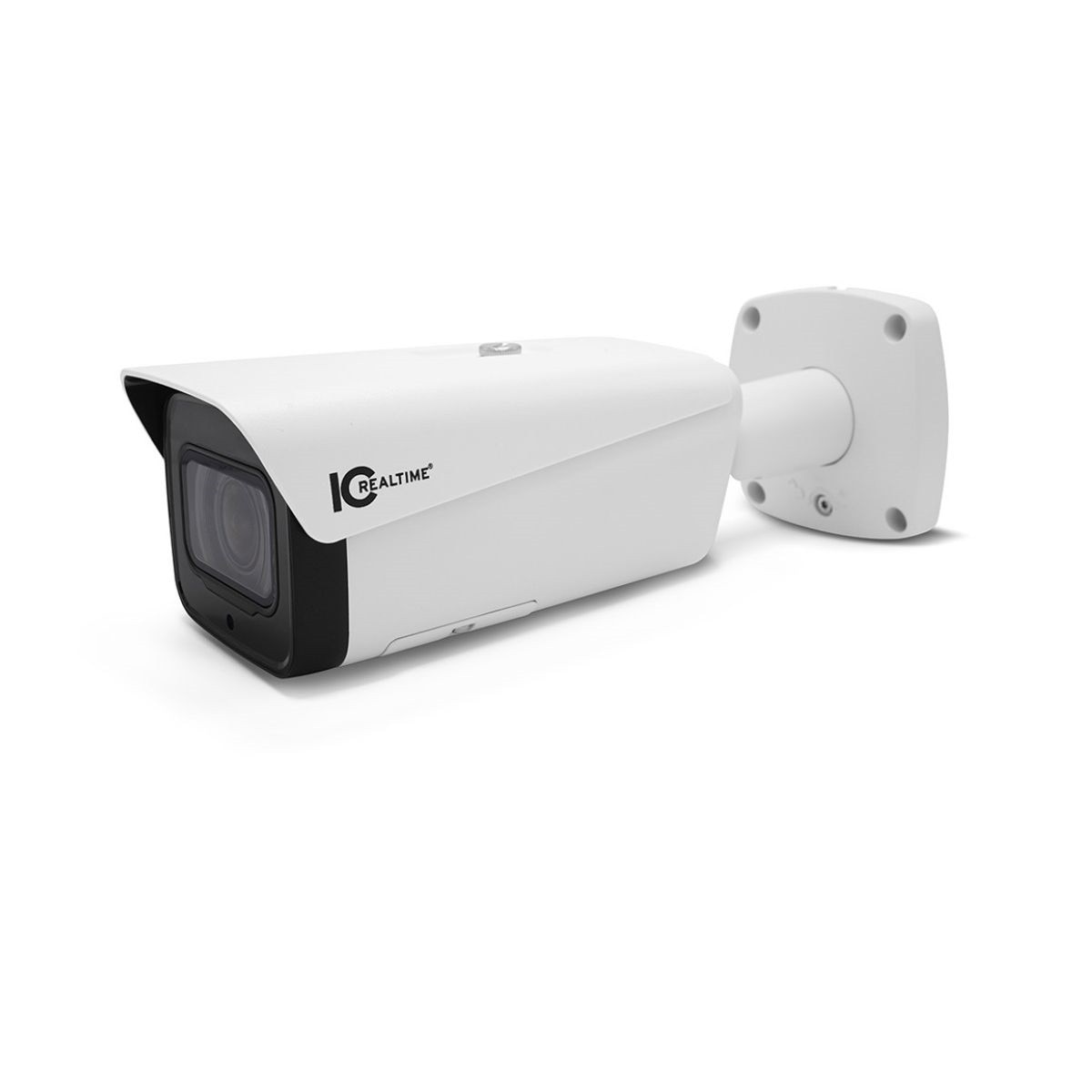

IC Realtime IPEL-B2012X-IRW3 2MP WDR IR Bullet Network Camera (White)
IC Realtime IPEL-B2012X-IRW3 2MP WDR IR Bullet Network Camera (White)
Couldn't load pickup availability
IC Realtime proudly presents the IPEL-B2012X-IRW3, the latest addition to our Elite lineup of IP cameras. Designed for professionals who demand cutting-edge technology and superior performance, this bullet camera offers everything you need for advanced surveillance, from crystal-clear imaging to intelligent features that ensure maximum security.
Equipped with a 5mm to 60mm motorized varifocal lens, the IPEL-B2012X-IRW3 offers an impressive 12x optical zoom, delivering a versatile 59°–5° angle of view for both wide-area monitoring and detailed close-ups. With 4MP resolution (2688 × 1520) at 30 frames per second, you’ll capture every detail with stunning clarity. Supported by the latest H.265 compression, this camera ensures efficient video streaming, optimizing storage and bandwidth usage.
The IPEL-B2012X-IRW3 features a 1/2.8" CMOS image sensor, enabling exceptional low-light performance and high-quality video, even in challenging lighting conditions. With a built-in microphone for audio surveillance and a maximum IR LED length of 492 feet, this camera delivers exceptional night vision capabilities, ensuring clear footage in total darkness. Additionally, Wide Dynamic Range (WDR) at 120dB guarantees optimal image quality in high-contrast environments, whether you're monitoring bright daylight or low-light shadows.
Designed for both indoor and outdoor use, the IPEL-B2012X-IRW3 is IP67 rated, making it fully weatherproof and dust-resistant, capable of withstanding the harshest elements. It also features a 512GB microSD card support, offering flexible local storage for critical video footage.
But the IPEL-B2012X-IRW3 doesn't stop there. It boasts advanced Intelligent Perimeter Protection, which utilizes virtual Tripwire or Intrusion Box functions to detect human and vehicle movement. Paired with IC Realtime’s NVR systems, this camera enables seamless intelligent search, making it easier than ever to pinpoint relevant events. The Intelligent Motion Detect feature enhances detection accuracy by filtering out irrelevant motion, while secondary filtering ensures only humans and motor vehicles trigger alerts.
Additional intelligence capabilities include Video Metadata, People Counting, and Face Detection, making the IPEL-B2012X-IRW3 an invaluable tool for both security and analytics. Whether you're monitoring a parking lot or tracking foot traffic, this camera’s AI-powered features will enhance your surveillance strategy.
Powering the IPEL-B2012X-IRW3 is simple and flexible. It supports 12VDC, PoE (802.3af), and ePoE, offering a range of options for installation. With a power consumption of 9.7W (12VDC) or 12.1W (PoE), it ensures efficient power usage without compromising on performance. It also supports ONVIF (Profile S, Profile G, Profile T, Profile M) for easy integration with other security platforms.
For easy access and management, the IPEL-B2012X-IRW3 is fully compatible with the IC Now desktop PC platform and can be seamlessly connected to the IC View+ mobile app for both iOS and Android devices. Enjoy full control, live viewing, and playback, whether you're on-site or remote. And with IC Realtime’s 10-year warranty and expert US-based tech support, you can trust that your investment is backed by reliable service and assistance.
Specifications
Camera | |
Image Sensor: | 1/2.8” 2 Megapixel progressive scan STARVIS™ CMOS |
Effective Pixels: | 1920(H)x1080(V) |
RAM/Rom: | 4GB/ 1GB |
Minimum Illumination: | 0.0007 lux@F1.5 (Color, 30 IRE) 0.0004 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) |
S/N Ratio: | > 56 dB |
Illumination Distance: | Distance up to 492 ft (150 m) |
Illumination On/Off Control: | Auto / Manual |
Illumination LEDs: | 4 |
Camera Illumination Type: | IR |
Lens | |
Lens Type: | Motorized vari-focal |
Mount Type: | Board-in |
Focal Length: | 5 mm–60 mm |
Max. Aperture: | F1.5 |
Angle of View: | H: 59°–5°; V: 33°–3° |
Optical Zoom: | 12x |
Focus Control: | Motorized |
Close Focus Distance: | 3.28 ft (1.0 m) |
DORI - Detect: | 239ft- 1810ft |
DORI - Observe: | 95ft- 724ft |
DORI - Recognize: | 47ft- 724ft |
DORI - Identify: | 23ft- 181ft |
Intelligence | |
IVS: | Tripwire; Intrusion, Fast moving , Abandoned object; missing object, loitering detection; people gathering; parking detection |
Advanced Intelligent Functions: | Perimeter Protection, Intelligent Motion Detect, Smart Object Detection, Face Detection, Video Metadata, People Counting |
Video | |
Compression: | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
Streaming Capability: | 4 Streams |
Resolution: | 1080P (1920 × 1080)/1.3 M (1280 × 960)/ 720P (1280 × 720)/ D1 (704 × 576/704 × 480) /VGA (640 × 480)/ CIF (352 × 288/352 × 240) |
Frame Rate: | Main Stream: 1080P (1–25/30 fps) Sub Stream: D1 (1–25/30 fps) Third stream: 1080p@(1–25/30 fps) Fourth stream: 720p@(1–25/30 fps) |
Bit Rate Control: | CBR/ VBR |
Bit Rate: | H.264: 32 kbps–12032 kbps; H.265: 12 kbps–7424 kbps |
Day/Night: | Auto(ICR) / Color / B/W |
Backlight Compensation: | BLC/HLC/WDR (120 dB) |
White Balance: | Auto; natural; street lamp; outdoor; manual; regional custom |
Gain Control: | Auto |
Noise Reduction: | 3D NR |
Privacy Masking: | 8 areas |
WDR: | 120 dB |
Audio | |
Compression: | G.711a; G.711Mu; PCM; G.726; G.723 |
Network | |
Ethernet: | RJ-45 (10/100Base-T) |
Protocol: | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
Max. User Access: | 20 (Total bandwidth: 80 M) |
Edge Storage: | FTP; SFTP; Micro SD card (support max. 512 GB); NAS |
Web Viewer: | IE, Chrome, Firefox, Safari |
Management Software: | SmartICRSS, DSS |
Smart Phone: | iOS, Android |
Interface | |
Audio I/O: | Built-In Mic, 1/1 RCA |
Alarm I/O: | 2 channel In: 5mA 5VDC 1 channel Out: 300mA 12VDC |
Memory Slot: | Micro SD card (support max. 512 GB |
Electrical | |
Power Supply: | 12 VDC/PoE (802.3af)/ePoE |
Power Consumption: | Basic: 3.4 W (12 VDC); 4.6 W (PoE) Max. (H.265+ WDR+ Intelligence on+IR on): 9.7 W (12VDC); 12.1 W (PoE) |
Environmental | |
Ingress Protection: | IP67 |
Vandal Resistance: | IK10 |
Construction | |
Casing: | Metal, plastic |
Dimensions: | 10.76”×3.74”×3.74” (273.2mm×95.0mm×95.0mm) |
Gross Weight: | 3.66lb (1.66Kg) |
Mounting Pan/Tilt/Rotation: | Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚ |
