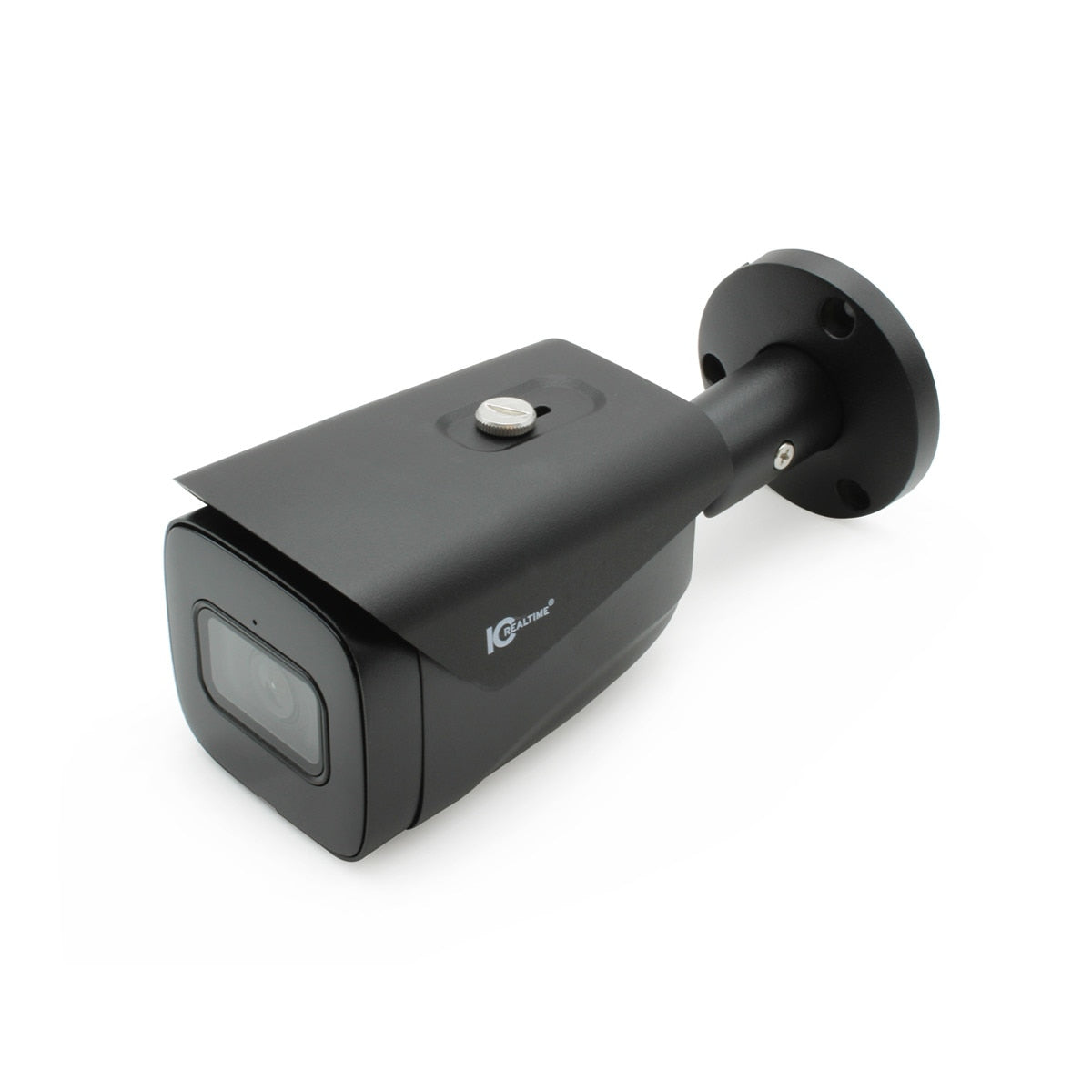

IC Realtime IPEL-B80F-IRB3 8MP Starlight Bullet Network Camera (Black)
IC Realtime IPEL-B80F-IRB3 8MP Starlight Bullet Network Camera (Black)
The newest IRB3 version of our 4K IPEL-B80F bullet in Factory Black is ideal for installations where a white-finished camera just doesn’t work. Black cameras are used where discretion is preferred, like indoors at bars, nightclubs, or restaurants. They eliminate the need to paint cameras to reduce their visibility when installed in locations like houses of worship, law offices, waiting rooms, or retail environments where the ceilings are finished in black. They are also helpful outdoors, where their low visibility can help catch activities that would otherwise remain undetected, especially when another white camera in the system is strategically placed to attract visual attention.
4K STARLIGHT FOR DETAILED LOW-LIGHT COLOR
This bullet camera’s 8MP (3840 × 2160) CMOS Starlight video sensor with 0.007 Lux low-light color means complete digital records & increased identification accuracy. In total darkness below the camera’s color range, the IPEL-B80F reaches out with 95+ ft. of SmartIRs kick-in for sharply detailed grayscale imaging that captures every detail. At night or inside buildings, the IPEL-B80F uses our SmartIR technology that automatically adjusts to cancel IR flare that can ruin images. Combined with the camera’s 120dB of Wide Dynamic Range (WDR) and AI-enhanced image management, the IPEL-B80F continuously streams accurate video for perfect detection & recognition in every lighting condition, indoors or out.
MAXIMUM DETAIL ENABLED
With a 2.8mm medium wide-angle fixed lens with a 107° wide Field of View, IPEL-B80F's 8MP / 4K video resolution delivers a massive field of 8,294,400 data points. That level of pixel density enables both camera & NVR - based facial recognition & identification systems to work at maximum efficiency. Both share deep learning algorithms to maximize data extraction from every frame. Together, they deliver on the promise of the unprecedented detail the camera's extraordinary 8MP UHD video sensor makes possible.
EVEN SMARTER AI-BASED DETECTION
One of the best features of IC Realtime’s FlexSmartAi systems is that their deep-learning technology lets them get better with time & experience. This IPEL-B80F is the camera’s 3rd generation and uses the newest & most intelligent algorithms to deliver the most advanced detection skills available. The 2.0 version of our Intelligent Motion Detection (iMD) streams frame-by-frame metadata for “select & search” capability on our Object Search AI NVRs and its deep learning algorithm is even better at detection alerts, issuing alerts only for actual vehicle & human intrusion events with up to 95% detection & alert accuracy.
AI STREAM MANAGEMENT
One of the barriers to dependable 4K UHD video security has always been the bandwidth required to maximize clarity & minimize latency. IC Realtime solved that issue by handing over stream management to the IPEL-B80F’s FlexSmartAi systems. Camera integrators can dial in a wide range of stream resolutions ranging from the camera’s full 8MP/4K with IC Realtime’s NVRs all the way down to D1 and compression schemes ranging from our Smart H.265+ & H.264+, AI H.265; AI H.264 to standard H.265; H.264/H /B and even MJPEG on the substream. This customization capability ensures compatibility with VMS systems, legacy recorders, and 3rd party NVRs. With IC Realtime NVRs, the IPEL-B80F uses advanced Smart H.265+ video with scene-adaptive encoding that uses frame-by-frame comparisons to ensure every pixel is perfect and up to 70% lower bit rates than standard H.265.
FUTURE-PROOF + PRO-LEVEL FEATURES
IPEL-B80F has a 2.1mm pigtail jack for 12VDC power where 7w of PoE isn't available, alarm I/O ports, both a built-in audio mic and audio in & out jacks, and a 256Gb mSD slot for on-board video storage. Of course, the camera’s Factory Black metal case & integrated mount and optional screwdriver fit MNT-JUNCTIONBOX-3B are IP67 weather rated.
If your next installation calls for a dependable, state-of-the-art 4K Starlight bullet camera in Factory Black, IC Realtime’s IPEL-B80F-IRB3 with AI-enhanced iMD & Perimeter Detection, audio & alarm capabilities and backed by our exclusive 10-Year Limited Warranty is the video security industry’s best option.
Specifications
Camera | |
Image Sensor: | 1/2.8” 8 Megapixel progressive CMOS |
Effective Pixels: | 3840 (H) × 2160 (V) |
RAM/Rom: | 128MB/ 1GB |
Scanning System: | Progressive |
Minimum Illumination: | 0.007 lux@F1.4 (Color, 30 IRE) 0.0007 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on) |
Illumination Distance: | 98.4 ft (30 m) |
Illumination LEDs: | 1 |
Camera Illumination Type: | IR |
Lens | |
Lens Type: | Fixed-focal |
Mount Type: | M12 |
Focal Length: | 2.8 mm |
Max. Aperture: | F1.4 |
Angle of View: | Horizontal:107°; vertical: 56° |
Close Focus Distance: | 4.9 ft (1.5 m) |
DORI - Detect: | 287ft |
DORI - Observe: | 115ft |
DORI - Recognize: | 57ft |
DORI - Identify: | 28ft |
Intelligence | |
IVS: | Tripwire; Intrusion |
Advanced Intelligent Functions: | Perimeter Protection, Intelligent Motion Detect 2.0 |
Video | |
Compression: | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) |
Resolution: | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 ×1728/2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048×1536); 3M (2304×1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480 |
Frame Rate: | Main stream: 3840 × 2160 @ (1–25/30) fps Sub stream: 704 × 576 @ (1–25 fps)/ 704 × 480 @ (1–30 fps) Third Stream: 1920 × 1080 @(1–25/30 fps) |
Bit Rate: | H.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps |
Day/Night: | Auto(ICR) / Color / B/W |
Backlight Compensation: | BLC / HLC / WDR(120dB) |
White Balance: | Auto/Natural/Street Lamp/Outdoor/Manual |
Gain Control: | Auto / Manual |
Noise Reduction: | 3D DNR |
Flip: | 0°/90°/180°/270° (supports 90°/270° with 2688×1520 resolution and lower) |
Privacy Masking: | Off / On (4 Area, Rectangle) |
WDR: | 120db |
Audio | |
Compression: | G.711a; G.711Mu; PCM; G.726; G.723 |
Network | |
Ethernet: | RJ-45 (10/100Base-T) |
Protocol: | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
Max. User Access: | 20 (Total bandwidth: 64 M) |
Edge Storage: | NAS, FTP, SFTP, Micro SD Card (256 GB) |
Web Viewer: | IE, Chrome, Firefox, Safari |
Management Software: | SmartICRSS, DSS |
Smart Phone: | IOS, Android |
Interface | |
Audio I/O: | Built-in Mic, 1 channel input/ output (RCA port) |
Alarm I/O: | Input: 1 channel in: 5mA 3V–5V DC Output: 1 channel out: 300mA 12V DC |
Memory Slot: | Micro SD Card (256 GB) |
Electrical | |
Power Supply: | DC12V, PoE (802.3af) |
Power Consumption: | Basic: 3.8 W (12 VDC); 4.6 W (PoE) Max: (WDR + IR intensity + Intelligence): 5.9 W (12 VDC); 7.2 W (PoE) |
Environmental | |
Ingress Protection: | IP67 |
Construction | |
Casing: | Metal |
Dimensions: | 7.59" × 2.77" × 2.61 (L × W × H) (192.7 mm × 70.5 mm × 66.4 mm) |
Gross Weight: | 1.7 lb (780 g) |
Mounting Pan/Tilt/Rotation: | Horizontal: 0°–360°; vertical: 0°–90°; rotation: 0°–360° |
