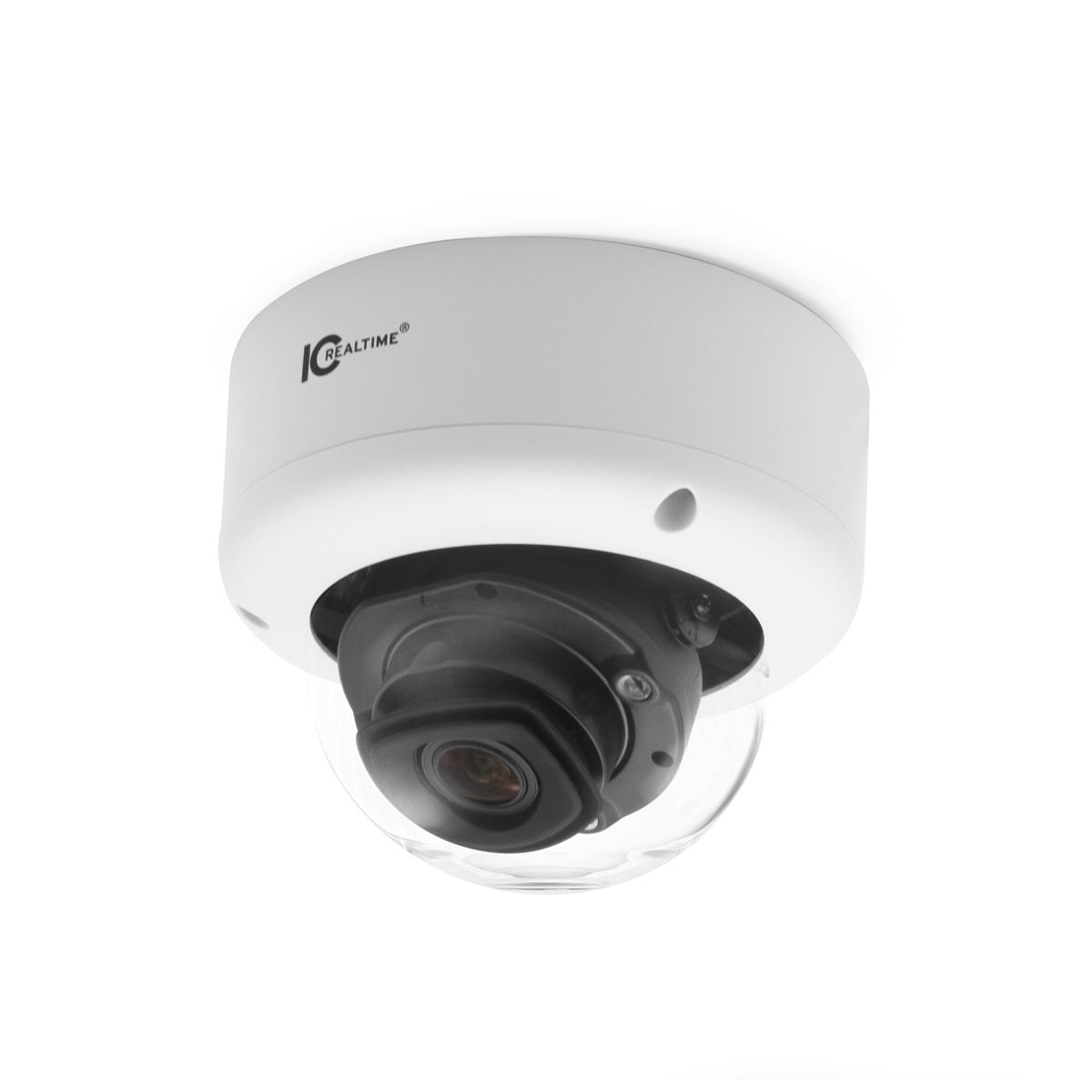

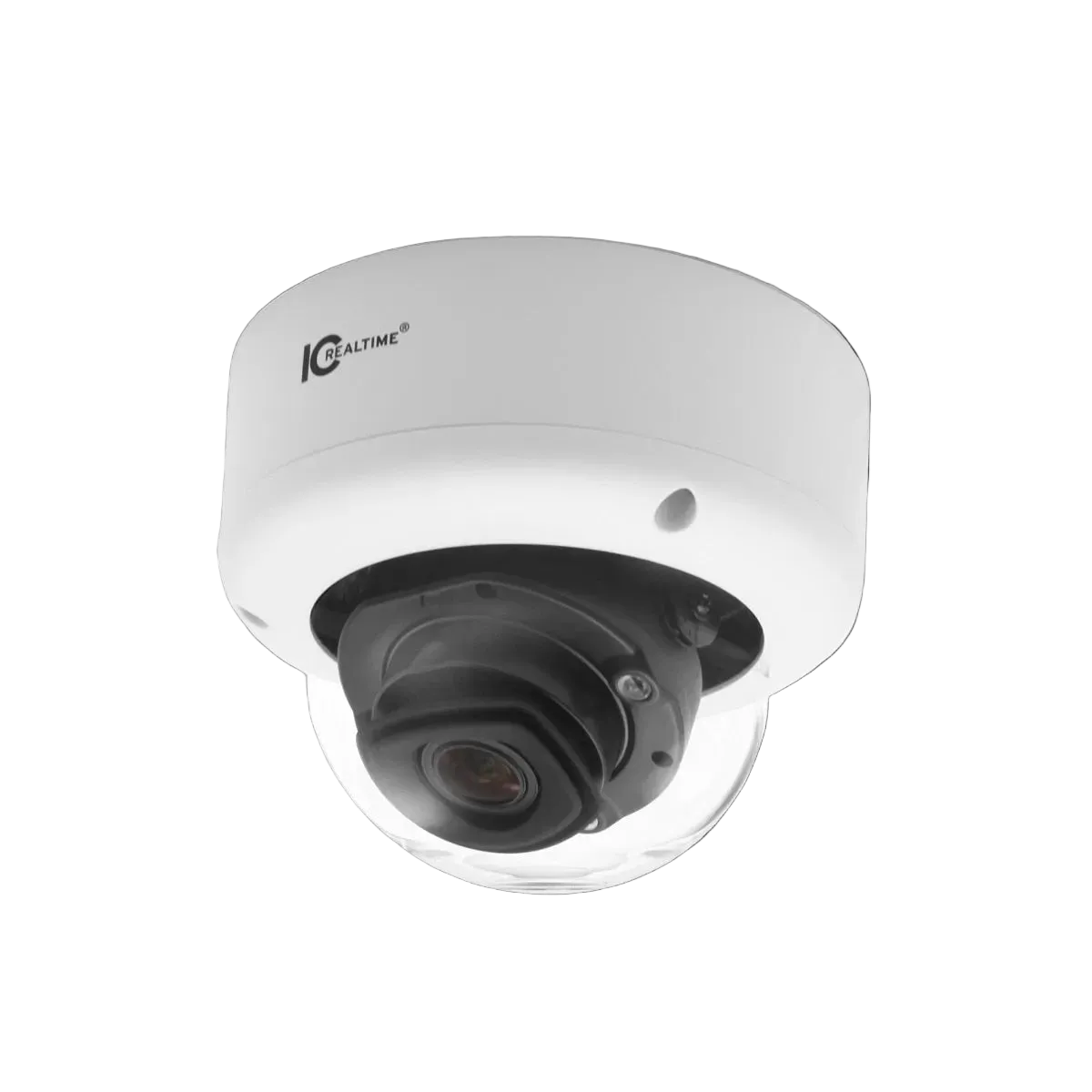

IC Realtime IPEL-D12V-IRW3 12MP IR AI Vandel-Proof Dome Network Camera (White)

In printed color images, the smaller & more tightly packed the dots are, the clearer the image looks. The same is true for security cameras. The more densely packed the pixels are across the camera’s video sensor, the clearer the camera’s image streams will be. IC Realtime’s 8MP cameras already stream 4K - but our extraordinary IPEL-D12V-IRW3 dome camera packs a whopping 12MP for even finer detail. That’s why IPEL-D12V-IRW3 - with 12 million pixels packed- is one of the world’s best security cameras.

THE BEST JUST GOT BETTER

The new IPEL-D12V-IRW3 is the 3rd generation of our top-of-the-line dome camera. It has been upgraded with every AI-enhanced stream, image management, cybersecurity, and metadata detection skill we could cram into it. With a massive 12 million pixels to work with and the latest AI upgrades, the phrase “advanced camera” is an understatement. 12MP is a better resolution than studio cameras of a few years ago, and the camera’s AI detection skills & databases that used to take a server rack of computers are now built into this camera.

12MP UHD EXTREME STARLIGHT VIDEO SENSOR

IPEL-D12V-IRW3’s Starlight sensor chipset processes & streams 4000 horizontal × 3000 vertical pixels at rates up to 30 frames per second. The 12 million pixel grid packed into the camera’s 1.7" CMOS video chip brings another benefit beyond resolution - they suck up every available photon, so the D12V boasts color rendition all the way down to 0.0009 lux.

POWERED ZOOM LENS

A great 12MP video chip this excellent deserves a great autofocus lens that delivers a consistent, optically sharp image. IPEL-D12V-IRW3’s 2.7mm (medium wide) to 12MM (medium telephoto) power zoom lens is the perfect match. This lens achieves a zoom-variable variable 106°– 45°  horizontal field of view. Zoom control is easily accomplished with an on-screen menu or via phone app screen touch or pop-up control wheel.

NIGHT VISION WITH BRAINS

IPEL-D12V-IRW3 uses Smart IR technology to constantly regulate the intensity of its 3 large IR LED illuminators. It adjusts the camera's advanced autoexposure integrated into FlexSmartAi for maximum clarity and over 131 feet of night vision range.

A VIDEO STREAM FOR EVERY NEED

Not every video feed needs to be 4K. So the D12V is ONVIF Profile S/G/T, HTML5, P2P capable, and can stream five resolution/frame rate adjustable streams, 4 HD. This output flexibility manages video efficiency and minimizes mobile & VMS bandwidth restriction effects. Region Of Interest (ROI) can be assigned for each stream to allow specific areas to be more closely monitored.

EXTREME DETECTION & RECOGNITION

D12V's hyper-dense pixel field & resolution means unparalleled detection capabilities. The camera's built-in FlexSmartAi capabilities are the best we have ever offered, and due to the 12 million pixel "data points" provided in each frame, the D12V's D.O.R.I. ratings are off the chart - for example, at the lens's 12mm optical telephoto setting, dependable facial recognition range is over 60 feet!

ADVANCED CAMERA FlexSmartAi SUITE

From facial & license plate recognition to Metadata, from people counting to queue management, the new D12V’s AI is equipped to make it happen. Its advanced capabilities include abandoned object & missing object detection, and IVS Tripwire & Perimeter Protection algorithms cut false alarms by over 90%. D12V's built-in Face Detection & capture capabilities can even analyze facial expressions!

FUTURE-READY & SECURE

IC Realtime’s camera security has been updated to the latest levels with video, firmware & configuration encryption, Digest, WSSE, security logs, and IP/MAC filtering. Check the product sheet security specs for yourself. If you want to know more, feel free to call & talk to your rep and our security team about your data security needs.

ADVANCED VIDEO CONTROL FEATURES & THEN SOME

Of course, like all IC Realtime professional-grade cameras, D12V has every video enhancement & control function we could jam in, including Digital Wide Dynamic Range exposure control, 3D Video Noise Reduction, image rotation, advanced Highlight & Backlight control, court-admissible Digital Watermarking.... you get the idea.

4K RESOLUTION AT LOW DATA STREAM LOADS

To stream its impressive 4K video, the D12V uses our most advanced Ai-assisted H.265 video compression codec, achieving an ultra-low bit rate of 32 kbps–16384 kbps. D12V can stream both SMART H.264+ with Scalable Video Coding (SVC) for added detail & depth and HVEC H.265+, our exclusive AI-enhanced compression for maximum NVR compatibility.

UPDATEABLE CYBERSECURITY

D12V ensures cybersecurity with encrypted video transmissions and encrypted SD card storage, multi-stage password & access level controls, and trusted protection settings for maximum access & stream protections, with easy firmware updates.

BIG CAMERA, TOUGH COMPACT CASE

Despite the D12V's cutting-edge capabilities, at a little over 5" in diameter and 6.25" tall, it is no larger than a standard mid-sized dome security camera, and its metal case and Lexan dome are both IP67 weatherproof, with an operating range of –40°F to +140°F with an IK10 vandal-resistant rating.

WIDE POWER OPTIONS & GREAT CONNECTIONS

D12V has screwdriver-fit mount options to make installation a breeze. It can run on a single POE+ network line or local 24VAC or 12VDC power. It has 3/2 alarm and 2 audio in/out ports, an RS-485 control & BNC test connector, and an internal slot for up to a 512Gb mSD card.

READY FOR TODAY & TOMORROW

Future-proofing is required when IC Realtime builds a video camera with a 10-Year Limited Warranty. The IRW3 series moves camera-based AI into the next level of recognition & analytical capability. For example: the camera’s license plate AI recognizes numbers at speeds of up to 37 MPH (60km/h) and internally supports a 10,000 entry block/allow list database. It's hard to explain in words how incredible the 12-megapixel power zoom IPEL-D12V-IRW3 is without watching it in action.

There are far too many capabilities to list here. Fortunately, we have other options. At 12MP, seeing is believing. So call a Factory Product Specialist at 866-997-9009 today for an online demo. Even better, arrange a no-risk onsite 30-day trial and put one on your bench for you & your crew to experience.

IPEL-D12V-IRW3 has the flexibility to meet every one of today's 4K demands with the features and reliability to perform & deliver long into the future. If you need the best vandal dome camera in the world for your next client, spec the IPEL-D12V-IRW3.
