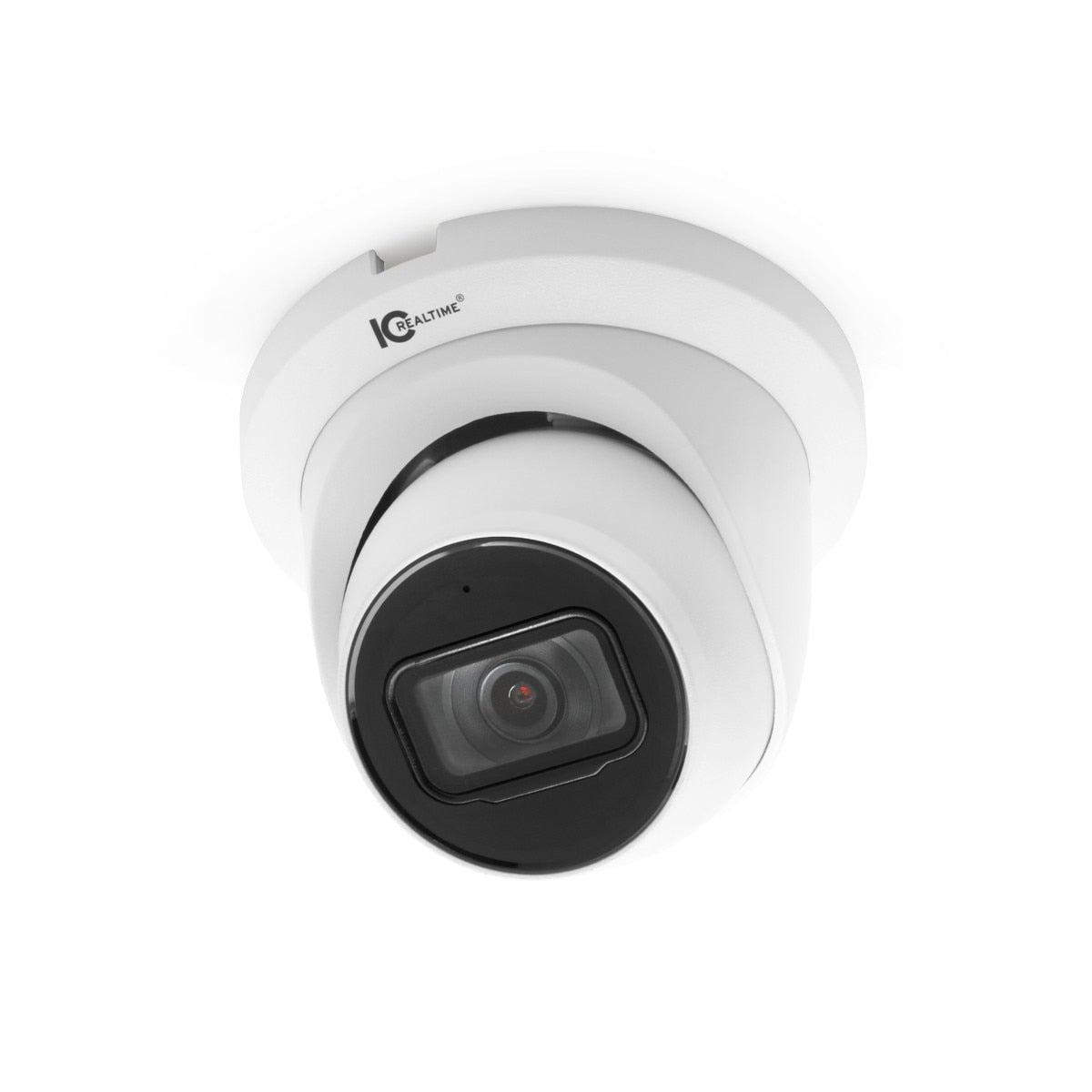

IC Realtime IPEL-E80F-IRW3 8MP Starlight Eyeball Network Camera (White)
IC Realtime IPEL-E80F-IRW3 8MP Starlight Eyeball Network Camera (White)
IC Realtime is again upgrading our fixed focus 8MP / 4K UHD Starlight eyeball dome camera. IPEL-E80F-IRW3 now builds in the next step up in AI detection. Our new iMD 2.0 brings metadata streaming & even better detection capabilities to our easy-install indoor/outdoor 4K UHD eyeball dome camera.
SMART, SLEEK, AND STURDY
IPEL-E80F’s eyeball dome design offers the easy installation & aiming of a bullet with the toughness of a dome. The 8mp (3840 × 2160) Starlight video sensor holds color down to 0.007 Lux, then lights the night with 95+ft. of SmartIR illuminators. Beyond looking astonishingly clear on a 4K monitor, this UHD definition, combined with the Starlight video chip's low light performance, provides the pixel density & edge detection to capture the finest details.
3 SECURE OUTPUT STREAMS
The IPEL-E80F has three customizable output streams. They reach up to a full 4K and down to whatever frame rate & resolution bandwidth you need to accommodate networks, VMS streams, and older NVRs. IPEL-E80F is protected from cyber threats by multiple layers of authorizations & password protections. All network traffic is encrypted in both directions, so our gear now meets the newest network standards.
4K UHD STARLIGHT VIDEO + iMD 2.0
IPEL-E80F's rugged white aluminum casing contains an extraordinary 2.8” Starlight video sensor and 107°h × 56°v Field of View 2.8mm medium wide-angle lens. Behind that “UHD eye” lies the camera's "brain" - our FlexSmartAi using iMD 2.0’s deep learning metadata detection & streaming. This AI detects & encodes image details in every video frame. When streamed to an Object Search equipped IC Realtime AI-NVR, users can mouse select an object on screen or in-app. Object Search then scans all the NVR’s channels to find & display matches from all channels for your review.
SMART STREAMS + AUDIO & ALARM
The IPEL-E80F's stream management Ai compresses them into H.264, H.265 and using its Smart H.265+ scene-adaptive video codec so bit rates are reduced by up to 70% compared to standard H.265 video compression on compatible IC Realtime NVRs. The IPEL-E80F provides audio pickup with both a built-in microphone and audio I/O ports. Intrusion & tripwire functions are enhanced and enable the IPEL-E80F to dependably detect humans and vehicles and react to defined IVS "tripwire" rules with 95% accuracy and activate the camera's alerts.
SECURE & FUTURE-PROOF CAMERA CHOICE
IC Realtime's sleek new IPEL-E80F-IRW3 4K eyeball dome can be used with practically any legacy NVR, cloud, or VMS allocation, while its future-proof full 8MP UHD 4K capacity stands ready. IPEL-E80F is IP67 weather-rated and can use 12VDC power where 9w of PoE isn't available and supports a 256Gb MSD card for onboard video storage.
If you need an easy mount, dependable 4K eyeball dome camera with ultra-flexible output streams, the industry’s longest warranty and cutting-edge AI detection features, it’s hard to beat IC Realtime’s new IPEL-E80F-IRW3.
Specifications
| Camera | |
| Image Sensor: | 1/2.8” 8 Megapixel progressive CMOS |
| Effective Pixels: | 3840 (H) × 2160 (V) |
| RAM/Rom: | 128MB/ 1GB |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.007 lux@F1.4 (Color, 30 IRE) 0.0007 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio: | > 56 dB |
| Illumination Distance: | 98.4 ft (30 m) |
| Illumination On/Off Control: | Auto / Manual |
| Illumination LEDs: | 1 |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Fixed-focal |
| Mount Type: | M12 |
| Focal Length: | 2.8 mm |
| Max. Aperture: | F1.4 |
| Angle of View: | Horizontal:107°; vertical: 56° |
| Close Focus Distance: | 4.9 ft (1.5 m) |
| DORI - Detect: | 287ft |
| DORI - Observe: | 115ft |
| DORI - Recognize: | 57ft |
| DORI - Identify: | 28ft |
| Intelligence | |
| IVS: | Tripwire; Intrusion |
| Advanced Intelligent Functions: | Perimeter Protection, Intelligent Motion Detect 2.0 |
| Video | |
| Compression: | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) |
| Streaming Capability: | 3 Streams |
| Resolution: | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 ×1728/2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048×1536); 3M (2304×1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480) |
| Frame Rate: | Main stream: 3840 × 2160 @ (1–25/30) fps Sub stream: 704 × 576 @ (1–25 fps)/ 704 × 480 @ (1–30 fps) Third Stream: 1920 × 1080 @(1–25/30 fps) |
| Bit Rate Control: | CBR/VBR |
| Bit Rate: | H.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps |
| Backlight Compensation: | BLC / HLC / WDR(120dB) |
| White Balance: | Auto/Natural/Street Lamp/Outdoor/Manual |
| Gain Control: | Auto / Manual |
| Noise Reduction: | 3D DNR |
| Motion Detection: | Off / On (4 Zone, Rectangle) |
| Region of Interest: | Off / On (4 Zone) |
| Flip: | 0°/90°/180°/270° (supports 90°/270° with 2688×1520 resolution and lower) |
| Mirror: | On/Off |
| Privacy Masking: | Off / On (4 Area, Rectangle) |
| WDR: | 120dB |
| Audio | |
| Compression: | G.711a; G.711Mu; PCM; G.726; G.723 |
| Network | |
| Ethernet: | RJ-45 (10/100Base-T) |
| Protocol: | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Interoperability: | ONVIF (Profile S/Profile G/Profile T); CGI; P2P |
| Streaming Method: | CBR/VBR |
| Max. User Access: | 20 (Total bandwidth: 64 M) |
| Edge Storage: | NAS, FTP, SFTP, Micro SD Card (256 GB) Local PC for instant recording |
| Web Viewer: | IE, Chrome, Firefox, Safari |
| Management Software: | SmartICRSS, DSS |
| Smart Phone: | IOS, Android |
| Interface | |
| Audio I/O: | Built-in Mic, 1 channel input/ output (RCA port) |
| Memory Slot: | Micro SD Card (256 GB) |
| Electrical | |
| Power Supply: | DC12V, PoE (802.3af) |
| Power Consumption: | Basic: 4.3 W (12 VDC); 4.9 W (PoE) Max. (WDR + IR intensity + Intelligence): 7.6 W (12 VDC); 8.9 W (PoE) |
| Environmental | |
| Operating Conditions: | –40°F to +140°F (–40°C to +60°C)/Less than 95% RH |
| Ingress Protection: | IP67 |
| Construction | |
| Casing: | Metal |
| Dimensions: | 3.69" × Φ4.17" (93.6 mm × Φ106.0 mm) |
| Gross Weight: | 1.7 lb (770 g) |
| Mounting Pan/Tilt/Rotation: | Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360° |
