IC Realtime

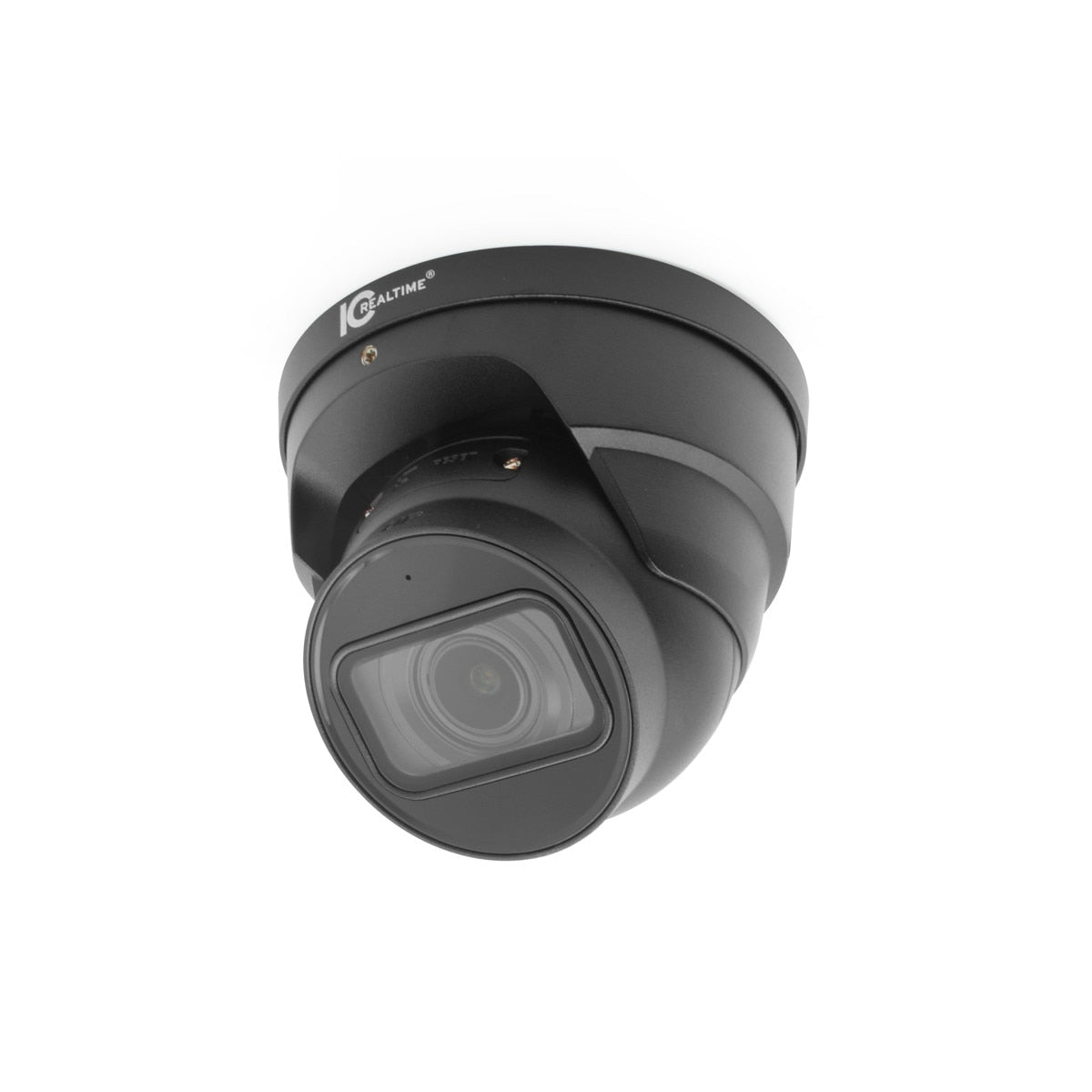

IC Realtime IPEL-E80V-IRB3 8MP Starlight Eyeball Network Camera (Black)

IC Realtime IPEL-E80V-IRB3 8MP Starlight Eyeball Network Camera (Black)

Regular price $690.00 USD
Regular price Sale price $690.00 USD
Sale Sold out

4K video & audio overwatch has never looked so sharp & stylish! The new IRB3 version of our Factory Black IPEL-E80V looks unchanged from the IRB2 version. And it IS identical on the outside. The camera is still a compact 4.26” x 4.8” easy-aim eyeball dome. But on the inside, the latest version of this 8MP Starlight FlexSmartAi camera is built with our newest AI skill set. Within the camera’s tightly weather-sealed “cam ball,” the latest version of IC Realtime’s AI-enhanced detection & stream management technology is hard at work.



4K STARLIGHT + SMART IR + POWER VARIFOCAL

This Factory Black 4K eyeball dome features a 2.7mm – 13.5mm power zoom auto-focus lens, providing a zoom-variable 109°–30° horizontal FOV. Thanks to the camera's massive 2.8” Starlight video sensor with a pixel density of 8.292 million pixels, the IPEL-E80V delivers full 4K color streams even in low light conditions as dim as 0.007 lux. In complete darkness, its built-in Smart IRs illuminate up to 130+ feet, ensuring ultra-sharp grayscale imaging. At every zoom setting, the camera’s telephoto lens and 4K resolution deliver excellent DORI performance metrics.



AUDIO + FLEXIBLE STREAMS

For local NVR, VMS, or Hybrid system designs, the IPEL-E80V eyeball domes are the ideal "future-proof” 4K camera. They come equipped with a built-in audio microphone that encodes sound from the camera's FOV into the recorded video stream. This makes the E80V the perfect replacement/upgrade option for cameras now dependent on an external audio mic. The flexibility of IPEL-E80V's three streams allows for easy adaptation of resolution and frame rates to align with older NVRs or fulfill VMS stream requirements. The IPEL-E80V is fully ONVIF (Profile S/G/T), P2P, and CGI compatible. To bolster cybersecurity, IC Realtime cameras and recorders come with multiple layers of authorization and password protections, ensuring a high level of security at both the device and network levels.



NEXT GENERATION AI WITH iMD 2.0

IPEL-E80V is built with IC Realtime’s iMD 2.0. The system discerns & encodes image metadata alongside every streamed video frame. Metadata represents the next step in AI detection, IC Realtime’s new AI “Select & Search” process. Recorded on an IC Realtime Object Search-equipped AI-NVR, this recorded metadata lets you mouse-select objects or people you want to search for on the NVR’s monitor screen or on your IC View+ app. Once you click “go” it searches not just that single camera’s channel, but every NVR video channel that’s using iMD 2.0 camera metadata. One select & click, all channels are searched. Perimeter Protection is also AI-enhanced, and you can set up custom tripwires and draw detection regions & set parameters right on the monitor screen to match your needs & environment with a 90% false alert reduction. Haven’t upgraded your NVR yet? No worries. The camera is also smart enough to maintain backward compatibility with legacy iMD systems.



4K UHD WITH PRO SPECS

The IPEL-E80V-IRB3 is native 4K, so it always delivers the sharpest video & snapshots. It integrates IC Realtime's cutting-edge AI-assisted video management suite and 120db WDR capability, widely acknowledged as the best in the video security industry. As tough as it is advanced, the IPEL-E80V is equally at home in outdoor and indoor settings with IP67 water ingress resistance and a range of matching Factory Black screwdriver-fit mounting options. There’s an internal 256Gb mSD card slot for in-camera video storage, and the camera’s streams are HTML5 to support for direct browser viewing.

IPEL-E80V-IRB3 incorporates future-proof 8MP/4K UHD video quality while its widely adjustable output streams enable complete system compatibility. The camera’s AI-enhanced iMD 2.0 metadata works with our latest AI NVRs for AI NVR searches. And - like no other 4K eyeball dome in the industry - it comes with IC Realtime’s legendary reliability, backed up by the industry’s longest 10-Year Limited Warranty. Simply put, 4K video & audio security has never been more clearly defined than it is in the new Factory Black IPEL-E80V-IRB3.

Specifications

Camera
Image Sensor: 1/2.8”8 Megapixel progressive CMOS
Effective Pixels: 3840 (H) × 2160 (V)
RAM/Rom: 128MB/ 512MB
Scanning System: Progressive
Minimum Illumination: 0.007 lux@F1.5 (Color, 30 IRE)
0.0007 lux@F1.5 (B/W, 30 IRE)
0 lux (Illuminator on)
Illumination Distance: 131 ft (40 m)
Illumination On/Off Control: Auto / Manual
Illumination LEDs: 2
Camera Illumination Type: IR
Lens
Lens Type: Motorized vari-focal
Mount Type: φ14
Focal Length: 2.7 mm–13.5 mm
Max. Aperture: F1.5
Angle of View: Horizontal: 109°–30°, Vertical: 56° –17°
Close Focus Distance: 2.6 ft (0.8 m)
DORI - Detect: 289ft- 950ft
DORI - Observe: 115ft- 379ft
DORI - Recognize: 58ft- 189ft
DORI - Identify: 28ft- 95ft
Intelligence
IVS: Tripwire; Intrusion
Advanced Intelligent Functions: Perimeter Protection: Tripwire; Intrusion
(These functions support the classification and detection of vehicle and human objects)

Intelligent Motion Detect 2.0: Advanced secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change. Supports Object Search with compatible NVRs

AI Search: Works together with AI enabled NVRs to perform refined intelligent search, event extraction and merging to event videos
Video
Compression: H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
Streaming Capability: 3 Streams
Resolution: 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 ×1728/2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480)
Frame Rate: Main stream: 3840 × 2160 @ (1–25/30) fps
Sub stream: 704 × 576 @(1–25 fps)/
704 × 480 @ (1–30 fps)
Third Stream: 1920 × 1080 @(1–25/30 fps)
Bit Rate Control: CBR/VBR
Bit Rate: H.264: 3 Kbps–8192 Kbps
H.265: 3 Kbps–8192 Kbps
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / WDR(120dB)
White Balance: Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control: Auto / Manual
Noise Reduction: 3D DNR
Motion Detection: Off / On (4 Zone, Rectangle)
Region of Interest: Off / On (4 Zone)
Flip: 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.)
Mirror: Off / On
Privacy Masking: Off / On (4 Area, Rectangle)
WDR: 120dB
Audio
Compression: G.711a; G.711Mu; G726; AAC
Network
Ethernet: RJ-45 (10/100Base-T)
Protocol: HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI
Max. User Access: 20 (Total bandwidth: 64 M)
Interface
Audio I/O: Built-in Microphone
Memory Slot: Micro SD Card (support max. 256 GB)
Electrical
Power Supply: DC12V, PoE (802.3af)
Power Consumption: Basic: 5.7 W (12 VDC); 6.4 W (PoE)
Max. (WDR + IR intensity + Intelligence): 8.9 W (12 VDC); 10.2 W (PoE)
Environmental
Operating Conditions: –22°F to +140°F (–30°C to +60°C)/Less than 95% RH
Ingress Protection: IP67
Construction
Casing: Metal
Dimensions: 4.26" × 4.8"
(108.3 mm × Φ122 mm)
Gross Weight: 2.02 lb (915 g)
Mounting Pan/Tilt/Rotation: Horizontal: 0°–360°; vertical: 0°–78°; rotation: 0°–360°
