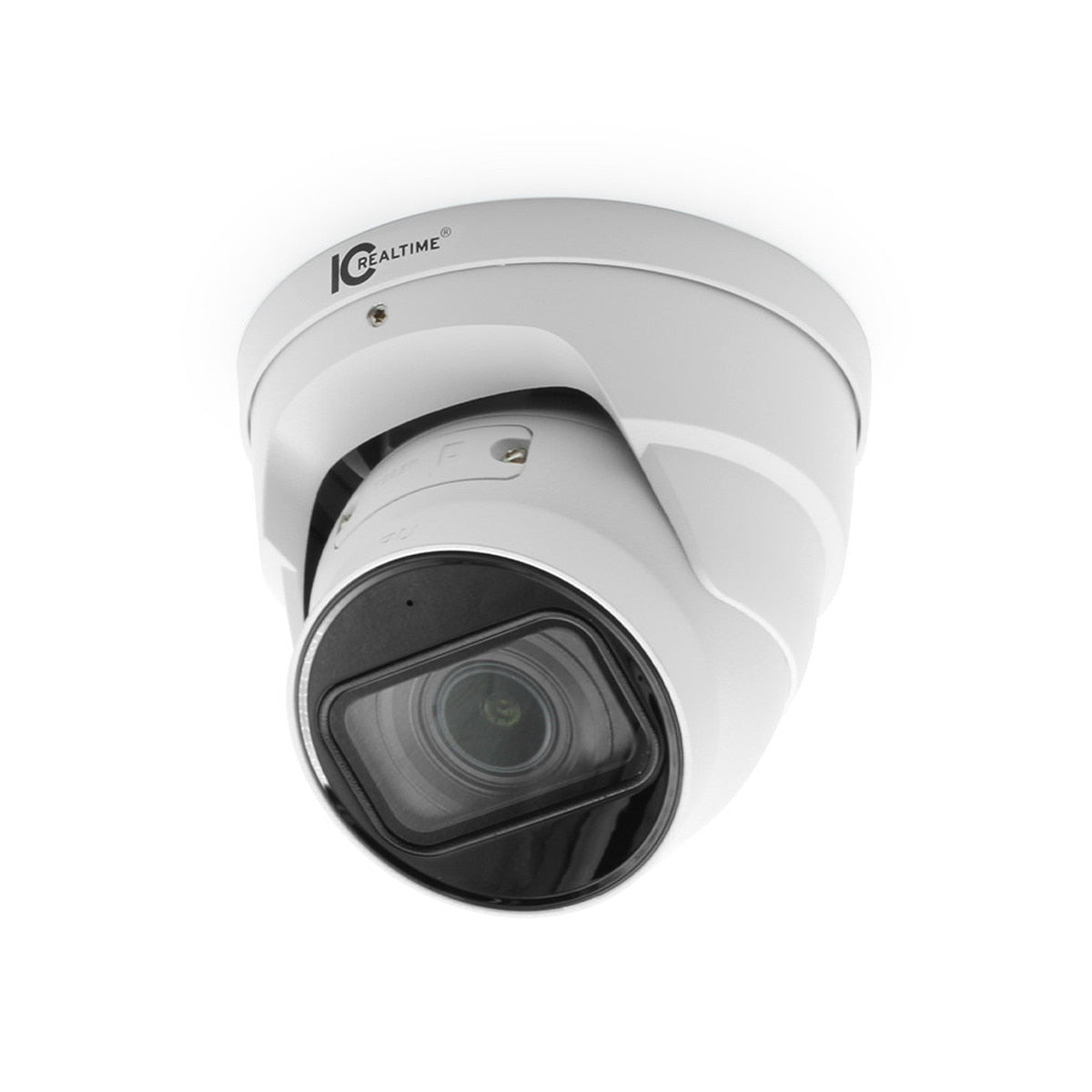

IC Realtime IPEL-E80V-IRW3 8MP Starlight Eyeball Network Camera (White)
IC Realtime IPEL-E80V-IRW3 8MP Starlight Eyeball Network Camera (White)
Couldn't load pickup availability
The IPEL-E80V-IRW3 looks the same on the outside - still an easy-install compact 4.3” x 4.8” easy-aim eyeball dome POE camera. But the new IRW3 version has some new & better stuff happening on the inside.
STARLIGHT + SMART IR + POWER VARIFOCAL
This improved 4K eyeball dome has a 2.7mm – 13.5mm power zoom auto-focus lens with a zoom-variable 109°–30° horizontal FOV. This upgraded IPEL-E80V-IRW3 streams in full 4K color down to 0.007 lux. In total darkness, and in ultra-sharp grayscale out to 130+ feet in total darkness with built-in Smart IRs. Given the 8.292 million pixel density of the camera’s huge 2.8” Starlight video sensor and the telephoto lens, the camera’s DORI numbers are excellent too.
EASY VMS & NVR INTEGRATION
IPEL-E80V eyeball domes are the “perfect future-proof 4K camera” for new installations of all local NVR, VMS, or Hybrid designs. A built-in audio mic that encodes camera area pickup into the recorded video stream. The camera’s three widely adjustable output streams can accommodate any VMS system or recorder requirements. That also makes the E80V an ideal replacement & upgrade for a camera with an outboard audio mic. And while IPEL-E80V can adapt to work with older systems, its three streams can be easily switched for any resolution up to a full 8MP@30fps when needed.
NEXT GENERATION AI WITH iMD 2.0
The next step in AI detection, IC Realtime’s iMD 2.0 streams camera discerned & encoded metadata alongside every streamed video frame. That metadata can power a new AI “Select & Search” process. When recorded on an IC Realtime’s Object Search-equipped AI-NVR, Object Search finds what you mouse select on the NVR’s monitor screen or your IC View+ app. And it searches ALL NVR’s video channels that use an iMD 2.0 camera metadata, not just that single camera’s channel. Perimeter Protection is also AI-enhanced, and you can set up custom tripwires and draw detection regions & set parameters right on the monitor screen to match your needs & environment with a 90% false alert reduction.
4K UHD WITH PRO SPECS
IPEL-E80V-IRW3 uses IC Realtime's industry-leading AI-assisted video management suite & 120db WDR. With a vast array of screwdriver-fit mounting options and IP67 water ingress resistance, the IPEL-E80V is comfortable outdoors or indoors. If 10.2w of PoE isn't available, it has a 12VDC power capability, an internal 256Gb mSD card slot for in-camera video storage, and HTML5 for direct browser viewing. It is ONVIF (Profile S/G/T) P2P and CGI compatible. IC Realtime cameras & recorders are protected by multiple layers of authorizations & password protections to ensure security on both the device & network levels.
IPEL-E80V-IRW3 brings native 8MP/4K UHD video quality, widely adjustable output streams, a new iMD 2.0 metadata stream for AI NVR searches, and IC Realtime’s legendary reliability with a 10-Year Limited Warranty. With this upgraded eyeball dome, 4K security has never been more clearly defined or easily searched than in our newly redesigned IPEL-E80V-IRW3 with iMD 2.0.
Specifications
Camera | |
Image Sensor: | 1/2.8”8 Megapixel progressive CMOS |
Effective Pixels: | 3840 (H) × 2160 (V) |
RAM/Rom: | 128MB/ 512MB |
Scanning System: | Progressive |
Minimum Illumination: | 0.007 lux@F1.5 (Color, 30 IRE) 0.0007 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) |
Illumination Distance: | 131 ft (40 m) |
Illumination On/Off Control: | Auto / Manual |
Illumination LEDs: | 2 |
Camera Illumination Type: | IR |
Lens | |
Lens Type: | Motorized vari-focal |
Mount Type: | φ14 |
Focal Length: | 2.7 mm–13.5 mm |
Max. Aperture: | F1.5 |
Angle of View: | Horizontal: 109°–30°, Vertical: 56° –17° |
Close Focus Distance: | 2.6 ft (0.8 m) |
DORI - Detect: | 289ft- 950ft |
DORI - Observe: | 115ft- 379ft |
DORI - Recognize: | 58ft- 189ft |
DORI - Identify: | 28ft- 95ft |
Intelligence | |
IVS: | Tripwire; Intrusion |
Advanced Intelligent Functions: | Perimeter Protection: Tripwire; Intrusion (These functions support the classification and detection of vehicle and human objects) Intelligent Motion Detect 2.0: Advanced secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change. Supports Object Search with compatible NVRs AI Search: Works together with AI enabled NVRs to perform refined intelligent search, event extraction and merging to event videos |
Video | |
Compression: | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) |
Streaming Capability: | 3 Streams |
Resolution: | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 ×1728/2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480) |
Frame Rate: | Main stream: 3840 × 2160 @ (1–25/30) fps Sub stream: 704 × 576 @(1–25 fps)/ 704 × 480 @ (1–30 fps) Third Stream: 1920 × 1080 @(1–25/30 fps) |
Bit Rate Control: | CBR/VBR |
Bit Rate: | H.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps |
Day/Night: | Auto(ICR) / Color / B/W |
Backlight Compensation: | BLC / HLC / WDR(120dB) |
White Balance: | Auto/Natural/Street Lamp/Outdoor/Manual |
Gain Control: | Auto / Manual |
Noise Reduction: | 3D DNR |
Motion Detection: | Off / On (4 Zone, Rectangle) |
Region of Interest: | Off / On (4 Zone) |
Flip: | 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.) |
Mirror: | Off / On |
Privacy Masking: | Off / On (4 Area, Rectangle) |
WDR: | 120dB |
Audio | |
Compression: | G.711a; G.711Mu; G726; AAC |
Network | |
Ethernet: | RJ-45 (10/100Base-T) |
Protocol: | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
Interoperability: | ONVIF (Profile S/Profile G/Profile T); CGI |
Max. User Access: | 20 (Total bandwidth: 64 M) |
Smart Phone: | IOS, Android |
Interface | |
Audio I/O: | Built-in Microphone |
Alarm I/O: | N/A |
Memory Slot: | Micro SD Card (support max. 256 GB) |
Electrical | |
Power Supply: | DC12V, PoE (802.3af) |
Power Consumption: | Basic: 5.7 W (12 VDC); 6.4 W (PoE) Max. (WDR + IR intensity + Intelligence): 8.9 W (12 VDC); 10.2 W (PoE) |
Environmental | |
Operating Conditions: | –22°F to +140°F (–30°C to +60°C)/Less than 95% RH |
Ingress Protection: | IP67 |
Construction | |
Casing: | Metal |
Dimensions: | 4.26" × 4.8" (108.3 mm × Φ122 mm) |
Gross Weight: | 2.02 lb (915 g) |
Mounting Pan/Tilt/Rotation: | Horizontal: 0°–360°; vertical: 0°–78°; rotation: 0°–360° |
