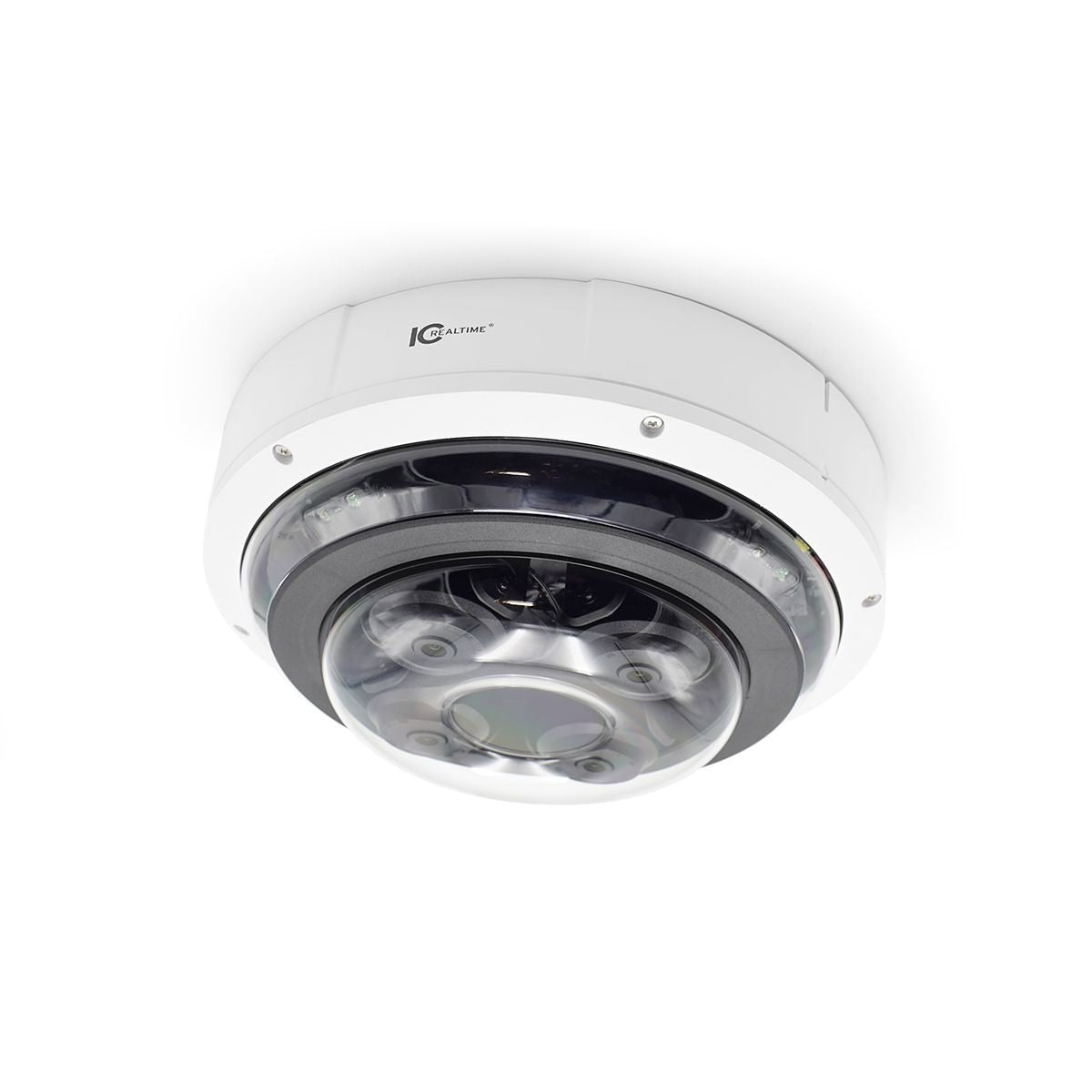

IC Realtime IPEL-M80V-IRW1 4x2 MP IR Dome Network Camera
IC Realtime IPEL-M80V-IRW1 4x2 MP IR Dome Network Camera
It's no secret that there's a need for wide coverage options ranging from 180-degree to 360-degree angles. IC Realtime debuts their new multi-sensor camera which will address affordability, quality, and situational coverage - all in a tidy package. The flexibility to capture wide area footage is immense - and with 4 adjustable 2MP lenses, the camera replaces multiple single sensor cameras. It is also noteworthy that the unit requires only one cable run, giving installers greater flexibility in terms of wiring. The unit is ideal for monitoring wide open spaces, building corners, parking lots and intersecting hallways. A beneficial feature available is IR synchronicity - which adjusts in sync with the position of each sensor. With this level of control, dealers can expect to produce clear imagery in total darkness - regardless of the position of the sensor on the track. The device also features Starlight Technology which keeps the camera in color when low light performance and usable video with minimal ambient light is required. This unit will produce vivid pictures even in the most intense contrast condition thanks to True Wide Dynamic Range (140dB). This allows for optimization to provide exceptional footage in applications where both bright and low light conditions exist or change quickly. The combination of such features allows for easy & accurate identification from within a typical field of view. Built with intelligence in mind, the unit is capable of detecting and analyzing moving objects for improved surveillance and virtually eliminates false alerts. In terms of flexibility, users will be delighted to learn that the unit supports H.265 encoding and equipped with (4) 2.7mm ~ 12mm motorized lenses. The unit may be powered with either 24 volts AC or PoE+.
*Note: Being a multi-channel camera, this device is not recommended to be plugged into an IC Realtime NVR built-in POE switch.
*TAA Compliant as of 7-24-2024*
Specifications
Camera | |
Image Sensor: | Four 1/2.8” 2 Megapixel progressive scan CMOS |
Effective Pixels: | 1920(H)x1080(V) |
RAM/Rom: | 1024MB/128MB |
Scanning System: | Progressive |
Electronic Shutter Speed: | N/A |
Minimum Illumination: | 0.005Lux/F1.8( Color,1/3s,30IRE) 0.06Lux/1.8( Color,1/30s,30IRE) 0Lux/F1.8(IR on) |
S/N Ratio: | More than 50dB |
Illumination Distance: | Distance up to 30m (98ft) |
Illumination On/Off Control: | Auto/ Manual |
Illumination LEDs: | 8 |
IR Wavelength: | 850 nm |
Camera Illumination Type: | IR |
Lens | |
Lens Type: | Motorized |
Mount Type: | Board-in |
Focal Length: | 2.7~12mm motorized |
Max. Aperture: | F1.8 |
Angle of View: | H: 105° ~44°, V:54° ~25° |
Optical Zoom: | 4x |
Focus Control: | Motorized |
Close Focus Distance: | 0.2m(0.66ft) |
DORI - Detect: | 45m(148ft) - 99m(325ft) |
DORI - Observe: | 18m(59ft) - 40m(131ft) |
DORI - Recognize: | 9m(29.5ft) - 20m(66ft) |
DORI - Identify: | 4.5m(14.8ft) - 10m(33ft) |
Video | |
Compression: | H.265/H.264/H.264B/H.264H |
Resolution: | 1080P(1920×1080)/1.3M(1280x960)/ 720P(1280x720)/D1(704×576/704x480)/ CIF(352×288/352×240) |
Frame Rate: | Main Stream: 1080P(1~25/30fps)<br />Sub Stream: D1(1~25/30fps) |
Bit Rate: | H.264: 32~8192Kbps H.265: 12~6144Kbps |
Day/Night: | Auto(ICR) / Color / B/W |
Backlight Compensation: | BLC / HLC |
White Balance: | Auto/Manual |
Gain Control: | Auto/Manual |
Noise Reduction: | 3D DNR |
Motion Detection: | Off / On (4 Zone, Rectangle) |
Region of Interest: | Off / On (4 Zone) |
Electronic Image Stabilization (EIS): | N/A |
Smart IR: | N/A |
Digital Zoom: | 16x |
Flip: | 0°/90°/180°/270° |
Mirror: | Off / On |
Privacy Masking: | Off / On (4 Area, Rectangle) |
WDR: | WDR (140dB Lens 1, 120db Lens 2-4) |
Audio | |
Compression: | G.711a/ G.711Mu/ AAC/ G.726 |
Network | |
Ethernet: | RJ-45 (100/1000Base-T) |
Protocol: | HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP |
Interoperability: | ONVIF Profile S&G, API |
Streaming Method: | Unicast / Multicast |
Max. User Access: | 10 Users /20 Users |
Edge Storage: | NAS Local PC for instant recording Micro SD card 256GB |
Web Viewer: | IE, Chrome, Firefox, Safari |
Management Software: | Smart ICRSS, ICRSS Pro |
Smart Phone: | IOS, Android |
Interface | |
Video Interface: | N/A |
RS485: | 1 port |
Audio I/O: | 1/1 channel In/Out |
Alarm I/O: | 1 channel In: 5mA 5VDC 1 channel Out: 300mA 12V |
Memory Slot: | 256GB |
Electrical | |
Power Supply: | AC24V, PoE+(802.3at)(Class 4) |
Power Consumption: | AC 24V: 9.9W 31.2W(IR on) PoE: 10.6W 23.8W(IR on) |
Environmental | |
Operating Conditions: | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
Ingress Protection: | IP67 |
Vandal Resistance: | IK10 |
Construction | |
Casing: | Metal |
Dimensions: | 286.1mm×111.3mm |
Gross Weight: | 3.6kg (7.94lb) |
