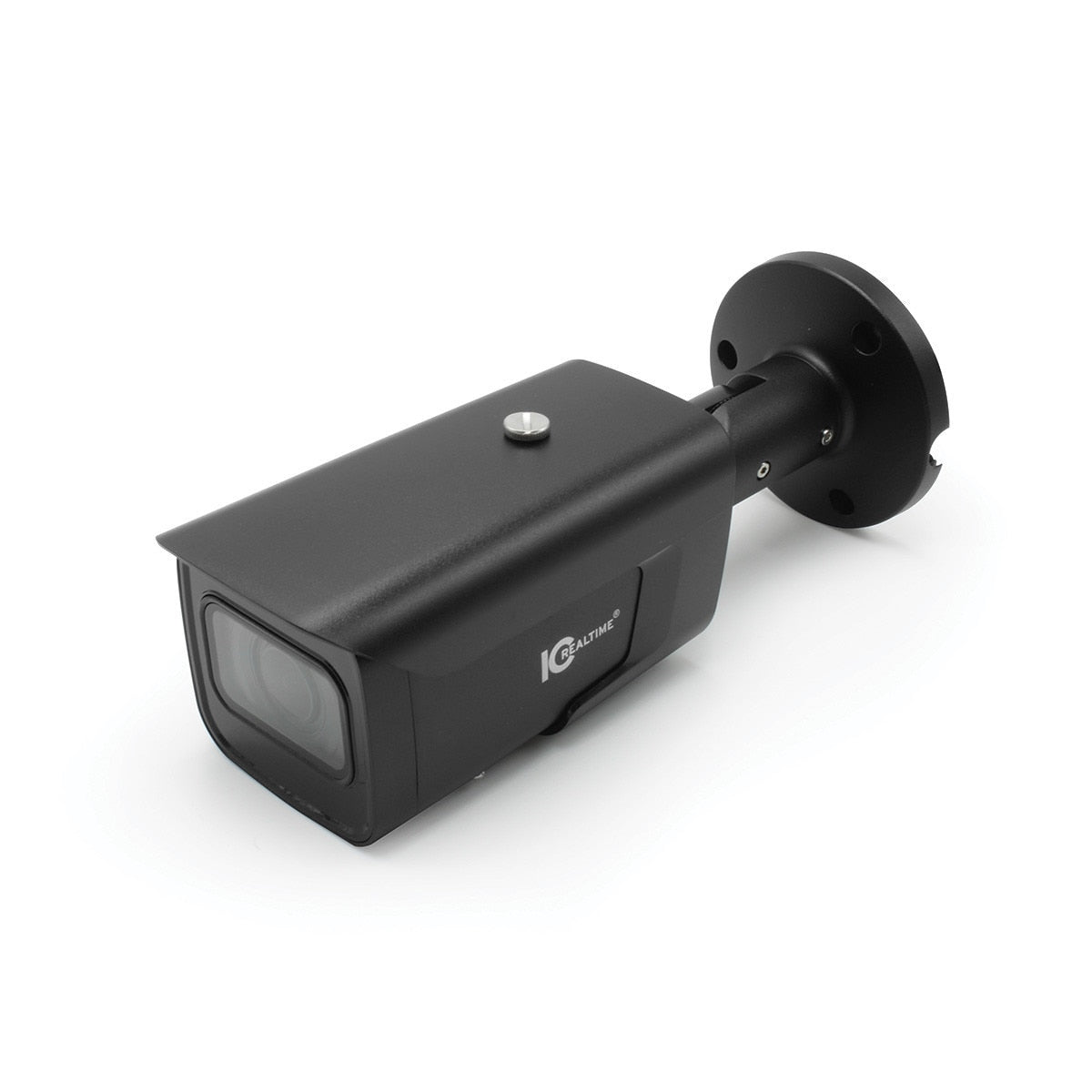

IC Realtime IPFX-B40V-IRB3 4MP Starlight Varifocal Bullet Network Camera (Black)
IC Realtime IPFX-B40V-IRB3 4MP Starlight Varifocal Bullet Network Camera (Black)
IPFX-B40V-IRB3 is the perfect Factory Black power-zoom bullet camera for indoor & outdoor use. Black cameras virtually disappear on dark-finished walls & ceilings in restaurants, retail & nightclub environments. Although it looks the same as its predecessor, the IRB3 edition has a new AI-powered “superpower” inside.
OUR NEXT-GEN AI
The IRB3 edition provides all our usual AI-enhanced detection capabilities with a new “metadata” twist. Intelligent Motion Detection 2.0 (iMD 2.0) can discern, code & stream frame-by-frame image metadata detected in the camera’s FOV along with the video. When used with our AI NVRs, this metadata can be searched using our AI-powered Object Search. Onscreen, use your mouse or touchscreen to “select & search” what you’re looking for and press “Go,” and the NVR will look for it on all its iMD 2.0 camera channels. Every iMD 2.0 camera channel gets searched with one click, and matches are displayed for onscreen review.
QHD VIDEO IN ANY LIGHT
The IPFX-B40V series is our most advanced 4MP QHD Starlight power zoom bullet. Its Starlight chipset streams color video down to 0.005 lux using every bit of ambient light. Then, 195+ feet of SmartIR works interactively with the camera’s highlight/backlight controls to avoid IR flare. The result? Correct exposure in every lighting condition.
DIAL IN THE F.O.V.
The camera’s 2.7mm - 13.5mm power zoom lens delivers a zoom-dependent 29° to 104° horizontal FOV to dial in the perfect Field Of View from any mounting position. Its 4MP QHD Starlight chipset and power zoom lens let you back out to watch the whole area or zoom in to see who’s at the door day or night - indoors or outdoors.
WIDE OUTPUT COMPATIBILITY
With adjustable output resolutions, frame rates, and video compression for dependable streaming, it's ideal for NVRs, cloud & VMS video systems. It has an internal slot for up to a 256GB MicroSD card. The camera is HTML5 capable of direct browser log-in, control setup & monitoring, and ONVIF S & G, CGI & P2P compliant.
DETERRENCE & PRO-LEVEL CONNECTIONS
This black bullet camera offers the discrete indoor coverage and visual deterrence that only a bullet camera can provide outdoors. And with the IPFX-B40V, amazing low-light color isn’t all. It has both a built-in mic and external audio I/O RCA jacks and an alarm I/O port right on its RJ-45 cable pigtail for easy entry and gate system integration. The camera’s IP67 weather-resistant metal camera & round 3-hole base, PoE or 12VDC power capability, and color-matched Factory Black mounting accessories make installation easier than ever.
IPFX-B40V-IRB3 with iMD 2.0 not only future-proofs any current NVR it’s attached to, it’s metadata streaming makes the system ready for AI-assisted searches on IC Realtime’s newest AI NVRs. The camera’s three adjustable output streams are compatible with every local, cloud, or VMS system today. And its integrated color-matched base and mounting options make installing it a breeze. So toss the black spray paint & let this sleek black bullet AI camera usher your video systems into the world of AI-powered detection.
Specifications
Camera | |
Image Sensor: | 1/3” 4 Megapixel progressive CMOS |
Effective Pixels: | 2688(H) x1520(V) |
RAM/Rom: | 128MB/ 512MB |
Scanning System: | Progressive |
Minimum Illumination: | 0.005 lux@F1.5 (Color, 30 IRE) 0.0005 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) |
Illumination Distance: | Distance up to 197 ft (60 m) |
Illumination On/Off Control: | Auto / Manual |
Illumination LEDs: | 4 |
Camera Illumination Type: | IR |
Lens | |
Lens Type: | Motorized vari-focal |
Mount Type: | φ14 |
Focal Length: | 2.7mm~13.5mm |
Max. Aperture: | F1.5 |
Angle of View: | Horizontal: 104°–29°, Vertical: 54°–16°, |
Close Focus Distance: | 2.6 ft (0.8 m) |
DORI - Detect: | 209ft- 688ft |
DORI - Observe: | 84ft- 275ft |
DORI - Recognize: | 42ft- 137ft |
DORI - Identify: | 21ft- 68ft |
Intelligence | |
IVS: | Tripwire; Intrusion |
Advanced Intelligent Functions: | Perimeter Protection- Tripwire; Intrusion (These functions support the filtering for human and motor vehicle) Intelligent Motion Detect 2.0- Advanced secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change. Supports Object Search with compatible NVRs. |
Video | |
Compression: | H.265; H.264; H.264H; H.264B; MJPEG |
Streaming Capability: | 3 Streams |
Resolution: | 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 ×1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704× 576/704 × 480); VGA (640 × 480); CIF (352 × 288/ 352× 240) |
Frame Rate: | Main Stream (2688 × 1520@1–25/30 fps) Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) Third Stream 1920 × 1080 @ (1–25/30 fps) |
Bit Rate Control: | CBR/VBR |
Bit Rate: | H.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps |
Day/Night: | Auto(ICR) / Color / B/W |
Backlight Compensation: | BLC, HLC, WDR |
White Balance: | Auto/natural/street lamp/outdoor/manual/regional custom |
Gain Control: | Auto / Manual |
Noise Reduction: | 3D DNR |
Flip: | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution.) |
Mirror: | Off / On |
Audio | |
Compression: | G.711a; G.711Mu; PCM; G.726; G.723 |
Network | |
Ethernet: | RJ-45 (10/100Base-T) |
Protocol: | IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP; RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP |
Interoperability: | ONVIF(Profile S/Profile G);CGI;P2P |
Streaming Method: | Unicast / Multicast |
Max. User Access: | 20 (Total bandwidth: 64 M) |
Edge Storage: | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
Web Viewer: | IE, Chrome, Firefox, Safari |
Management Software: | SmartICRSS, DSS |
Smart Phone: | IOS, Android |
Interface | |
Audio I/O: | Built-in Mic, 1 (RCA port) each output/ input |
Alarm I/O: | 1 channel In: 5mA 5VDC, 1 channel Out: 300mA 12VDC |
Memory Slot: | Micro SD card (support max. 256 G) |
Electrical | |
Power Supply: | DC12V, PoE (802.3af) |
Power Consumption: | Basic: 2.8 W (12 VDC); 3.6 W (PoE) Max. (WDR + IR intensity + Intelligence): 7.9 W (12 VDC); 9.2 W (PoE) |
Environmental | |
Operating Conditions: | -22° F ~ +140° F (-30° C ~ +60° C) / Less than 95% RH |
Ingress Protection: | IP67 |
Construction | |
Dimensions: | 9.61" × 3.11" × 3.00" (L × W × H) (244.1 mm × 79.0 mm × 75.9 mm) |
Gross Weight: | 2.4lb (1090 g) |
Mounting Pan/Tilt/Rotation: | Horizontal: 0°–360° Vertical: 0°–90° Rotation: 0°–360° |
