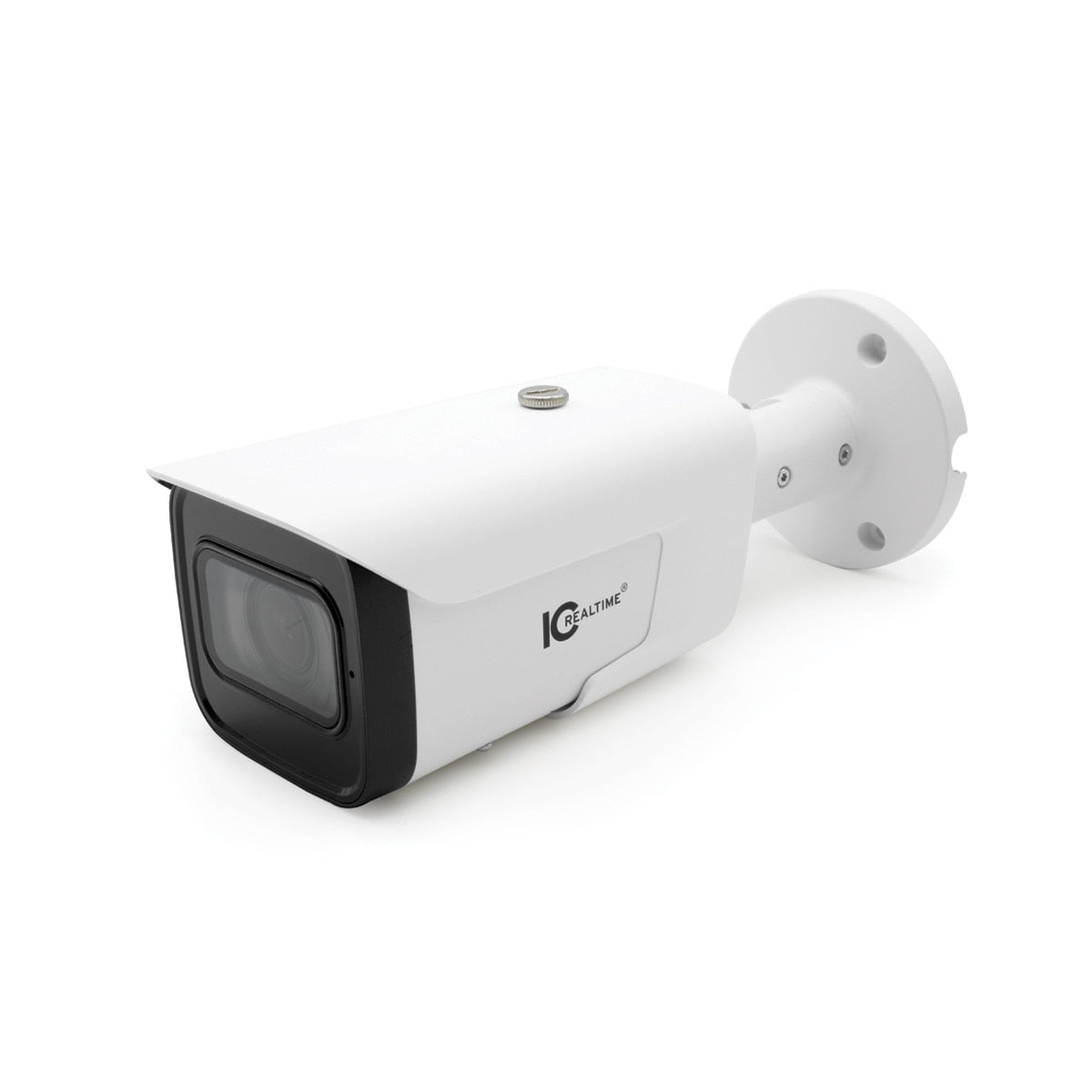

IC Realtime IPFX-B40V-IRW3 4MP Starlight Varifocal Bullet Network Camera (White)
IC Realtime IPFX-B40V-IRW3 4MP Starlight Varifocal Bullet Network Camera (White)
Couldn't load pickup availability
Details
IC Realtime’s IPFX-B40V-IRW3, from the "Flex" lineup, is a feature-rich varifocal eyeball network camera designed to deliver powerful, intelligent surveillance. Built with a 1/3" CMOS image sensor, the camera captures sharp 4 MP (2688 × 1520) resolution video at up to 30 fps, ensuring clear and detailed footage. Its motorized 2.7 mm–13.5 mm varifocal lens allows for flexible zoom and field-of-view adjustments, offering a broad 104° angle of view to cover large areas. Measuring 9.61" × 3.11" × 3.00", the camera fits seamlessly into both indoor and outdoor installations.
The camera’s support for H.265 video compression ensures efficient data storage and bandwidth usage without sacrificing video quality. With 120dB true Wide Dynamic Range (WDR), the camera delivers balanced images in high-contrast lighting conditions, while 3D Noise Reduction (3DNR) ensures clear video in low-light environments. The IPFX-B40V-IRW3 also features powerful night vision, with infrared (IR) LEDs allowing monitoring up to 196 feet in total darkness (0 lux), and it can capture color video in as low as 0.005 lux at F1.5, ensuring vivid imagery in extremely low light.
This camera excels in intelligent features, including Perimeter Protection with Tripwire (virtual line detection) and Intrusion (virtual area detection). These functions are capable of distinguishing between human and vehicle objects, minimizing false alarms and enhancing security effectiveness. Intelligent Motion Detect 2.0 further enhances this capability, providing advanced secondary filtering to reduce false alerts caused by environmental factors like leaves, rain, or lighting changes. For users seeking efficient search functionality, the camera supports Object Search when used with compatible NVRs, allowing for quicker retrieval of relevant footage.
The IPFX-B40V-IRW3 is designed to withstand harsh environmental conditions with its IP67 rating, making it fully dust-tight and waterproof for reliable outdoor performance. It offers dual power options: PoE with a maximum consumption of 9.2 W or 12V DC with a consumption of up to 7.9 W, ensuring installation flexibility. It is ONVIF S, G, and T compliant, allowing for easy integration with a wide range of third-party devices and systems. The camera also includes a built-in microphone for capturing audio, complementing its high-definition video capabilities.
To further enhance its functionality, the camera features support for up to 256GB of microSD storage, providing an option for local video recording. As part of IC Realtime’s "Flex" lineup, the IPFX-B40V-IRW3 is covered by a 10-year warranty and backed by IC Realtime’s top-tier technical support, ensuring long-term reliability and peace of mind for your security needs.
With advanced image quality, intelligent detection features, and robust design, IC Realtime’s IPFX-B40V-IRW3 offers the perfect solution for versatile and effective surveillance in any environment.
Specifications
Camera | |
Image Sensor: | 1/3" CMOS |
Effective Pixels: | 2688 (H) × 1520 (V) 4MP |
RAM/Rom: | 128 MB/ 512 MB |
Scanning System: | Progressive |
Minimum Illumination: | 0.005 lux@F1.5 (Color, 30 IRE) 0.0005 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) |
Illumination Distance: | Distance up to 197 ft (60 m) |
Illumination On/Off Control: | Auto / Manual |
Illumination LEDs: | 4 |
Camera Illumination Type: | IR |
Lens | |
Lens Type: | Motorized vari-focal |
Mount Type: | φ14 |
Focal Length: | 2.7mm~13.5mm |
Max. Aperture: | F1.5 |
Angle of View: | Horizontal: 104°–29°, Vertical: 54°–16°, |
Close Focus Distance: | 2.6 ft (0.8 m) |
DORI - Detect: | 209 ft -688 ft |
DORI - Observe: | 84 ft- 275 ft |
DORI - Recognize: | 42 ft- 137 ft |
DORI - Identify: | 21 ft- 68 ft |
Intelligence | |
IVS: | Tripwire; Intrusion |
Advanced Intelligent Functions: | Perimeter Protection- Tripwire; Intrusion (These functions support the classification and detection of vehicle and human objects) Intelligent Motion Detect 2.0- Advanced secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change. Supports Object Search with compatible NVRs. |
Video | |
Compression: | H.265; H.264; H.264H; H.264B; MJPEG |
Streaming Capability: | 3 Streams |
Resolution: | 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/ 352× 240) |
Frame Rate: | Main Stream (2688 × 1520@1–25/30 fps) Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) Third Stream 1920 × 1080 @ (1–25/30 fps) |
Bit Rate Control: | CBR/VBR |
Bit Rate: | H.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps |
Day/Night: | Auto(ICR) / Color / B/W |
Backlight Compensation: | BLC, HLC, WDR |
White Balance: | Auto/natural/street lamp/outdoor/manual/regional custom |
Gain Control: | Auto / Manual |
Noise Reduction: | 3D DNR |
WDR: | 120dB |
Audio | |
Compression: | G.711a; G.711Mu; PCM; G.726; G.723 |
Network | |
Ethernet: | RJ-45 (10/100Base-T) |
Protocol: | IPv4; IPv6; HTTP ;HTTPS;TCP; UDP;ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS;QoS;UPnP; NTP; Multicast;ICMP; IGMP;NFS; PPPoE; 802.1x ;SNMP |
Compatibility: | ONVIF(Profile S/Profile G);CGI;P2P |
Max. User Access: | 20 (Total bandwidth: 64 M) |
Edge Storage: | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
Web Viewer: | IE, Chrome, Firefox, Safari |
Management Software: | IC Now |
Smart Phone: | IOS, Android (IC View+) |
Interface | |
Audio I/O: | Built-in Mic, 1 (RCA port) each output/ input |
Alarm I/O: | 1 channel in: wet contact, 5 mA 3 V–5 VDC; 1 channel out: wet contact, 300 mA 12 VDC |
Memory Slot: | Micro SD card (support max. 256 GB) |
Electrical | |
Power Supply: | 12 VDC/PoE (802.3af) |
Power Consumption: | Basic: 2.8 W (12 VDC); 3.6 W (PoE) Max. (WDR + IR intensity + Intelligence): 7.9 W (12 VDC); 9.2 W (PoE) |
Environmental | |
Operating Conditions: | -22° F ~ +140° F (-30° C ~ +60° C) / Less than 95% RH |
Storage Conditions: | -40° F ~ +140° F (-40° C ~ +60° C) |
Ingress Protection: | IP67 |
Construction | |
Casing: | Metal |
Dimensions: | 9.61" × 3.11" × 3.00" (L × W × H) (244.1 mm × 79.0 mm × 75.9 mm) |
Gross Weight: | 2.4lb (1090 g) |
Mounting Pan/Tilt/Rotation: | Horizontal: 0°–360° Vertical: 0°–90° Rotation: 0°–360° |
