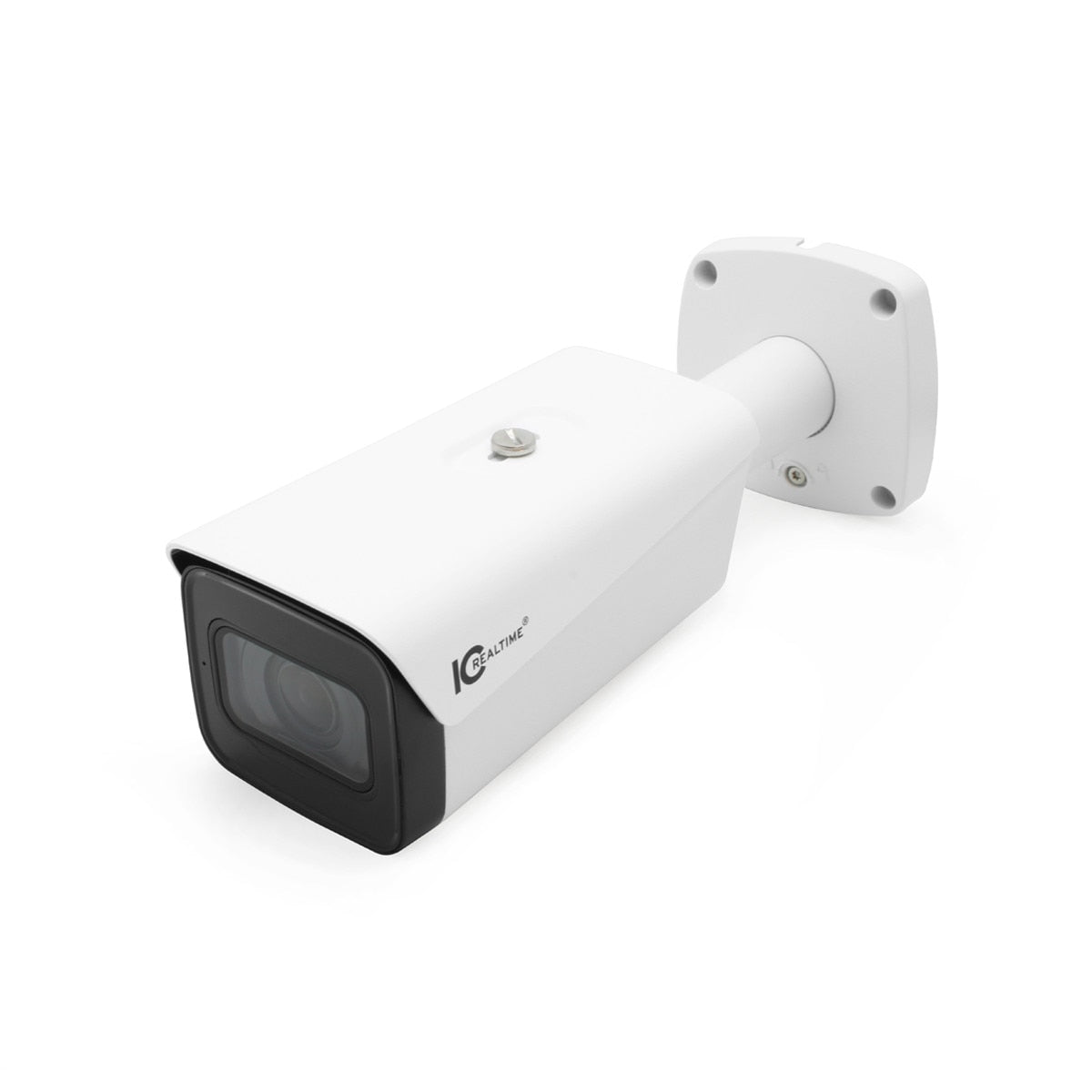

IC Realtime IPFX-B80V-IRW3 8MP Starlight Bullet Network Camera (White)
IC Realtime IPFX-B80V-IRW3 8MP Starlight Bullet Network Camera (White)
The IPFX-B80V-IRW3 is the newly upgraded edition of IC Realtime’s 8MP / 4K POE bullet camera. The IRW3 version brings more FlexSmartAi capabilities, an 8MP Starlight video sensor, and the FOV flexibility of a power zoom lens to any network camera installation. Using its 8MP/4K native resolution, the camera’s widely adjustable output streams can be dialed in to meet diverse recorder & VMS stream requirements.
NATIVE 4K STARLIGHT
IPFX-B80V boasts a sensor pixel density of 8.294 million pixels, delivering super clear and detailed UHD video streams. It holds color down to 0.0008 lux supplemented by 195+ ft. of grayscale SmartIR for detailed snapshots & video clips inside or outside, day or night. IPFX-B80V has impressive DORI numbers, with recognition at over 124 feet and identification at 90+ feet.
ADAPTABLE FAST STREAMING & FIELD OF VIEW
Nothing beats a power zoom lens for perfect scene framing. The B80V’s is 2.7mm to 12mm to easily & remotely adjust the camera’s FOV to a zoom variable 47° to 113°. The camera also adapts to H.265, H.264/H/B, and even MJPEG. On IC Realtime NVRs, it can use an optimized Smart H.265+ video codec with a scene-adaptive encoding strategy, dynamic GOP, and ROI. Intelligent video noise reduction and 120dB WDR ensure high-quality video streams at all resolutions.
AI-POWERED & CYBER SECURE
The B80V is a FlexSmartAi camera. AI is built into its functions & detection skills, including heat mapping, sound detection, abandoned objects & missing object alerts. Deep-learning algorithms recognize human and vehicle forms. Its advanced perimeter awareness system continuously analyzes motion and eliminates alarms triggered by low-priority targets. Extensive cybersecurity protections are built in, too, for safe & secure streaming.
FUTUREPROOF 4K POE BULLET CAMERA
With adjustable FPS & resolution output, the IPFX-B80V is the perfect future-proof IP camera for gate & access control installations. It has 2-way audio ports to encode external sound pickups and speakers. It also has alarm I/O ports, and the camera’s Ai enhanced detection system can even use sound as an alert trigger. For in-camera recording, the B80V also includes an internal mSD slot for cards up to 512 GB.
Bullet cameras have the undeniable ability to deter crime due to their visibility. They are easy to aim & install due to their widely adjustable arm mounts. The new IPFX-B80V-IRW3 takes those physical advantages to the next level. With both future-proof native 4K resolution and widely adjustable output streams to meet recorder & VMS stream requirements, it‘s the perfect choice for new installations. That adjustable stream also makes it an ideal replacement & upgrade for older systems. With IC Realtime's 10-Year Limited Warranty, IPFX-B80V-IRW3 becomes the best 4K IP bullet choice for camera integrators today.
Specifications
Camera | |
Image Sensor: | 1/1.8" CMOS |
Effective Pixels: | 3840 (H) × 2160 (V) |
RAM/Rom: | 4GB/2GB |
Scanning System: | Progressive |
Minimum Illumination: | 0.0008 lux@F1.8 (Color, 30 IRE) 0.0004 lux@F1.8 (B/W, 30 IRE) 0 lux (Illuminator on) |
Illumination Distance: | 197 ft (60 m) |
Illumination On/Off Control: | Auto; Zoomprio; Manual |
Illumination LEDs: | 4 |
Camera Illumination Type: | IR |
Lens | |
Lens Type: | Motorized vari-focal |
Mount Type: | φ14 |
Focal Length: | 2.7 mm–12 mm |
Max. Aperture: | F1.5 |
Angle of View: | H: 113°–47°; V: 60°–26° |
Close Focus Distance: | 4.92 ft (1.5 m) |
DORI - Detect: | 273-622ft |
DORI - Observe: | 109-248ft |
DORI - Recognize: | 54-124ft |
DORI - Identify: | 27-62ft |
Intelligence | |
IVS: | Tripwire; Intrusion, Heat Map, Smart Sound Detection |
Advanced Intelligent Functions: | Perimeter Protection: Tripwire; Intrusion (These functions support the classification and detection of vehicle and human objects) Intelligent Motion Detect: Advanced secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change. Face Detection: Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting People Counting: Tripwire: people counting and people counting in area, generating and exporting report (day/month/year); queue management, generating and exporting report (day/month); 4 rules can be set for tripwire, people counting in area and queue management |
Video | |
Compression: | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) |
Streaming Capability: | 4 Streams |
Resolution: | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1(704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
Frame Rate: | Main stream: 3840 × 2160@(1–25/30 fps) Sub stream: D1@(1–25/30 fps) Third stream: 1080p@(1–25/30 fps) Fourth stream: 720p@(1–10 fps) |
Bit Rate Control: | CBR/ VBR |
Bit Rate: | H.264: 32 kbps–16384 kbps H.265: 12 kbps–13568 kbps |
Day/Night: | Auto(ICR) / Color / B/W |
Backlight Compensation: | BLC / HLC / WDR(120dB) |
White Balance: | Auto/Natural/Street Lamp/Outdoor/Manual |
Gain Control: | Auto / Manual |
Noise Reduction: | 3D DNR |
Flip: | 0°/90°/180°/270° (Supports 90°/270° with (2688 ×1520 resolution.) |
Mirror: | Off/ On |
WDR: | 120dB |
Audio | |
Compression: | G.711a; G.711Mu; PCM; G.726; G.723 |
Network | |
Ethernet: | RJ-45 (10/100Base-T) |
Protocol: | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
Interoperability: | ONVIF (Profile S/Profile G/Profile T); CGI |
Streaming Method: | 4 Streams |
Max. User Access: | 20 (Total bandwidth: 80 M) |
Edge Storage: | FTP; SFTP; Micro SD card (support max. 512 GB); NAS |
Web Viewer: | IE, Chrome, Firefox, Safari |
Management Software: | Smart ICRSS, DSS |
Smart Phone: | IOS, Android |
Interface | |
Audio I/O: | Built-in Mic, 1 Input/ 1 Output (RCA) |
Alarm I/O: | Input: 1 channel in: 5mA 3V–5V DC Output: 1 channel out: 300mA 12V DC |
Memory Slot: | Micro SD card (support max. 512 GB) |
Electrical | |
Power Supply: | 12 VDC/PoE (802.3af) |
Power Consumption: | Basic: 4.0 W (12 VDC); 5.3 W (PoE) Max. (H.265+ WDR+ Intelligence on+IR on): 10.2 W (12 VDC); 12.8 W (PoE) |
Environmental | |
Operating Conditions: | –22°F to +140°F (–30°C to +60°C)/Less than 95% RH |
Ingress Protection: | IP67 |
Vandal Resistance: | IK10 |
Construction | |
Casing: | Metal |
Dimensions: | 10.76" × 3.74" × 3.74" (273.2 mm × 95.0 mm × 95.0 mm) |
Gross Weight: | 3.66 lb (1.66kg) |
Mounting Pan/Tilt/Rotation: | Horizontal: 0°–360°; vertical: 0°–90°; rotation: 0°–360° |
