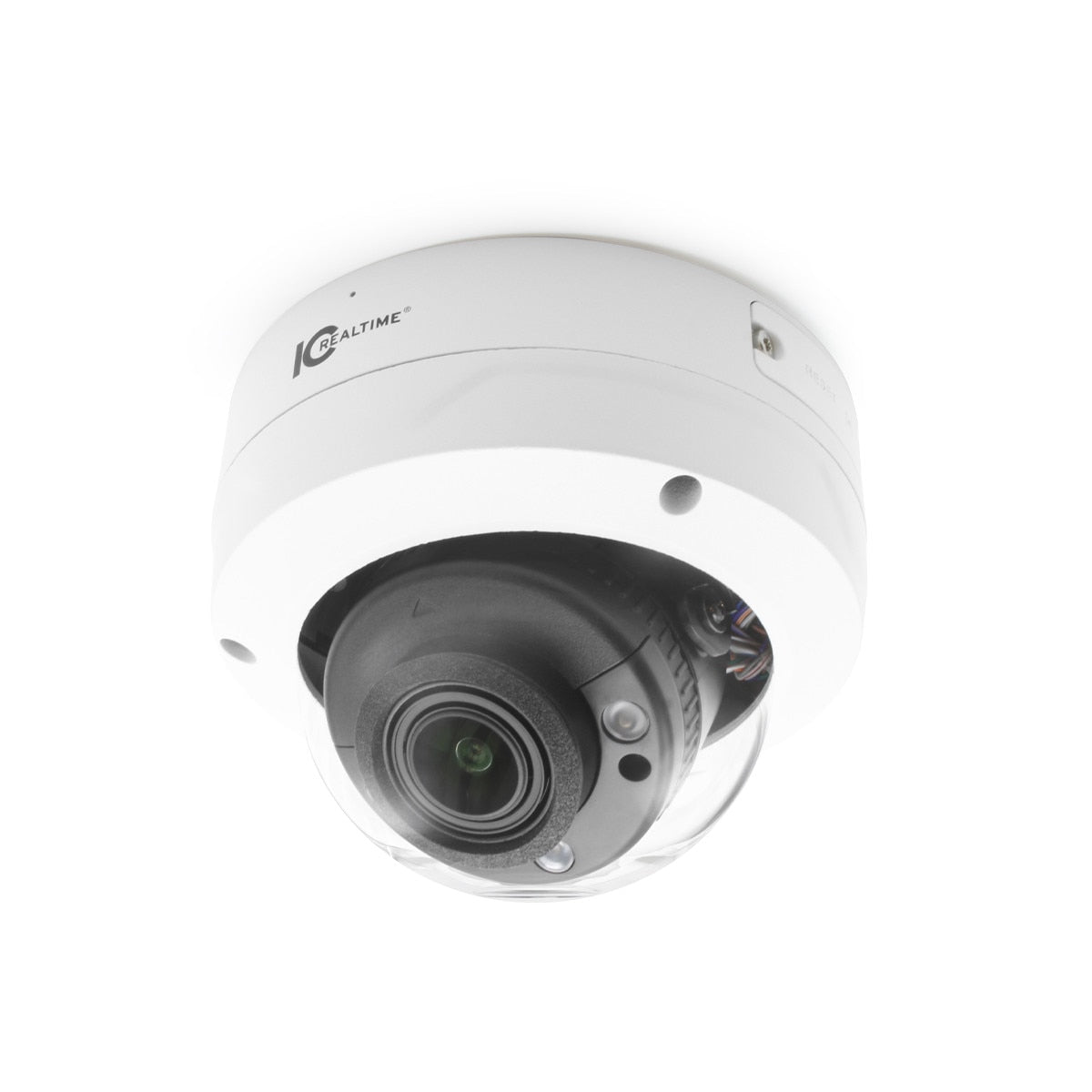

IC Realtime IPFX-D40V-IRW3 4MP Starlight Varifocal Dome Network Camera (White)
IC Realtime IPFX-D40V-IRW3 4MP Starlight Varifocal Dome Network Camera (White)
We use the term “vandal dome” to reflect the high protection levels we build into these IP67 weather-rated and IK10 impact-rated dome cameras. Especially in high-exposure locations like outdoors or damage-prone locations like schools and retail stores, tough little domes like these are a camera integrator’s favorite “tiny & tough” POE camera format.
THE NEXT STEP UP IN AI VIDEO SECURITY
IPFX-D40V-IRW3 is our next-generation FlexSmartAi POE dome camera. FlexSmartAi means it shares its AI detection skills with the NVR it’s hooked up to. The new IPFX-D40V even has a built-in audio microphone for local sound pickup and AI sound detection. With the new IRW3 version’s iMD 2.0’s camera-based metadata, that detection synergy enters a whole new dimension. AI-detected object information is analyzed in-camera, encoded as metadata, then streamed frame-by-frame with the video.
ADVANCED AI METADATA ON TAP
With IC Realtime's new AI-NVRs, streamed iMD 2.0 metadata powers IC Realtime’s next-gen and super-easy Object Search. A single “Select & Click” triggers an AI-powered search of all the NVR’s iMD 2.0 video channels at once. The NVR then lays out and displays what it finds to you. Previously requiring server-level power, iMD 2.0 builds a whole new level of capability directly into our FlexSmartAi ecosystem. The camera’s 4MP pixel density and enhanced tripwire & intrusion capabilities will also max out all recorder-based face & vehicle recognition features. And this advanced AI is also smart enough to maintain compatibility with earlier NVR iMD detection NVRs, too.
THE UNBLINKING 24/7 EYE
The IRW3 series’s 4MP QHD Starlight video sensor streams in full color down to 0.005 with even the dimmest ambient light. In total darkness, 130+ feet of Smart IRs deliver sharp & detailed grayscale night vision. Lens angle & rotation are adjustable under the IPFX-D40V’s dome. Above the sensor, a 2.7mm – 13.5mm power zoom auto-focus lens lets you dial in a zoom variable 104°–29° horizontal FOV from the IC View+ app or an NVR's control panel.
COMPACT & TOUGH
With IPFX-D40V. all this Ai & hardware power plus IC Realtime’s suite of image management tools are fully enclosed & protected. The camera’s tough IK10 impact-resistant acrylic dome & metal IP67 weatherproof base are less than 4” tall & 5” around The IRW3’s compact dome’s base still fits the same wall arm mount, top cap & weatherproof junction box options as the previous version. The camera has the same wide 30% voltage tolerance, too.
ADJUSTABLE & ADAPTABLE STREAMS
IPFX-D40V-IRW3 performs like a much more expensive camera when integrated into an IC Realtime or compatible NVR. But it also has ONVIF Profile S/G/T compliance, CGI, P2P, and HTML5 compatibility. Combined with this dome’s 3 widely adjustable H.264/H.265 output stream resolutions & frame rates, this compact indoor/outdoor dome is a cost-effective, integrated video & audio choice for multi-camera VMS systems. With IC Realtime NVRs, video stream compression options add Smart H.265+ adaptive encoding to achieve up to 70% stream bandwidth savings over standard H.265.
Weatherproof compact POE domes like IPFX-D40V-IRW3 are a staple of most camera integrators. IC Realtime’s 10-Year limited warranty is the longest available in the video security industry and a "real world" promise of our gear’s long-term dependability. It wasn’t easy to make an even more capable POE network dome camera than the IPFX-D40V-IRW2. But this time, the IRW3’s “guts” now include iMD 2.0 built-in while maintaining complete backward compatibility. If you’re looking for a future-proof, compact POE vandal dome, IPFX-D40V-IRW3 is your best choice.
Specifications
Camera | |
Image Sensor: | 1/2.9" 4 Megapixel progressive CMOS |
Effective Pixels: | 2688(H) x1520(V) |
RAM/Rom: | 128MB/512MB |
Scanning System: | Progressive |
Minimum Illumination: | 0.005 lux@F1.5 (Color, 30 IRE) 0.0005 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) |
Illumination Distance: | Distance up to 131 ft (40 m) |
Illumination LEDs: | 3 |
Camera Illumination Type: | IR |
Lens | |
Lens Type: | Motorized vari-focal |
Mount Type: | φ14 |
Focal Length: | 2.7mm~13.5mm |
Max. Aperture: | F1.5 |
Angle of View: | Horizontal: 104°–29°, Vertical: 54°–16°, |
Close Focus Distance: | 2.6 ft (0.8 m) |
DORI - Detect: | 210-688ft |
DORI - Observe: | 84-275ft |
DORI - Recognize: | 42-137ft |
DORI - Identify: | 21-68ft |
Intelligence | |
IVS: | Tripwire; Intrusion |
Advanced Intelligent Functions: | Perimeter Protection: Tripwire; Intrusion (These functions support the classification and detection of vehicle and human objects) Intelligent Motion Detect 2.0: Advanced secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change. Supports Object Search with compatible NVRs AI Search: Works together with AI enabled NVRs to perform refined intelligent search, event extraction and merging to event videos |
Video | |
Compression: | H.265; H.264; H.264H; H.264B; MJPEG (sub stream) |
Streaming Capability: | 3 Streams |
Resolution: | 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/ 352× 240) |
Frame Rate: | Main Stream (2688 × 1520@1–25/30 fps) Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) Third Stream 1920 × 1080 @ (1–25/30 fps) |
Bit Rate Control: | CBR/VBR |
Bit Rate: | H.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps |
Day/Night: | Auto(ICR) / Color / B/W |
Backlight Compensation: | BLC, HLC, WDR (120dB) |
White Balance: | Auto/natural/street lamp/outdoor/manual/regional custom |
Gain Control: | Auto / Manual |
Noise Reduction: | 3D DNR |
Flip: | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution.) |
Mirror: | Off / On |
WDR: | 120dB |
Audio | |
Compression: | G.711a; G.711Mu; PCM; G.726; G.723 |
Network | |
Ethernet: | RJ-45 (10/100Base-T) |
Protocol: | IPv4;I Pv6; HTTP;HTTPS;TCP; UDP; ARP;RTP; RTSP;RTCP; RTMP ;SMTP;FTP; SFTP; DHCP;DNS;DDNS; QoS; UPnP; NTP ;Multicast; ICMP;IGMP;NFS; PPPoE;802.1x;SNMP |
Interoperability: | ONVIF(Profile S/ G/ T);CGI;P2P |
Max. User Access: | 20 (Total bandwidth: 64 M) |
Edge Storage: | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
Web Viewer: | IE, Chrome, Firefox, Safari |
Management Software: | Smart ICRSS, IC Now |
Smart Phone: | iOS, Android |
Interface | |
Audio I/O: | Built-in Mic, 1/1 Audio In/ Out |
Alarm I/O: | 1 channel In: 5mA 5VDC, 1 channel Out: 300mA 12VDC |
Memory Slot: | Micro SD card (support max. 256 G) |
Electrical | |
Power Supply: | DC12V, PoE (802.3af) |
Power Consumption: | Basic: 2.8 W (12 VDC); 3.6 W (PoE) Max. (WDR + IR intensity + Intelligence): 7.9 W (12 VDC); 9.2 W (PoE) |
Environmental | |
Operating Conditions: | -22° F ~ +140° F (-30° C ~ +60° C) / Less than 95% RH |
Ingress Protection: | IP67 |
Vandal Resistance: | IK10 |
Construction | |
Casing: | Metal |
Dimensions: | 3.7" × Φ4.8" (94 mm × Φ122 mm) |
Gross Weight: | 2.17lb (986 g) |
