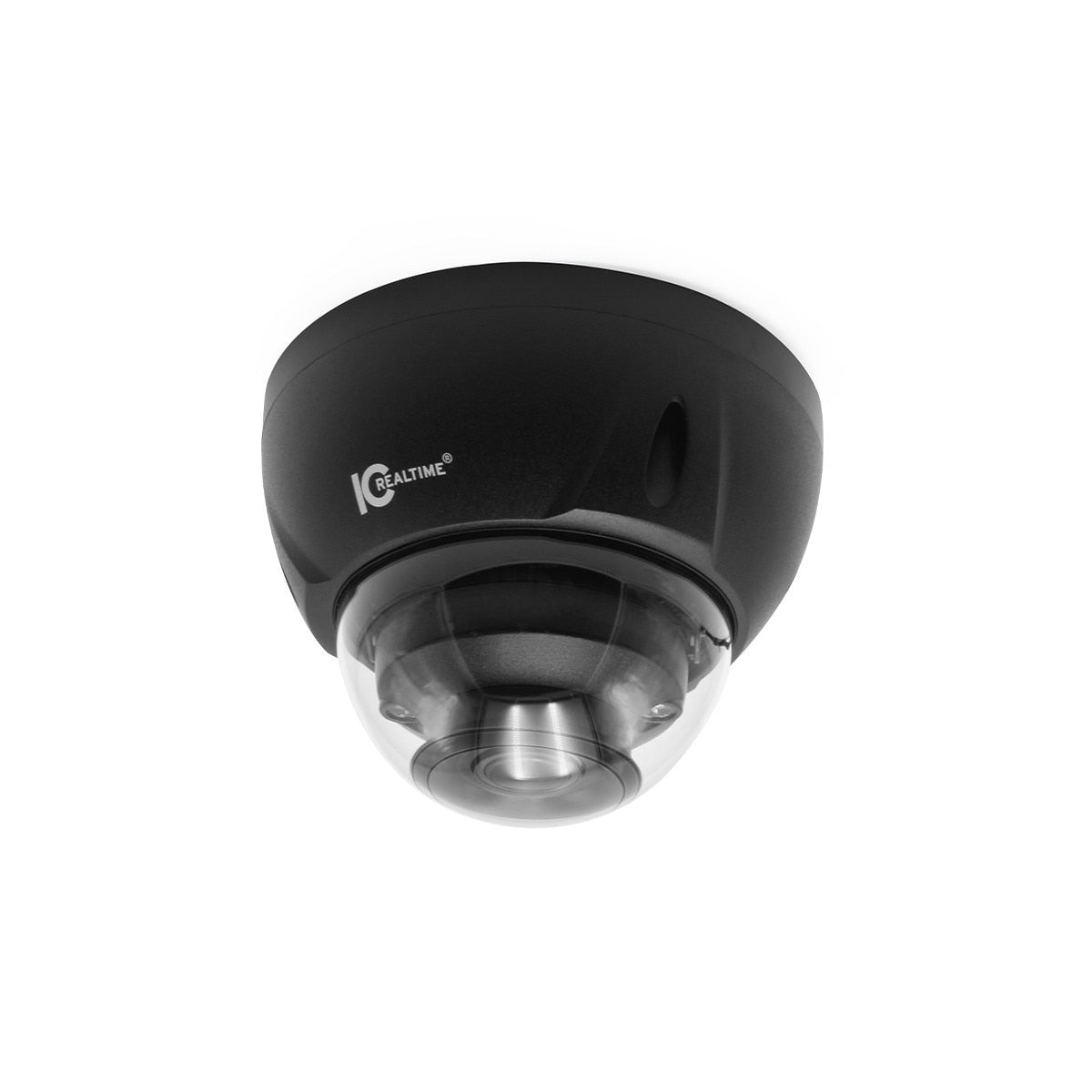

IC Realtime IPFX-D80V-IRB3 8MP Starlight Vandel-Proof Dome Network Camera (Black)
IC Realtime IPFX-D80V-IRB3 8MP Starlight Vandel-Proof Dome Network Camera (Black)
If your next installation needs a Factory Black & future-proof 4K UHD Starlight dome camera, IC Realtime introduces the industry’s best. The latest IRB3 edition of our IPFX-D80V brings even more FlexSmartAi capabilities at every level. Leveraging an updated 8MP UHD Starlight video chipset and a 12x power zoom lens, it brings “perfect shot” video to any location. Then, inside its unassuming dome structure, IC Realtime introduces the next step up in AI detection: iMD 2.0 with Metadata detection & streaming. 4K security has never been more clearly defined or easily searched than in our newly redesigned IPEL-D80V-IRB3 with iMD 2.0.
NEXT GENERATION AI WITH iMD 2.0
IC Realtime's iMD 2.0 brings next-gen AI detection with streamed video frames containing encoded metadata. Metadata encodes detected object characteristics frame-by-frame with the video. This enables our innovative "Select & Search" process when recorded on an Object Search-equipped AI-NVR. Simply click use the NVR's monitor screen or use the IC View+ app to highlight precisely what you're looking for & click. And this function will search through all NVR video channels with iMD 2.0 camera metadata and display all results.
WIDE-RANGING COMPATIBILITY
Not every situation demands 4K streams. So the camera’s 4 available streams can be dialed in to meet diverse recorder & VMS stream requirements. It is ONVIF (Profile S/G/T) P2P and CGI compatible. IPEL-D80V uses IC Realtime's AI-assisted video management suite. AI video noise reduction and 120dB WDR ensure accurate video streams at all resolutions. The camera also adapts to H.265, H.264/H/B, and even MJPEG. When used with IC Realtime NVRs, IPFX-D80V can access a Smart H.265+ video codec with scene-adaptive encoding, dynamic GOP, and ROI.
STEALTH & STARLIGHT, INDOORS & OUT
IPFX-D80V-IRB3 has an IP67 weather-rated Factory Black metal base that makes it suitable indoors or out. Used in dimly lit environments like clubs, bars & restaurants, or on black ceilings & walls common in retail, it becomes nearly invisible. And we provide multiple Factory Black “screwdriver fit” mounting accessories for easy, weatherproof installation.
AI-POWERED & CYBER SECURE
The D80V is a FlexSmartAi camera. AI is built into its functions & detection skills, including heat mapping, sound detection, abandoned objects & missing object alerts. Deep-learning algorithms recognize human and vehicle forms. Its AI-enhanced Perimeter Protection ensures a 90% reduction in false alerts. The perimeter awareness system continuously analyzes motion and eliminates alarms triggered by low-priority targets. Extensive cybersecurity protections are built in too for safe & secure streaming.
ADAPTABLE 4K DOME CAMERA
With adjustable FPS & resolution output, the IPFX-D80V is the perfect future-proof IP camera for gate & access control installations. It has 2-way audio ports to encode external sound pickups and speakers. It also has alarm I/O ports, and the camera’s Ai enhanced detection system can even use audio as an alert trigger. Are you upgrading an existing coax camera location? No need to rewire - just use our IVB-EOC-102 or 202 balun sets for video streams & POE power over coax. If PoE isn't available, it can be powered by 12 VDC/24 VA external power. The D80V also includes an internal mSD slot for cards up to 512Gb.
Dome cameras have the undeniable ability to minimize both their overall visibility and their lens aim point. IPFX-D80V-IRB3 adds a Factory Black finish to maximize that stealth. With IC Realtime's 10-Year Limited Warranty, and AI metadata detection & streaming, IPFX-D80V-IRB3 becomes the best 4K IP vandal dome choice for camera integrators today.
Specifications
Camera | |
Image Sensor: | 1/1.8" CMOS |
Effective Pixels: | 3840 (H) × 2160 (V) 8MP |
RAM/Rom: | 4GB/ 2GB |
Scanning System: | Progressive |
Minimum Illumination: | 0.0008 lux@F1.8 (Color, 30 IRE) 0.0004 lux@F1.8 (B/W, 30 IRE) 0 lux (Illuminator on) |
Illumination Distance: | 131.23 ft (40m) |
Illumination LEDs: | 4 |
Camera Illumination Type: | IR |
Lens | |
Lens Type: | Motorized vari-focal |
Mount Type: | φ14 |
Focal Length: | 2.7 mm–12 mm |
Max. Aperture: | F1.5 |
Angle of View: | H: 113°–47°; V: 60°–26° |
Close Focus Distance: | 2.6 ft (0.8 m) |
DORI - Detect: | 273-622ft |
DORI - Observe: | 109-248ft |
DORI - Recognize: | 54-124ft |
DORI - Identify: | 27-62ft |
Intelligence | |
IVS: | Tripwire; Intrusion,Heat Map, Smart Sound Detection, Smart abandoned object; smart missing object |
Advanced Intelligent Functions: | Perimeter Protection: Tripwire; Intrusion (These functions support the classification and detection of vehicle and human objects) Intelligent Motion Detect: Advanced secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change. E-PTZ: Supports Electronic zoom and tracking Face Detection: Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting People Counting: Tripwire: people counting and people counting in area, generating and exporting report (day/month/year); queue management, generating and exporting report (day/month); 4 rules can be set for tripwire, people counting in area and queue management |
Video | |
Compression: | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) |
Streaming Capability: | 4 Streams |
Resolution: | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728); 5M (2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
Frame Rate: | Main stream: 3840 × 2160@(1–25/30 fps) Sub stream: D1@(1–25/30 fps) Third stream: 1080p@(1–25/30 fps) Fourth stream: 720p@(1–10 fps) |
Bit Rate Control: | CBR/VBR |
Bit Rate: | H.264: 32 kbps–16384 kbps H.265: 12 kbps–13568 kbps |
Backlight Compensation: | BLC, HLC, WDR (120dB) |
Flip: | 0°/90°/180°/270° (Supports 90°/270° with 4M (2688 × 1520) resolution and lower) |
Mirror: | Supported |
WDR: | 120 dB |
Network | |
Ethernet: | RJ-45 (10/100Base-T) |
Protocol: | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
Max. User Access: | 20 (Total bandwidth: 80 M) |
Edge Storage: | FTP; SFTP; Micro SD card (support max. 512 GB); NAS |
Web Viewer: | IE, Chrome, Firefox, Safari |
Management Software: | SmartICRSS, DSS |
Smart Phone: | iOS; Android |
Interface | |
Audio I/O: | 1 Input/ 1 Output (RCA) |
Alarm I/O: | 2 channels in: wet contact, 5mA 3V–5V DC 1 channel out: wet contact, 300mA 12V DC |
Memory Slot: | Micro SD card (support max. 512 GB) |
Electrical | |
Power Supply: | 12 VDC/24 VAC/PoE (802.3af)/ePoE |
Power Consumption: | Basic: 4.1 W (12 VDC); 4.9 W (24 VAC); 5.9 W (PoE) Max. (H.265+ WDR+ Intelligence on+IR on): 10.0 W (12 VDC); 11.7 W (24 VAC); 12.2 W (PoE) |
Environmental | |
Operating Conditions: | –22 °F to +140 °F (–30 °C to +60 °C) |
Ingress Protection: | IP67 |
Vandal Resistance: | IK10 |
Construction | |
Casing: | Metal + plastic |
Dimensions: | 6.26" × Φ4.65" (159.1 mm × 118.1 mm) |
Gross Weight: | 2.69 lb (1.22 kg) |
Mounting Pan/Tilt/Rotation: | Pan: 0°–355° Tilt: 0°–65° Rotation: 0°–355° |
