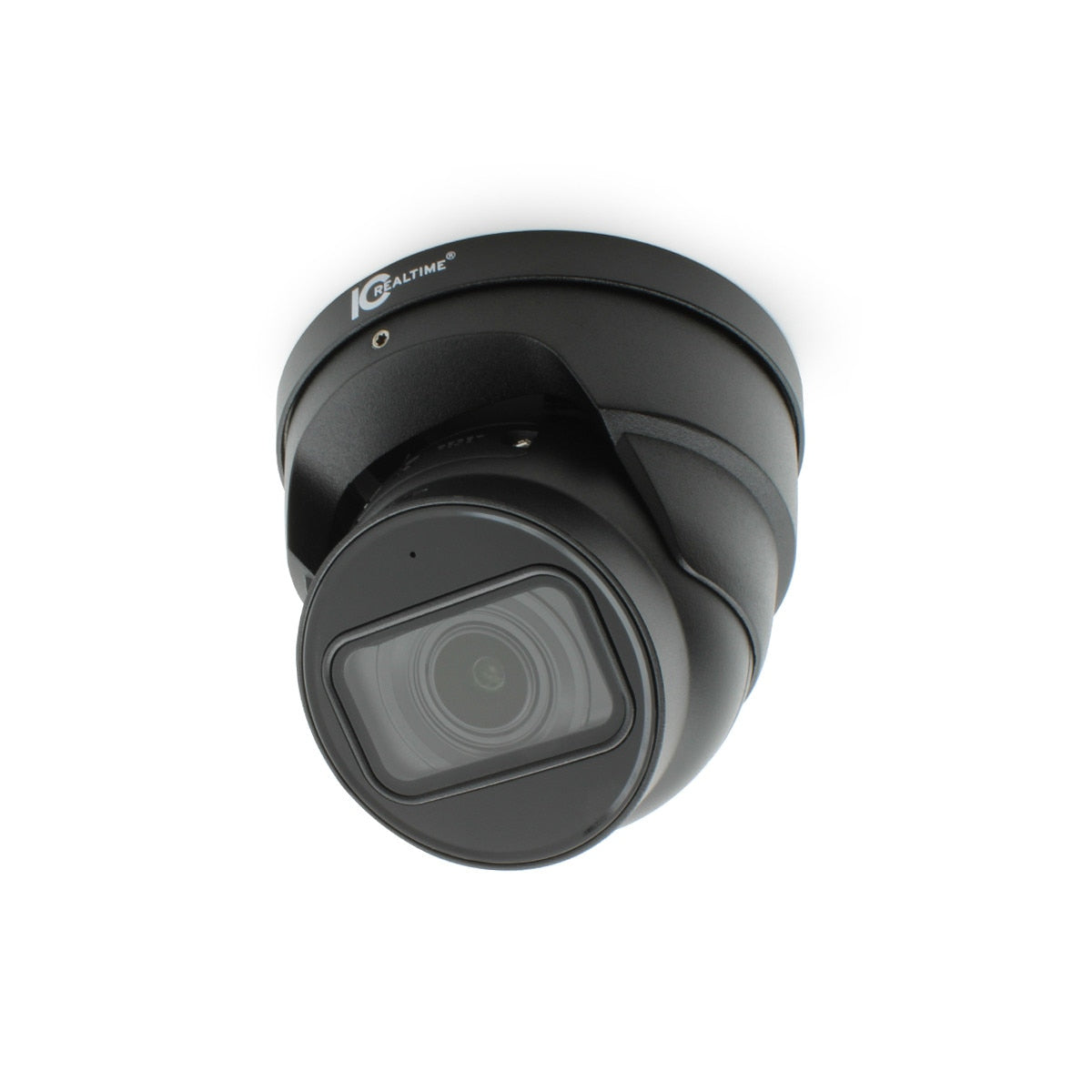

IC Realtime IPFX-E40V-IRB3 4MP Starlight Varifocal Dome Network Camera (Black)
IC Realtime IPFX-E40V-IRB3 4MP Starlight Varifocal Dome Network Camera (Black)
Couldn't load pickup availability
For bars, restaurants & retail, IC Realtime’s Factory Black cameras & color-matched mount accessories make camera installations faster & more efficient. Our latest addition to the series is the next-generation IPFX-E40V-IRB3. While it keeps the IRW2 version’s excellent 4MP QHD Starlight power-zoom optics and IC Realtime’s AI-enhanced image management tools, the IRB3 version features our newest Intelligent Motion Detection upgrade. The camera’s built-in AI-assisted iMD 2.0 now powers frame-by-frame, in-camera metadata detection. This metadata encodes & streams along each frame of the footage for Object Search on our latest iMD 2.0 AI-NVRs.
AI OBJECT SEARCHES POWERED BY iMD 2.0
The IPFX-E40V-IRB3 introduces an innovative feature: metadata stream encoding. Metadata, which comprises AI-recognized object data detected and analyzed within the camera, is now encoded frame-by-frame and seamlessly streamed alongside the video. This valuable object metadata serves a crucial role in IC Realtime AI-NVRs, facilitating our user-friendly "Select & Click" Object Search. In the past, such tasks demanded server-level computing capabilities. But now, with a single click, you can perform an AI-powered metadata search across all of the attached NVR's iMD 2.0 video channels simultaneously. The NVR then neatly organizes and presents the search results on your screen. The IPFX-E40V also takes its AI detection skills into the audio realm with a built-in audio microphone for local sound pickup and AI sound detection. This AI is also smart enough to be backward compatible with earlier iMD detection NVRs, too.
3 ADAPTABLE, COMPATIBLE STREAMS
IPFX-E40V-IRB3 stands out as a remarkable eyeball network camera all on its own. But it also offers three highly adjustable H.264/H.265 output streams. That makes it a great “team player” too. ONVIF Profile S/G/T compliance, CGI, P2P, and HTML5 compatibility make it the perfect black-finish choice for plug & play "eyes" in multi-camera NVR or VMS-based systems. When used with IC Realtime NVRs, it employs Smart H.265+ enhanced video stream compression. Smart H.265+ adaptive encoding results in up to 70% less stream bandwidth usage compared to standard H.265. This capability and the camera’s Starlight 4MP QHD video clarity make the IPFX-E40V an ideal universal Factory Black POE eyeball camera for integrators.
COMMERCIAL-GRADE
To safeguard all this AI power, the camera is enclosed in a robust IP67-rated weatherproof metal case. If you're upgrading from a previous model, know that the IPFX-E40V-IRB3's case and base are compatible with the same weatherproof junction box and wall arm mount options as the earlier version. For added versatility in real-world scenarios, the camera boasts a wide 30% voltage tolerance. Just like its predecessors, the IPFX-E40V-IRB3 features a versatile 2.7mm – 13.5mm power zoom auto-focus lens. With a horizontal field of view from a medium-wide 104° down to a tight 29°, capturing the perfect shot is effortless whether you're using the NVR's control panel or the convenient IC View+ app. This camera boasts QHD 4MP resolution and is equipped with a Starlight sensor, enabling full-color streaming even in extremely low ambient light conditions, down to an impressive 0.005 lux. In total darkness, it has over 130 feet of Smart IRs, delivering exceptionally sharp grayscale night vision.
IC Realtime’s new metadata-streaming IPFX-E40V-IRB3’s 10-Year limited warranty is the longest available in the video security industry. It’s also our indisputable "real world" promise of long-term dependability. Since the old analog camera days, IC Realtime’s camera pros know IC Realtime eyeball domes are the perfect go-to camera. Their base has the easy installation of a bullet camera’s base. When the cam ball & shroud are added, they’re easily aimed. And they have the low profile, hunkered-down toughness of a dome camera. If you need a next-generation, black finish 4MP QHD eyeball dome for your next installation with state-of-the-art AI video & audio detection, and metadata streaming, IPFX-E40V-IRB3 is the perfect answer.
Specifications
Camera | |
Image Sensor: | 1/2.9" CMOS |
Effective Pixels: | 2688(H) x1520(V) |
RAM/Rom: | 128MB/ 512MB |
Scanning System: | Progressive |
Minimum Illumination: | 0.005 lux@F1.5 (Color, 30 IRE) 0.0005 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) |
Illumination Distance: | Distance up to 131 ft (40 m) |
Illumination On/Off Control: | Auto/Manual |
Illumination LEDs: | 2 |
Camera Illumination Type: | IR |
Lens | |
Lens Type: | Motorized vari-focal |
Mount Type: | φ14 |
Focal Length: | 2.7mm~13.5mm |
Max. Aperture: | F1.5 |
Angle of View: | Horizontal: 104°–29°, Vertical: 54°–16° |
Close Focus Distance: | 2.6 ft (0.8 m) |
DORI - Detect: | 209-688ft |
DORI - Observe: | 84-275ft |
DORI - Recognize: | 42-137ft |
DORI - Identify: | 21-68ft |
Intelligence | |
IVS: | Tripwire; Intrusion |
Advanced Intelligent Functions: | Perimeter Protection: Tripwire; Intrusion (These functions support the classification and detection of vehicle and human objects) Intelligent Motion Detect 2.0: Advanced secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change. Supports Object Search with compatible NVRs. |
Video | |
Compression: | 264H |
Streaming Capability: | 3 Streams |
Resolution: | H.265; H.264; H.264H; H.264B; MJPEG |
Frame Rate: | Main Stream (2688 × 1520@1–25/30 fps) Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) Third Stream 1920 × 1080 @ (1–25/30 fps) |
Bit Rate Control: | CBR/VBR |
Bit Rate: | H.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps |
Day/Night: | Auto(ICR) / Color / B/W |
Backlight Compensation: | BLC, HLC, WDR (120 dB) |
White Balance: | Auto/natural/street lamp/outdoor/manual/regional custom |
Flip: | 0°/90°/180°/270° (Supported 90°/270° with 2688 × 1520 resolution.) |
Mirror: | Off / On |
WDR: | 120dB |
Audio | |
Compression: | G.711a; G.711Mu; PCM; G.726; G.723 |
Network | |
Ethernet: | RJ-45 (10/100Base-T) |
Protocol: | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
Interoperability: | ONVIF (Profile S/Profile G/Profile T); CGI; P2P |
Max. User Access: | 20 (Total bandwidth: 64 M) |
Edge Storage: | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
Web Viewer: | IE, Chrome, Firefox, Safari |
Smart Phone: | IOS, Android |
Interface | |
Audio I/O: | Built-in Mic |
Memory Slot: | Micro SD card (support max. 256 GB) |
Electrical | |
Power Supply: | DC12V, PoE (802.3af) |
Power Consumption: | Basic: 4.0 W (12 VDC); 5.2 W (PoE) Max. (WDR + IR intensity + Intelligence): 7.1 W (12 VDC);8.5 W (PoE) |
Environmental | |
Ingress Protection: | IP67 |
Construction | |
Casing: | Metal |
Dimensions: | 4.26" × Φ4.8" (108.3 mm × Φ122 mm) |
Gross Weight: | 2.02lb (915 g) |
Mounting Pan/Tilt/Rotation: | Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360° |
