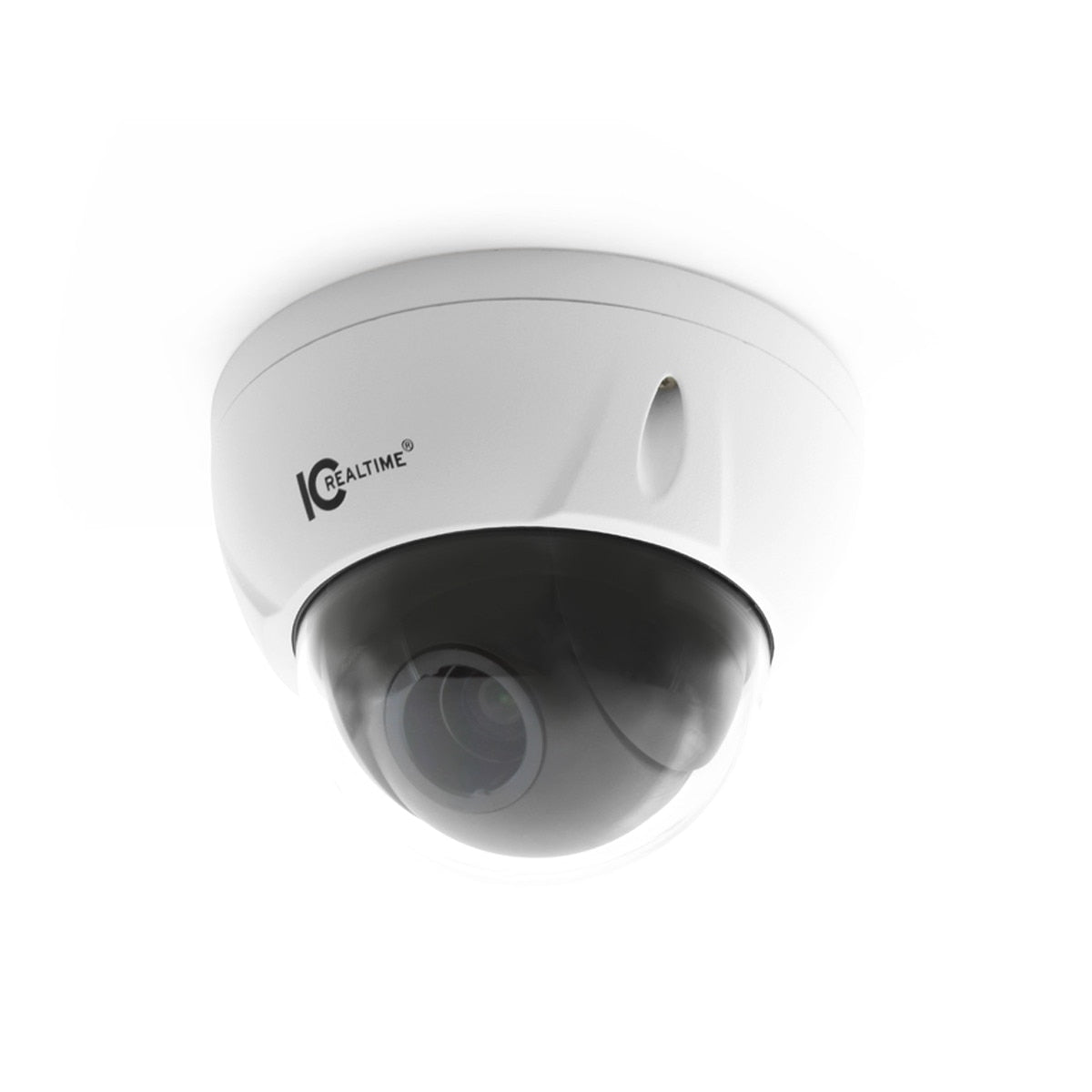

IC Realtime IPFX-P4004-W1 4MP 4x PTZ Network Camera
IC Realtime IPFX-P4004-W1 4MP 4x PTZ Network Camera
Size isn’t everything, and in this case, it’s actually a great advantage. Meet the IPFX-P4004-W1, IC Realtime’s new POE “mini PTZ” that directly replaces our popular but aging MPTZ-2. Despite its internal upgrades, this “nano” PTZ has remained under 5” in diameter. This will be a welcome update for dealers whose clients appreciate having PTZ coverage in a compact, tough & unobtrusive form factor no larger than a standard minidome camera.
FULL-SIZE 4MP PTZ FEATURES
While the MPTZ-2 was a 2MP camera, the new IPFX-P4004-W1 is equipped with a 4MP QHD CMOS sensor chipset with excellent low light 0.005 lux color range followed by grayscale rendition down to 0.0005 lux. Video quality is exceptional with Ultra WDR and despite its compact size, this little video champ delivers all the sharpness & image management you’d expect from IC Realtime. It also plays well with others with HTML5, ONVIF (profiles S, G & T) P2P, CGI, SDK compatibility.
POWER ZOOM, POWER TILT & ROTATION
Bringing a 2.8-12mm (4x) power zoom lens system and tilt & left/right FOV aiming capabilities to a camera that’s only 4.8”x 3.5” seems almost impossible, but the new IPFX-P4004-W1 delivers bigtime. Its exposure automation matches that of IC Realtime’s big PTZ performance to deal with direct sunlight and sudden entrance door background glare to deliver flawless coverage over its zoom-dependant 90.3° to 29.4° field of view.
ADVANCED DETECTION SKILLS
This little camera also includes most of the detection management skills or our full-size PTZs, including an improved version of IC Realtime’s algorithmic Intelligent Motion Detection (iMD) for better accuracy & fewer false alarms, and IPFX-P4004’s IVS implementation includes Tripwire, Abandoned/Missing Object, Intrusion, and Face Detection is also onboard. There’s even an internal mSD slot that takes cards up to 512Gb - that’s capacity for over half a terabyte of in-camera storage.
POE, EASY INSTALL, COMPACT MINIDOME SIZE
IPFX-P4004 is (802.3af) POE compliant and can run off 12VDC as well where POE isn’t available. This micro PTZ is IP66 weather resistant rated for outdoor use and tough enough to earn an IK10 impact protection rating. It can easily replace a standard IP dome camera and is just as easy to install. It also is a screwdriver fit for MNT-IPMINIDOME WALL, MNT-JUNCTION BOX 7, and even our MNT-REC1 recessed mount, making it extremely versatile.
With security cameras that spin & zoom shown as “standard equipment” in movies & media, fixed cameras - no matter how advanced - can seem a little underwhelming. When your client’s expectations are for something more, IC Realtime’s IPFX-P4004-W1 overwhelms their doubts, and its impressive app controllable PTZ coverage, low-light performance & brilliant QHD color streams delight their eyes. By Delivering PTZ performance where larger cameras just don’t cut it, this compact POE gem is truly the “little PTZ engine that could.”
Specifications
Camera | |
Image Sensor: | 1/2.8" CMOS |
Effective Pixels: | 2560 (H) × 1440 (V), 4 Megapixels |
RAM/Rom: | 128MB/ 512MB |
Scanning System: | Progressive |
Minimum Illumination: | Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 |
Illumination Distance: | N/A; IR Sensitive |
Illumination LEDs: | None |
Camera Illumination Type: | None, IR sensitive |
Lens | |
Focal Length: | 2.8 mm–12 mm |
Max. Aperture: | F1.6–F3.0 |
Angle of View: | H: 90.3°–29.4°; V: 48.5°–16.6° |
Optical Zoom: | 4x |
Focus Control: | Auto/Manual |
Close Focus Distance: | 4.92 ft (1.5 m) |
DORI - Detect: | 787ft |
DORI - Observe: | 311ft |
DORI - Recognize: | 157ft |
DORI - Identify: | 78ft |
PTZ | |
Pan/Tilt Range: | Pan: 0°–355°, Tilt: 0°–90° |
Manual Control Speed: | Pan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s |
Preset Speed: | Pan: 100° /s; Tilt: 60° /s |
Presets: | 300 |
PTZ Mode: | 5 Pattern, 8 Tour, Auto Pan ,Auto Scan |
Speed Setup: | Human-oriented focal Length/ speed adaptation |
Power up Action: | Auto restore to previous PTZ and lens status after power failure |
Idle Motion: | Activate Preset/ Scan/ Tour if there is no command in the specified period |
Protocol: | SD Pelco-P/D(Auto recognition) |
Wiper: | N/A |
Intelligence | |
IVS: | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering |
Advanced Intelligent Functions: | Perimeter Protection, Intelligent Motion Detect, Face Detection |
Video | |
Compression: | H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG(Sub Stream); Smart H.264+ |
Streaming Capability: | 3 Streams |
Resolution: | 4M (2560 × 1440); 3M (2304 × 1296@25fps); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1(704 × 576); CIF(352 × 288); VGA(640 × 480) |
Frame Rate: | Main stream: 4M/3M/1080P/1.3M/720P (1~25/30fps) Sub stream1: D1/CIF(1 ~ 25/30fps) Sub stream 2: 720p@(1–25/30 fps) |
Bit Rate Control: | CBR/VBR |
Bit Rate: | H.264: 2816Kbps – 13056Kbps H.265: 1024Kbps – 7936Kbps |
Day/Night: | Auto(ICR) / Color / B/W |
Backlight Compensation: | BLC / HLC / DWDR |
White Balance: | Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp |
Gain Control: | Auto / Manual |
Noise Reduction: | Ultra DNR (2D/3D) |
Digital Zoom: | 16x |
Flip: | 180° |
Privacy Masking: | Up to 24 areas |
WDR: | DWDR |
Audio | |
Compression: | N/A |
Network | |
Ethernet: | RJ-45 (10/100 Base-T) |
Protocol: | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; Qos; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; SAMBA; NFS |
Interoperability: | ONVIF(Profile S&G&T); P2P; CGI; SDK |
Max. User Access: | 20 (total bandwidth: 64 M) |
Edge Storage: | FTP; Micro SD card (Max 512 GB); NAS |
Web Viewer: | IE, Chrome, Firefox, Safari |
Management Software: | SmartICRSS, DSS |
Smart Phone: | IOS, Android |
Interface | |
Audio I/O: | N/A |
Alarm I/O: | N/A |
Memory Slot: | Micro SD card (Max 512 GB) |
Electrical | |
Power Supply: | 12 VDC, 1 A ± 10%, POE (802.3af) |
Power Consumption: | Basic: 2.3 W/ Max.: 6.1 W |
Environmental | |
Operating Conditions: | -22°F ~ +140°F (-30°C ~ 60°C) / Less than 95% RH |
Ingress Protection: | IP66 |
Vandal Resistance: | IK10 |
Construction | |
Dimensions: | 4.8”x 3.5” (122mm x 89mm) |
Gross Weight: | 1.54lb ( 0.7kg) |
