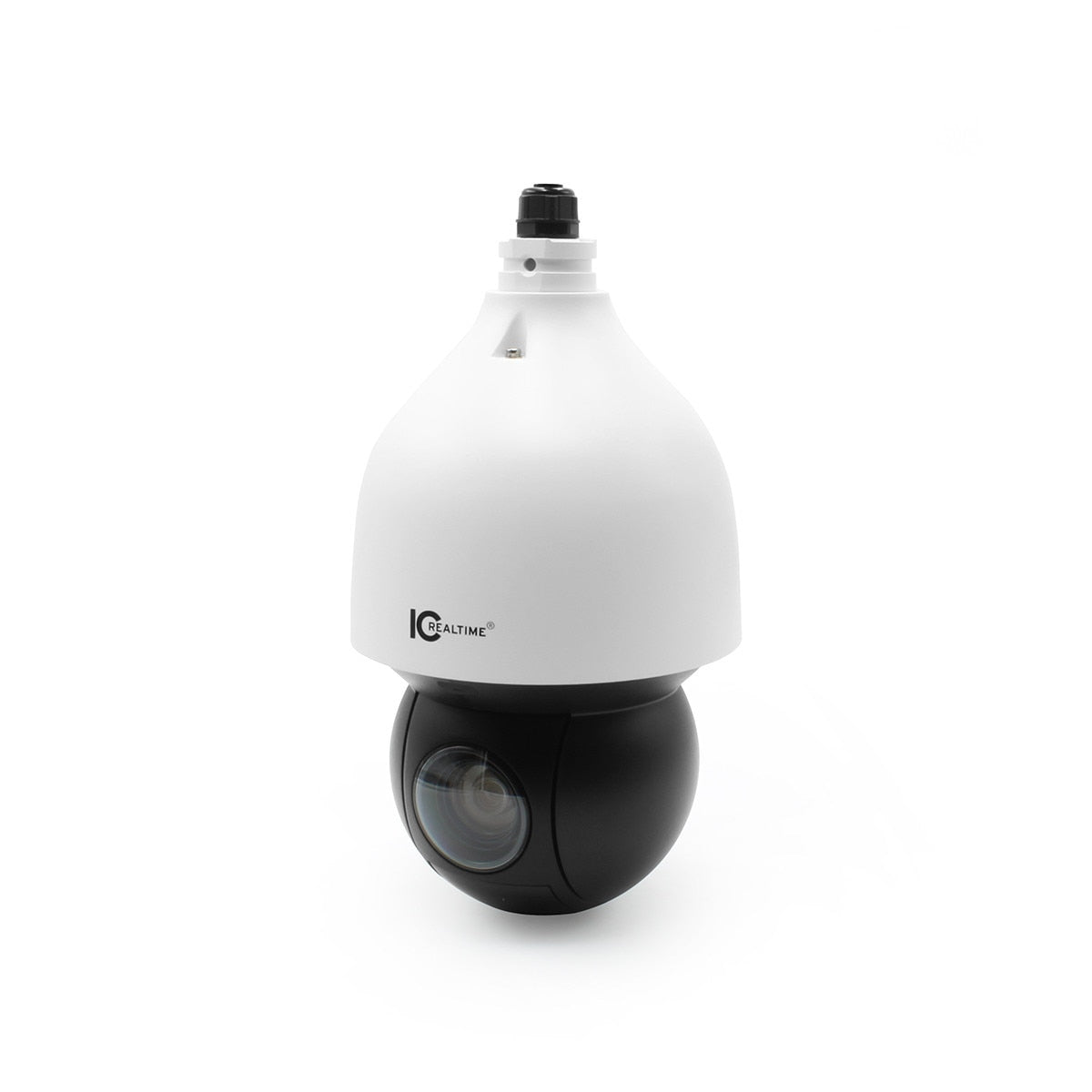

IC Realtime IPFX-P4032X-IRW2 4MP 32x IR AI PTZ Network Camera
IC Realtime IPFX-P4032X-IRW2 4MP 32x IR AI PTZ Network Camera
mproving AI integration is a constant goal at IC Realtime, and the latest edition of our amazing (and frankly cool looking) IPFX-P4032X-IRW2 is an excellent example of that ongoing process. While it looks the same outside, inside the IRW2 generation of this AI-assisted, Starlight 32x Pan Tilt Zoom camera is even smarter than before, adding the latest Ai-enhanced version upgrades in PTZ auto tracking, intrusion detection, and even making NVR “smart searches” way faster & much simpler.
JUST DRAW THE RED LINE
Perimeter Protection utilizes the 2 IVS skills of tripwire and intrusion and adds AI-assisted human / vehicle recognition, making Perimeter Protection even more accurate. Users can easily define covered areas for intrusion protection or business intelligence. IPFX-P4032X-IRW2 is even better at these tasks with a 4MP QHD Starlight sensor.
MILITARY-GRADE AUTOTRACKING 2.0
IPFX-P4032X series cameras already use our latest 32x (4.9 - 156 mm) power “telescope” lens system focused on a large 2.8” 4MP STARVIS (StarVision) 4MP QHD chipset. This design enables color streams down to 0.005 lux, followed by a 490+ft. of SmartIR for excellent grayscale nightvision range in total darkness. The new IPFX-P4032X-IRW2 now also employs PFA algorithms to deliver fast & perfect autofocusing. Autotrack 2.0 leverages PFA with the camera’s next-gen iVS detection skills and an interference filtering algorithm for even faster PTZ auto-tracking speeds, predictive object centering and zoom object framing. This AI wizardry means IPFX-P4032X-IRW2 delivers a perfectly focused auto-tracking Field of View, every time, day or night.
TOUGH, STEALTY & PROFESSIONAL GRADE
IPFX-P4032X-IRW2 utilizes the “black ball” effect that makes its camera movements & aiming point hard to discern for intruders, especially at night. The camera’s sun-bucking white mechanism shroud & tightly sealed metal “cam ball” is IK10 vandal-resistant and IP67 weather rated. The camera includes a cast metal wall mount bracket in the box and a 24VAC local power supply just in case 23W of PoE+ power is not available. Designed to be a team player and an easy upgrade for existing camera positions, IPFX-P4032X-IRW2 also sports 2/1 alarm leads and will audio I/O ports co-located on the camera’s power & interface pigtail. Although the box includes a standard wall mount arm, IPFX-P4032X-IRW2 is also designed to fit IC Realtime’s line of PTZ mounts for custom installations & legacy PTZ replacement.
IPFX-P4032X-IRW2’s extensively improved iMD, faster & more accurate Ai-enhanced autotracking 2.0, extreme STARVIS low light capabilities, and wide ONVIF, CGI & HTML-5 compatibility - combined with IC Realtime’s 10-year Limited Warranty - make IPFX-P4032X-IRW2 an excellent choice for both local & cloud-based video security, and the perfect AI-enhanced PTZ upgrade for professional video integrators.
Specifications
Camera | |
Image Sensor: | 1/2.8" CMOS |
Effective Pixels: | 2560 (H) × 1440 (V) |
RAM/Rom: | 1GB/ 4GB |
Scanning System: | Progressive |
Minimum Illumination: | Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux (IR light on) |
Illumination Distance: | 150 m (492.13 ft) (IR) |
Illumination LEDs: | 4 |
Camera Illumination Type: | IR |
Lens | |
Lens Type: | Varifocal |
Focal Length: | 4.8 mm–154 mm |
Max. Aperture: | F1.6–F4.0 |
Angle of View: | H: 55.8°–2.4°; V: 31.9°–1.3°; D: 63.7°–2.7° |
Optical Zoom: | 32x |
Focus Control: | Auto; semi-auto; manual |
Close Focus Distance: | 2.62 ft–16.40 ft (0.8 m–5.0 m) |
DORI - Detect: | 6,968.50 ft |
DORI - Observe: | 2,752.63 ft |
DORI - Recognize: | 1,394.36 ft |
DORI - Identify: | 695.54 ft |
PTZ | |
Pan/Tilt Range: | Pan: 0° to 360° endless Tilt: –15° to +90°, auto flip 180° |
Manual Control Speed: | Pan: 0.1°/s–300°/s Tilt: 0.1°/s–200°/s |
Preset Speed: | Pan: 400°/s; Tilt: 300°/s |
Presets: | 300 |
Idle Motion: | Preset; Pattern; Tour; Scan |
Protocol: | ICR-SD Pelco-P/D (auto recognition) |
Wiper: | None |
Intelligence | |
IVS: | Tripwire, Intrusion (50 objects max), climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification |
Advanced Intelligent Functions: | Perimeter Protection: Tripwire, Intrusion (Recognition of vehicle and people, 50 objects max) Intelligent Motion Detect 2.0: (Motion detection alarm for human and vehicle. Filters misinformation such as leaves and light. Compatible with NVR Object Search) Face Detection Works together with Smart NVRs to perform refined intelligent search, event extraction and merging to event videos |
Video | |
Compression: | Smart H.265+; H.265; Smart H.264+; H.264; H.264B; H.264H; MJPEG (Sub Stream 1) |
Streaming Capability: | 3 Streams |
Resolution: | 4M (2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
Frame Rate: | Main stream: 4M/3M/1080p/1.3M/720p (1–25/30 fps) Sub stream 1: D1/CIF (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p (1–25/30 fps) |
Bit Rate Control: | CBR/ VBR |
Bit Rate: | H.264: 3 kbps–20480 kbps H.265: 3 kbps–20480 kbps |
Day/Night: | Auto (ICR); Color; B/W |
Backlight Compensation: | BLC |
White Balance: | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
Gain Control: | Auto; manual |
Noise Reduction: | 2D NR; 3D NR |
WDR: | 120dB |
Audio | |
Compression: | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 |
Network | |
Ethernet: | RJ-45 (10/100 Base-T) |
Protocol: | HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; RTMP; TCP |
Compatibility: | ONVIF (Profile S&G&T); CGI |
Max. User Access: | 20 (total bandwidth: 64 M) |
Edge Storage: | FTP; Micro SD card (512 GB); NAS |
Web Viewer: | Chrome, Firefox, Edge, Safari |
Management Software: | Smart ICRSS |
Smart Phone: | iOS, Android |
Interface | |
Audio I/O: | 1/1 In/ Out |
Alarm I/O: | 2/1 |
Memory Slot: | FTP; Micro SD card (512GB); NAS |
Electrical | |
Power Supply: | DC 24 V/2.5 A ± 25% or PoE+ (802.3at) |
Power Consumption: | Basic: 13 W, Max.: 22 W (IRs on + PTZ moving) |
Environmental | |
Operating Conditions: | -40° F ~ +158° F (-40° C ~ +70° C) / Less than 95% RH |
Ingress Protection: | IP67 |
Vandal Resistance: | IK10 |
Construction | |
Casing: | Metal |
Dimensions: | 7.48" × 13.07" (190 mm × 332 mm) |
Gross Weight: | 17.64 lb (8 kg) |
