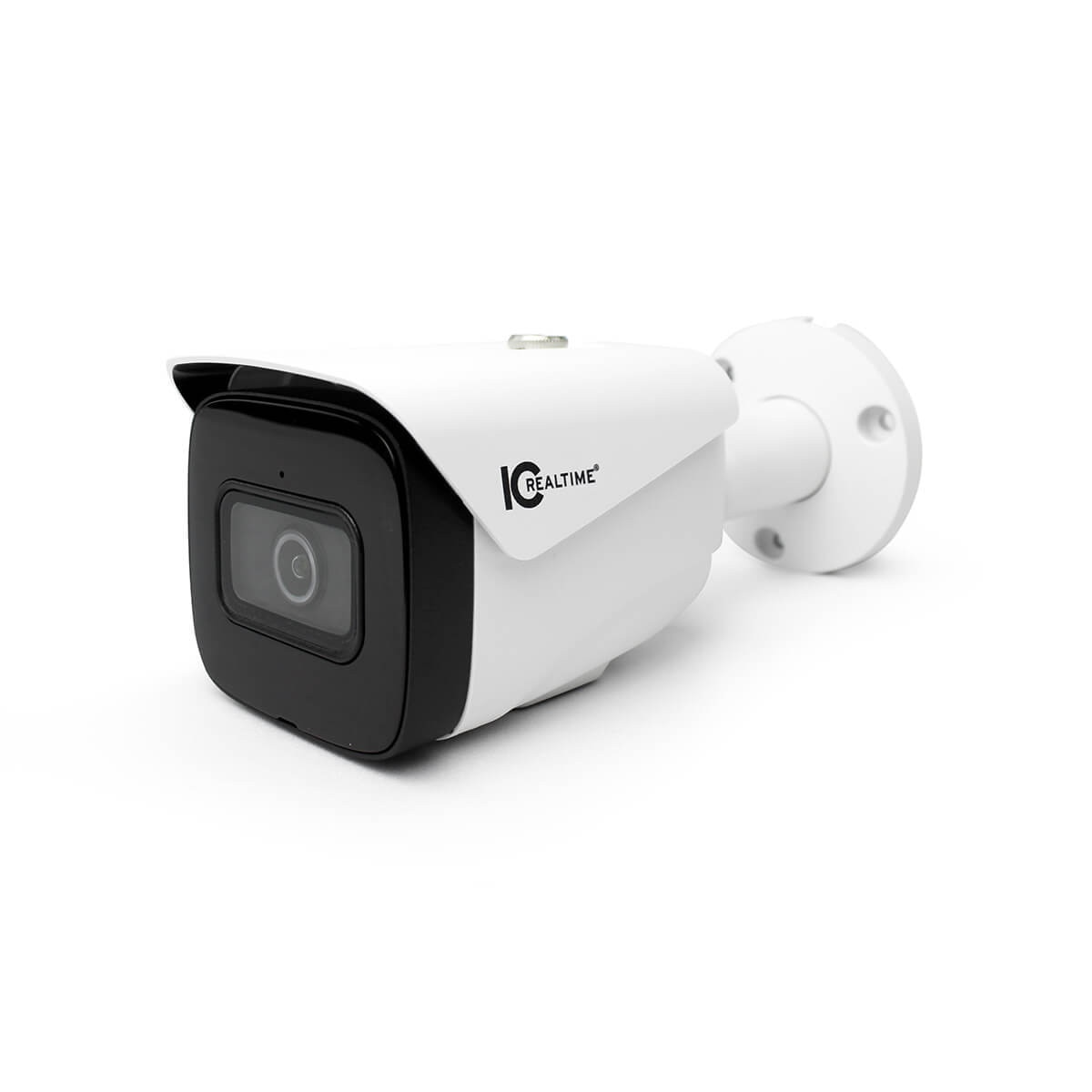

IC Realtime IPMX-B40F-IRW2 4MP Starlight Mini Bullet Network Camera

IC Realtime IPMX-B40F-IRW2 4MP Starlight Mini Bullet Network Camera

Regular price $422.00 USD
Regular price Sale price $422.00 USD
Sale Sold out
IC Realtime smart security cameras are a go-to for many reasons. They satisfy the needs of commercial and luxury home security camera markets alike while maintaining beneficial price points.

This mini bullet camera delivers everything it promises, and then some! Part of what makes our 4MP IR bullet network camera different is HTML5 compliance, which means no plugins are required, and so the days of limited internet browsers are over.

Enjoy accessing this starlight camera through Safari, Google, and most modern browsers. Commercial-grade security cameras come equipped with a few essential features, such as High-Efficiency Video Coding. (HEVC) H.265 dramatically reduces the space required for history and the bandwidth to stream your video, which is a win for your hard drives and your already hard-working network.

When streaming live footage from your HD bullet camera, your mobile device will also use fewer resources. Power over Ethernet is also a big win, but the added value of a 12v input makes our PoE security cameras even more flexible.

True WDR is the prime choice when it comes to clear and consistent images. As objects pass through a field of view varying in light intensity, images this 4MP security camera generates are always clear and visibly free of blemishes.

Another underrated commercial feature is Smart IR. Smart IR varies the intensity of the Infrared in a security camera, so as objects come closer, there are no ghosting images when it matters most - up close and personal. If you’re looking for forensic level quality, you’ve come to the right place.

Made in South Korea and conforms to the Trade Agreements Act (TAA).

Specifications

Camera
Image Sensor: 1/3 4 Megapixel progressive scan CMOS
Effective Pixels: 2688(H) x 1520(V)
RAM/Rom: 128MB / 512MB
Scanning System: Progressive
Minimum Illumination: 0.005 Lux@F1.6
S/N Ratio: > 56 dB
Illumination Distance: Distance up to 50 m (164.0 ft)
Illumination On/Off Control: Auto/Manual
Illumination LEDs: 1
IR Wavelength: 850 nm
Camera Illumination Type: IR
Lens
Lens Type: Fixed
Mount Type: Board-in
Focal Length: 2.8mm
Max. Aperture: F1.6
Angle of View: Horizontal:103°; vertical: 55°;
Focus Control: Fixed
Close Focus Distance: 0.6 m (2.0 ft)
DORI - Detect: 183ft
DORI - Observe: 73ft
DORI - Recognize: 36ft
DORI - Identify: 18ft
Intelligence
IVS: Tripwire, Intrusion (50 objects max)
Advanced Intelligent Functions: Perimeter Protection: Tripwire, Intrusion (Recognition of vehicle and people, 50 objects max)

Intelligent Motion Detect: Motion detection alarm for human and vehicle. Filters misinformation such as leaves and light.

Works together with Smart NVRs to perform refined intelligent search, event extraction and merging to event videos
Video
Compression: H.265; H.264; H.264H; H.264B; MJPEG(sub stream only)
Resolution: 4M(2688 x 1520) / 3M (2304 x 1296) / 1080P (1920 x 1080) / 1.3M (1280 x 960) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / VGA (640 x 480) / CIF (352 x 288 / 352 x 240)
Frame Rate: Main Stream: 4M(1 - 25/30fps) Sub Stream: D1(1 - 25/30fps) Third Stream: 720P(1 - 25/30fps)
Bit Rate Control: CBR/VBR
Bit Rate: H.264: 3 Kbps–8192 Kbps
H.265: 3 Kbps–8192 Kbps
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / WDR(120dB)
White Balance: Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control: Auto / Manual
Noise Reduction: 3D DNR
Region of Interest: Off / On (4 Zones)
Smart IR: Supported
Flip: 0 / 90 / 180 / 270
Mirror: Off / On
Privacy Masking: Up to 4 areas
Audio
Compression: G.711a; G.711Mu; G726; AAC
Network
Ethernet: RJ-45 (10/100Base-T)
Protocol: Pv4; IPv6; HTTP; HTTPS; TCP;UDP; ARP;RTP;RTSP; RTCP; RTMP; SMTP; FTP;SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP;NFS; PPPoE;802.1x; SNMP
Interoperability: ONVIF / PSIA / CGI/ Milestone
Compatibility: ONVIF(Profile S/Profile G);CGI;P2P
Streaming Method: Unicast / Multicast
Max. User Access: 20 Users (Total bandwidth: 64 M)
Edge Storage: NAS / Local PC for instant recording
Web Viewer: IE, Chrome, Firefox, Safari
Management Software: SmartICRSS, DSS
Smart Phone: IOS, Android
Interface
Audio I/O: Built-In Microphone,
Audio in/ Out
Alarm I/O: 1 channel in: 5mA 3V–5V DC
1 channel out: 300mA 12V DC
Memory Slot: 256GB
Electrical
Power Supply: DC12V, PoE (802.3af)
Power Consumption: < 5.4W
Environmental
Operating Conditions: -40°C to +60°C (-40°F to +140°F)/less than 95%
Ingress Protection: IP67
Construction
Casing: Metal
Dimensions: 192.7 mm × 70.5 mm × 66.4 mm
(7.5" × 2.77" × 2.6")
Gross Weight: 780 g (1.7lb)
Mounting Pan/Tilt/Rotation: Pan:0 ~ 360 ; / Tilt:0 ~ 90 ; / Rotation:0 ~ 360
