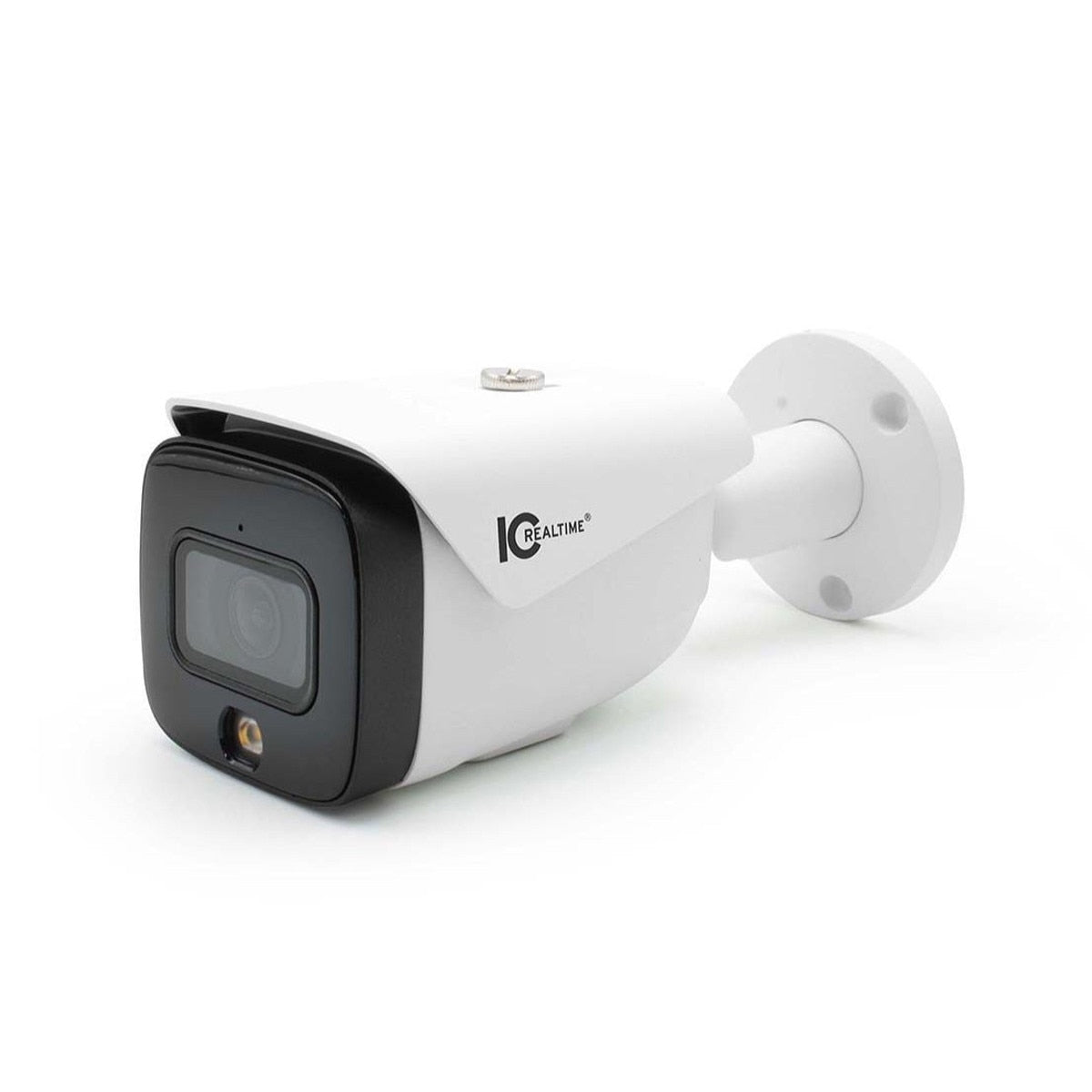

IC Realtime IPMX-B40F-W1-LED 4MP Full-Color LED AI Mini Bullet Network Camera
IC Realtime IPMX-B40F-W1-LED 4MP Full-Color LED AI Mini Bullet Network Camera
Couldn't load pickup availability
IPMX-B40F-W1-LED
Even in our newest Max series IP bullet camera with extreme 24/7 color video performance, we know that our video professionals will still need all the advanced IC Realtime camera features they have come to expect - and our new IPMX-B40F-W1-LED Starlight IP bullet camera fits those demands perfectly. This new Max Series IP security camera delivers 4MP resolution @ 30 FPS in full color 24/7 - day and night, dual input audio encoding, and the latest AI-enhanced detection and image management features, all housed securely in a commercial-grade IP67 weatherproof metal case and base.
OUR 24/7 COLOR 4MP METAL BULLET
This Max Series 4MP fixed focus bullet camera uses our newest and most extraordinary 4MP Starlight video chipset behind a wide-aperture 2.8mm lens with a 103° wide field of view. The combo is so effective that IPMX-B40F-W1-LED sees in color down to 0.003 lux, three times darker than a moonless night, then uses the cameras 95+ feet of built-in full-spectrum LED light to deliver a full-color video stream even in complete darkness. No IRs, no black, and white at night - just 24/7 full-color video.
WHEN YOU NEED IT ALL
IPMX-B40F-W1-LED not only does 4MP color video 24/7, but the camera also accommodates dual-source audio with a built-in mic for camera-area audio recording and audio in/out ports to handle and encode external audio sources like gate boxes or doorplates. IPMX-B40F-W1-LED has both a set of internal alarm event settings and an alarm in/out the port set for security alarm system integration. This next-generation IP bullet camera also has extensive cyber security built right in. It is ONVIF (Profile G/S/T), P2P and CGI compliant, and UL and FCC listed. There's even an onboard 256mB mSD slot.
ADVANCED AI CAPABILITIES
FlexSmartAI is IC Realtime’s device distributed human motion and vehicle detection and stream management system. All FlexSmartAI cameras, NVRs, and DVRs use both camera-level and recorder-based AI enhancement and deep-learning algorithms that work interactively between devices to achieve detection precision and reduce false alerts by 90%. As one of our newest cameras, IPMX-B40F-W1-LED has the most intelligent features of any Max Series camera, ranging from ignoring irrelevant detection targets to sending only accurate tripwire alerts to powering the camera's Smart H.265+ scene-adaptive rate control algorithm for efficient stream rates and HD storage. And this is in addition to IC Realtime's legendary "best in the business" auto exposure and video management systems built into the camera.
OUR MOST ADVANCED 4MP AUDIO/VIDEO BULLET
Since IC Realtime has made the world's best cameras for more than 20 years, you can be sure IPMX-B40F-W1-LED has the professional features our installers/integrators expect. These range from the "full metal jacket" IP67 weather-resistant outer case and adjustable mounting arm with a 3" round 3 screw base for quick and easy positioning to a low draw 8.5w POE or 12VDC power requirement where POE isn't available.
IPMX-B40F-W1-LED is a 4MP full spectrum LED Bullet Network Bullet Camera that offers both the deterrence effects of an obvious bullet camera and advanced functionality we know our dealer/integrators need, like 24/7 Starlight color, easy installation, and the industry’s best 10 Year Limited Warranty. Suppose you need cutting-edge IP camera features with IC Realtime's legendary video quality and dependability and in a classic IP bullet camera design. In that case, our new 24/7 full color IPMX-B40F-W1-LED is the industry's best answer.
*TAA Compliant as of 5/1/2023
Specifications
Camera | |
Image Sensor: | 1/2.7” 4 Megapixel progressive scan CMOS |
Effective Pixels: | 2688(H) x1520(V) |
RAM/Rom: | 128MB/ 512MB |
Scanning System: | Progressive |
Minimum Illumination: | 0.003 Lux@F1.0 |
S/N Ratio: | > 56 dB |
Illumination Distance: | Distance up to 98.4 ft (30 m) |
Illumination On/Off Control: | Auto/ Manual |
Illumination LEDs: | 1 Full Color Warm Light LED |
IR Wavelength: | 850 nm |
Camera Illumination Type: | White Light |
Lens | |
Lens Type: | Fixed-focal |
Focal Length: | 2.8mm |
Max. Aperture: | F1.0 |
Angle of View: | Horizontal:103°; vertical: 53°; |
Close Focus Distance: | 3.9 ft (1.2 m) |
DORI - Detect: | 183ft |
DORI - Observe: | 73ft |
DORI - Recognize: | 36ft |
DORI - Identify: | 18ft |
Intelligence | |
IVS: | Tripwire, Intrusion (50 objects max) |
Advanced Intelligent Functions: | Perimeter Protection: Tripwire, Intrusion (Recognition of vehicle and people, 50 objects max) Intelligent Motion Detect: Motion detection alarm for human and vehicle. Filters misinformation such as leaves and light. Works together with Smart NVRs to perform refined intelligent search, event extraction and merging to event videos |
Video | |
Compression: | H.265,H.264,H.264B,H.264H, MJPEG (only supported by sub stream) |
Streaming Capability: | 3 Streams |
Resolution: | 2688 × 1520/2560 × 1440/2304 × 1296/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240) |
Frame Rate: | Main Stream: 2688 × 1520(1–25/30 fps) Sub Stream: D1(1~30fps) Third Stream: 720P(1~25/30fps) |
Bit Rate Control: | CBR/ VBR |
Bit Rate: | H.264: 32 Kbps–8192 Kbps H.265: 19 Kbps–8192 Kbps |
Day/Night: | Auto(ICR) / Color / B/W |
White Balance: | Auto/Natural/Street Lamp/Outdoor/Manual |
Gain Control: | Auto / Manual |
Noise Reduction: | 3D DNR |
Flip: | 0°/90°/180°/270° (Supports 90°/270° with 1080p resolution and lower) |
Privacy Masking: | Off / On (4 Area, Rectangle) |
WDR: | Support |
Audio | |
Compression: | G.711a; G.711Mu; G726 |
Network | |
Ethernet: | RJ-45 (10/100 Base-T) |
Protocol: | IPv4; IPv6; HTTP; HTTPS;TCP; UDP; ARP;RTP; RTSP ;RTCP; RTMP; SMTP; FTP;SFTP; DHCP; DNS; DDNS; QoS;UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE;802.1x; SNMP |
Interoperability: | ONVIF(Profile S/Profile G/Profile T);CGI;P2P |
Compatibility: | ONVIF (Profile S/Profile G/Profile T), CGI, P2P |
Streaming Method: | Unicast / Multicast |
Max. User Access: | 20 Users (Total bandwidth: 64 M) |
Edge Storage: | NAS; FTP; SFTP; Micro SD card 256 GB |
Web Viewer: | IE, Chrome, Firefox, Safari |
Management Software: | SmartICRSS, DSS |
Smart Phone: | iOS, Android |
Interface | |
Audio I/O: | 1/1 channel In/Out |
Alarm I/O: | 1 channel In: 5mA 5VDC 1 channel Out: 300mA 12VDC |
Factory Reset: | Yes |
Memory Slot: | 265GB Micro SD |
Electrical | |
Power Supply: | DC 12V (±30%), PoE |
Power Consumption: | <8.4W |
Environmental | |
Operating Conditions: | -40°F to +140°F (-40°C to +60°C)/less than 95% |
Storage Conditions: | -40°F to +140°F (-40°C to +60°C) |
Ingress Protection: | IP67 |
Vandal Resistance: | N/A |
Construction | |
Casing: | Metal |
Dimensions: | 7.6''×2.8''×2.6'' (192.7 mm × 70.5 mm × 66.4 mm) |
Gross Weight: | 1.7lb (780 g) |
Mounting Pan/Tilt/Rotation: | Horizontal: 0°–360° Vertical: 0°–90° Rotation: 0°–360° |
