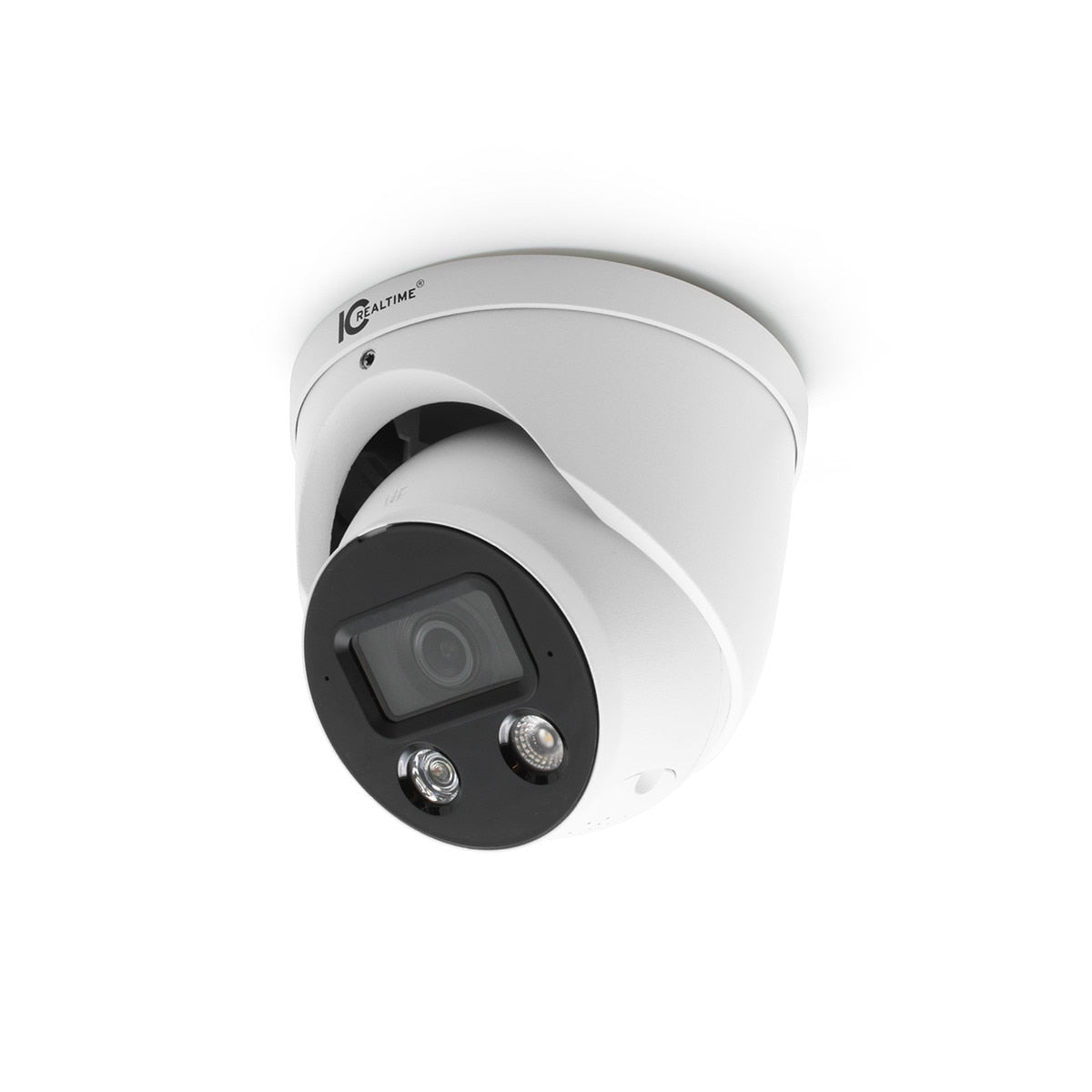

IC Realtime IPMX-E40F-ADW2 4MP Active Deterrence Eyeball Network (White)
IC Realtime IPMX-E40F-ADW2 4MP Active Deterrence Eyeball Network (White)
The next generation of triple-stage Active deterrence video security is here. IC Realtime introduces the second generation of Active Deterrence security in our most popular “eyeball dome” format. The new IPMX-E40F-ADW2 comes equipped with our latest 3-stage ADW2 intruder awareness technology. The camera maintains the same size & specs but adds a 3rd “sleeping dog” level of silent & stealthy overwatch capability with human-invisible IR illuminators.
The 3 Stages of ADW2’s Active Deterrence:
Stage 1: SILENT STARLIGHT MONITOR
The new ADW2 version adds a 3rd set of human invisible IR illuminators in addition to the ADW1 version’s warm white full-color illuminator and red & blue Active Deterrence LEDs. IR night vision is automatic and reaches out 95+ feet for sharp gray-scale images when ambient light drops below the Starlight sensor’s ultra-low 0.003 Lux. It will lurk in passive observation mode as long as the camera’s smart iMD system senses no intrusions.
Stage 2: ALERTED TO POTENTIAL VISITORS
When the camera’s upgraded iMD 2.0 detects human or vehicle motion, it flips the Starlight video sensor to 4MP QHD Full Color video. If there is not enough ambient lighting, the warm white illuminator kicks on. If there is plenty of lighting the Warm LEDs will remain off. It’s set to record full-color video of everything in its 101° wide Field of View. And on our most advanced NVRs, iMD 2.0 enables advanced object search in recorded footage.
Stage 3: WARNING OFF INTRUDERS
When a person or vehicle continues closer and violates a user-defined iMD tripwire or trigger zone, the IPMX-E40F-ADW2 unleashes the level of Active Deterrence effects you’ve set, ranging from a verbal warning to flashing its red & blue lights & setting off a detection siren. It instantly alerts you about an unwelcome visitor by push or app notification or email and marks your NVR’s video timeline at the event for easy review using Object Search. Just as importantly, you can disable any AD events set off by accident or forgetfulness in your IC View+ app by tapping the alarm disarm button.
THE SECURITY PRO’S NEW FAVORITE CAMERA
Like its predecessor, IPMX-E40F-ADW2 includes an audio detection capability to trigger a silent intrusion alert and turn on the camera’s 2-way communication capabilities using the new IC View+ mobile app and the camera’s built-in mic & speaker. IPMX-E40F-ADW2 comes with the alarm & external audio in/out ports that camera pros love. This perfect combo of 4MP QHD Starlight video, 2-way audio, integration ports, 3-stage detection, and Active Deterrence capabilities will make IPMX-E40F-ADW2 one of IC Realtime’s best cameras and the new “always on the truck” favorite for access control & gate companies, A/V integrators, and alarm system installers.
Made In South Korea And Conforms To The Trade Agreements Act (TAA)
Specifications
Camera | |
Image Sensor: | 1/2.7" CMOS |
Effective Pixels: | 2688 (H) × 1520 (V) |
RAM/Rom: | 128MB/ 512MB |
Scanning System: | Progressive |
Minimum Illumination: | 0.003 lux@F1.0 (Color, 30 IRE) 0.0003 lux@F1.0 (B/W, 30 IRE) 0 lux (illuminator on) |
S/N Ratio: | > 56 dB |
Illumination Distance: | IR and Warm Light- Up to 98.43 ft (30 m) |
Illumination On/Off Control: | Auto / Manual |
Illumination LEDs: | 2x (Warm white), 2x (IR) |
Camera Illumination Type: | IR and White Light |
Lens | |
Lens Type: | Fixed-focal |
Mount Type: | M12 |
Angle of View: | Horizontal:101°; Vertical: 53° |
Close Focus Distance: | 4.9 ft (1.5 m) |
DORI - Detect: | 216ft |
DORI - Observe: | 86ft |
DORI - Recognize: | 43ft |
DORI - Identify: | 21 ft |
Intelligence | |
IVS: | Tripwire, Intrusion (50 objects max) |
Advanced Intelligent Functions: | Perimeter Protection: Tripwire, Intrusion (Recognition of vehicle and people, 50 objects max) Intelligent Motion Detect 2.0: (Motion detection alarm for human and vehicle. Filters misinformation such as leaves and light. Compatible with NVR Object Search) Works together with Smart NVRs to perform refined intelligent search, event extraction and merging to event videos |
Video | |
Compression: | Smart H.265+; Smart H.264+, H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) |
Resolution: | 4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (354 × 288/354 × 240) |
Frame Rate: | Main stream: 2688 × 1520@1–25/30 fps Sub stream: 704 × 576@1–25 fps/ 704 × 480@1–30 fps Third stream: 1920 × 1080@(1 fps–30 fps) |
Bit Rate Control: | CBR/VBR |
Bit Rate: | H.264: 32kbps–8192 kbps H.265:12kbps–8192 kbps |
Day/Night: | Color/B/W |
Backlight Compensation: | BLC / HLC / WDR (120dB) |
White Balance: | Auto/natural/street lamp/outdoor/manual/regional custom |
Gain Control: | Auto / Manual |
Noise Reduction: | 3D DNR |
Motion Detection: | Off / On (4 areas) |
Smart IR: | Supported |
Flip: | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
Mirror: | Off / On |
WDR: | 120dB |
Audio | |
Compression: | PCM; G.711a; G.711Mu; G.726; G.723 |
Network | |
Ethernet: | RJ-45 (10/100Base-T) |
Protocol: | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
Interoperability: | ONVIF (Profile S/Profile G/Profile T); CGI;P2P; RTMP |
Max. User Access: | 20 Users (Total bandwidth: 64 M) |
Edge Storage: | FTP; SFTP; Micro SD card (max. 256 GB); NAS |
Web Viewer: | IE, Chrome, Firefox, Safari |
Management Software: | SmartICRSS, DSS |
Smart Phone: | IOS, Android |
Interface | |
Audio I/O: | Built-in dual Microphone; 1/1 Audio In/ Out (RCA ports) |
Alarm I/O: | 1 channel in: 5mA 3V–5V DC 1 channel out: 300mA 12V DC |
Memory Slot: | Micro SD card (max. 256 GB) |
Electrical | |
Power Supply: | 12V DC/PoE (802.3af) |
Power Consumption: | Basic: 3.7 W (12 VDC); 4.8 W (PoE) Max. (Utilizing 3 streams+warning light+speaker+warm light on): 8.3 W (DC12 V) 8.8 W (POE) |
Environmental | |
Operating Conditions: | -40°F to +140°F (-40°C to +60°C)/less than 95% |
Ingress Protection: | IP67 |
Construction | |
Casing: | Metal |
Dimensions: | 4.37" × Φ4.80" (110.9 mm × Φ122.0 mm) |
Gross Weight: | 2.02 lb (915 g) |
Mounting Pan/Tilt/Rotation: | Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° |
