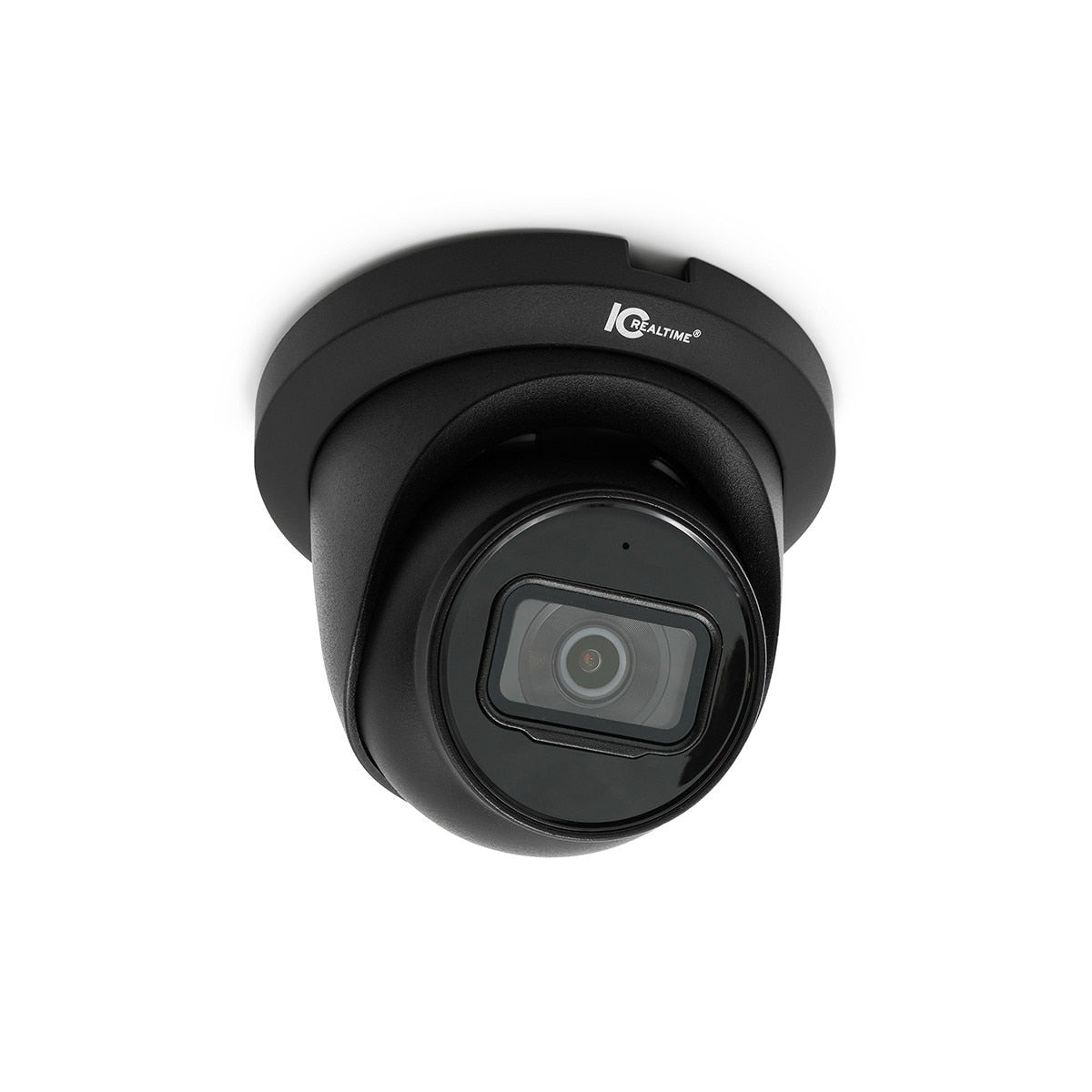

IC Realtime IPMX-E40F-IRB3 4MP Starlight Eyeball Network Camera (Black)
IC Realtime IPMX-E40F-IRB3 4MP Starlight Eyeball Network Camera (Black)
Couldn't load pickup availability
IC Realtime's new IPMX-E40F-IRB3 keeps the sleek Factory Black finish, cutting-edge 4MP QHD Starlight video sensor, built-in audio mic, easy installation, and FOV aiming of its IRB2 series predecessor. But detection-wise, the IRB3 is a whole new camera inside. This new version of our popular eyeball dome has our latest video enhancement innovations that deliver perfect images day & night, rain or shine. Then those ultra-detailed images are instantly used by our next-generation iMD 2.0 AI & metadata detection system.
THE NEW BRAIN INSIDE
Inside IPMX-E40F-IRB3, we’ve added the next evolution of IC Realtime’s FlexSmartAi detection features, our new iMD 2.0. While keeping the iMD system’s current capabilities, it now also discerns & streams frame-by-frame image metadata. While all of IC Realtime’s iMD versions use AI to some degree, iMD 2.0 takes AI object detection to the next level. Object data is extracted from and added to every video frame. The camera then encodes & streams it with the video for AI Object search on our new AI NVRs.
WE PUT AI DETECTION TO WORK
When recorded by an IC Realtime AI NVR equipped with our "select & click" multi-channel Object Search, this metadata lets the NVR find your selection on every channel equipped with an IC Realtime's iMD 2.0 AI camera. One object select & click. All iMD 2.0 channels - searched. The level of camera-based “on the fly” metadata detection & streaming needed to make this work used to be impossible. Now IC Realtime builds it in.
INTEGRATION ADAPTABLE OUTPUT STREAMS
Our latest generation IPMX-E40F-IRB3 is built to adapt to any network video system. This Max series eyeball dome is ONVIF Profile S, G & T, P2P, and CGI compatible and 3 output streams. Customize resolution, frame rate, and compression output settings as needed. IPMX-E40F-IRB3 works with virtually all VMS systems and 3rd party recorders. The camera even has an internal 256 GB SD card slot for local recording or ANR buffering. As part of IC Realtime’s video ecosystem, when used with an IC Realtime NVR, the camera can engage a Smart or AI H.264/265 scene-adaptive compression scheme to max out stream speeds & storage.
COMMERCIAL GRADE SPECS
Inside the IP67 weather-resistant camera ball of IPMX-E40F, under its 102°H x 54°V FOV lens, is our advanced 4MP QHD Starlight video chipset. It delivers vibrant color streams down to .005 lux and 164 ft. of SmartIRs, meaning clear grayscale night vision even in total darkness. Those video frames are then handed off to E40F's FlexSmartAi video management suite. The secret of IC Realtime’s superior video performance, it combines 120db of WDR with built-in Smart IR illuminators & Starlight technology. The new IRB3 version’s AI now uses these tools along with Scene Self-Adaptation. AI SSA constantly rides image controls to achieve the best possible video streams 24/7 in rain, fog, backlight, or variable light.
LEGENDARY VIDEO QUALITY & CAPABILITIES
The camera's AI and metadata capabilities are extended beyond video. Its sensitive built-in microphone not only picks up camera-area audio, but can also serve as an audio trigger for intrusion alerts. Despite all these improvements, the IRB3 version of the IPMX-E40F maintains the previous model’s compact 4.1" round design, standing under 3.7" high. The E40F can utilize 12VDC for power when 7.9 watts of PoE power is unavailable. Simplifying installation, options include color-matched junction boxes, a "porchlight-style" wall mount, and a base adapter plate, ensuring a quicker and neater setup.
Built with IC Realtime’s legendary dependability, IPMX-E40F-IRB3 is backed up by the video industry’s longest 10 10-year limited Warranty. This stealthy black POE eyeball dome delivers super-sharp 4MP QHD Starlight video & audio feeds, future-proof AI & metadata streaming detection, and three widely adjustable VMS-compatible streams. If you’re looking for a pro-spec, dependable Factory Black eyeball camera, then nothing in the security camera industry beats IC Realtime’s IPMX-E40F-IRB3.
*TAA Compliant as of 7-24-2024*
Specifications
Camera | |
Image Sensor: | 1/3” CMOS |
Effective Pixels: | 2688 (H) ×1520 (V) |
RAM/Rom: | 128MB/512MB |
Scanning System: | Progressive |
Minimum Illumination: | 0.005 lux@F1.4 (Color, 30 IRE) 0.0005 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on) |
Illumination Distance: | 164.0 ft (50 m) |
Illumination On/Off Control: | Auto / Manual |
Illumination LEDs: | 2 |
Camera Illumination Type: | IR |
Lens | |
Lens Type: | Fixed focal |
Mount Type: | M12 |
Focal Length: | 2.8 mm |
Max. Aperture: | F1.4 |
Angle of View: | Horizontal:102°; Vertical: 54° |
Close Focus Distance: | 2.3ft (0.7m) |
DORI - Detect: | 208ft |
DORI - Observe: | 83ft |
DORI - Recognize: | 41ft |
DORI - Identify: | 21ft |
Intelligence | |
IVS: | Tripwire; Intrusion |
Advanced Intelligent Functions: | Perimeter Protection, Intelligent Motion Detect 2.0 |
Video | |
Compression: | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) |
Streaming Capability: | 3 Streams |
Resolution: | 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
Frame Rate: | Main Stream: (2688 × 1520) @1–25/30 fps Sub Stream: (704 × 576) @1–25 fps/ (704 × 480) @1–30 fps Third Stream: (1280 × 720) @1–25/30 fps |
Bit Rate Control: | CBR/VBR |
Bit Rate: | H.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps |
Day/Night: | Auto(ICR) / Color / B/W |
Backlight Compensation: | BLC / HLC / WDR(120dB) |
White Balance: | Auto/Natural/Street Lamp/Outdoor/Manual |
Gain Control: | Auto / Manual |
Noise Reduction: | 3D DNR |
Flip: | 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.) |
Privacy Masking: | Off / On (4 Area, Rectangle) |
Audio | |
Compression: | G.711a; G.711Mu; G726; AAC |
Network | |
Ethernet: | RJ-45 (10/100Base-T) |
Protocol: | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
Interoperability: | ONVIF(Profile S/Profile G); CGI; P2P |
Max. User Access: | 20 (Total bandwidth: 64 M) |
Edge Storage: | NAS, SFTP, Micro SD Card (support max. 256 GB) Local PC for instant recording |
Web Viewer: | IE, Chrome, Firefox, Safari |
Management Software: | SmartICRSS, DSS |
Smart Phone: | IOS, Android |
Interface | |
RS485: | N/A |
Audio I/O: | Built-in MIC |
Alarm I/O: | N/A |
Memory Slot: | Micro SD Card (support max. 256 GB) |
Electrical | |
Power Supply: | DC12V, PoE (802.3af) |
Power Consumption: | Basic: 3.3 W (12 VDC); 4.2 W (PoE) Max. (WDR + IR intensity + Intelligence): 7.1 W (12 VDC); 7.9 W (PoE) |
Environmental | |
Operating Conditions: | -40°C to +60°C (-40°F to +140°F)/ less than≤95% |
Ingress Protection: | IP67 |
Construction | |
Casing: | Metal/ Plastic |
Dimensions: | 3.69" × Φ4.17" (93.6 mm × Φ106.0 mm) |
Gross Weight: | 1.7 lb (770g) |
Mounting Pan/Tilt/Rotation: | Horizontal: 0°–360°; vertical: 0°–78°; rotation: 0°–360° |
