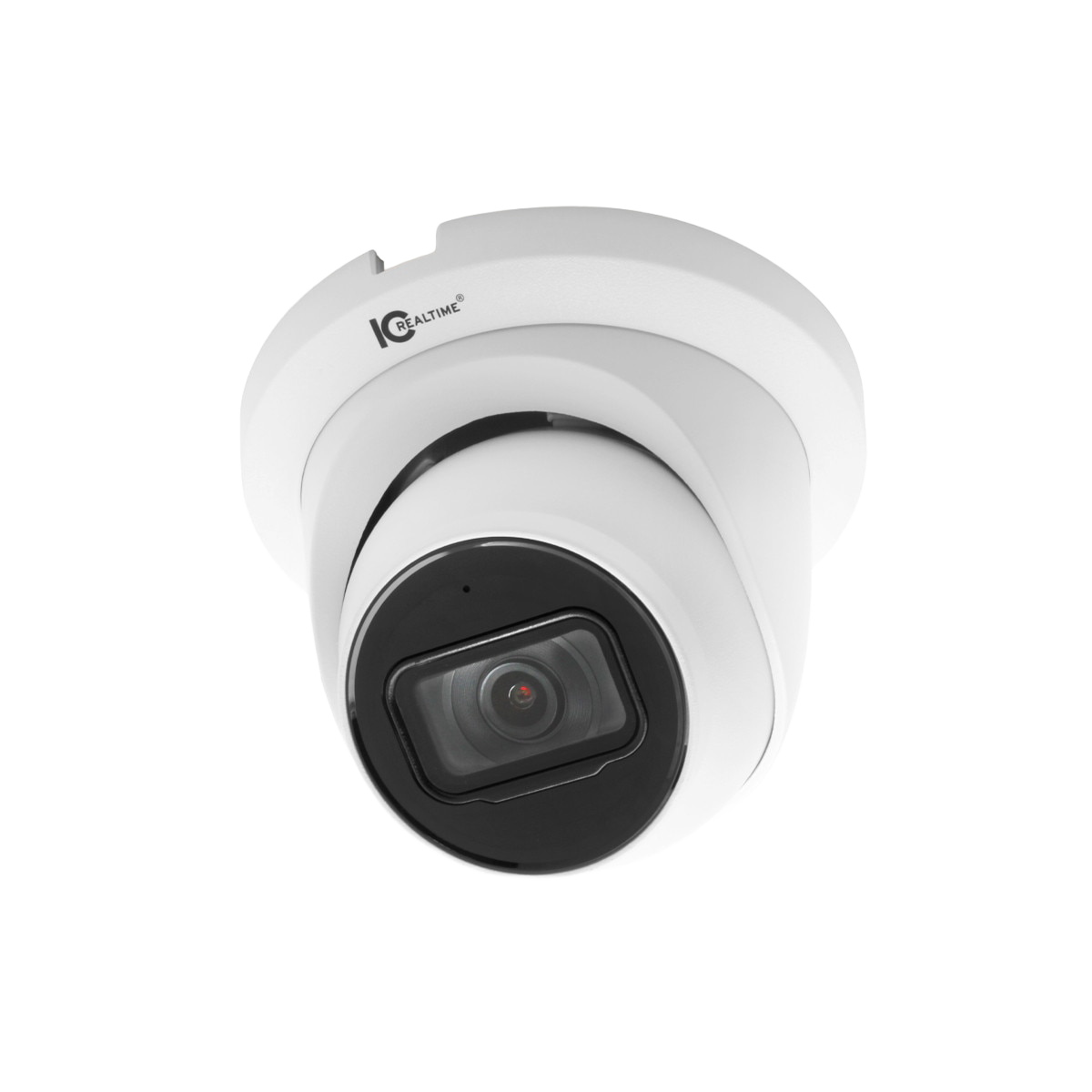

IC Realtime IPMX-E40F-IRW3 4MP Starlight Eyeball Network Camera (White)
IC Realtime IPMX-E40F-IRW3 4MP Starlight Eyeball Network Camera (White)
Couldn't load pickup availability
IC Realtime's eyeball dome cameras have been our most popular camera design and a favorite with our integrators for years. Our new IRW3 version of IPMX-E40F combines a 4MP QHD Starlight video sensor and built-in audio mic with our latest cutting-edge iMD 2.0 AI & metadata detection, all in an eyeball dome’s easy installation, flexible aiming, and low-profile design.
NEW AI FEATURES, SAME GREAT DESIGN
Outside, the IRW3 version of this Max Series E40F camera stays a compact 4.1" round and less than 3.7" high. Its sealed metal “cam ball” continues to bring IP67 weather resistance. But inside, IC Realtime’s next-generation of FlexSmartAi detection features have been added. Our new AI-enhanced Intelligent Motion Detection (iMD 2.0) lets the E40F add a new stream beyond the camera’s incredible video feed. The camera now discerns & streams frame-by-frame image metadata. When recorded by an IC Realtime AI NVR equipped with our "select & click" multi-channel Object Search, this metadata lets the NVR find your selection on every channel equipped with an IC Realtime's iMD 2.0 AI camera.
COMPACT CAMERA WITH BIG SPECS
Inside iPMX-E40F’S weatherproof cam ball, and behind its 102°H x 54°V FOV lens, our latest 4MP QHD Starlight video chipset streams color down to .005 lux, backed up by 164 ft. of SmartIRs for sharp grayscale night vision. The camera’s AI & metadata capabilities extend beyond video detection because E40F's sensitive built-in microphone is not just for audio recording; it can be used as an audio trigger for intrusion alerts. And the E40F can be powered by 12VDC where 7.9 watts of PoE power is unavailable. There are even color-matched, screwdriver-fit junction boxes, a “porchlight-style” wall mount, and base adapter plate options for faster & cleaner installations.
LEGENDARY VIDEO QUALITY & CAPABILITIES
This camera’s extreme clarity always delivers frame-by-frame video excellence thanks to E40F's FlexSmartAi video management suite. It combines 120db of WDR with Smart IR & Starlight technology for perfect light balance from full daylight down to complete darkness with built-in Smart IR illuminators. The IRW3 version adds AI Scene Self-Adaptation. AI SSA uses deep learning algorithms that adapt for the best possible video streams in rain, fog, backlight, low light, or where lighting conditions are constantly changing. The AI scans each frame and automatically adjusts parameters. It's like having a camera tech on site 24/7 - every stream is automatically at max clarity.
AN AI CAMERA BUILT FOR INTEGRATION
IPMX-E40F also has 3 output streams with widely customizable resolution, frame rate, and compression output settings. The camera is among our most adaptable with ONVIF Profile S, G & T, P2P, and CGI compatibility so it works with virtually all VMS systems and 3rd party recorders. When used with an IC Realtime AI NVR, the camera can engage a Smart or AI H.264/265 scene-adaptive compression scheme for maximum streaming speeds & maximum NVR storage capacity, and it has an internal 256 GB SD card slot for local recording or ANR buffering.
If you need an indoor/outdoor rated POE eyeball dome camera that delivers 4MP QHD Starlight video & audio, future-proof AI & metadata streaming detection, three widely adjustable VMS-compatible streams, built with IC Realtime’s legendary dependability backed up by the video industry’s longest 10 Year Limited Warranty, then IPMX-E40F-IRW3 is your best camera option.
Specifications
Camera | |
Image Sensor: | 1/3” CMOS |
Effective Pixels: | 2688 (H) ×1520 (V) |
RAM/Rom: | 128MB/512MB |
Scanning System: | Progressive |
Minimum Illumination: | 0.005 lux@F1.4 (Color, 30 IRE) 0.0005 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on) |
Illumination Distance: | 164.0 ft (50 m) |
Illumination On/Off Control: | Auto / Manual |
Illumination LEDs: | 2 |
Camera Illumination Type: | IR |
Lens | |
Lens Type: | Fixed focal |
Mount Type: | M12 |
Focal Length: | 2.8 mm |
Max. Aperture: | F1.4 |
Angle of View: | Horizontal:102°; Vertical: 54° |
Close Focus Distance: | 2.3ft (0.7m) |
DORI - Detect: | 208ft |
DORI - Observe: | 83ft |
DORI - Recognize: | 41ft |
DORI - Identify: | 21ft |
Intelligence | |
IVS: | Tripwire; Intrusion |
Advanced Intelligent Functions: | Perimeter Protection, Intelligent Motion Detect 2.0 |
Video | |
Compression: | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) |
Streaming Capability: | 3 Streams |
Resolution: | 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
Frame Rate: | Main Stream: (2688 × 1520) @1–25/30 fps Sub Stream: (704 × 576) @1–25 fps/ (704 × 480) @1–30 fps Third Stream: (1280 × 720) @1–25/30 fps |
Bit Rate Control: | CBR/VBR |
Bit Rate: | H.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps |
Day/Night: | Auto(ICR) / Color / B/W |
Backlight Compensation: | BLC / HLC / WDR(120dB) |
White Balance: | Auto/Natural/Street Lamp/Outdoor/Manual |
Gain Control: | Auto / Manual |
Noise Reduction: | 3D DNR |
Flip: | 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.) |
Mirror: | Off / On |
Privacy Masking: | Off / On (4 Area, Rectangle) |
WDR: | 120dB |
Audio | |
Compression: | G.711a; G.711Mu; G726; AAC |
Network | |
Ethernet: | RJ-45 (10/100Base-T) |
Protocol: | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
Interoperability: | ONVIF(Profile S/Profile G); CGI; P2P |
Max. User Access: | 20 (Total bandwidth: 64 M) |
Edge Storage: | NAS, SFTP, Micro SD Card (support max. 256 GB) |
Web Viewer: | IE, Chrome, Firefox, Safari |
Management Software: | SmartICRSS, DSS |
Smart Phone: | IOS, Android |
Interface | |
RS485: | N/A |
Audio I/O: | Built-in MIC |
Alarm I/O: | N/A |
Memory Slot: | Micro SD Card (support max. 256 GB) |
Electrical | |
Power Supply: | DC12V, PoE (802.3af) |
Power Consumption: | Basic: 3.3 W (12 VDC); 4.2 W (PoE) Max. (WDR + IR intensity + Intelligence): 7.1 W (12 VDC); 7.9 W (PoE) |
Environmental | |
Operating Conditions: | -40°C to +60°C (-40°F to +140°F)/ less than≤95% |
Ingress Protection: | IP67 |
Construction | |
Casing: | Metal/ Plastic |
Dimensions: | 3.69" × Φ4.17" (93.6 mm × Φ106.0 mm) |
Gross Weight: | 1.7 lb (770g) |
Mounting Pan/Tilt/Rotation: | Horizontal: 0°–360°; vertical: 0°–78°; rotation: 0°–360° |
