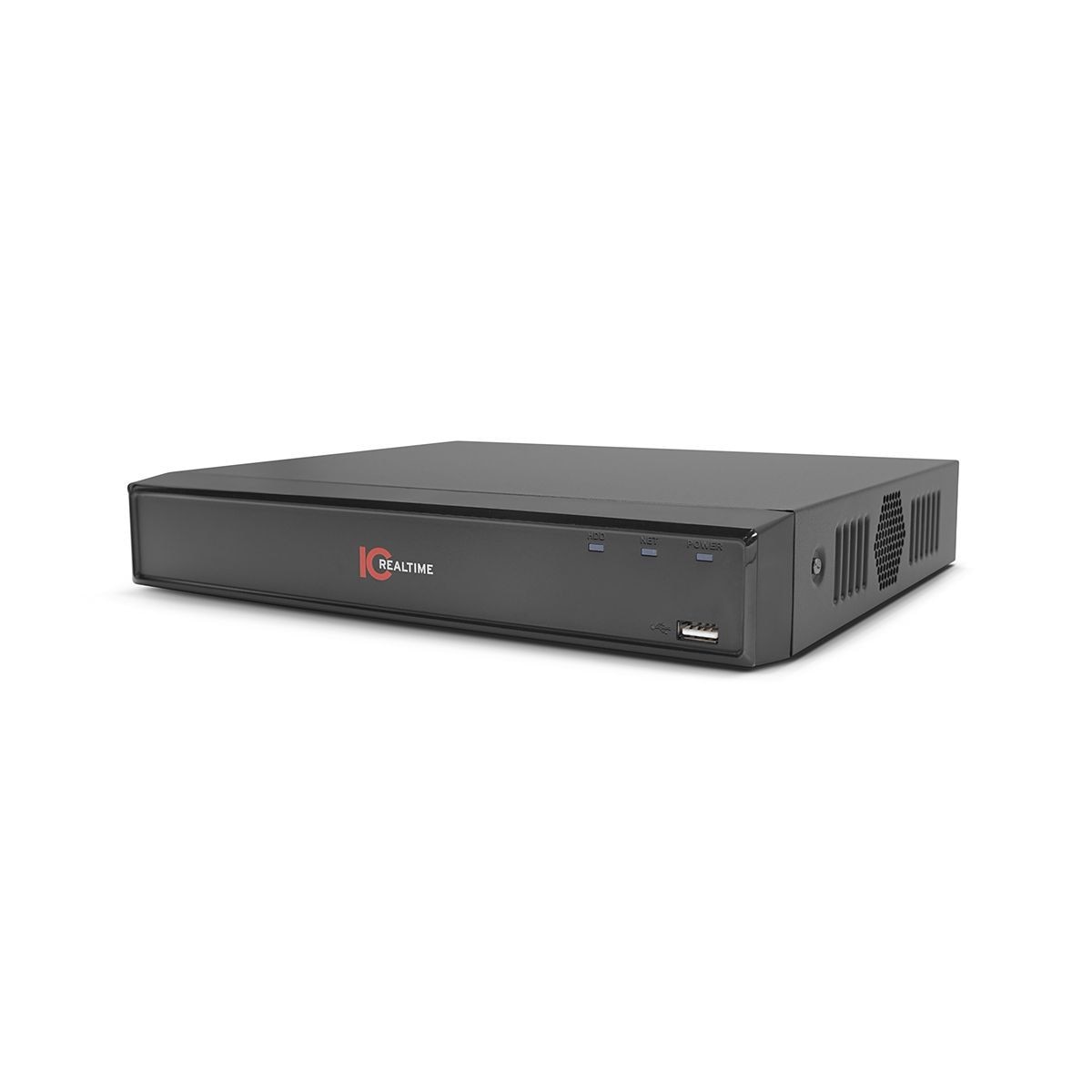

IC Realtime NVR-EG08POE-1U4K1 8 Channel 2U 8PoE Network Video Recorder NVR
IC Realtime NVR-EG08POE-1U4K1 8 Channel 2U 8PoE Network Video Recorder NVR
IC Realtime has always resisted re-designing our gear without good reasons, and it’s hard to improve on the nearly perfect “Fit to Purpose” credentials of our compact 8-channel, 4K POE NVR-208NS. For years it has been the cost-effective NVR of choice for dealers needing a replacement POE NVR or a new recorder for smaller IP camera systems. But lucky for us, our engineers couldn’t resist the challenge! Now IC Realtime is proud to introduce our newest compact 8-channel POE network recorder, the NVR-EG08POE-1U4K1.
RE-ENGINEERED EVEN BETTER
With all of the functionality of the legacy compact POE NVR it replaces, the EG08POE is now packaged in an all-new 10.25" x 9.125" x 2" compact metal rectangular case that’s about the same width and height and just slightly deeper than a ream of copy paper. This makes it just large enough that its SATA hard drive bay can hold a full-size 3.5” Surveillance-grade hard drive up to 10TB- that's up to 10,000 GB of internal storage.
SMALL SIZE, LARGE FEATURES
To coordinate with the EG08POE’s wide IP camera compatibility, the unit’s HTML-5 network compatibility means its installed cameras can easily be viewed in modern browsers like Firefox, Chrome; and MSN browsers like IE 9 or later without the old clunky/outdated plug-ins. EG08POE provides simultaneous local monitor output from the unit’s HDMI and VGA ports, and secure mobile & network access using IC Realtime’s iOS and Android apps and our extraordinary and free downloadable SmartICRSS for PC & Mac.
HANDLES SMART DETECTION & BIG CAMERAS
While our smallest & most cost-effective NVR shouldn’t be expected to handle 4K cameras, it actually can - up to 12MP@30FPS. Adjusting each camera’s frame rates will let EG08POE handle a variety of IP camera resolutions, and up to six 1080P cameras can be accommodated. EG08POE also works with up to 4 cameras with IC Realtime’s AI perimeter protection and IMD motion detection and has 2 RCA audio IN/OUT ports for audio & 2-way talk.
Even in our smallest & least expensive compact NVR, IC Realtime builds dependability, performance & value into each unit, all covered by the industry’s longest warranty. The legendary NVR-208NS that this new NVR replaces was the ideal home & small business network video recorder for thousands of camera installations worldwide. Now, with up to 10TB internal SATA storage, extended IP camera compatibility, and easy HTML5 browser & mobile app compatibility, our new NVR-EG08POE-1U4K1 carries on that legend as its totally upgraded & redesigned successor.
*TAA Compliant as of 7-24-2024*
Specifications
| System | |
| Main Processor: | Industrial-grade embedded processor |
| Operating System: | Embedded Linux, ICR 4.0 |
| Display | |
| Display Interface: | 1 × VGA, 1 × HDMI (simultaneous output) |
| Display Resolution: | 1920x1080, 1280x1024, 1280x720 |
| Fisheye Dewarp: | N/A |
| Display Split: | 1/4/8/9 |
| HDMI Decoding: | 1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps |
| Intelligence | |
| IVS: | (Supported by camera) Tripwire, Intrusion (50 objects max) |
| Advanced Intelligent Functions: | (All AI functions are supported by camera) (4 ch) Perimeter Protection: Tripwire & intrusion; Recognition of human and vehicle (4ch) Intelligent Motion Detect (iMD): Motion detection alarm with human and vehicle recognition. AI Search: Search by target classification (human, vehicle) |
| Video | |
| Supported Camera Types: | IP |
| IP Camera Input: | 8 |
| Trigger Events: | Motion detection; privacy masking; video loss; PIR alarm |
| Playback: | Up to 8 channels |
| Playback Function: | 1. Play; pause; stop; fast forward; fast backward; rewind; play by frame 2. Full screen; backup (video clip/file); partially zom in; audio on/off |
| Backup Mode: | USB device, Network |
| Audio | |
| Compression: | PCM; G711A; G711U; G726 |
| Two-way Talk: | Supported |
| Recording | |
| Record Compression: | Smart H.265; H.265; Smart H.264; H.264 |
| Record Resolution: | 12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1 |
| Incoming Bandwith: | 80 Mbps |
| Throughput: | Access: 80 Mbps Storage: 80 Mbps Forward: 60 Mbps |
| Storage | |
| Internal HDD: | 1x10TB Max |
| HDD Mode: | Single |
| eSATA: | N/A |
| Network | |
| Ethernet: | 1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port |
| Protocol: | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search (Supports ICR IP camera, DVR, NVS, etc.); P2P |
| Wifi: | N/A |
| Compatibility: | ONVIF (profile T/S/G); CGI; SDK |
| Web Viewer: | IE, Chrome, Firefox, Safari |
| Management Software: | Smart ICRSS, DSS |
| Smart Phone: | iOS, Android |
| GPS: | N/A |
| PoE: | 8 × PoE ports, 10/100 Mbps |
| Interface | |
| RS232: | N/A |
| RS485: | N/A |
| USB: | 2 (2.0) |
| Audio I/O: | 1/1 |
| Electrical | |
| Power Supply: | 48/53 VDC, 2/1.8 A (Included) |
| Power Consumption: | Total output of NVR is ≤ 10 W (without HDD) Total output power of PoE is 72 W, and the maximum output power of a single port is 25.5 W |
| Total POE Budget: | Total output power of PoE is 72 W, the maximum output power of a single port is 25.5 W |
| Environmental | |
| Operating Conditions: | 14 °F to +131 °F (–10 °C to +55 °C ) |
| Construction | |
| Installation: | Rack or desktop mountable |
| Dimensions: | 10.24" × 9.16" × 1.87" (260 mm × 232.7 mm × 47.6 mm) |
