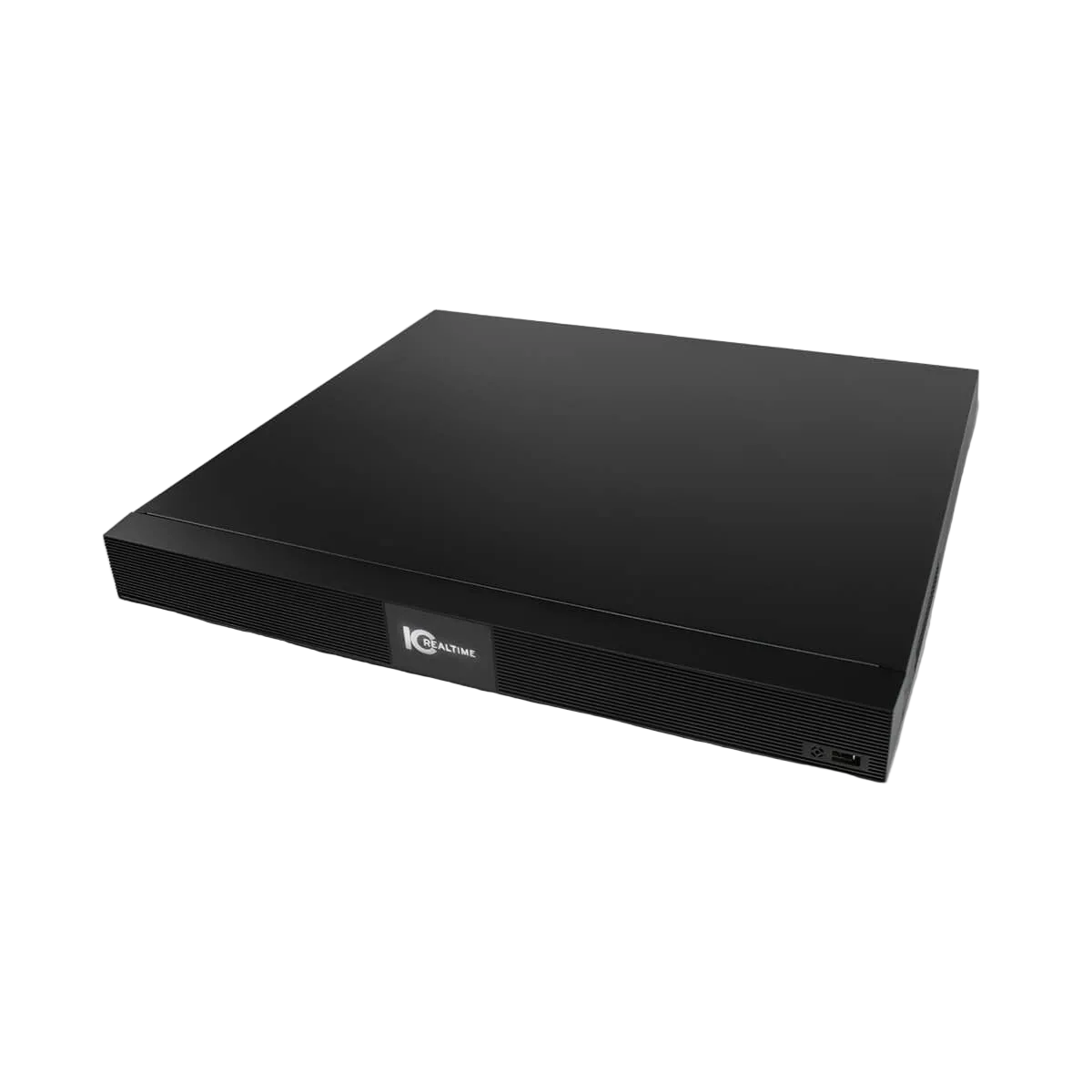

IC Realtime NVR-FX08POE-1U16MP1 8 Channel 1U Network POE Video Recorder NVR
IC Realtime NVR-FX08POE-1U16MP1 8 Channel 1U Network POE Video Recorder NVR
Our newest generation of 8-channel “blade” style POE NVRs have taken a smart turn upward. The new edition of the NVR-FX08POE-1U16MP1 now has the latest edition of IC Realtime’s ICR 4.0 advanced O/S and user interface. Plus, we've added some huge Artificial Intelligence upgrades. No larger than an 8-port rack mount POE switch, FX08POE brings eight AI-enhanced audio/video recording channels. And with 256Mbps of total incoming bandwidth, it can handle cameras up to 16MP and output resolutions up to 4K.
NEW AI RECOGNITION SKILLS
NVR-FX08POE-1U16MP1's latest edition adds Human/Vehicle detection & Face Recognition capabilities. Both use private & secure onboard databases. Recognitions & detections can be set to trigger alerts and events using both network alerts and the NVR’s rear panel 4 in/2 out rear alarm ports. Putting both the recognition skills & detection records inside your NVR protects your privacy.
BIG HARD DRIVES & FAST PROCESSORS
FX08 is IC Realtime’s newest 4K rendition of the industry’s most reliable, best value rack mount 8 channel NVR. Each FX08POE NVR adds eight cameras of POE power and two SATA-III hard drive bays that can handle surveillance-grade drives up to 16TB each. That’s up to 32TB of video storage in each FX08POE chassis. As a standalone 8 channel 4K NVR, the FX08 offers unparalleled 256Mbps of video processing performance. A 1000Mbs network port and 8 backplane POE camera ports make for easy home-run, auto-initializing camera management. With an 8 port POE switch built in, FX08 not only saves rack space, it makes camera installation plug & play easy.
BLADE-STYLE MODULARITY
NVR-FX08POE chassis offers 256Mbs of processing bandwidth and 115w of POE power allotted over 8 incoming camera ports. FX Series NVRs let you build out in eight-channel increments. Or sixteen channels using FX08’s “big sister,” the 16-channel NVR-FX16POE-1U4K1. At a single site or distributed between buildings or even regional locations, each adds processors, hard drives & POE ports at the same time.
YOUR OWN MULTI-NODE CAMERA NETWORK
Build out your system without hitting any POE power or stream processing bottlenecks. Configure each POE channel to match the resolutions & frame rates you need. Meet the resolutions & camera count size you need at single or multiple locations. Every NVR can be centrally monitored, accessed & controlled from your PC or Mac desktop. Use IC Realtime’s freely downloadable SmartICRSS v2 Remote Client Software or the free IC View+ mobile app. The IC View+ app is free & available at the iOS & Android app stores and the IC Now software is free to download at https://icrealtime.com/downloads .
FEE-FREE, LICENSE-FREE DEPENDABILITY
Fee-free & license-free audio & video camera overview & storage capability has never been so easy. All IC Realtime cameras & recorders are protected from cyber threats. To ensure device & network security, all network traffic is encrypted in both directions. Our gear now meets the latest network certification standards. And NVR-FX08POE-1U16MP1 comes with IC Realtime’s famous 10-Year Limited Warranty - the industry’s longest.
Let IC Realtime take your next NVR system to a future-proof level of performance, security and dependability with NVR-FX08POE-1U16MP1.
Specifications
System | |
Main Processor: | Multi-core embedded processor |
Operating System: | Embedded LINUX, ICR 4.0 |
Display | |
Display Interface: | 1 HDMI, 1 VGA |
Display Resolution: | HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 ×720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
OSD: | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
Fisheye Dewarp: | N/A |
Display Split: | 1st Screen: 1/4/8/9/16 2nd Screen: 1/4/8/9 /16 |
Display Out Max Decode: | Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable |
Intelligence | |
IVS: | Tripwire & intrusion |
Advanced Intelligent Functions: | Perimeter Protection. Tripwire & intrusion; Recognition of human and vehicle: 2 channels, 10 IVS rules for each channel (AI by Recorder) or 8 channels (AI by Camera) Intelligent Motion Detect (iMD):4 channels (AI by Recorder) or 8 channels (AI by Camera) Face Detection: 1 channels, up to 12 face images/s each channel (AI by Recorder) or 8 channels (AI by Camera) Face Recognition: 1. 8-channel FD (by camera) + FR (by recorder), image stream: 12 face images/s 2. 1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s or 8 channels (AI by Camera) Vehicle License Plate Comparison: 4 channel (AI by Camera) LPR Database Management: 1. Create up to 20,000 plate numbers 2. Blocklist and allowlist creation |
Video | |
Supported Camera Types: | IP |
IP Camera Input: | 8 |
Trigger Events: | Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm |
Playback: | Up to 8 channels |
Playback Function: | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom |
Backup Mode: | USB Device/Network/eSATA Device |
Audio | |
Compression: | G.711a; G.711u; PCM; G726 |
Two-way Talk: | Supported |
Recording | |
Record Compression: | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
Record Resolution: | 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF |
Incoming Bandwith: | AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing |
Throughput: | 256 Mbps |
Storage | |
Internal HDD: | 2 SATA III Ports, Up to 16 TB capacity for each HDD |
HDD Mode: | Redundancy |
Network | |
Ethernet: | 1x (10/100/1000 Mbps Ethernet port, RJ-45) |
Protocol: | HTTP; HTTPS; TCP/IP; IPv4/IPv6; RTSP; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search (Supports IC Realtime IP cameras, DVR, NVS, etc.); Multicast; P2P; Auto Registration |
Compatibility: | ONVIF 22.06 (Profile T; Profile S; Profile G); CGI; SDK |
Web Viewer: | Chrome, IE 9 or later, Edge, Safari, Firefox |
Management Software: | IC Now |
Smart Phone: | Android, iOS, iPhone |
PoE: | 8 ports, 10/100 Mbps, IEEE 802.3 af/at; Bridge Mode Supported |
Interface | |
USB: | 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) |
Electrical | |
Power Supply: | 100–240 VAC, 47-63 Hz |
Power Consumption: | Total output of NVR is <10 W(without HDD) Total output power of PoE is 130W, and the maximum output power of a single port is 25.5W |
Total POE Budget: | Total output power of PoE is 130W,the maximum output power of a single port is 25.5W |
Environmental | |
Operating Conditions: | 14 °F to +131 °F (–10 °C to +55 °C) |
Operating Humidity: | 10%–93% (RH) |
Construction | |
Installation: | Rack mount |
Dimensions: | 14.76" × 12.96" × 2.09 (375 mm × 329.3 mm × 53.0 mm) |
