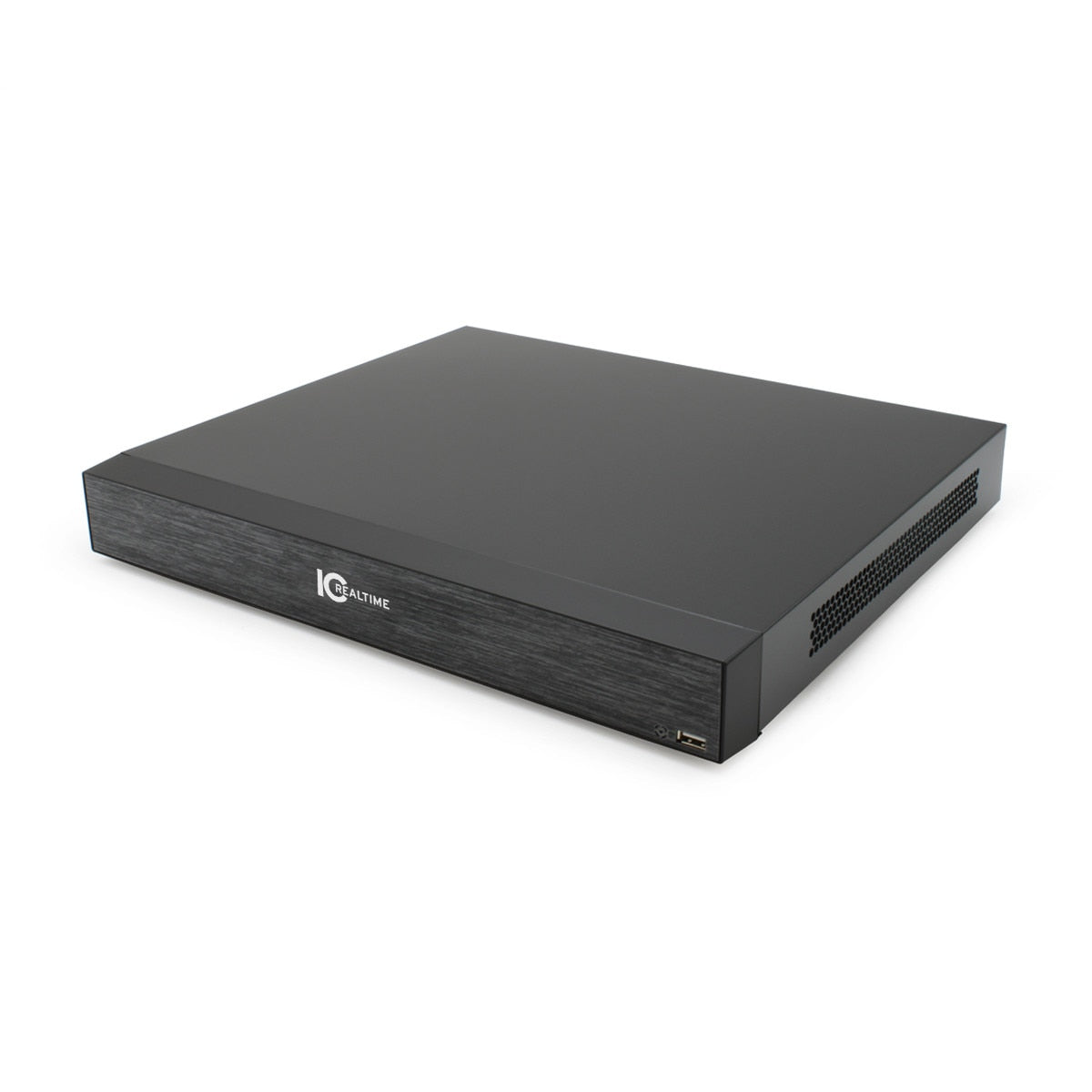

IC Realtime NVR-MX16POE-1U16MP1 8 Channel 1U PoE Network Video Recorder

NVR-MX16POE-1U16MP1 is a compact yet sophisticated NVR with a built-in 16-port PoE switch embedded on its rear panel. This eliminates the need for a separate POE camera switch, saving money and rack space.

EASY SETUP
MX series NVRs are built to be easy to install. They are both AI smart and easily human accessible, thanks to IC Realtime’s ICR 4.0 O/S with a redesigned GUI interface that makes them easy to navigate and configure. And by embracing P2P network connectivity and automatic new camera initialization, setting up a camera system with NVR-MX16POE-1U16MP1 is “plug and play” easy.

UP TO 32TB ONBOARD & ULTRA SECURE
Up to two 16TB HDDs can be installed inside NVR-MX16POE-1U16MP1 for maximum storage. Regarding security, like all IC Realtime cameras & recorders, NVR-MX16POE is designed to defeat cyber threats by using multiple layers of authorizations & password protections to ensure device & network security. All network traffic is encrypted in both directions to a point where our gear now meets the newest network UL CAP certification standards. The MX series takes it a step further by automatically configuring to meet today's threats & enabling an updateable cybersecurity regime as they are installed.

CAMERAS UP TO 16MP + 4K HDMI
All MX series NVRs use Smart H.265+ video encoding, our version of High-Efficiency Video Coding (HEVC) that uses an AI-based video compression scheme. This H.265 and AI combo reduces bit rates up to 90% compared with standard H.264 for maximum stream speed. These smart NVRS are also backward compatible with H.264 & ONVIF 22.06 (Profile T; Profile S; Profile G); CGI; SDK and P2P compliant to handle previously installed cameras.

AN NVR AS SMART AS OUR CAMERAS
IC Realtime FlexSmart Ai cameras with advanced IVS (Intelligent Video System) and our metadata streaming iMD 2.0 (Intelligent Motion Detection) cameras mean Object Search capabilities are supported on all 16 channels. NVR-MX16POE-1U16MP1 will work with FlexSmartAi cameras to recognize features like camera-based tripwire, intrusion, advanced IVS perimeter protection, heat map and abandoned / missing object detection, and AI-enhanced smart motion detection. It will dependably recognize motor vehicles and humans to reduce false alerts and speed searches.

THE PROFESSIONAL'S BEST 16 CHANNEL CHOICE
Commercial-grade to the core, NVR-MX16POE-1U16MP1 now offers a built-in POE with bridge mode, allowing third-party cameras to be addressed over the local network or even integrate with the top smart home systems yet still plug into the MX16's PoE ports. Alarm integration with 4 in/2 out ports, and 2-way talk is supported for gates & access control with a pair of RCA jacks. With simultaneous VGA and HDMI video outputs available on the backplane of the chassis next to the 16 port POE switch, the NVR will decode a wide range of camera resolutions, like up to 2 channels of 16 MP@30 fps, 4 channels of 8 MP/4K @30 fps, and will do 1080p@30 fps on all 16 channels for HDMI output for local monitoring and of course work flawlessly with IC Realtime's new IC View+ mobile app.

With our 10-Year Limited Warranty and excellent iCare customer service, the new NVR-MX16POE-1U16MP1 is clearly the best solution for your next IP camera installation or system upgrade.
