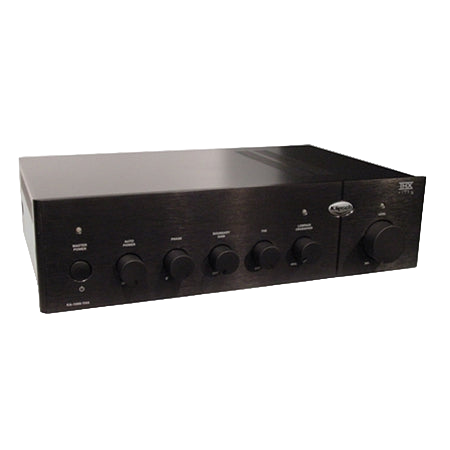

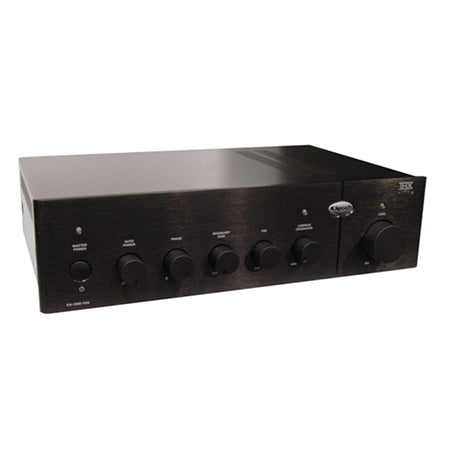

Klipsch KA-1000-THX THX Ultra2 Subwoofer Amplifier

Designed exclusively for use with Klipsch
KW-120-THX subwoofers, the KA-1000-THX
is a THX Ultra2 certified monoblock power
amplifier capable of 500 watts continuous
output into 8 ohms (a single KW-120-THX
subwoofer, for example) or 1,000 watts
continuous into 4 ohms (two parallelconnected
KW-120-THXs). It incorporates
front-panel controls for level, crossover
frequency, phase, and room-gain compensation.
The crossover can be bypassed to feed the
amplifier directly from the subwoofer output
of an A/V preamplifier, processor, or receiver.
Line-level input and output connections are via
gold-plated left/right RCA jacks. The amplifier
has two parallel-wired speaker outputs with
NL2 SpeakOn™ jacks for correct, secure cable
connections.
Convenience features include a selectable
signal-sensing auto-on/off circuit, a front-panel
main power switch and LED status indicators
for crossover and level control operation.
Matching the look of Aragon home-theater
components, the KA-1000-THX has a blackanodized,
grained-aluminum front panel with
aluminum control knobs. Premium electronic
components are used throughout for sonic
purity and reliability.
1,000-Wa tt THX Ultra2 Certified Subwoofer Amplifier
S P E C I F I C A T I O N S
FREQUENCY RESPONSE 20Hz-1kHz +0/-3dB
ENCLOSURE TYPE Use only with KW-120-THX subwoofer
enclosures (either one or two)
AMPLIFIER High-Efficiency Class D
AMPLIFIER POWER FTC Rated Power: 500W into 8 ohms,
1000W into 4 ohms, 20Hz-1kHz @ <1.5% THD
Dynamic Power: 2050W into 8 ohms,
3025W into 4 ohms @ 5% THD
AUTO POWER ON 2 second ON delay, 15 minute OFF delay
LOW PASS CROSSOVER Continuously variable from 40-120Hz,
24dB/octave slope above 120Hz
(non-THX mode)
INPUTS 2 Gold-plated RCA phono jacks
OUTPUTS 2 Gold-plated RCA phono jacks (unfiltered) /
2 Speakon® NL2 jacks
PHASE Continuously variable from 0 to 180 degrees
DIMENSIONS 4.75" (12.1cm) H x 17.5" (44.5cm) W x
12.25" (31.1cm) D
WEIGHT 27 lbs. (12.3kg)
FINISH Black anodized aluminum
VOLTAGE 110/120 VAC 60Hz
EXPORT VOLTAGE 230 VAC 50/60Hz
FEATURES THX On/Off, Boundary Gain
Compensation On/Off
