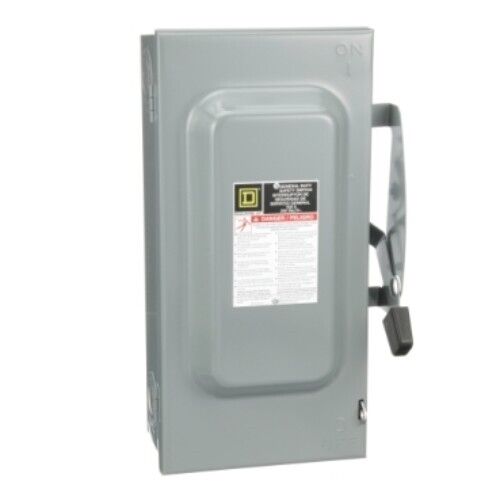

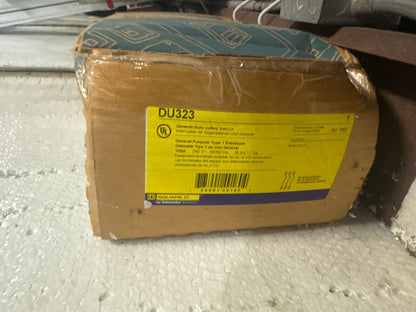

Square D DU323 Safety Switch 100A 3 Pole 30HP 240VAC Non Fusible NEMA 1
Square D DU323 Safety Switch 100A 3 Pole 30HP 240VAC Non Fusible NEMA 1
Regular price
$450.00 USD
Regular price
Sale price
$450.00 USD
Unit price
/
per
Couldn't load pickup availability
Description
arrow2_down
General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 100A with a NEMA 1 degree of protection. This non-fusible disconnect switch comes with no neutral. This general duty switch is a 3-pole, 240VAC has a short curcuit rating of 100kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 14 AWG 1, copper & AWG 12 AWG 1, aluminium. This switch is certified to UL standards Dinemsions for this product are 17.5 in (H), 10.5 in (W), 6.5 in (D). General Duty safety switchs come with an 18 months warranty.
Read less
Specifications
arrow2_down
| Product | Single Throw Safety Switch |
|---|---|
| Duty Rating | General duty |
| Device Application | Residential |
| Disconnect Type | Non-fusible disconnect switch |
| Factory Installed Neutral | None |
| Phase | 3 phase |
| Number of Poles | 3 |
| Current Rating | 100 A |
| Voltage Rating | 240 V AC |
| Enclosure Rating NEMA | NEMA 1 |
| Motor power hp | 15 hp at 240 V AC 60 Hz for 1 phase motors 30 hp at 240 V AC 60 Hz for 3 phase motors |
| Mounting Type | Surface |
|---|---|
| Electrical Connection | Lugs |
| Wiring configuration | 3-wire |
| Wire Size | AWG 14...AWG 1 copper AWG 12...AWG 1 aluminium |
| Tightening torque | 35 lbf.in (4.0 N.m) 0.003…0.008 in² (2.08…5.26 mm²) (AWG 14...AWG 10) 35 lbf.in (4.0 N.m) (AWG 14...AWG 10) 40 lbf.in (4.5 N.m) 0.01 in² (8.37 mm²) (AWG 8) 45 lbf.in (5.08 N.m) 0.02…0.03 in² (12.3…21.12 mm²) (AWG 6...AWG 4) 50 lbf.in (5.6 N.m) (AWG 3...AWG 1) |
| Depth | 6.5 in (165.1 mm) |
| Width | 10.5 in (266.7 mm) |
| Height | 17.5 in (444.5 mm) |
| Net Weight | 15.4 lb(US) (7 kg) |
